Rear Object Alarm Module Switch Replacement (Tahoe/Yukon)

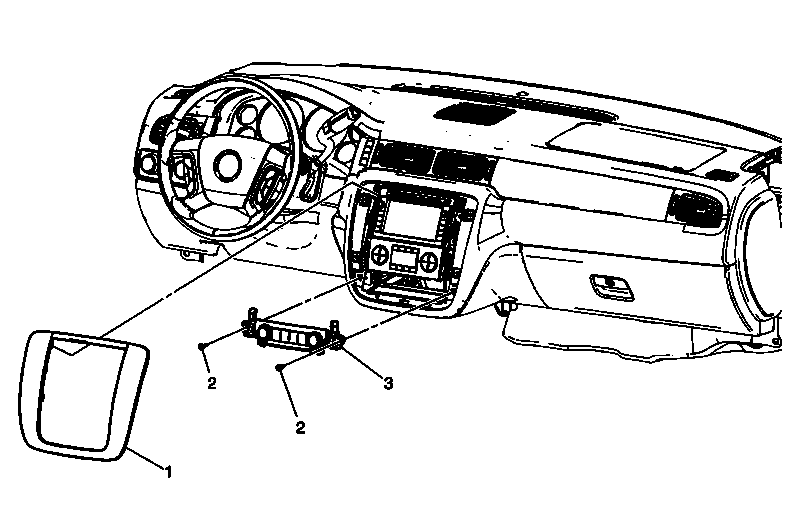

| Callout | Component Name |
|---|---|
| 1 | Instrument Panel Accessory Trim Plate Refer to Instrument Panel Accessory Trim Plate Replacement (Cadillac) or Instrument Panel Accessory Trim Plate Replacement (Except Cadillac) . |
| 2 | Instrument Panel Accessory Switch Screws (Qty: 2)
CAUTION:
Refer to Fastener Caution
.
Tighten: 2 N.m (18 lb in) |
| 3 | Instrument Panel Accessory Switch Assembly Tip: Disconnect the electrical connector. |
