Remote Function Schematics

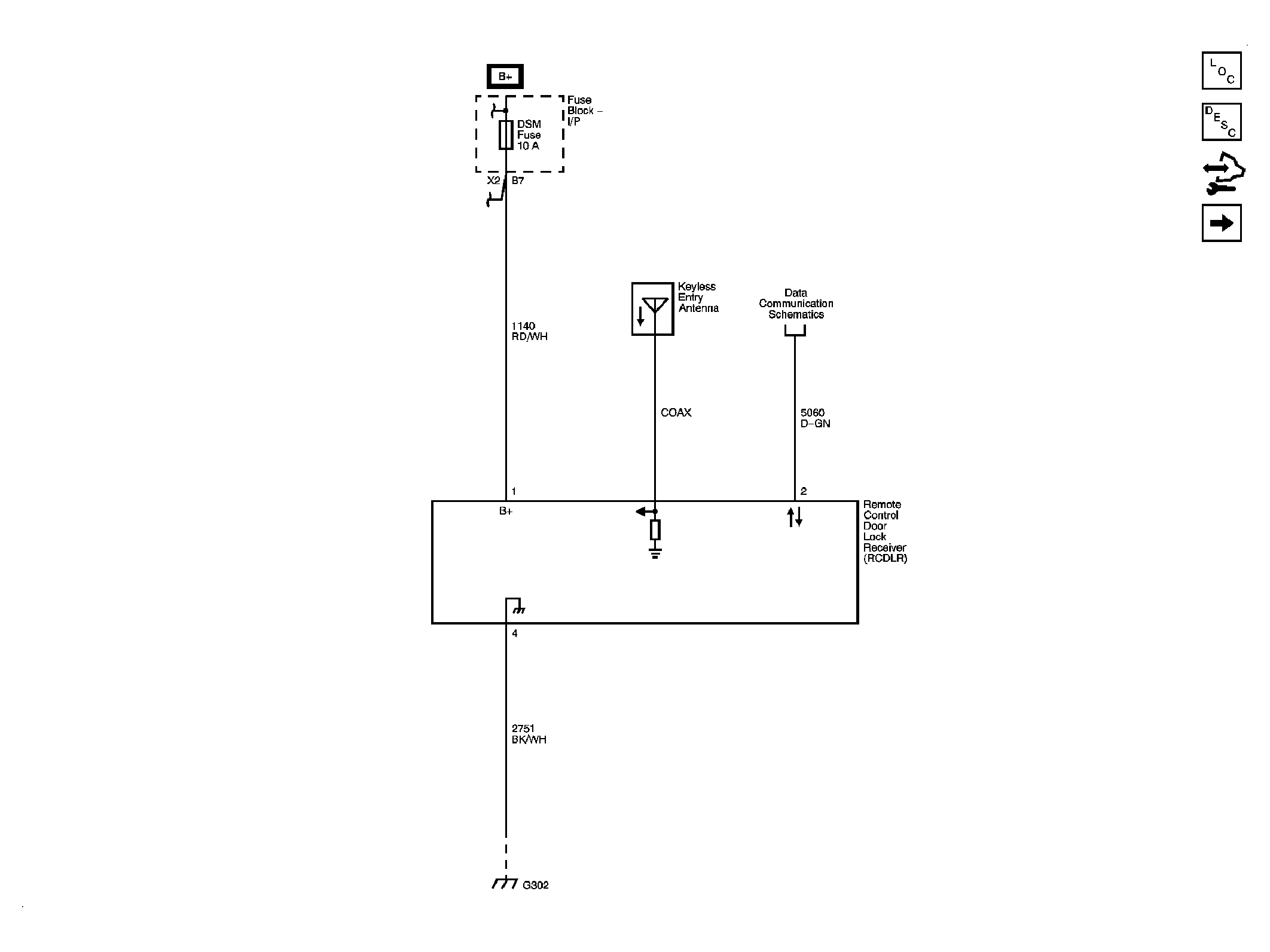

Fig 1: Keyless Entry
GM2075582Courtesy of GENERAL MOTORS CORP.

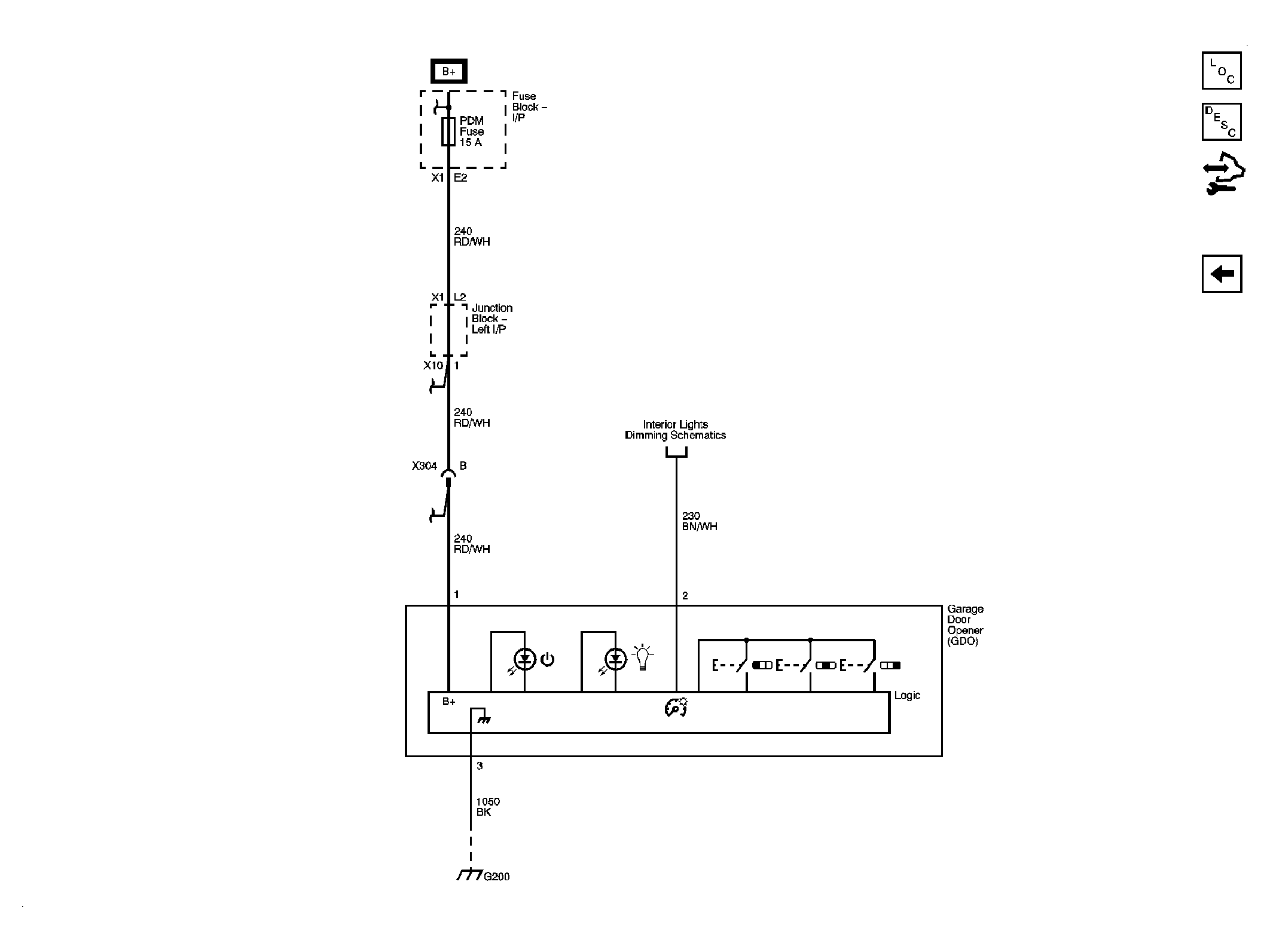

Fig 2: Garage Door Opener
GM2075579Courtesy of GENERAL MOTORS CORP.
