Air Cleaner Assembly Replacement

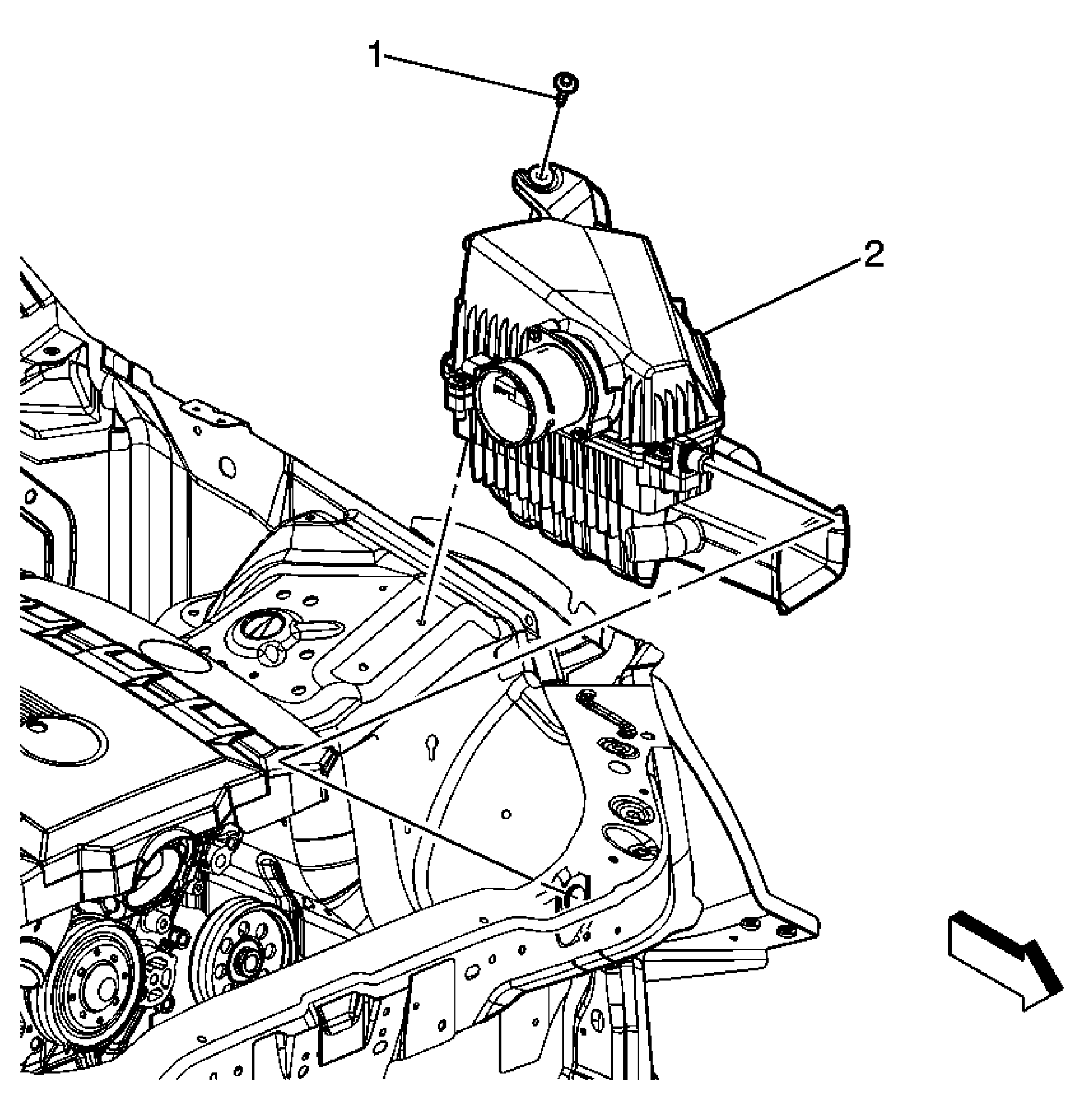

Fig 1: Identifying Air Cleaner Assembly
GM1981527Courtesy of GENERAL MOTORS CORP.
Callout Component Name

Preliminary Procedures

  1. Remove the sight shield. Refer to Front Compartment Side Sight Shield Replacement .
  2. Remove the air cleaner duct. Refer to Air Cleaner Resonator Outlet Duct Replacement .
  3. Disconnect the MAF/IAT sensor electrical connector.
1 Bolt
CAUTION: Refer to Fastener Caution .

Tighten:  9 N.m (80 lb in)
2 Air Cleaner Assembly

Procedure

  1. Disconnect the electrical connector.
  2. Tilt the assembly rear upward while disengaging the air cleaner isolator.
