Removal Procedure

  1. Remove the closeout/insulator panel. Refer to Instrument Panel Insulator Replacement - Left Side (Left Hand Drive) or Instrument Panel Insulator Replacement - Left Side (Right Hand Drive) .

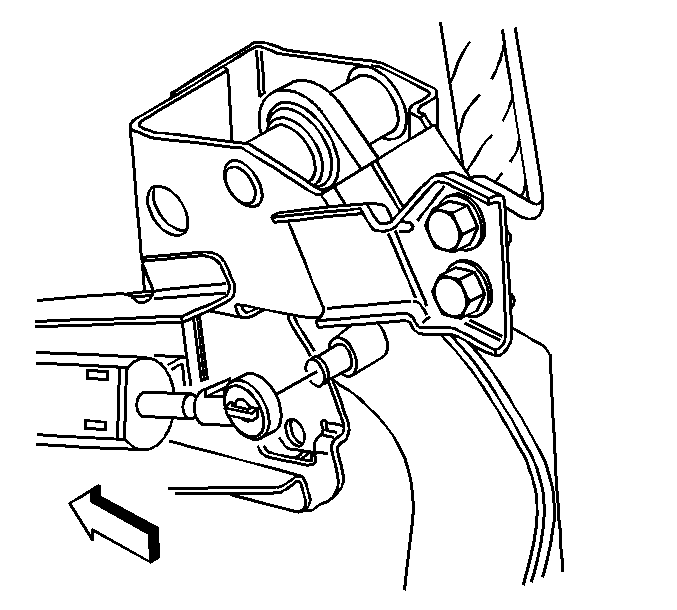

    2. Fig 1: View Of Clutch Master Cylinder Push Rod
    GM802760Courtesy of GENERAL MOTORS CORP.
  2. Disconnect the clutch master cylinder push rod from the clutch pedal pin.

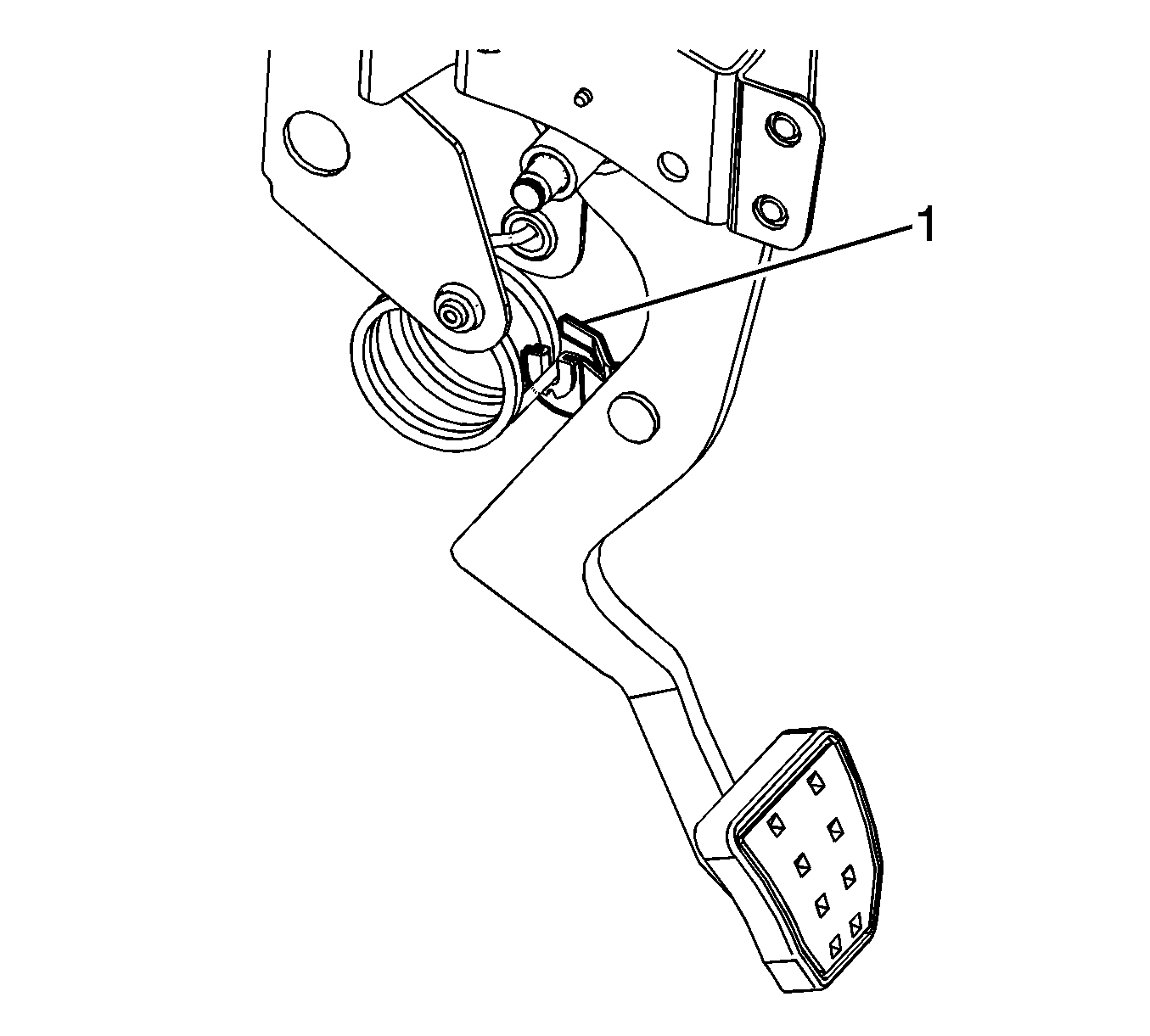

    3. Fig 2: Locating Clutch Spring Retaining Tab
    GM2048900Courtesy of GENERAL MOTORS CORP.
  3. Carefully bend the clutch spring retaining tab (1) to the side only far enough to provide clearance for clutch spring removal.

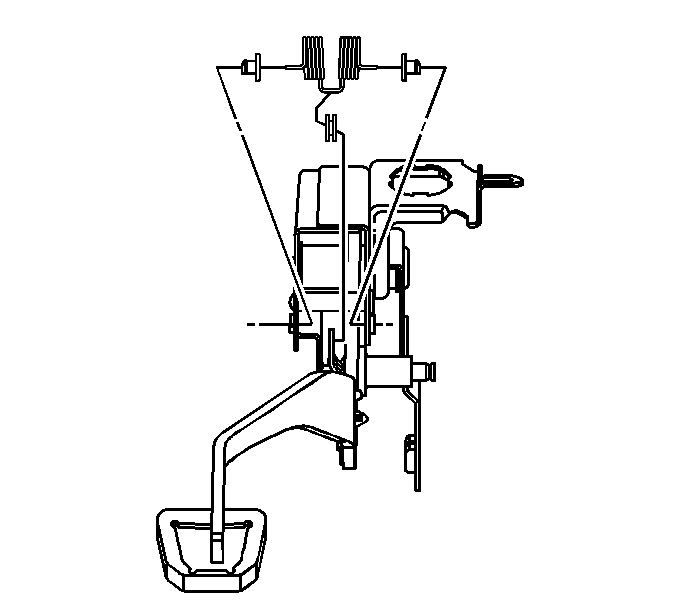

    4. Fig 3: Removing Clutch Pedal Return Spring From Clutch Pedal Assembly
    GM833836Courtesy of GENERAL MOTORS CORP.
  4. Remove the clutch pedal return spring from the clutch pedal assembly as follows:
    1. Remove the center of the spring from the center spring bushing.
    2. Remove the outer ears of the spring from the outer spring bushings.
  5. Remove the clutch pedal return spring bushings from the clutch pedal assembly.
