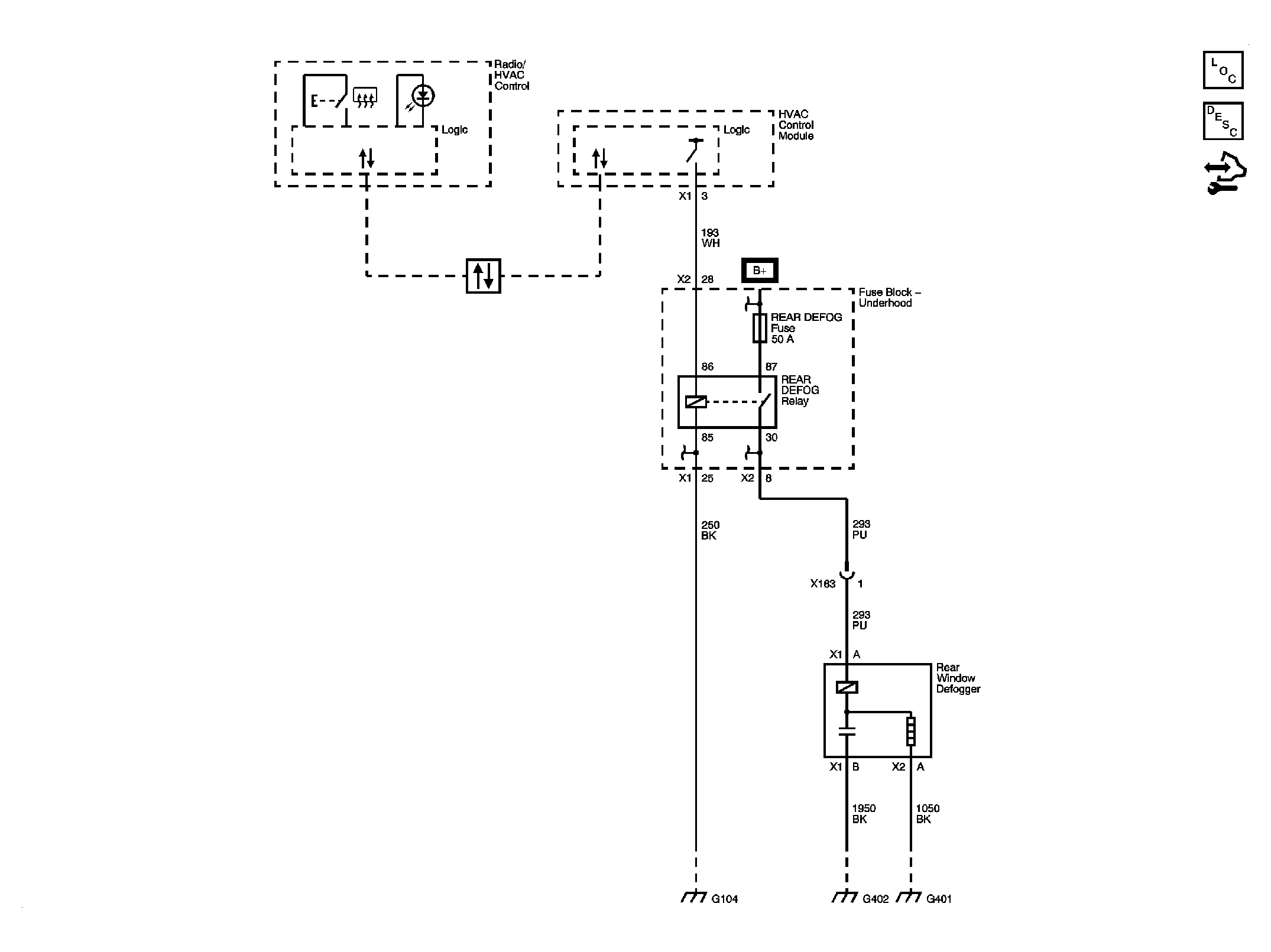

Home >> Cadillac >> 2009 >> CTS Base, 3.6 V, RWD, Standard >> Repair and Diagnosis >> Body & Frame >> Windows >> Fixed And MOVEABLE Window System >> Schematic and Routing Diagrams >> Defogger Schematics
