Installation Procedure

    Fig 1: Identifying Crankshaft Position (CKP) Sensor
    GM1311144Courtesy of GENERAL MOTORS CORP.
  1. Install the crankshaft position sensor.
    2. CAUTION: Refer to Fastener Caution .
  2. Install the crankshaft position sensor bolt and tighten to 10 N.m (89 lb in).

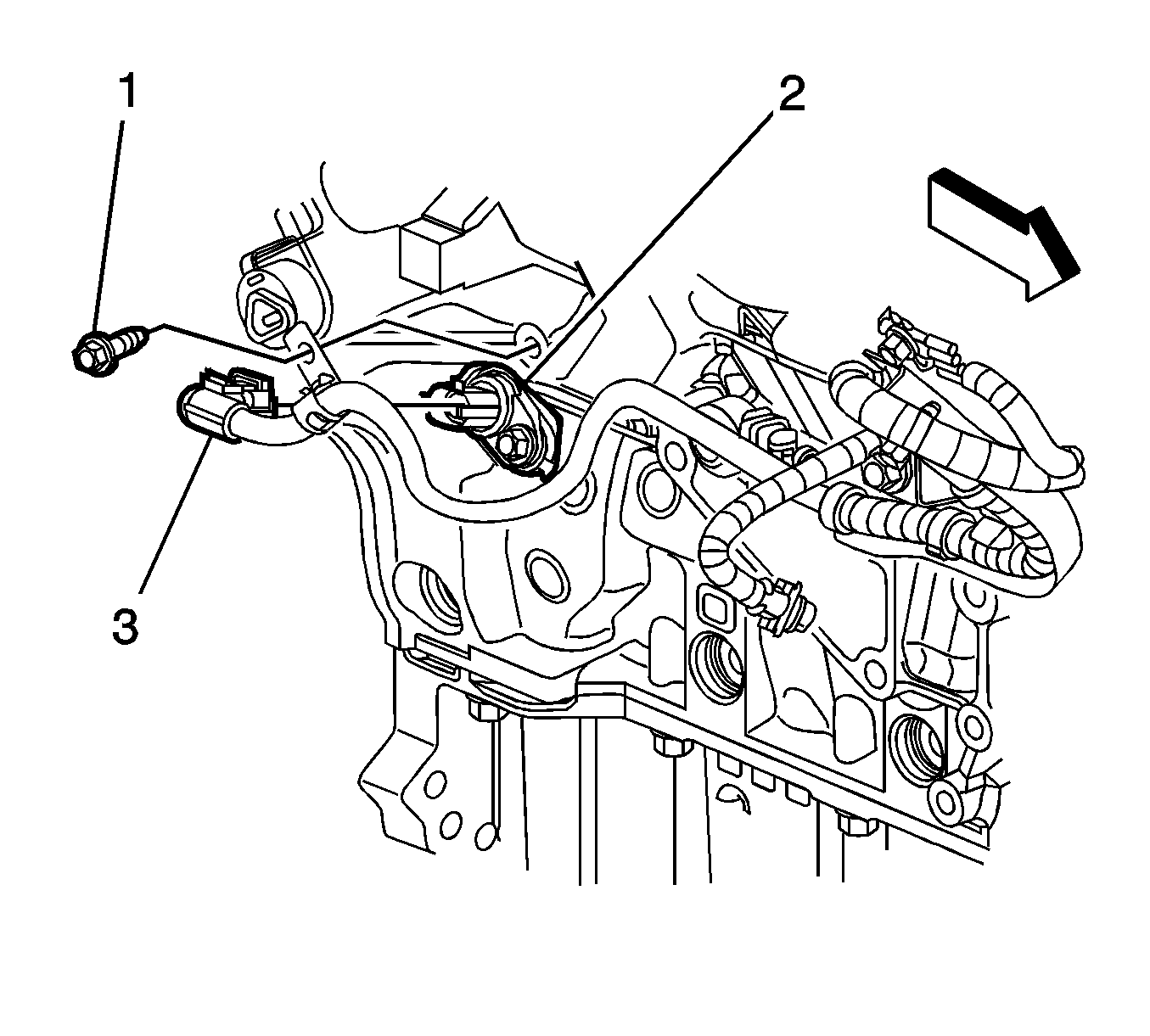

    3. Fig 2: Locating CKP Electrical Connector
    GM887868Courtesy of GENERAL MOTORS CORP.
  3. Connect the CKP electrical connector (3).

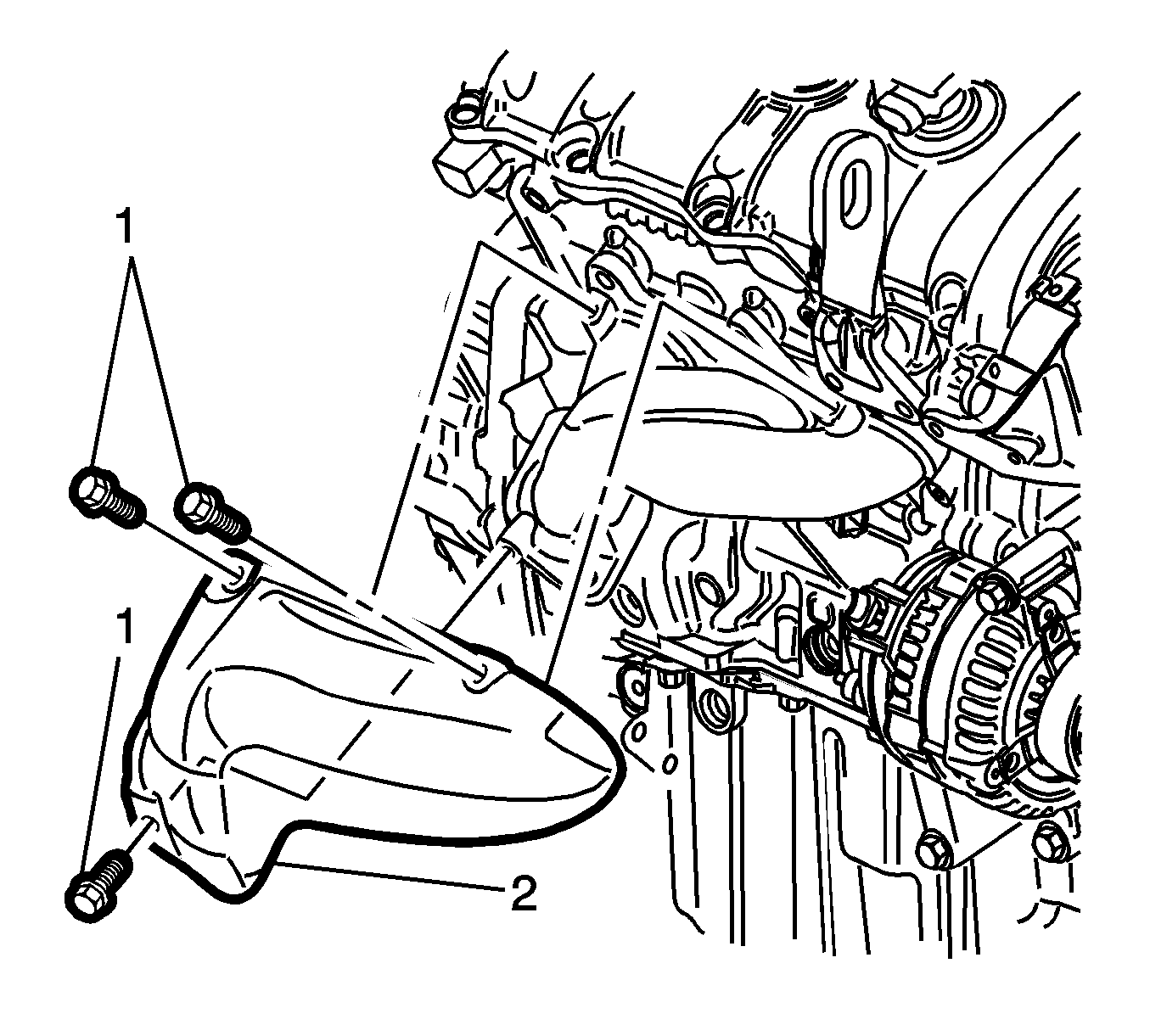

    4. Fig 3: View Of Right Exhaust Manifold Heat Shield
    GM945964Courtesy of GENERAL MOTORS CORP.
  4. Install the exhaust manifold heat shield and tighten to 10 N.m (89 lb in).
  5. Lower the vehicle.
