Electronic Compass Module Replacement

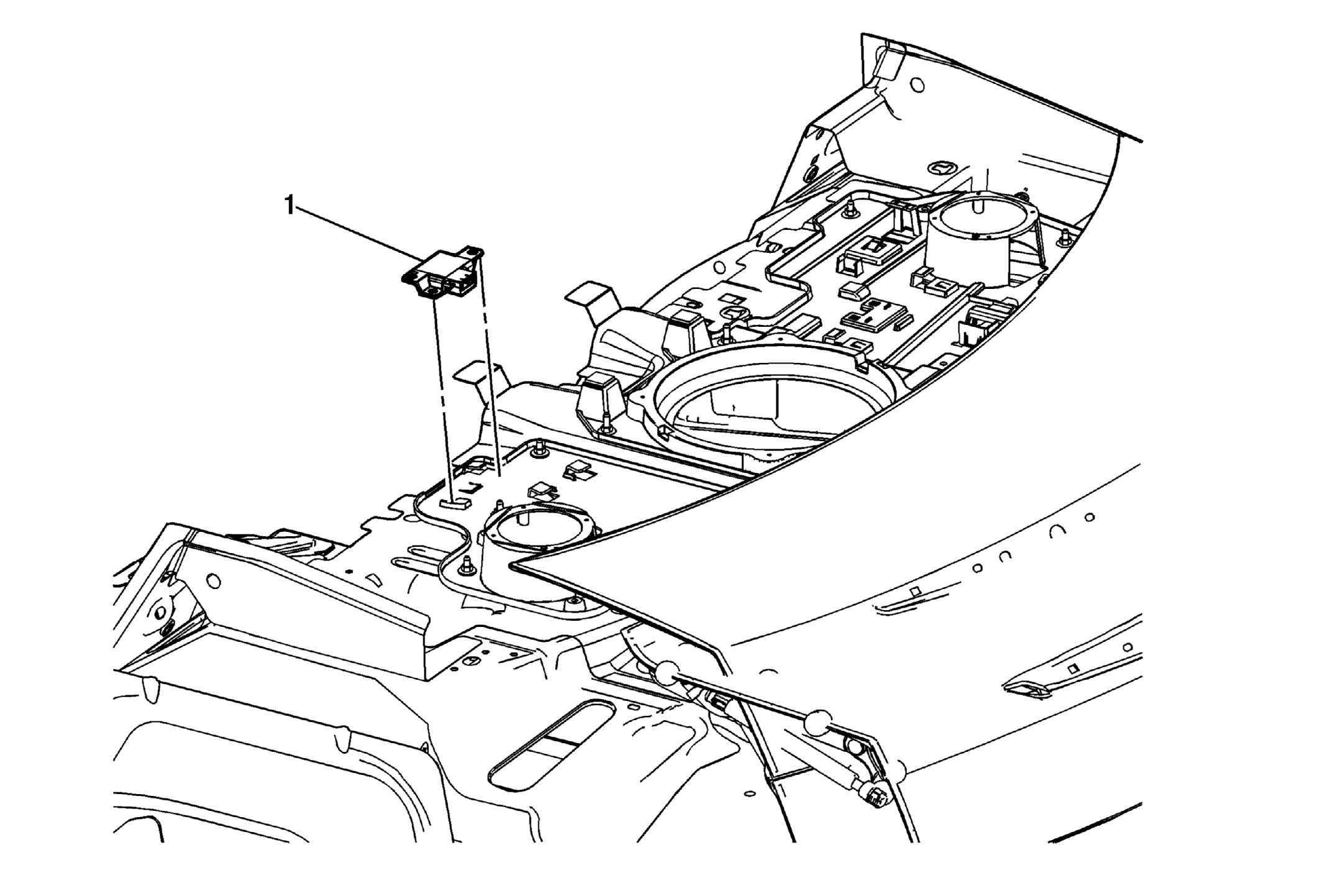

Fig 1: Identifying Electronic Compass Module
GM1968550Courtesy of GENERAL MOTORS CORP.
Callout Component Name
Preliminary Procedure:
Remove the rear window shelf trim panel. Refer to Rear Window Panel Trim Replacement .
1 Electronic Compass Module

Procedure

  1. Disconnect the electrical connectors.
  2. For programming and set up information, refer to Control Module References .
  3. Unsnap the electronic compass module from the panel.
