Battery Negative Cable Disconnection and Connection

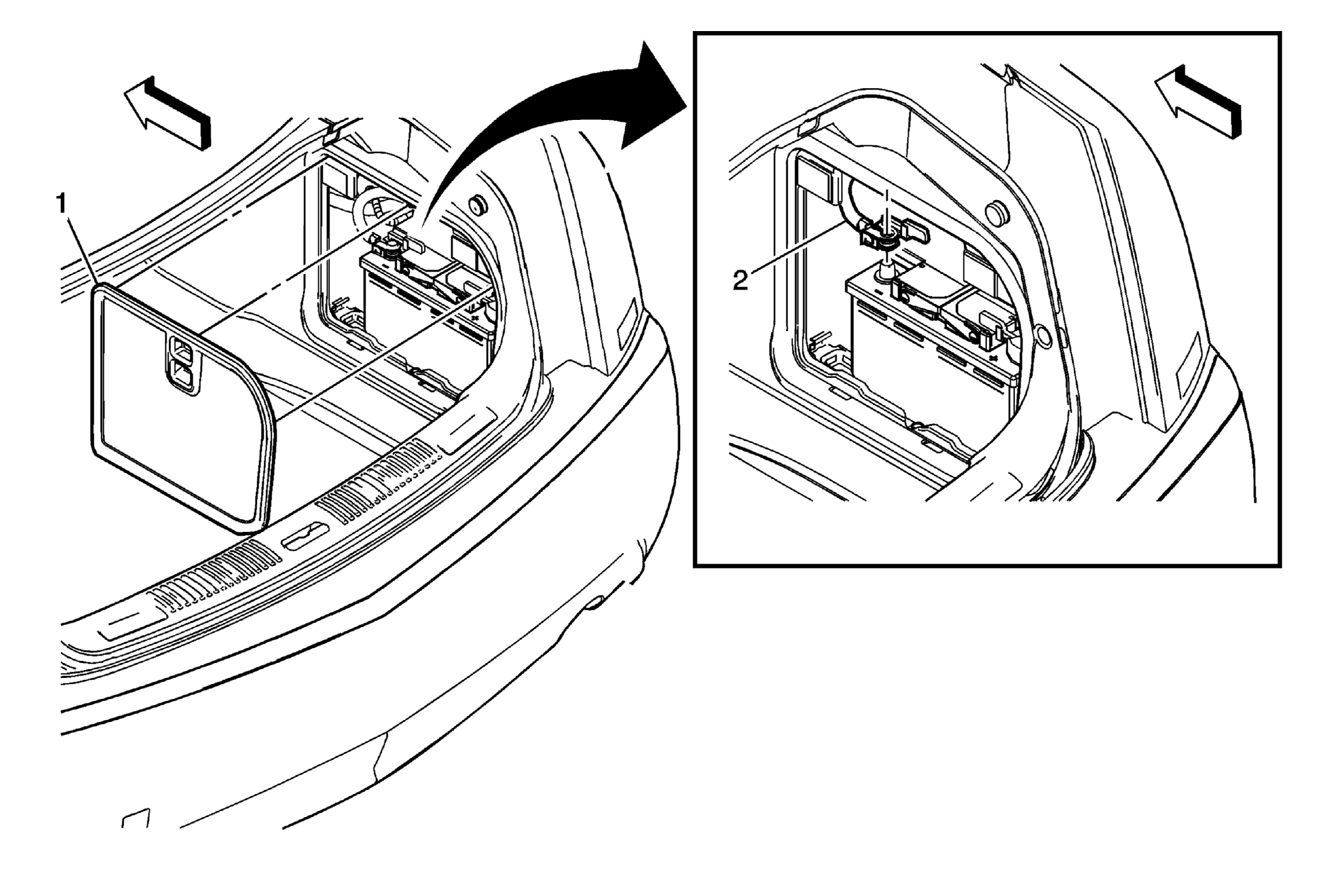

Fig 1: Identifying Battery Negative Cable

GM2005946

Courtesy of GENERAL MOTORS CORP.

Callout

Component Name

1

Rear Compartment Side Trim Panel Door

2

Battery Negative Cable

Procedure

Turn the battery negative cable handle to release the clamping force on the battery negative post.
To disconnect, pull the battery negative cable off of the battery negative post.
When connecting, ensure the battery negative cable is seated properly before turning the battery negative cable handle.
