Ignition Lock Cylinder Replacement: Procedure

  1. Disconnect the battery negative cable. Refer to Battery Negative Cable Disconnection and Connection .
  2. Remove the steering column shroud. Refer to Steering Column Shroud Replacement (Without Key Release Lever Knob) or Steering Column Shroud Replacement (With Key Release Lever Knob) .

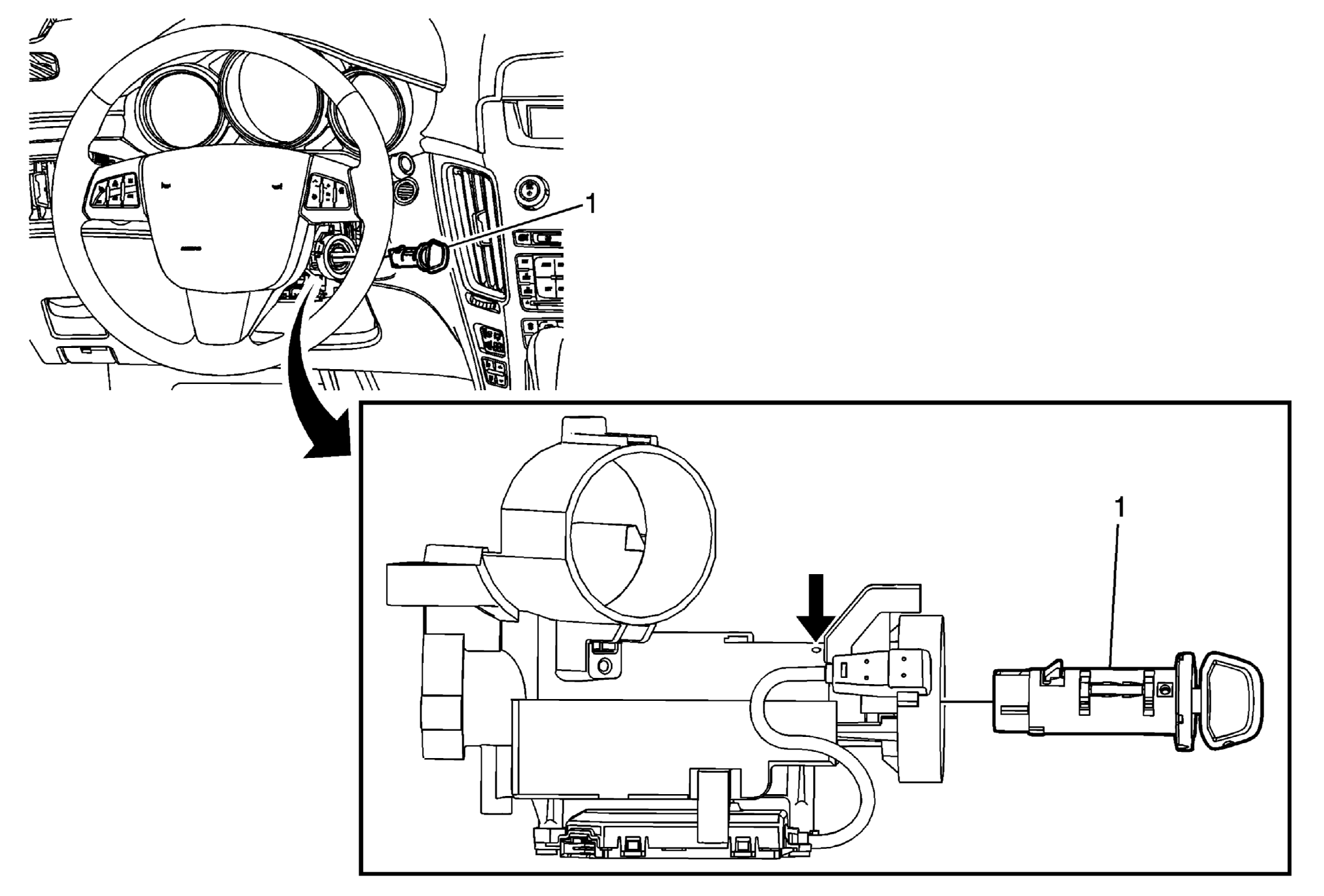

    3. Fig 1: Ignition Lock Cylinder
    GM2349811Courtesy of GENERAL MOTORS CORP.
  3. Turn the ignition lock cylinder to the RUN position.
  4. Push a pick-type tool into the access hole on the ignition and start switch housing and press the ignition lock cylinder lock tab down
  5. Pull the ignition lock cylinder out of the ignition and start switch housing
  6. If you are installing a new lock cylinder, code the lock cylinder. Refer to KEY AND LOCK CYLINDER CODING .
