Installation Procedure

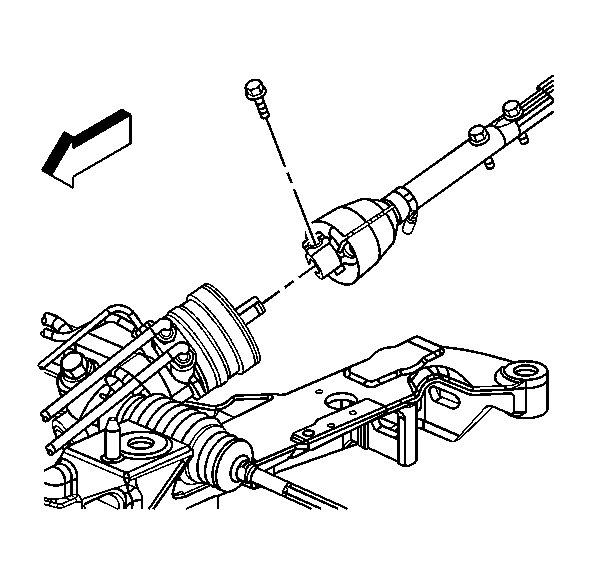

    Fig 1: Lower Coupling Pinch Bolt At Steering Gear
    GM908216Courtesy of GENERAL MOTORS CORP.
  1. Slide the lower intermediate shaft over the upper intermediate shaft.
  2. Connect the lower intermediate shaft coupler to the steering gear.
    3. NOTE: Refer to Fastener Notice .
  3. Install the lower coupling pinch bolt into the lower coupling.

    Tighten:  Tighten the bolt to 34 N.m (25 lb ft).

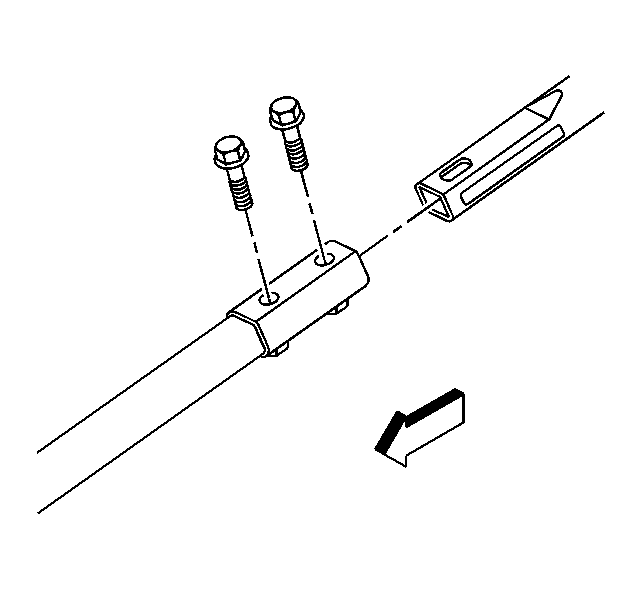

    4. Fig 2: View Of Steering Shaft & Bolts
    GM908202Courtesy of GENERAL MOTORS CORP.
  4. Install the lower to upper intermediate shafts retaining bolts.

    Tighten:  Tighten the bolts to 48 N.m (35 lb ft).

  5. Install the lower steering coupling shield.

    Tighten:  Tighten the lower steering coupling shield screw to 3.5 N.m (31 lb in).
