Installation Procedure

WARNING: This page is about a different car, the 2008 Cadillac SRX. However, it is still accessible from the selected car via links, so may be relevant.

Install the brake pedal assembly to the vehicle.

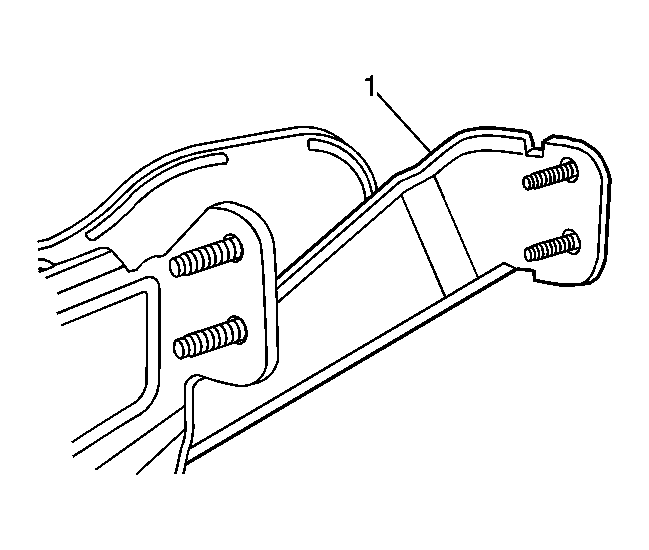

Fig 1: View Of Steering Column Support Bracket

GM1392552

Courtesy of GENERAL MOTORS CORP.

Install the steering column support bracket (1).

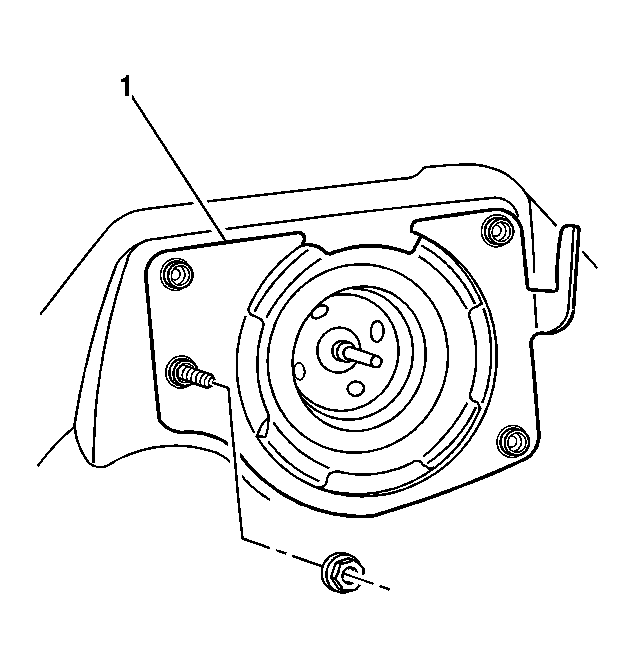

Fig 2: View Of Brake Booster Mounting Plate

GM1392551

Courtesy of GENERAL MOTORS CORP.

Install the vacuum brake booster mounting plate (1) to the cowl and brake pedal assembly.

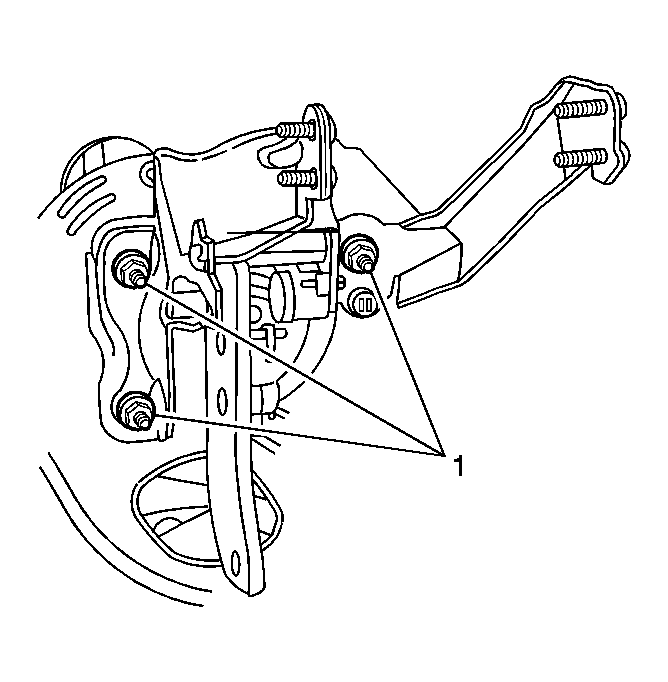

Fig 3: Locating Brake Pedal Assembly-To-Cowl Mounting Nuts

GM1392547

Courtesy of GENERAL MOTORS CORP.

NOTE: Refer to Fastener Notice .

Install the 3 brake pedal assembly to cowl mounting nuts (1).
Tighten: Tighten the nuts to 25 N.m (18 lb ft).

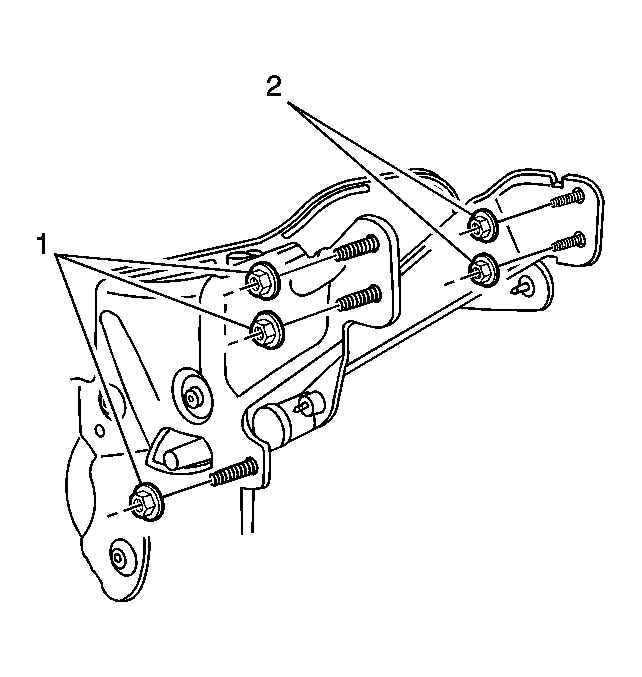

Fig 4: View Of I/P Carrier Mounting Nuts

GM1392549

Courtesy of GENERAL MOTORS CORP.

Install the 3 brake pedal assembly to I/P carrier mounting nuts (1).
Tighten: Tighten the nuts to 25 N.m (18 lb ft).
Install the steering column support bracket to brake booster mounting plate mounting nut (2).
Tighten: Tighten the nut to 25 N.m (18 lb ft).
Install the 2 steering column support bracket to I/P carrier mounting nuts (2).
Tighten: Tighten the nuts to 25 N.m (18 lb ft).

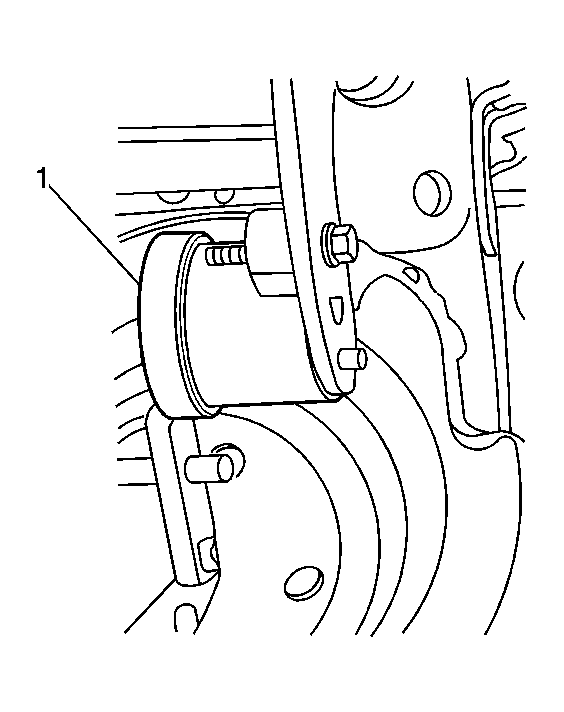

Fig 5: View Of BAS Electrical Connector

GM1392546

Courtesy of GENERAL MOTORS CORP.

Connect the electrical connector to the BAS (1).
Reposition and secure the steering column assembly. Refer to Steering Column Replacement .
Reposition and secure the park brake pedal assembly. Refer to Parking Brake Lever Pedal Assembly Replacement (LHD) or Parking Brake Lever Pedal Assembly Replacement (RHD) .
Install the vacuum brake booster. Refer to Power Vacuum Brake Booster Replacement (LHD) or Power Vacuum Brake Booster Replacement (RHD) .
Recalibrate the brake pedal position sensor. Refer to Brake Pedal Position Sensor Replacement .
