Installation Procedure

Fig 1: View Of Brake Fluid Pressure Sensor Connector & Nuts

Courtesy of GENERAL MOTORS CORP.

NOTE: Refer to Fastener Notice .

Place the BPMV in the bracket and tighten the 2 insulator nuts.
Tighten: Tighten the nuts to 12 N.m (106 lb in).

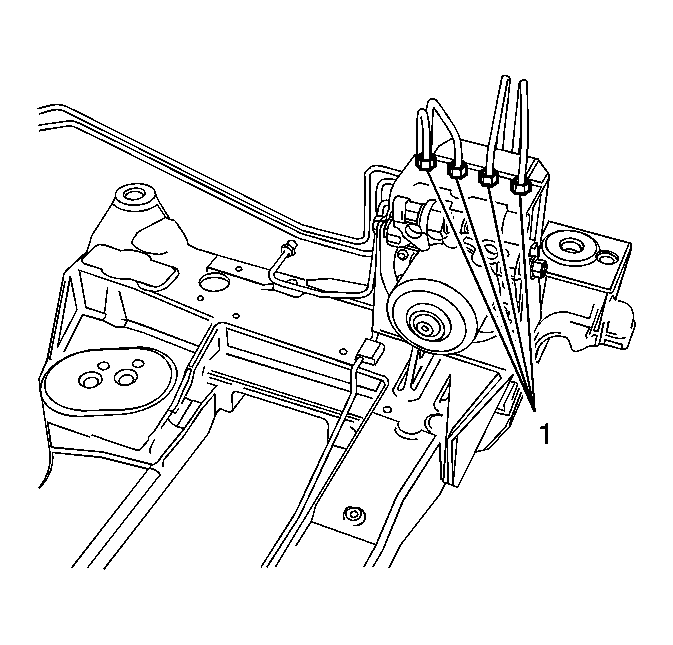

Fig 2: View Of Brake Pipe Locations

Courtesy of GENERAL MOTORS CORP.

Connect the brake pipes that enter the BPMV from the front and rear calipers (1).
Tighten: Tighten to 16 N.m (12 lb ft).

Fig 3: View Of Master Cylinder

Courtesy of GENERAL MOTORS CORP.

Connect the brake pipes that enter the BPMV from the master cylinder (1).
Tighten: Tighten to 16 N.m (12 lb ft).
Install the drive belt tensioner. Refer to Drive Belt Tensioner Replacement - Supercharger .
Connect the upper radiator hose. Refer to Radiator Inlet Hose Replacement .

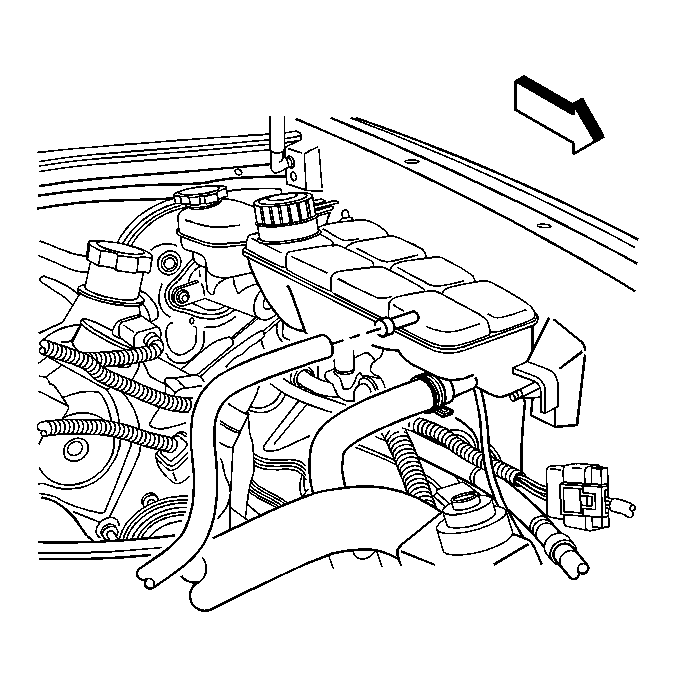

Fig 4: View Of Surge Tank Inlet Hose

Courtesy of GENERAL MOTORS CORP.

Connect the surge tank inlet hose. Refer to Radiator Surge Tank Inlet Hose/Pipe Replacement .
Install the intake manifold sight shield. Refer to Intake Manifold Sight Shield Replacement .
Fill the cooling system. Refer to Cooling System Draining and Filling (Static Fill) or Cooling System Draining and Filling (GE 47716) .
Connect the negative battery cable. Refer to Battery Negative Cable Disconnection and Connection .
Bleed the brake system. Refer to Hydraulic Brake System Bleeding (Manual) or Hydraulic Brake System Bleeding (Pressure) .
