Moveable Window Schematics
Moveable Window Schematics

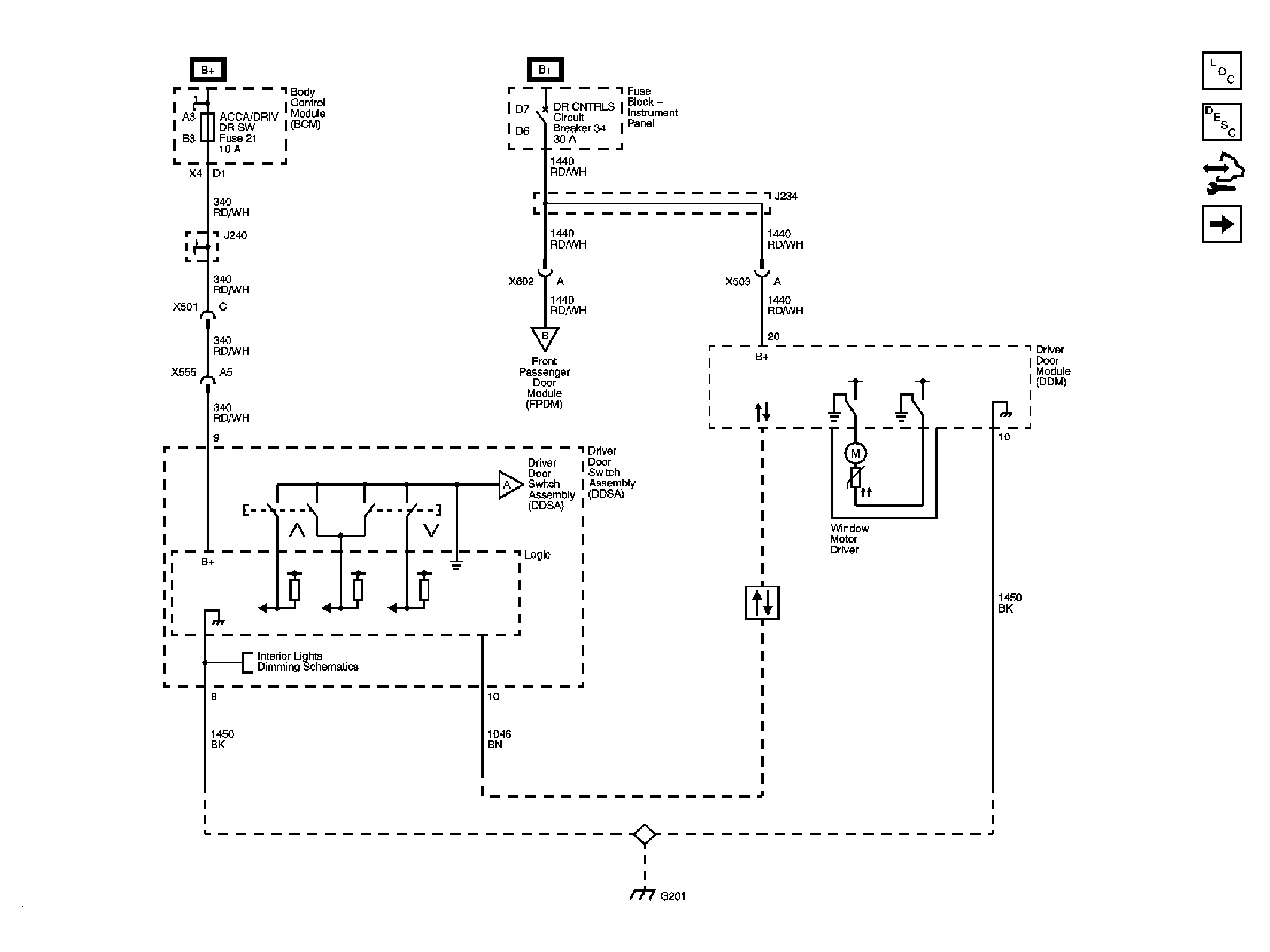

Fig 1: Driver
Courtesy of GENERAL MOTORS CORP.

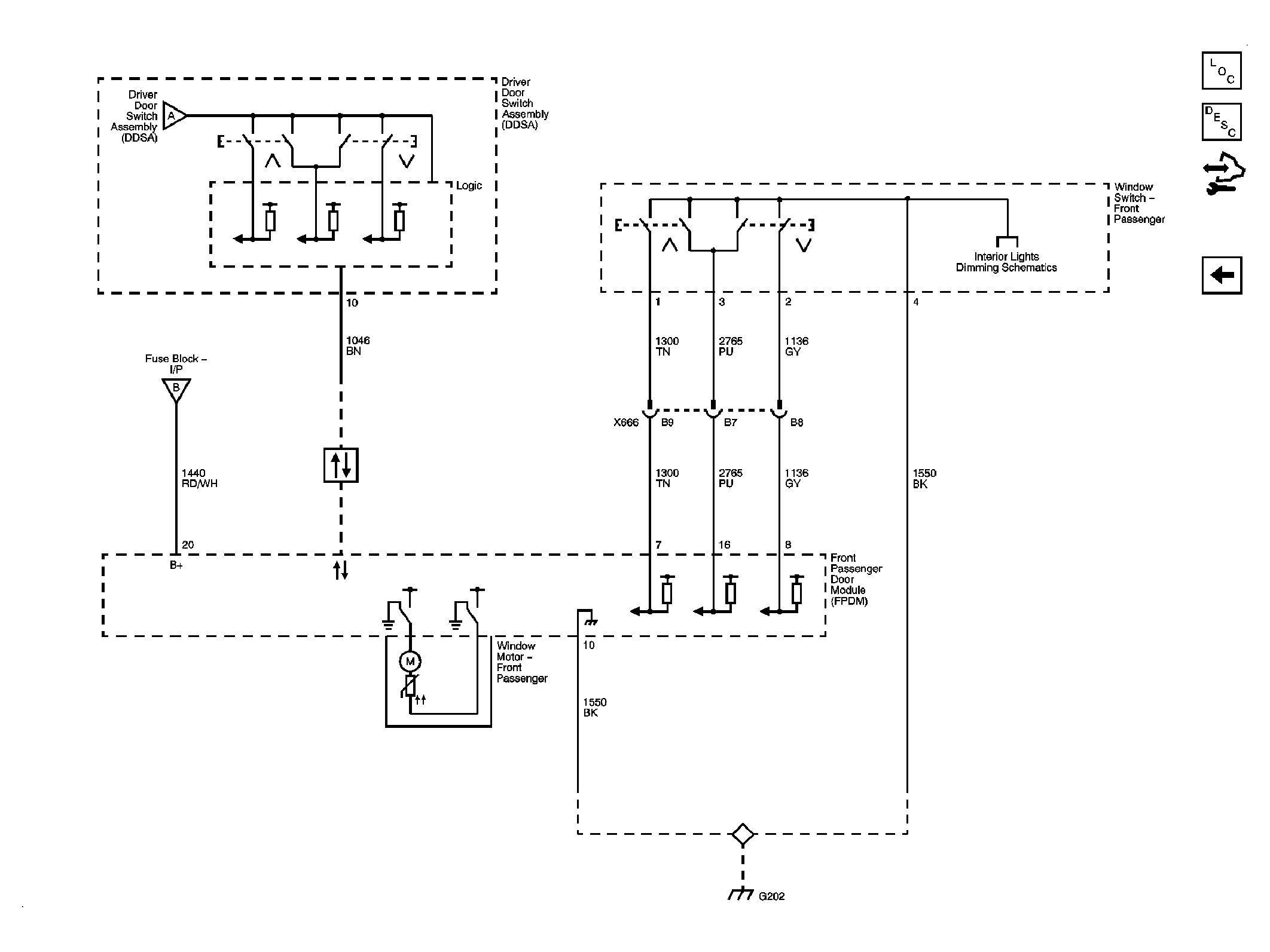

Fig 2: Passenger
Courtesy of GENERAL MOTORS CORP.
Courtesy of GENERAL MOTORS CORP.
Courtesy of GENERAL MOTORS CORP.
