Installation Procedure

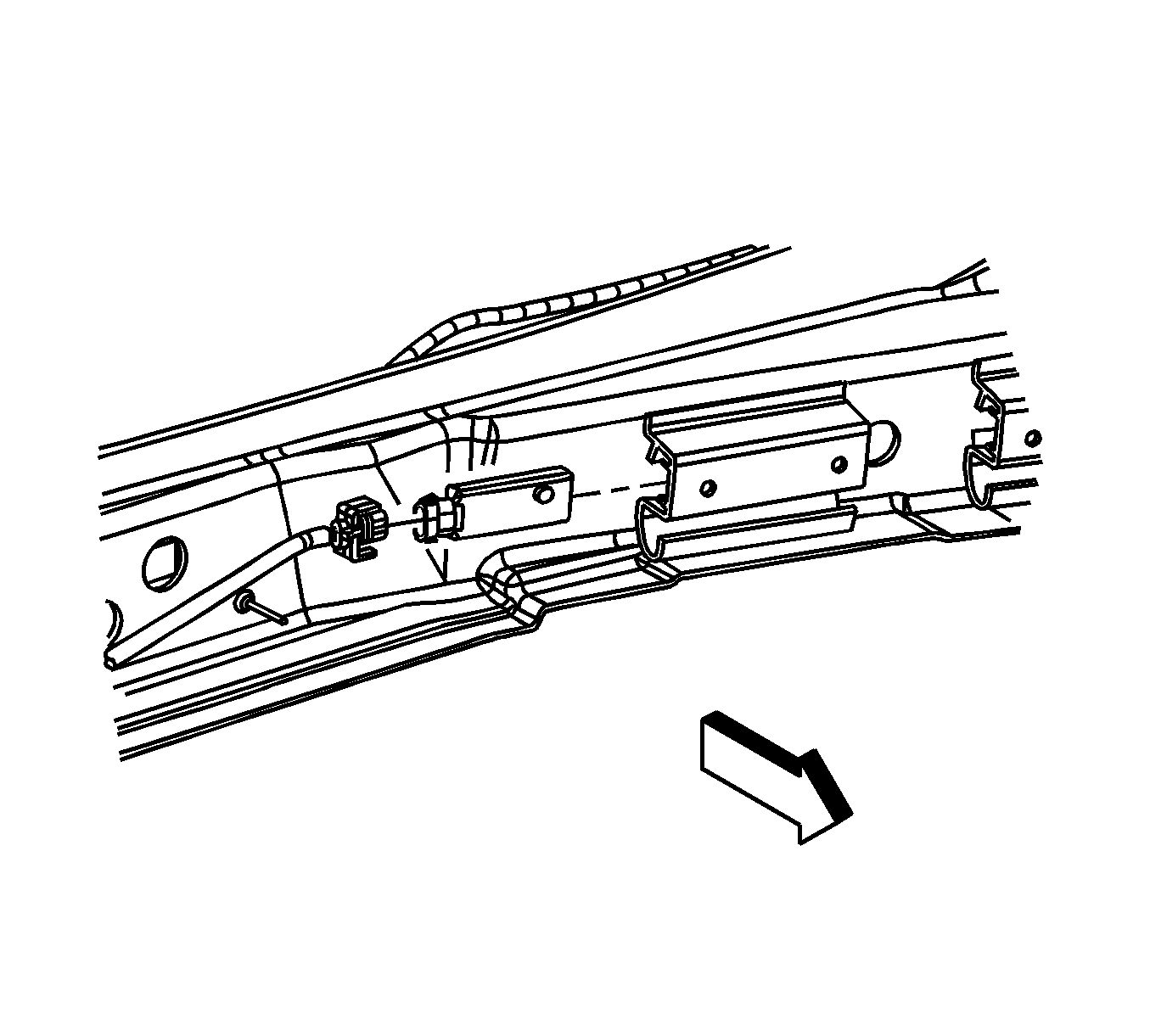

    Fig 1: View Of Rear Compartment Antenna & Bracket
    GM1231054Courtesy of GENERAL MOTORS CORP.
  1. Push on the antenna to engage the antenna to the retaining bracket.
  2. Connect the wire lead to the transmitter antenna.
  3. Install the rear compartment sill plate trim. Refer to Rear Compartment Sill Trim Plate Replacement .
  4. Close the rear compartment.
