Removal Procedure

WARNING: This page is about a different car, the 2007 Cadillac SRX. However, it is still accessible from the selected car via links, so may be relevant.
  1. Raise and support the vehicle. Refer to Lifting and Jacking the Vehicle .
  2. Remove the tire and wheel. Refer to Tire and Wheel Removal and Installation .

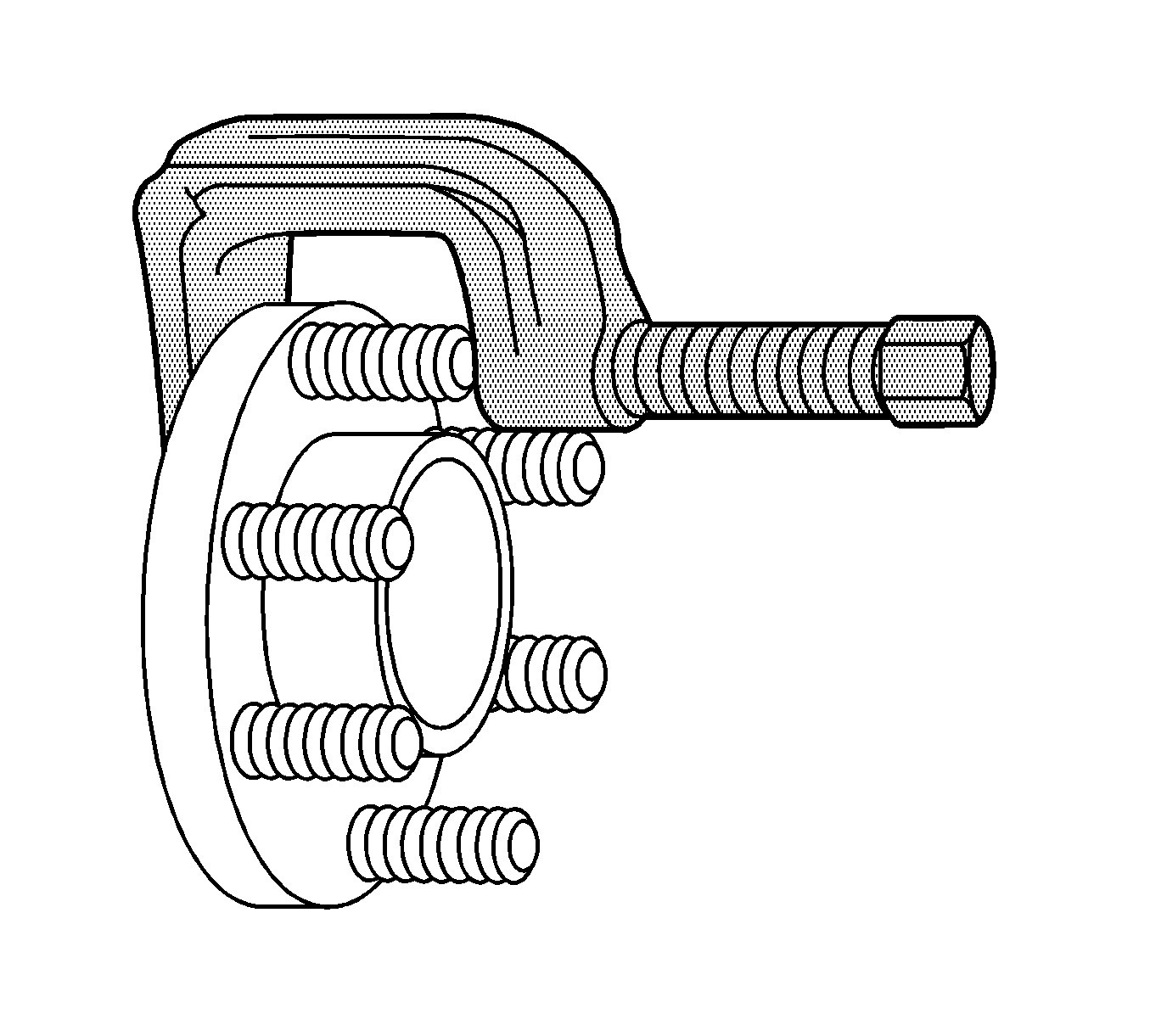

    3. Fig 1: Removing Wheel Stud At Inner Most Notch
    GM906784Courtesy of GENERAL MOTORS CORP.
  3. Remove the brake rotor. Refer to Front Brake Rotor Replacement .
  4. Using J 43631  remove the wheel stud at the inner most notch.
