Installation Procedure

WARNING: This page is about a different car, the 2007 Cadillac SRX. However, it is still accessible from the selected car via links, so may be relevant.

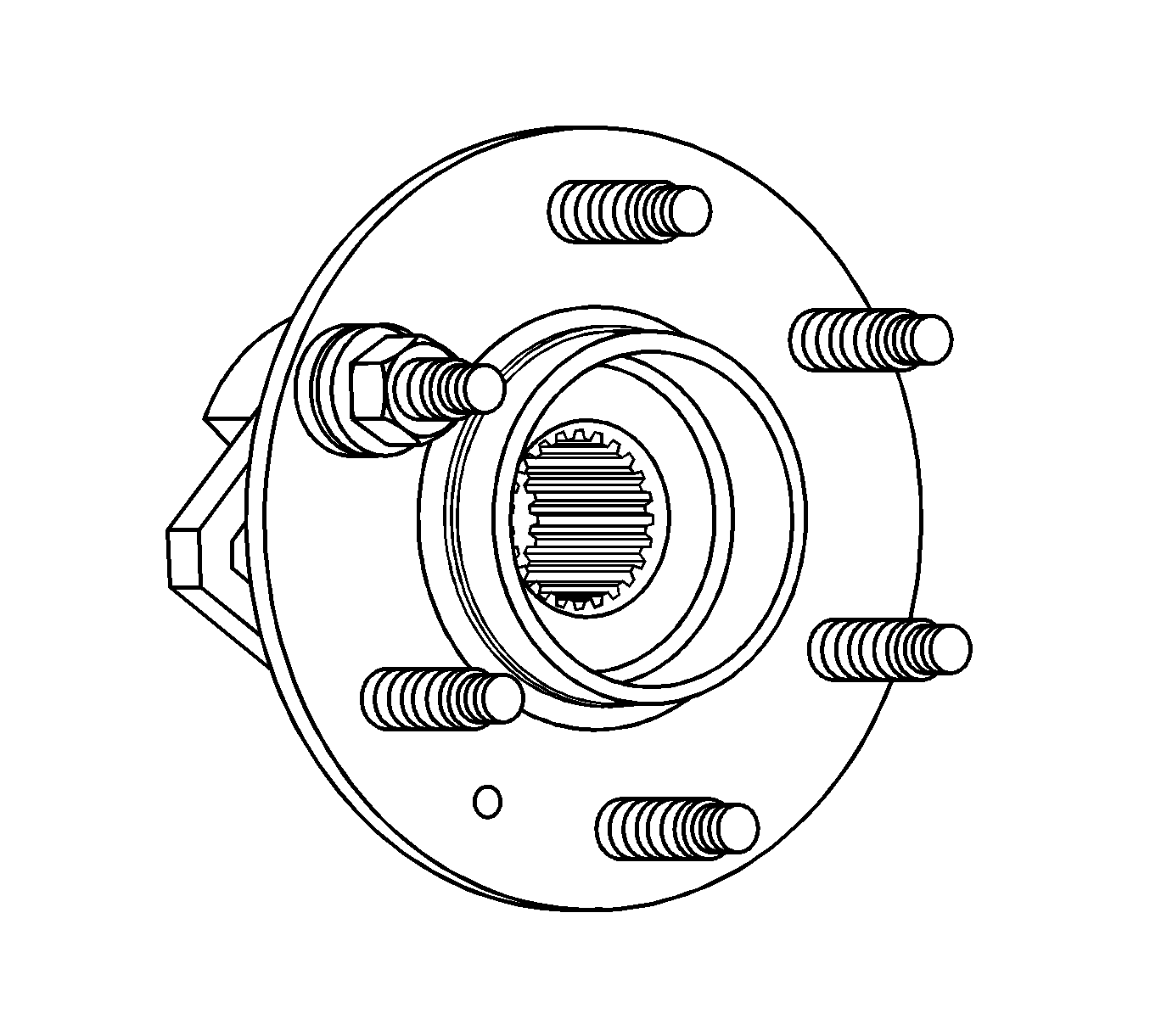

Fig 1: View Of Wheel Studs
GM906834Courtesy of GENERAL MOTORS CORP.
  1. Install the new stud from the back side of the hub.
  2. Install flat washers on the wheel stud.
    IMPORTANT: Ensure that the wheel stud is fully seated against the wheel hub flange.
  3. With the flat side of a wheel nut against the washers, tighten the wheel nut until the wheel stud head seats against the wheel hub flange.
  4. Install the brake rotor. Refer to Front Brake Rotor Replacement .
  5. Install the tire and wheel. Refer to Tire and Wheel Removal and Installation .

    Lower the vehicle.
