Installation Procedure

WARNING: This page is about a different car, the 2007 Cadillac SRX. However, it is still accessible from the selected car via links, so may be relevant.

Install the steering knuckle to the lower control arm ball stud.

Fig 1: View Of Lower Control Arm Ball Stud-To-Steering Knuckle Retaining Nut
Courtesy of GENERAL MOTORS CORP.
Install a new lower control arm ball stud retaining nut. Refer to Lower Control Arm Replacement .

Fig 2: View Of Upper Control Arm Ball Stud-To-Steering Knuckle Retaining Nut
Courtesy of GENERAL MOTORS CORP.
Install the upper control arm ball stud to the steering knuckle.
Install a new upper control arm ball stud retaining nut. Refer to Shock Module Replacement .

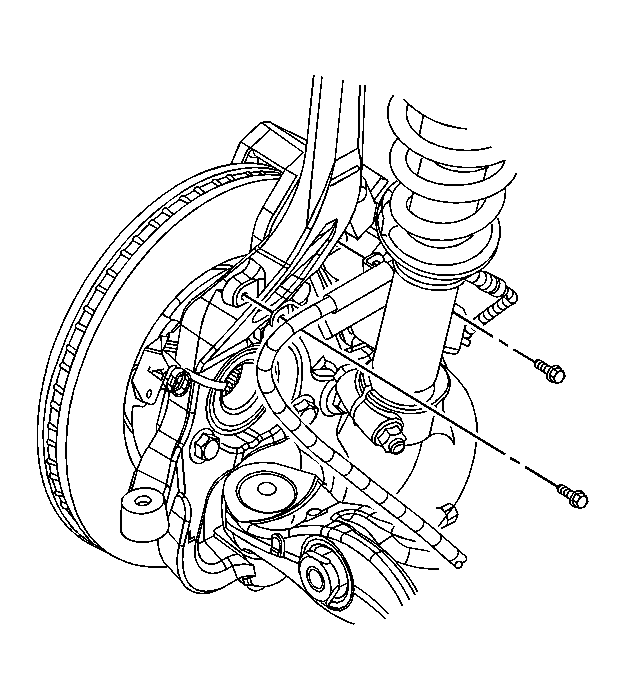

Fig 3: View Of Brake Hose Bracket-To-Steering Knuckle Retaining Bolts
Courtesy of GENERAL MOTORS CORP.
Install the brake hose bracket to the steering knuckle retaining bolts.

Fig 4: View Of Outer Tie Rod & Steering Knuckle
Courtesy of GENERAL MOTORS CORP.
Connect the outer tie rod to the steering knuckle.
Install the outer tie rod retaining nut. Refer to Rack and Pinion Outer Tie Rod End Replacement .
Install the wheel bearing/hub. Refer to Front Wheel Bearing and Hub Replacement (AWD) or Front Wheel Bearing and Hub Replacement (RWD) .
Install the tire and wheel. Refer to Tire and Wheel Removal and Installation .
Lower the vehicle.
