Installation Procedure

WARNING: This page is about a different car, the 2007 Cadillac SRX. However, it is still accessible from the selected car via links, so may be relevant.
  1. Install the stabilizer shaft left hand insulator to the stabilizer shaft with the slit facing rearward and the right hand insulator to the stabilizer shaft with the slit facing forward.
  2. Install the stabilizer shaft bracket.
    NOTE: Refer to Fastener Notice .
  3. Install the stabilizer shaft bracket mounting bolts.

    Tighten:  Tighten the bolts to 110 N.m (81 lb ft).

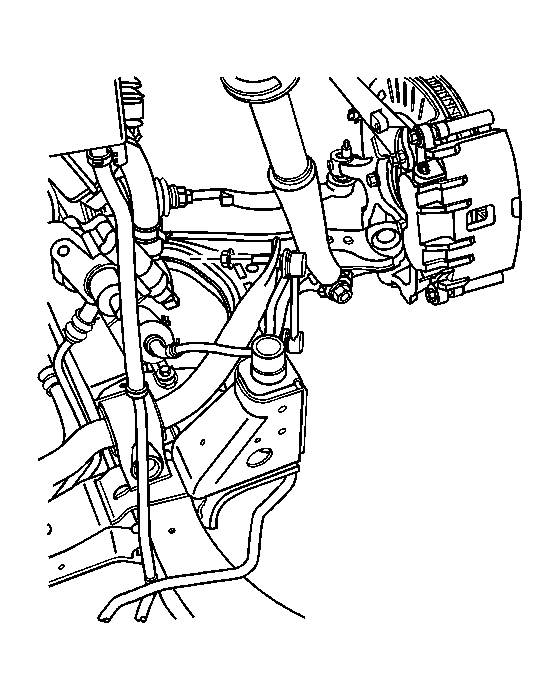

    Fig 1: View Of Stabilizer Shaft Link-To-Stabilizer Shaft Retaining Nuts
    GM874638Courtesy of GENERAL MOTORS CORP.
  4. Install the stabilizer shaft link to the stabilizer shaft.
  5. Install stabilizer shaft link to stabilizer shaft retaining nut.

    Tighten:  Tighten the nut to 115 N.m (95 lb ft).

  6. Install the tires and wheels. Refer to Tire and Wheel Removal and Installation .
  7. Lower the vehicle.
