Engine Components - Top (LSA)
WARNING: This page is about a different car, the 2013 Cadillac CTS. However, it is still accessible from the selected car via links, so may be relevant.

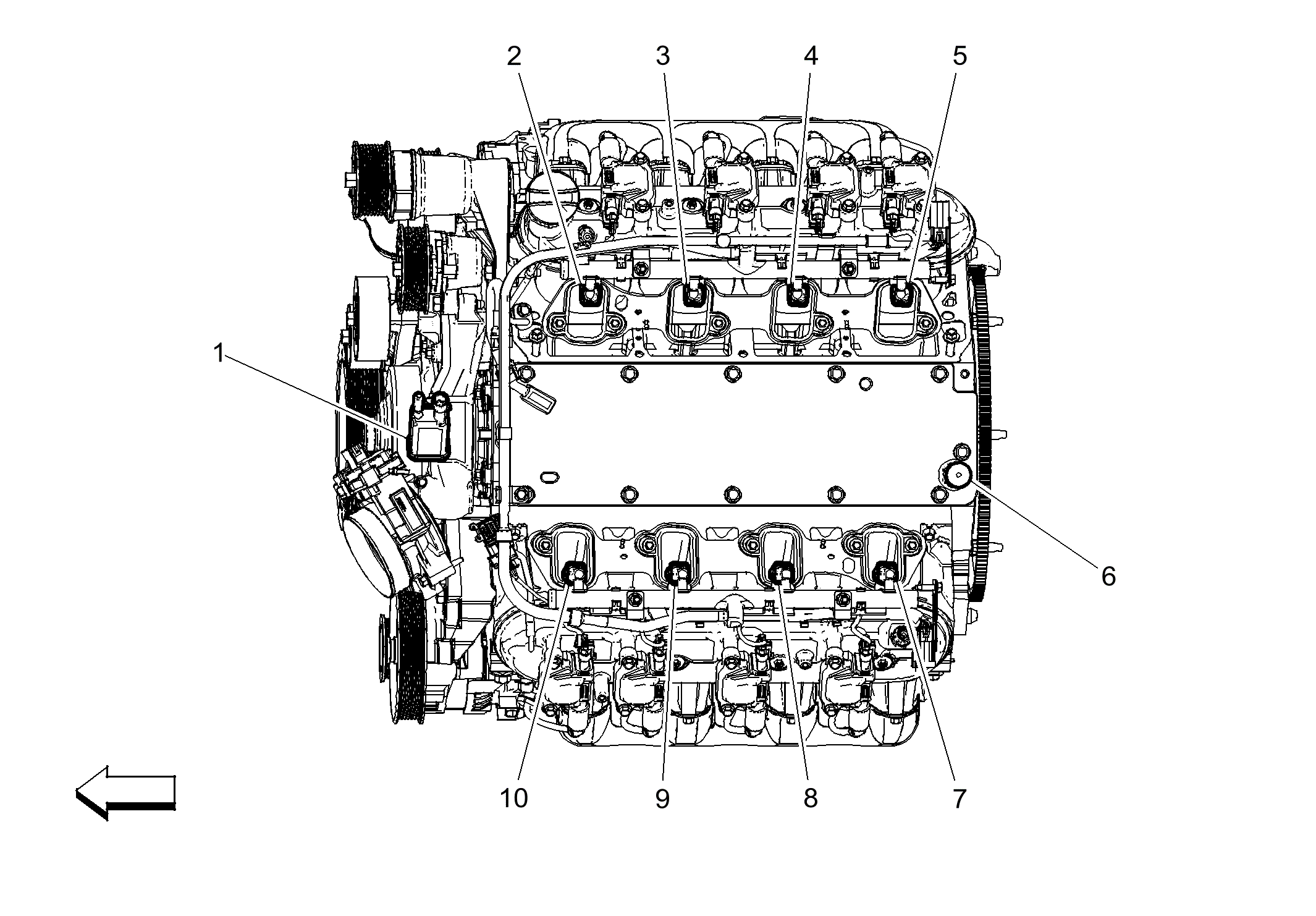

Engine Components - Top (LSA)
| Items |
|---|
| 1: Q12 Evaporative Emission Purge Solenoid Valve Q12 Evaporative Emission Purge Solenoid Valve (LFW or LFX)Q12 Evaporative Emission Purge Solenoid Valve (LSA) |
| 2: Q17B Fuel Injector 2 Q17B Fuel Injector 2 (LFW or LFX)Q17B Fuel Injector 2 (LSA) |
| 3: Q17D Fuel Injector 4 Q17D Fuel Injector 4 (LFW or LFX)Q17D Fuel Injector 4 (LSA) |
| 4: Q17F Fuel Injector 6 Q17F Fuel Injector 6 (LFW or LFX)Q17F Fuel Injector 6 (LSA) |
| 5: Q17H Fuel Injector 8 (LSA) Q17H Fuel Injector 8 (LSA) |
| 6: B37B Engine Oil Pressure Sensor (LFW or LFX) B37B Engine Oil Pressure Sensor (LFW or LFX)B37B Engine Oil Pressure Sensor (LSA) |
| 7: Q17G Fuel Injector 7 (LSA) Q17G Fuel Injector 7 (LSA) |
| 8: Q17E Fuel Injector 5 Q17E Fuel Injector 5 (LFW or LFX)Q17E Fuel Injector 5 (LSA) |
| 9: Q17C Fuel Injector 3 Q17C Fuel Injector 3 (LFW or LFX)Q17C Fuel Injector 3 (LSA) |
| 10: Q17A Fuel Injector 1 Q17A Fuel Injector 1 (LFW or LFX)Q17A Fuel Injector 1 (LSA) |
