Installation Procedure

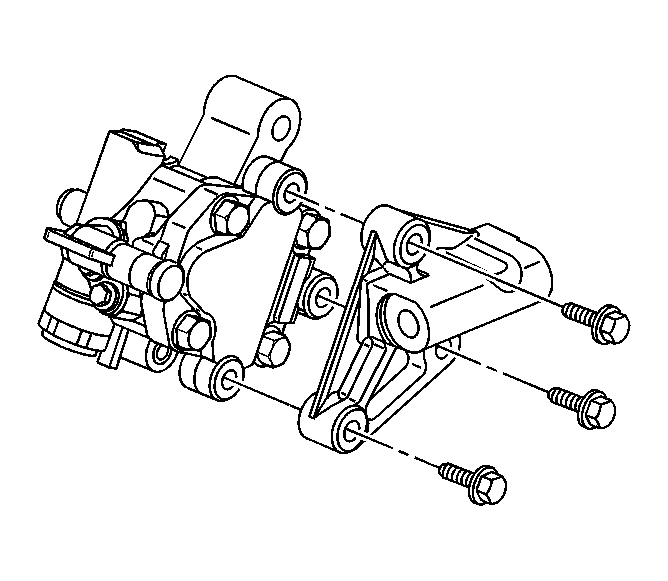

    Fig 1: View Of Power Steering Pump Bracket - LH2
    GM888278Courtesy of GENERAL MOTORS CORP.
  1. Align the power steering pump to the power steering pump bracket.
    2. NOTE: Refer to Fastener Notice .
  2. Install the power steering pump bracket bolts.

    Tighten:  Tighten the bolts to 25 N.m (18 lb ft).

  3. Install the power steering pump. Refer to Power Steering Pump Replacement (LY7)  or Power Steering Pump Replacement (LH2) .
