Instrument Panel/Center Console Component Views

Fig 1: Identifying Instrument Panel and Floor Console Components LHD

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Driver Information Center (DIC) Switch
2	Dimmer Switch
3	Turn Signal/Multifunction Switch
4	Inflatable Restraint Steering Wheel Module
5	Instrument Panel Cluster (IPC)
6	Windshield Wiper/Washer Switch
7	Sunload/Ambient Light Sensor
8	Speaker - Instrument Panel (UQS)
9	Analog Clock
10	Radio/CD/DVD/Navigation Unit (UV2)
11	Inflatable Restraint I/P Module
12	HVAC Control Module
13	Rear Window Defogger Switch
14	Courtesy Lamp - Right Footwell
15	Hazard Switch
16	Tow/Haul Switch
17	Cigar Lighter
18	Rear Video Display (U42)
19	DVD Player (U42)
20	Speaker - Center Console (UQS)
21	Auxiliary Power Outlet - Center Console 2 (UQS)
22	Auxiliary Power Outlet - Center Console 1
23	Floor Console
24	Inflatable Restraint I/P Module Indicator (AQS)
25	Traction Control Switch
26	Inside Air Temperature Sensor
27	Steering Wheel Controls - Right
28	Courtesy Lamp - Left Footwell
29	Steering Wheel Controls - Left

Fig 2: Identifying Instrument Panel & Floor Console Components RHD

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Inflatable Restraint I/P Module
2	Analog Clock
3	Sunload/Ambient Light Sensor
4	Speaker - Front Midrange (UQS)
5	Turn Signal/Multifunction Switch
6	Instrument Panel Cluster (IPC)
7	Inflatable Restraint Steering Wheel Module
8	Windshield Wiper/Washer Switch
9	Dimmer Switch
10	Driver Information Center (DIC) Switch
11	Data Link Connector (DLC)
12	Courtesy Lamp - Right Footwell
13	HVAC Control Module
14	Inside Air Temperature Sensor
15	Traction Control Switch
16	Cigar Lighter
17	Inflatable Restraint I/P Module Indicator
18	Auxiliary Power Outlet - Center Console 1
19	Auxiliary Power Outlet - Center Console 2 (UQS)
20	Speaker - Center Console (UQS)
21	Rear Video Display (U42)
22	Tow/Haul Switch
23	Hazard Switch
24	Rear Window Defogger Switch
25	Courtesy Lamp - Right Footwell
26	Radio/CD/DVD/Navigation Unit

Fig 3: View Of Pedal Switch & Sensor Components LHD

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Park Brake Switch
2	Brake Pedal Position Sensor
3	Accelerator Pedal Position (APP) Sensor
4	Left Front Floor Panel

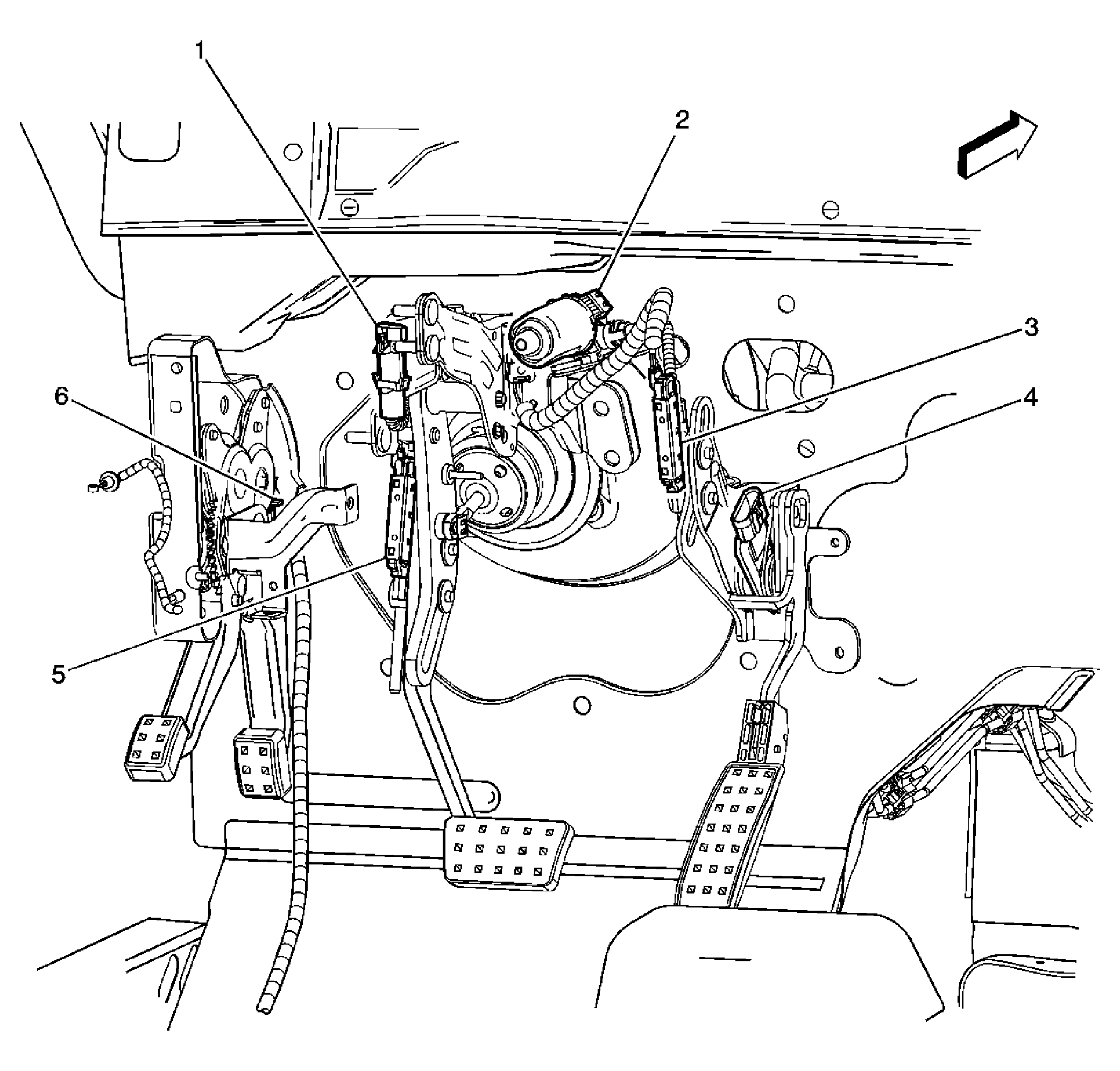

Fig 4: Below Left Side Of I/P Component View LHD

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Adjustable Brake Pedal Position Sensor Connector (JF4)
2	Adjustable Pedal Motor (JF4)
3	Adjustable Accelerator Pedal Position Sensor (JF4)
4	Accelerator Pedal Position (APP) Sensor (JF4)
5	Adjustable Brake Pedal Position Sensor (JF4)
6	Park Brake Switch

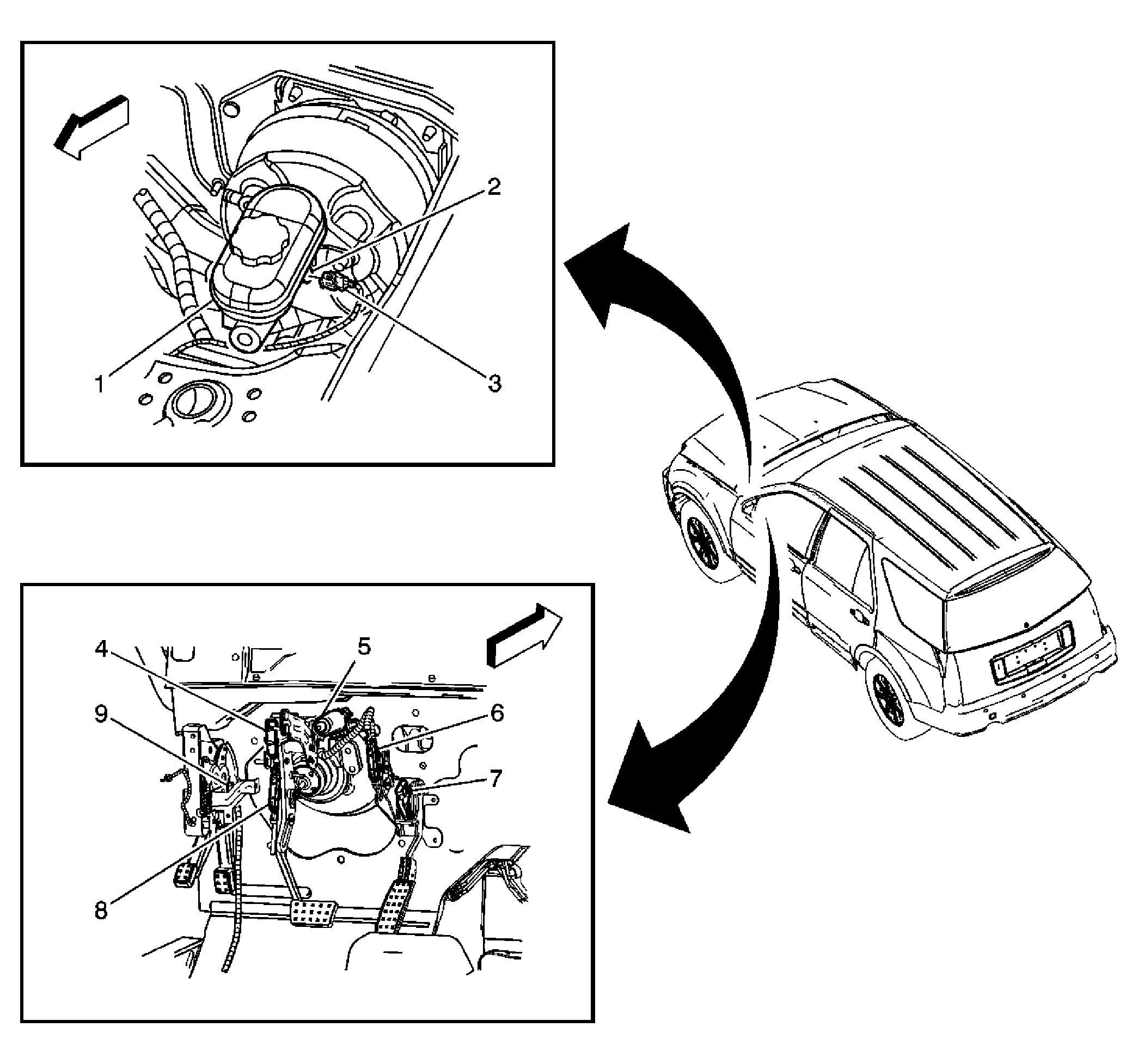

Fig 5: Identifying Brake & Brake Fluid Level Switches Components LHD

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Brake Fluid Reservoir
2	Brake Fluid Level Switch
3	Brake Fluid Level Switch Connector
4	Adjustable Brake Pedal Position Sensor Connector (JF4)
5	Adjust Pedal Motor (JF4)
6	Adjustable Accelerator Pedal Position Sensor (JF4)
7	Accelerator Pedal Position (APP) Sensor (JF4)
8	Adjustable Brake Pedal Position Sensor (JF4)
9	Park Brake Switch

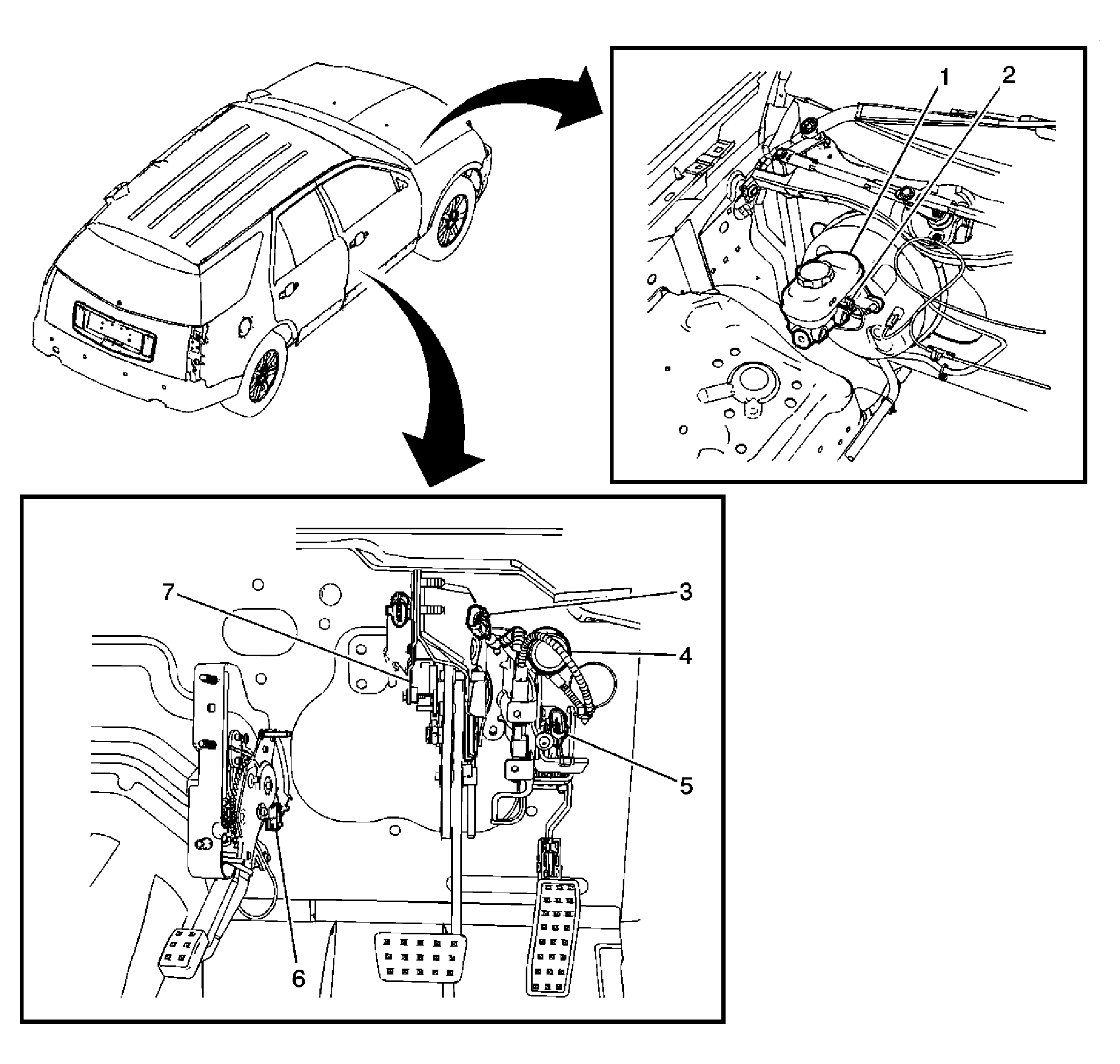

Fig 6: Identifying Hydraulic Brake Components (RHD)

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Brake Fluid Reservoir
2	Brake Fluid Level Switch
3	Adjustable Accelerator Pedal Position Sensor (JF4)
4	Adjustable Pedal Motor (JF4)
5	Accelerator Pedal Position (APP) Sensor
6	Park Brake Switch
7	Adjustable Brake Pedal Position Sensor (JF4)

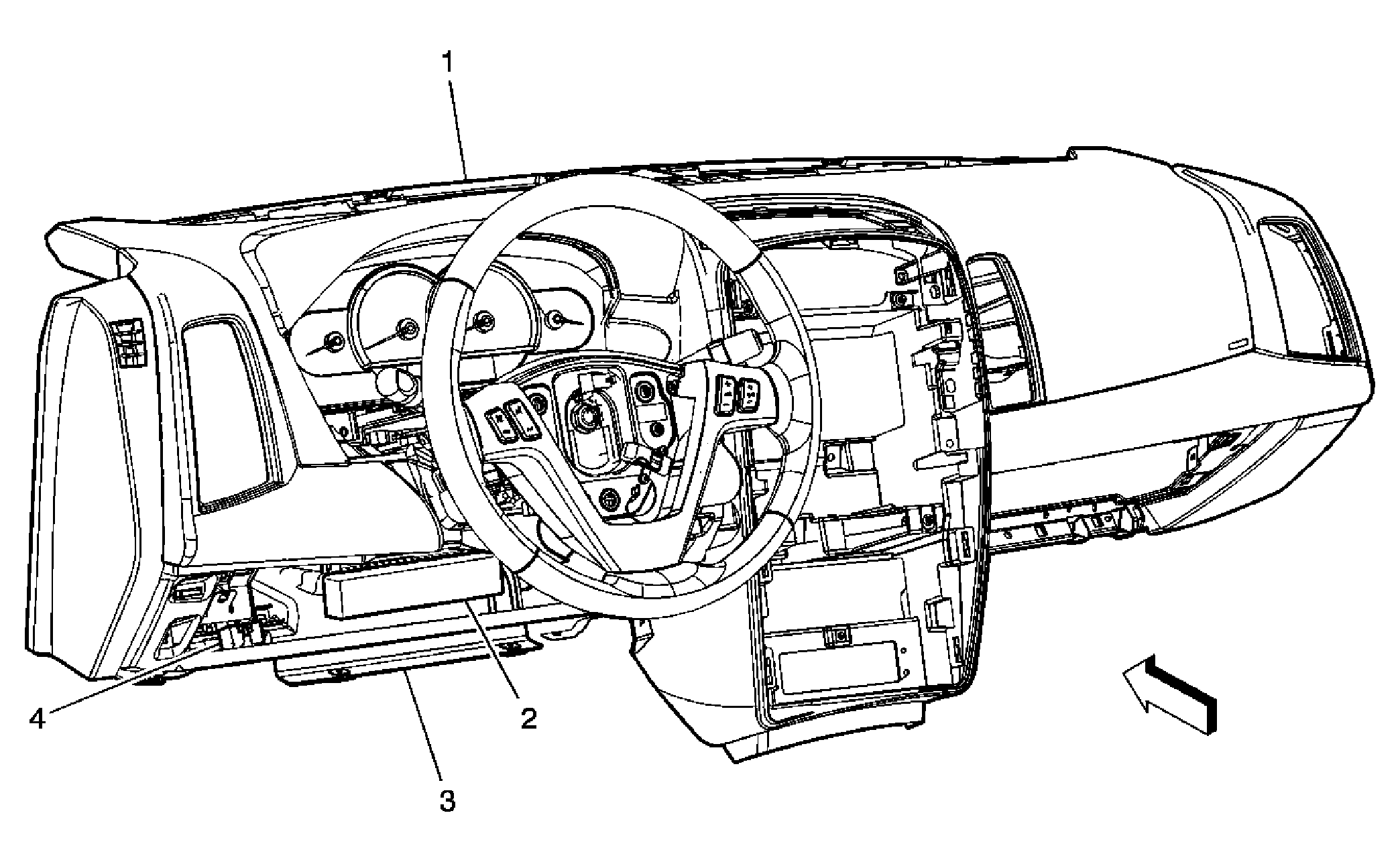

Fig 7: Identifying Lower Left Side Of I/P Components LHD

Courtesy of GENERAL MOTORS CORP.

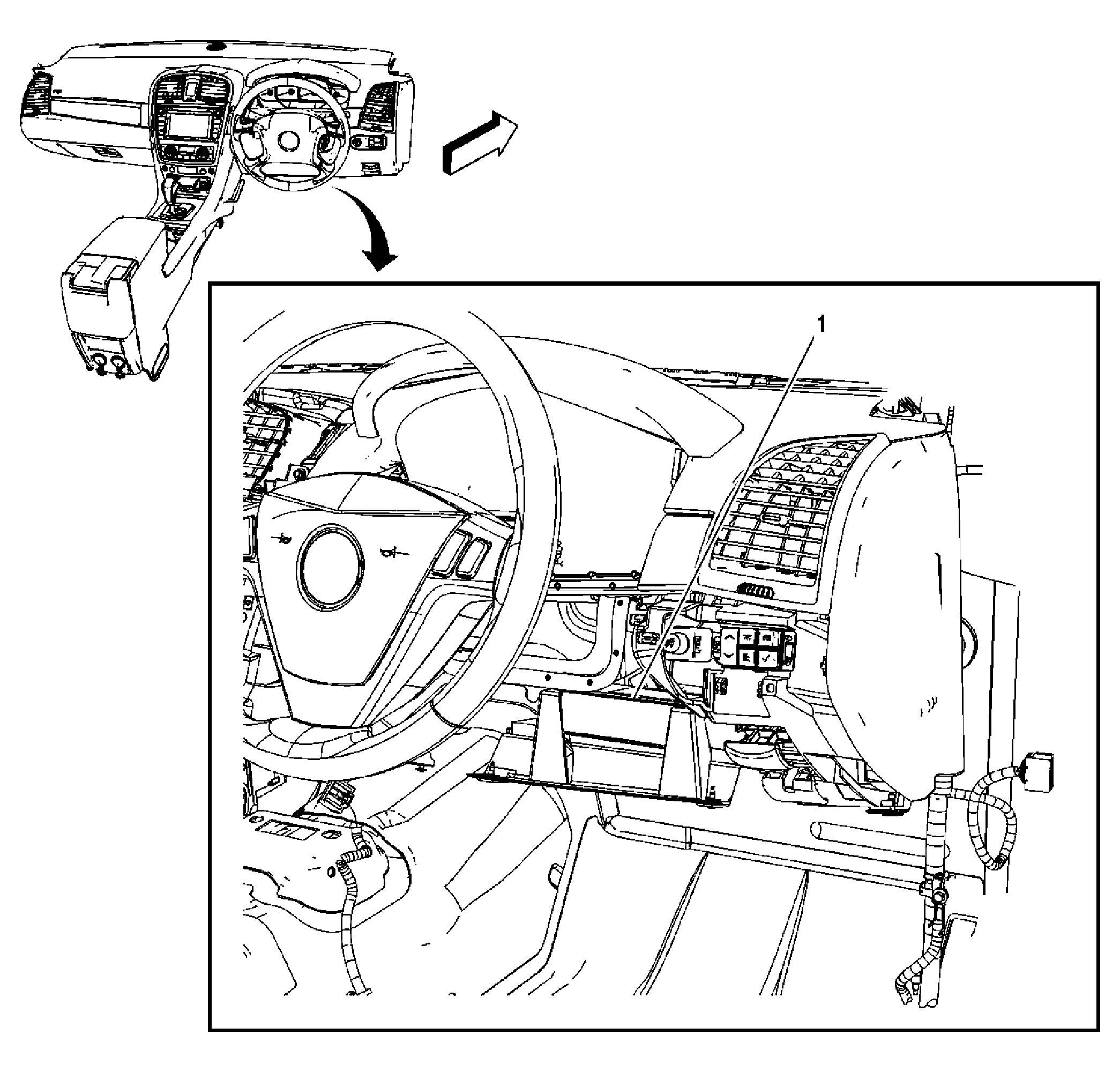

Fig 8: Identifying Body Control Module (BCM) Components RHD

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Body Control Module (BCM)

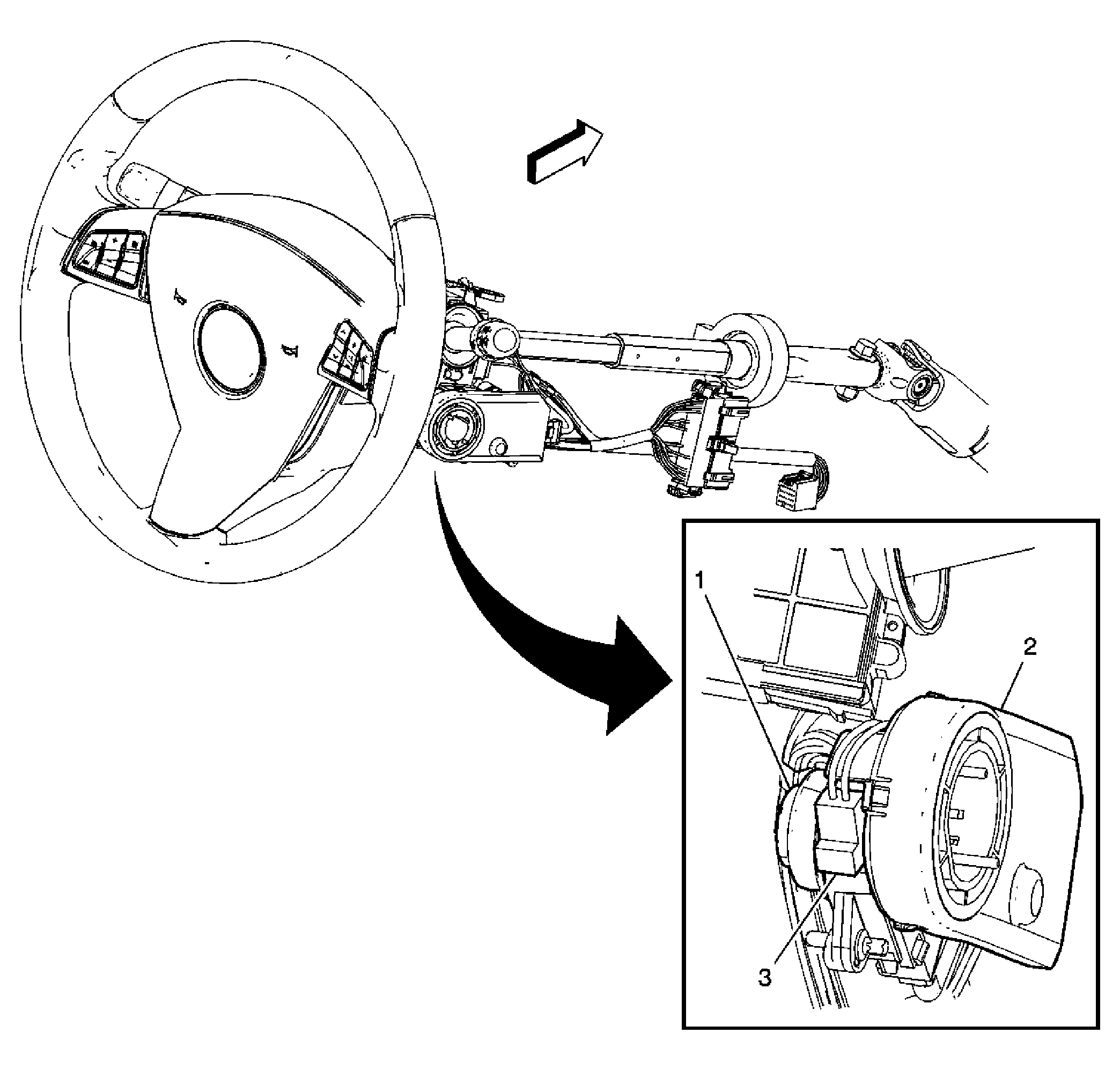

Fig 9: Identifying Steering Column Components (1 Of 2)

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Ignition Lock Cylinder Case
2	Theft Detterent Module (TDM)
3	Ignition Lock Cylinder Solenoid

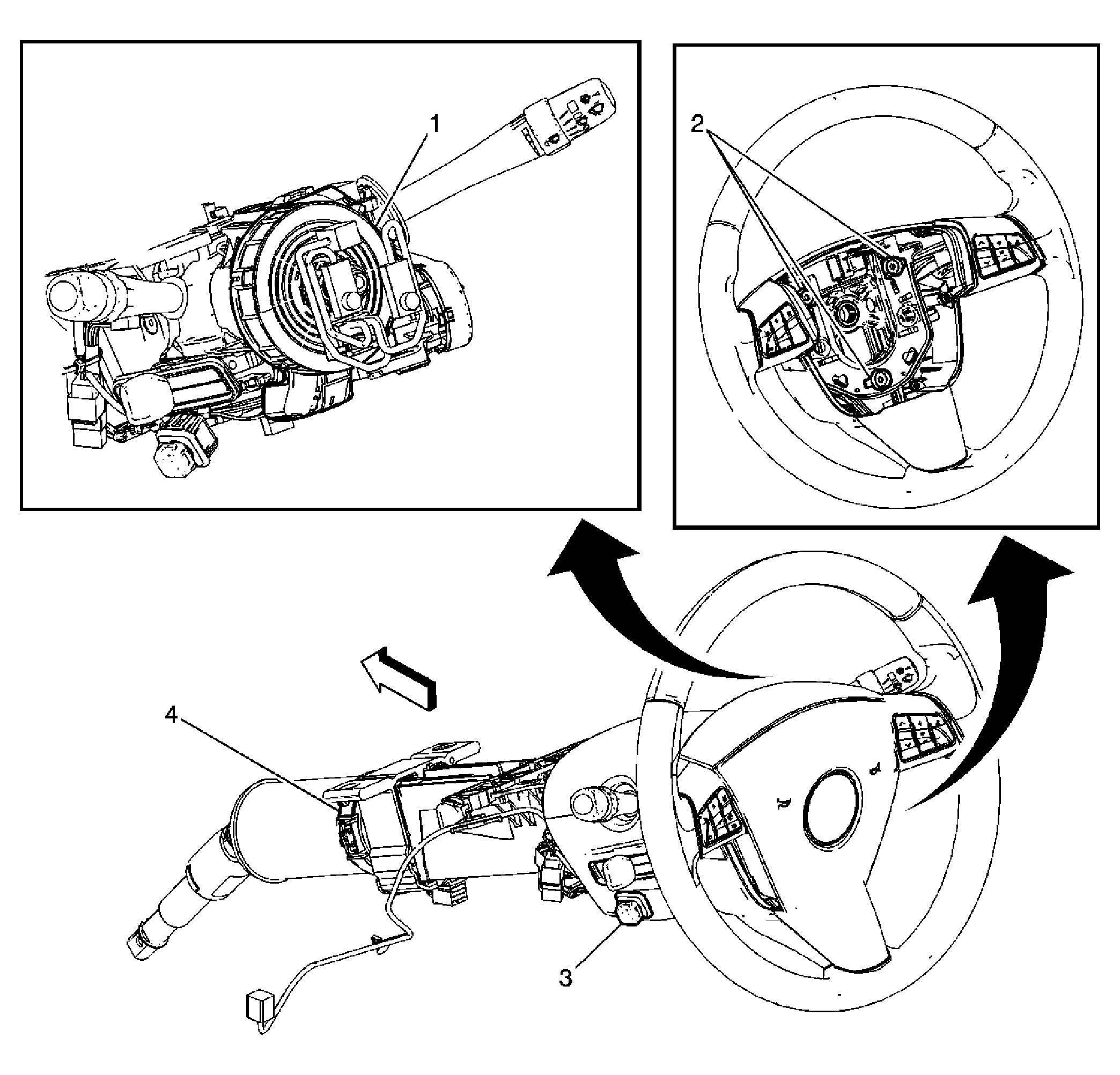

Fig 10: Identifying Steering Column Components (2 Of 2)

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Inflatable Restraint Steering Wheel Module Coil
2	Horn Contact Switch
3	Adjustable Pedal Switch (JF4)
4	Steering Angle Sensor

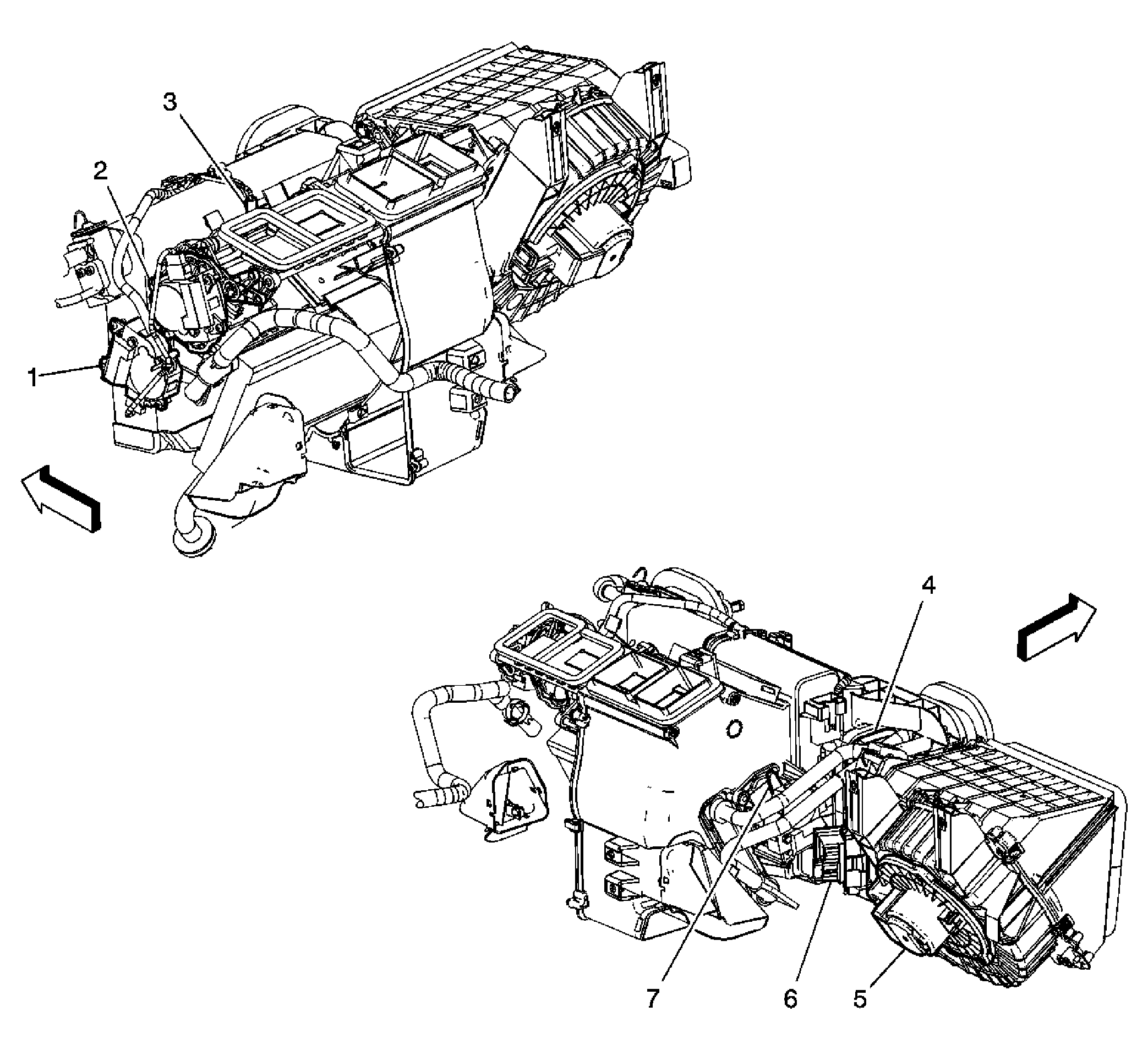

Fig 11: Identifying HVAC Module Components

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Air Temperature Actuator - Left
2	Mode Actuator
3	Evaporative Temperature Sensor
4	Recirculation Actuator
5	Blower Motor
6	Blower Motor Control Module
7	Air Temperature Actuator - Right
