Front of Vehicle/Engine Compartment Component Views

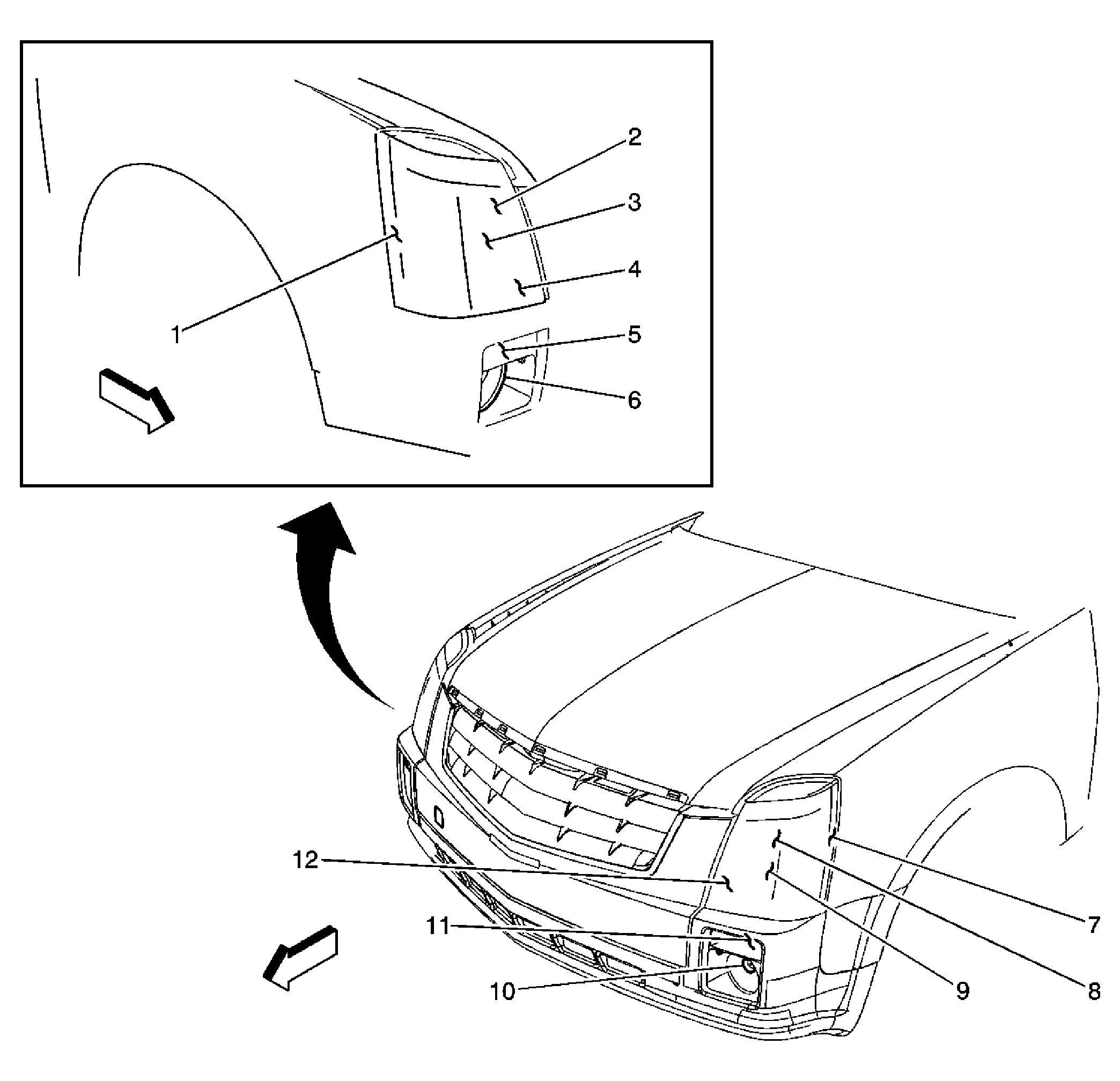

Fig 1: Identifying Front Fascia Lighting (w/o HID)

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Marker Lamp - Right Front
2	Headlamp Low Beam w/o HID - Right
3	Headlamp High Beam w/o HID - Right
4	Park Lamp - Right Front
5	Turn Signal Lamp - Right Front
6	Fog Lamp - Right Front
7	Marker Lamp - Left Front
8	Headlamp Low Beam w/o HID - Left
9	Headlamp High Beam w/o HID - Left
10	Fog Lamp - Left Front
11	Turn Signal Lamp - Left Front
12	Park Lamp - Left Front

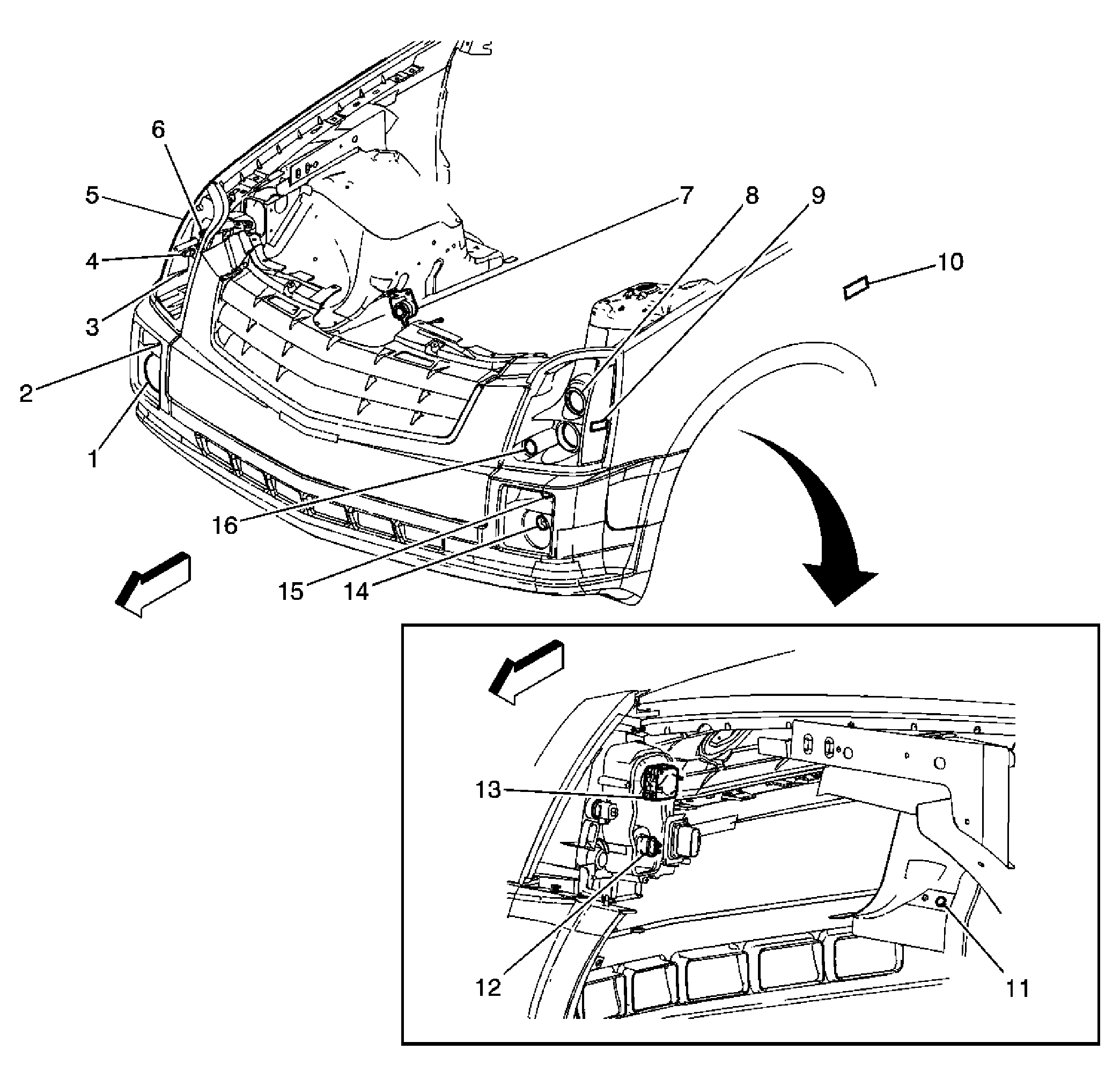

Fig 2: Identifying Front Fascia Lighting (HID)

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Fog Lamp - Right Front
2	Turn Signal Lamp - Right Front
3	Park Lamp - Right Front
4	Headlamp High Beam - Right
5	Marker Lamp - Right Front
6	Headlamp Low Beam - Right
7	Headlamp Leveling Sensor - Right Front (TR7)
8	Headlamp Low Beam - Left
9	Marker Lamp - Left Front
10	Repeater Lamp - Left (T90)
11	Headlamp Leveling Sensor - Left Front (TR7)
12	Headlamp Starter/Arc Tube
13	Headlamp Ballast
14	Fog Lamp - Left Front
15	Turn Signal Lamp - Left Front
16	Park Lamp - Left Front

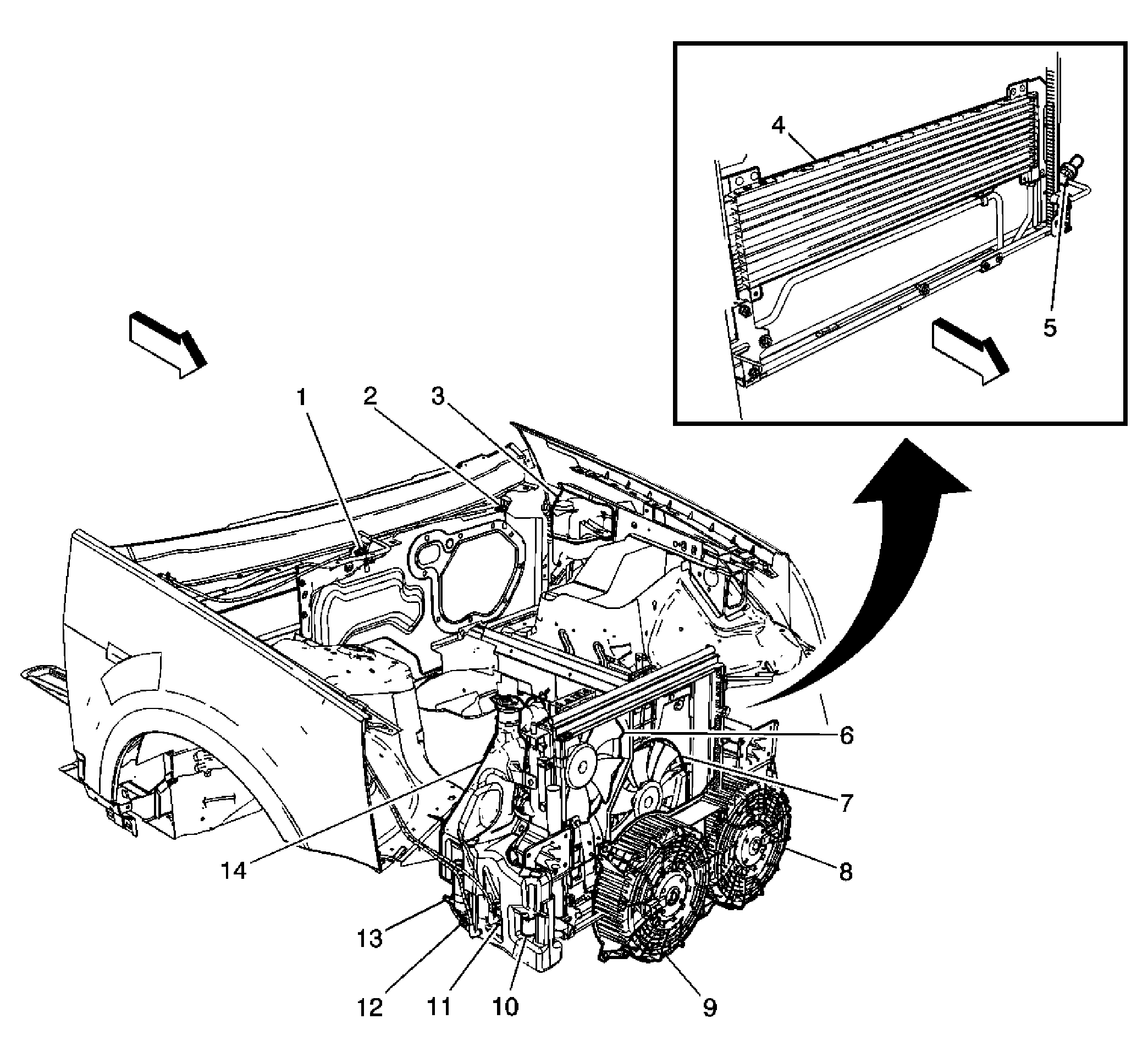

Fig 3: Identifying Front Engine Compartment

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Heated Washer Nozzles (XA7)
2	Coolant Surge Tank
3	Coolant Level Switch
4	Automatic Transmission Cooler (HD)
5	A/C Refrigerant Pressure Sensor (LY7/LH2)
6	Cooling Fan-Left (LY7)
7	Cooling Fan-Right (LY7)
8	Cooling Fan-Left (LH2)
9	Cooling Fan-Right (LH2)
10	Rear Window Washer Fluid Pump
11	Windshield Washer Fluid Pump
12	Washer Fluid Level Switch
13	Headlamp Washer Fluid Pump (CE4)
14	Washer Solvent Container

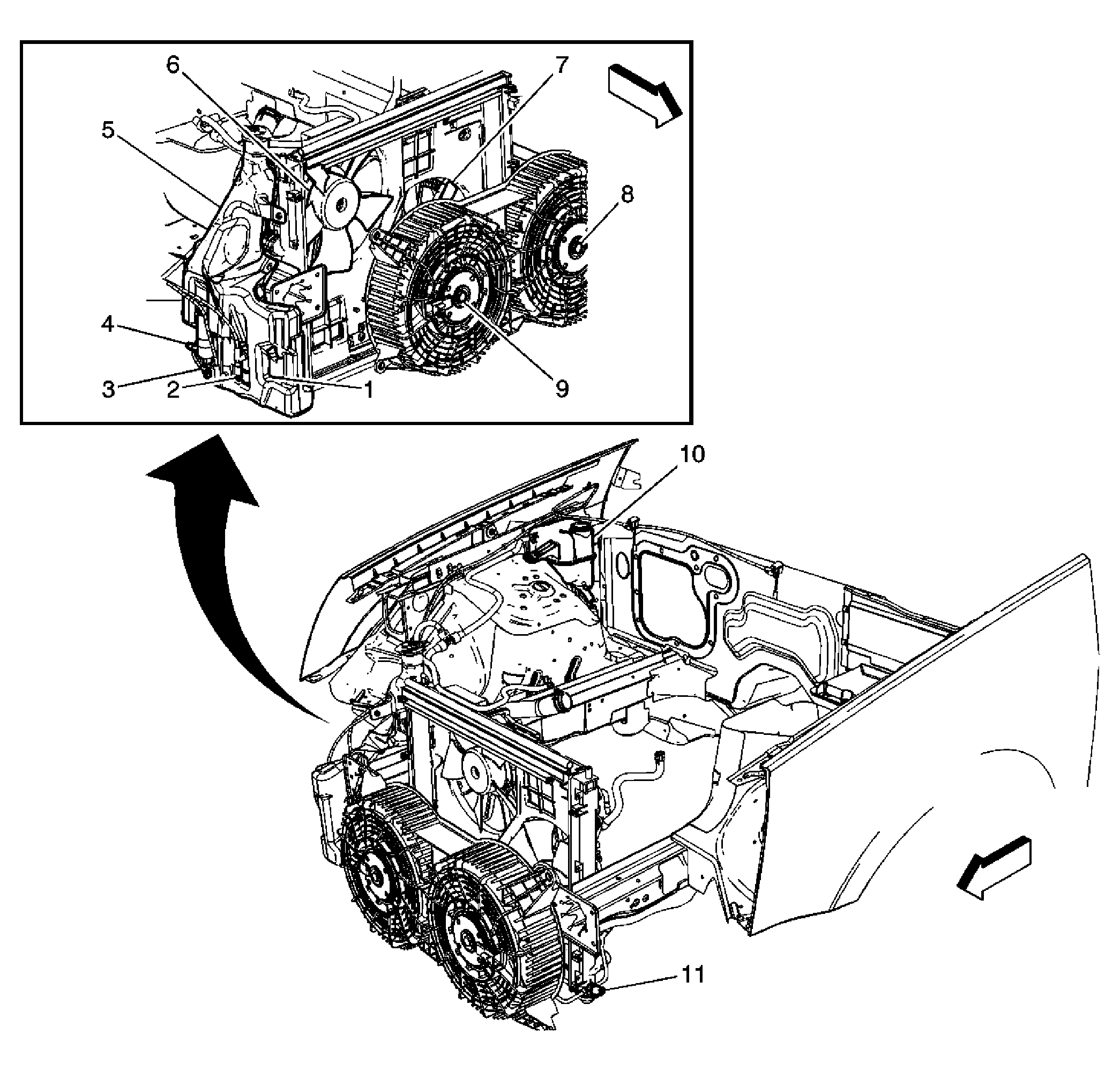

Fig 4: Identifying Front Engine Compartment - RHD

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Rear Window Washer Fluid Pump
2	Windshield Washer Fluid Pump
3	Washer Fluid Level Switch
4	Headlamp Washer Fluid Pump (CE4)
5	Washer Solvent Container
6	Cooling Fan - Right (LY7)
7	Cooling Fan - Left (LY7)
8	Cooling Fan - Left (LH2)
9	Cooling Fan - Right (LH2)
10	Coolant Surge Tank (RHD)
11	Coolant Level Switch (RHD)
12	A/C Refrigerant Pressure Sensor (LY7/LH2)

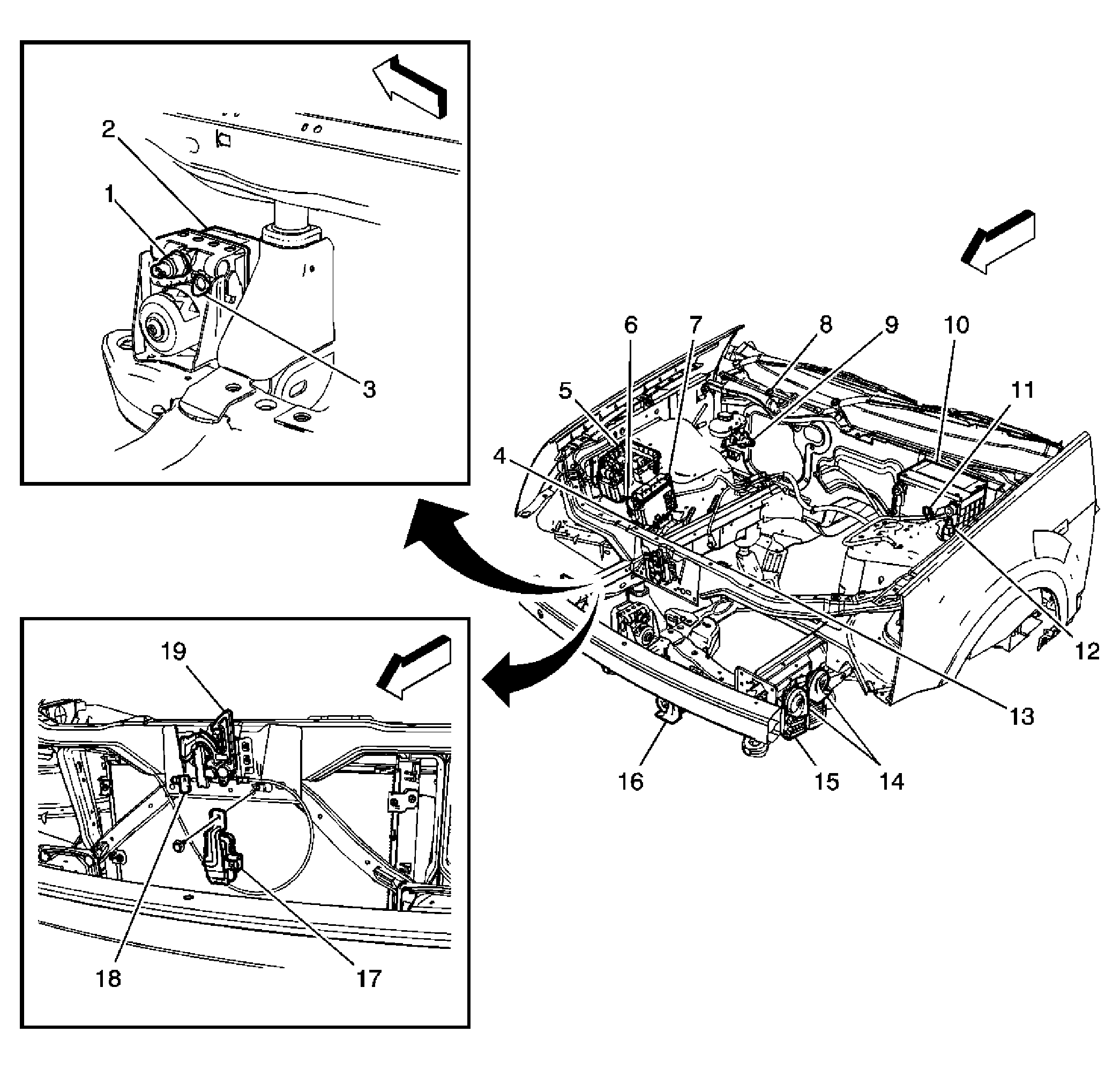

Fig 5: Identifying Front Engine Compartment - LHD

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Brake Fluid Pressure Sensor
2	Electronic Brake Control Module (EBCM)
3	Brake Pressure Modulator Valve (BPMV)
4	Inflatable Restraint Front End Sensor - Right
5	Transmission Control Module (LY7)
6	Fuse Block-Underhood
7	Engine Control Module (ECM)
8	Battery
9	Battery Current Sensor
10	Windshield Wiper Motor
11	Brake Fluid Level Switch
12	Hood Ajar Switch (UA6)
13	Inflatable Restraint Front End Sensor - Left
14	Horns
15	Engine Control Module (ECM) (LH2)
16	Horn - Center (UO3)
17	Air Quality Sensor (AQS) (K14)
18	Ambient Air Temperature Sensor
19	Hood Latch Assembly

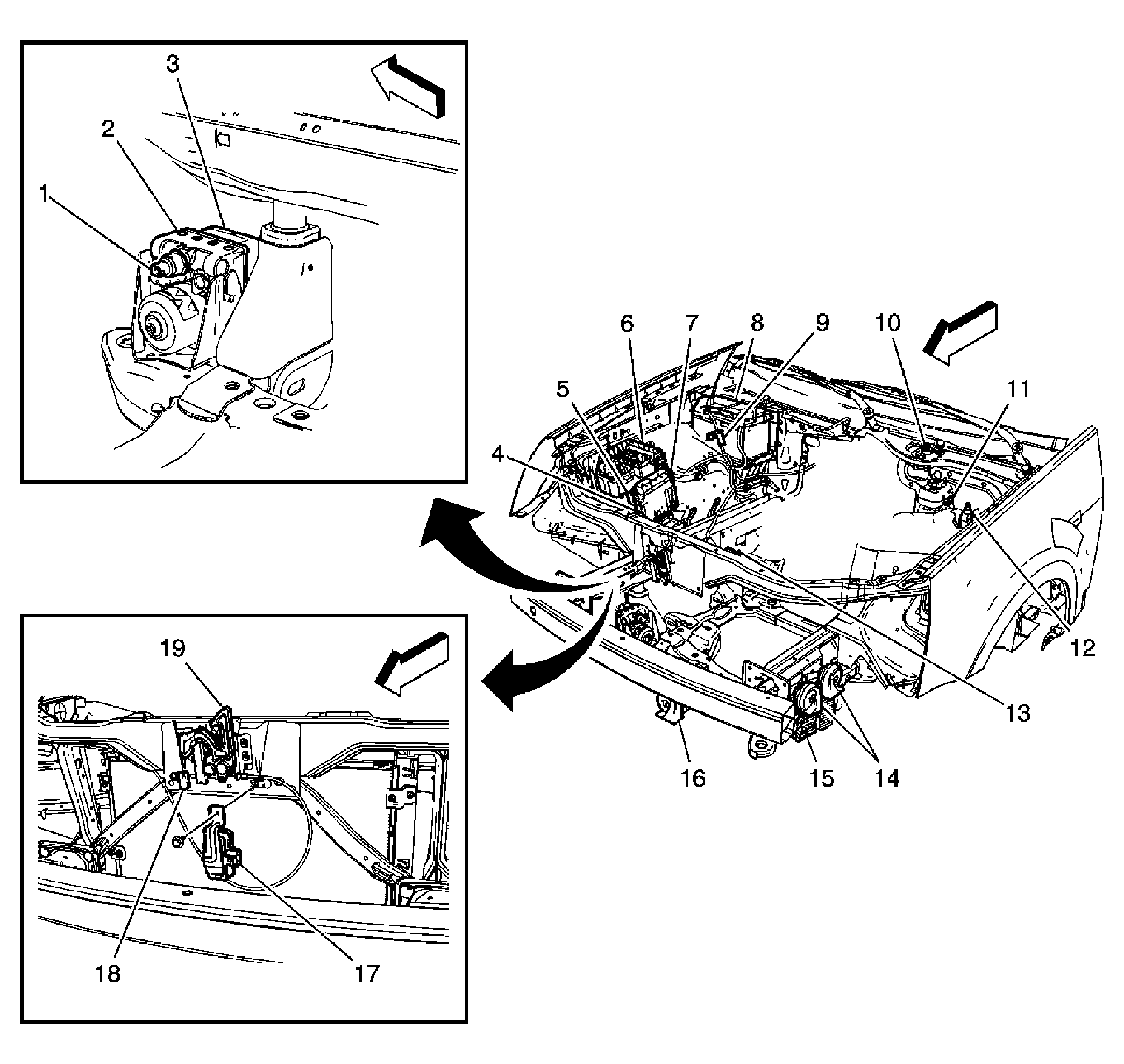

Fig 6: Identifying Front Engine Compartment - RHD

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Brake Fluid Pressure Sensor
2	Electronic Brake Control Module (EBCM)
3	Brake Pressure Modulator Valve (BPMV)
4	Inflatable Restraint Front End Sensor - Right
5	Fuse Block-Underhood
6	Transmission Control Module (LY7)
7	Engine Control Module (ECM)
8	Battery
9	Battery Current Sensor
10	Windshield Wiper Motor
11	Brake Fluid Level Switch
12	Hood Ajar Switch (UA6)
13	Inflatable Restraint Front End Sensor - Left
14	Horns
15	Engine Control Module (ECM) (LH2)
16	Horn - Center (UO3)
17	Air Quality Sensor (AQS) (K14)
18	Ambient Air Temperature Sensor
19	Hood Latch Assembly

Fig 7: Identifying ABS Components (Right Front Of Vehicle Near Right Front Wheel)

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Electronic Brake Control Module (EBCM) Connector Lock
2	Electronic Brake Control Module (EBCM)
3	Electronic Brake Control Module (EBCM) Connector Position Assurance Retainer
4	Electronic Brake Control Module (EBCM) Connector
5	Brake Pressure Modulator Valve (BPMV)
6	Brake Fluid Pressure Sensor
7	Brake Fluid Pressure Sensor Connector

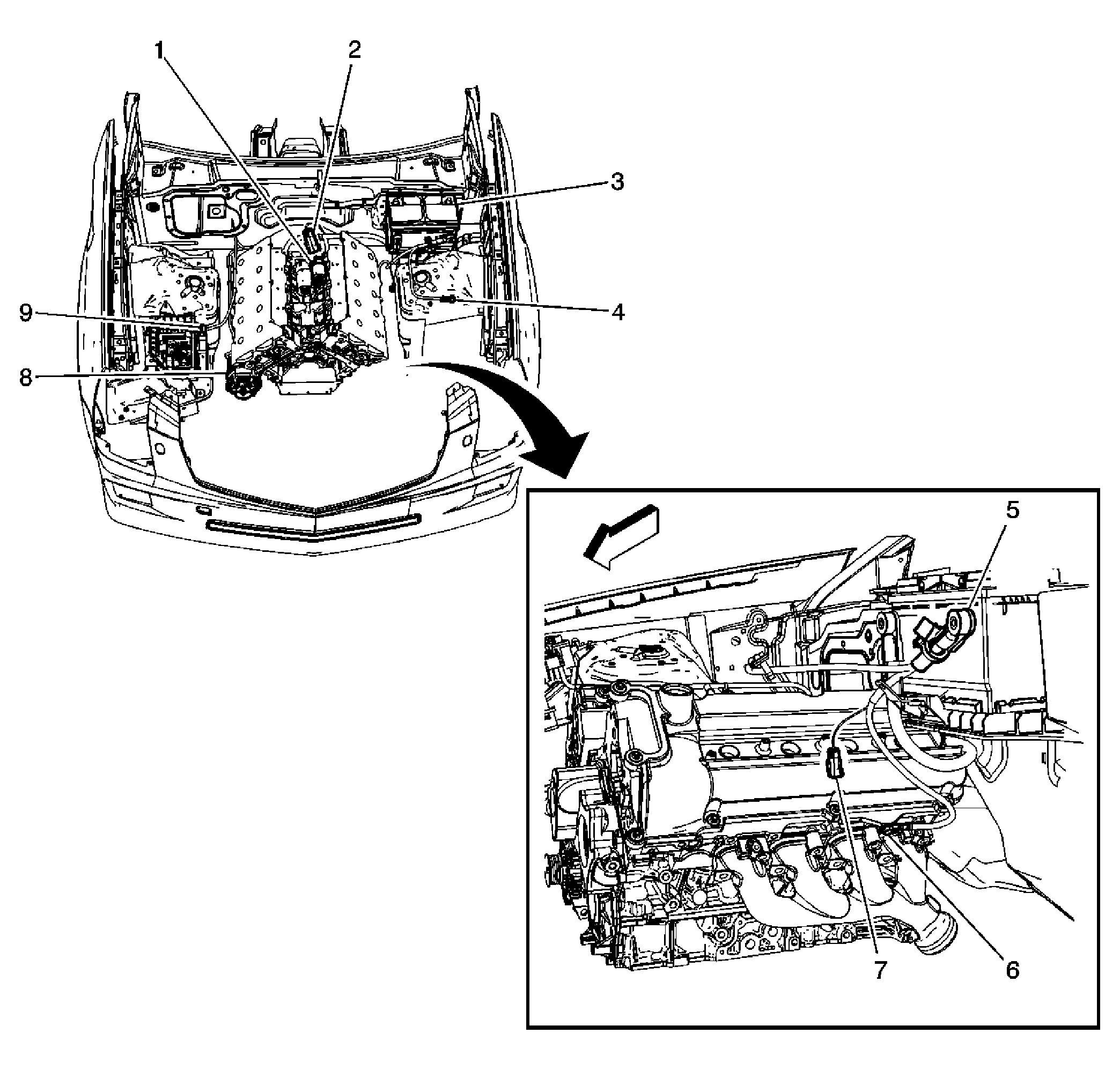

Fig 8: Identifying Engine Electrical Components (LH2)

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Starter
2	X107
3	Battery
4	G105
5	Battery Current Sensor
6	G102
7	X103
8	Generator
9	Fuse Block - Underhood Positive Voltage Studs

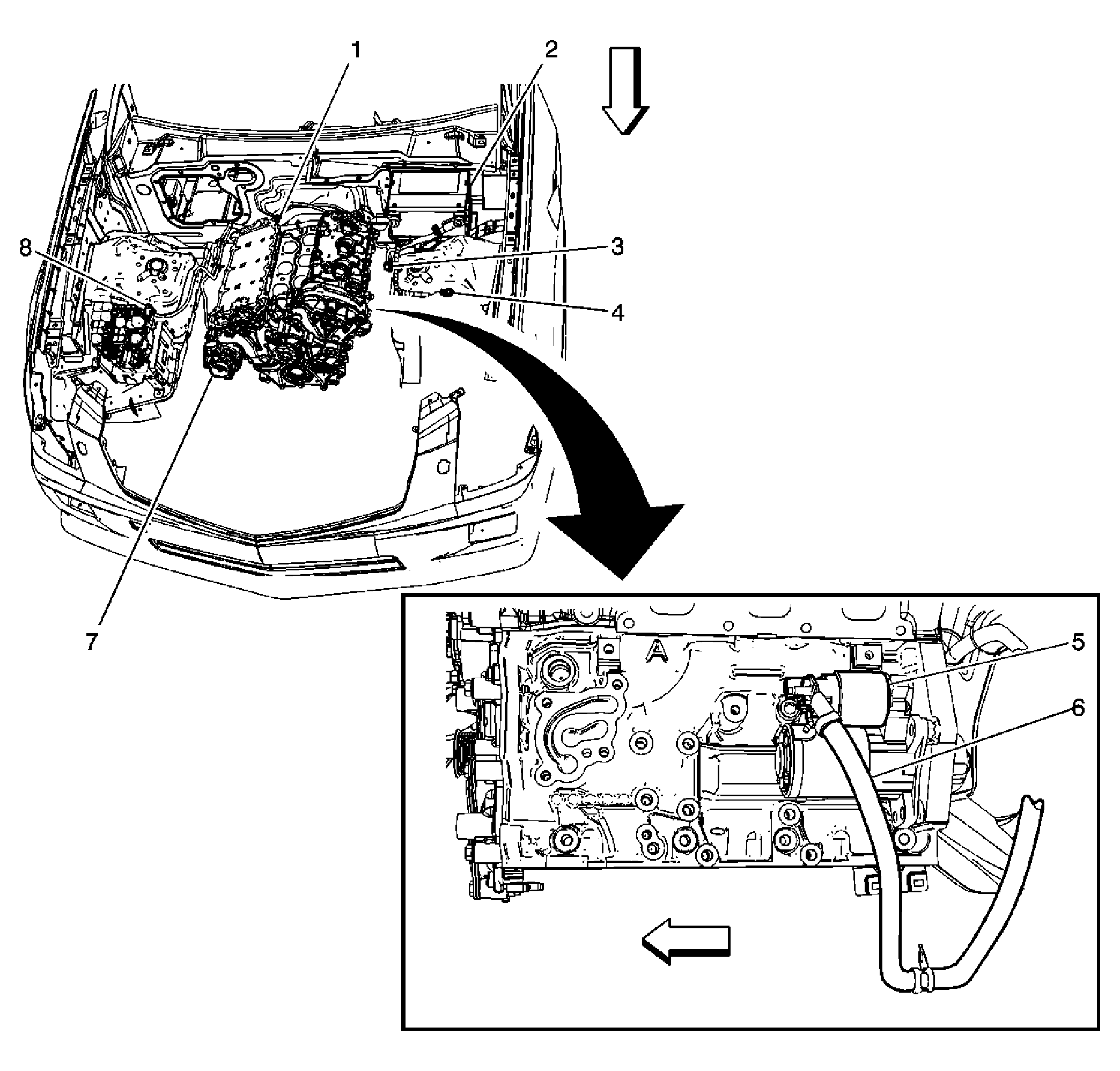

Fig 9: Identifying Engine Electrical Components (LY7)

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	G102
2	Battery
3	X103
4	G105
5	Starter
6	Positive Battery Cable
7	Generator
8	Fuse Block - Underhood Positive Voltage Studs

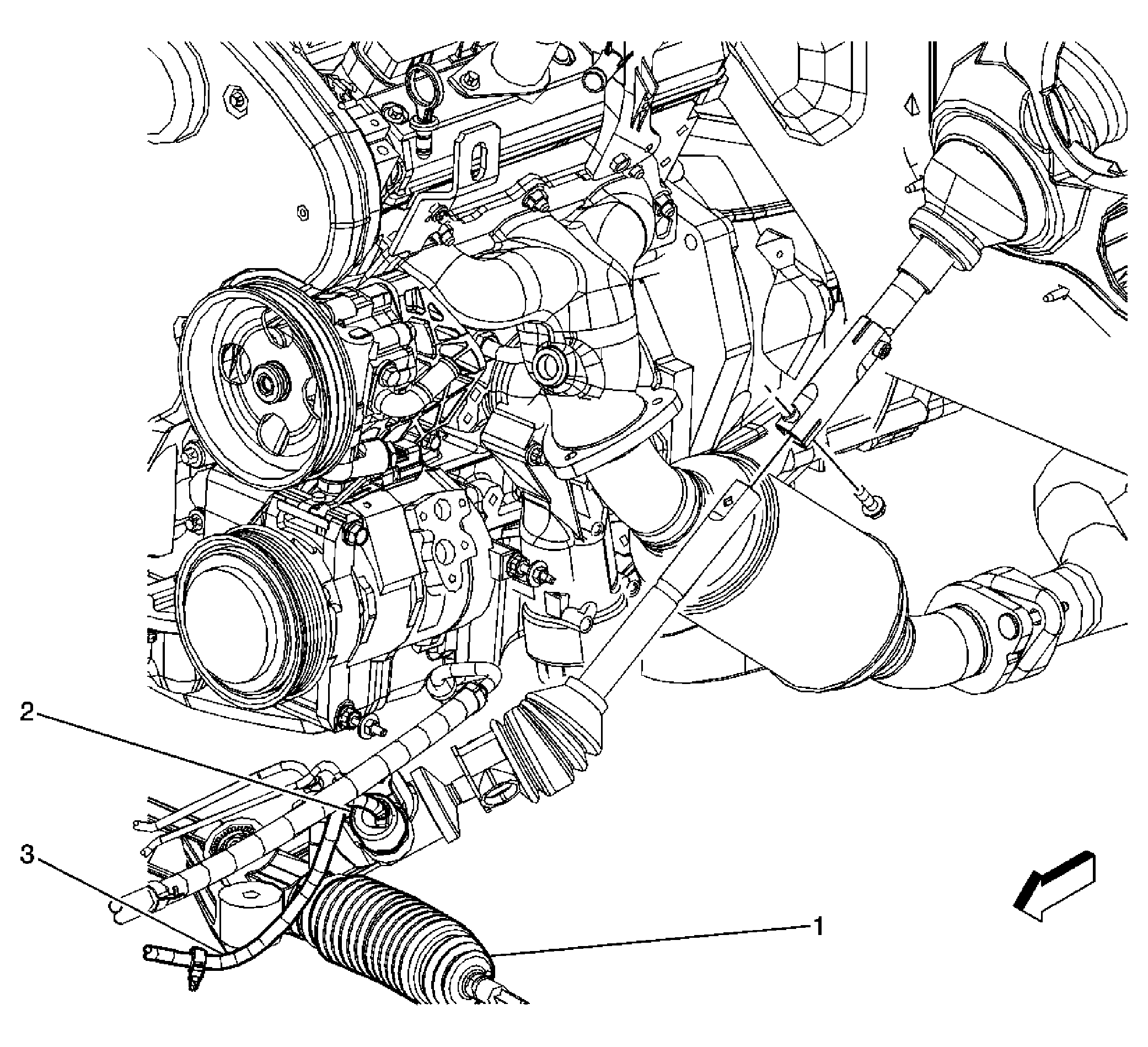

Fig 10: Identifying Lower Left Side Of Engine Compartment Components LHD

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Power Steering Rack
2	Variable Effort Steering Actuator
3	Engine Harness
