Component Locations
>>
Electrical Component Locator
>>
Component Location Graphics
Component Location Graphics
NOTE:
Figures may show multiple component locations. Refer to appropriate table for proper figure references.
Fig 1: Below Left Side Of Dash
Courtesy of GENERAL MOTORS CORP.

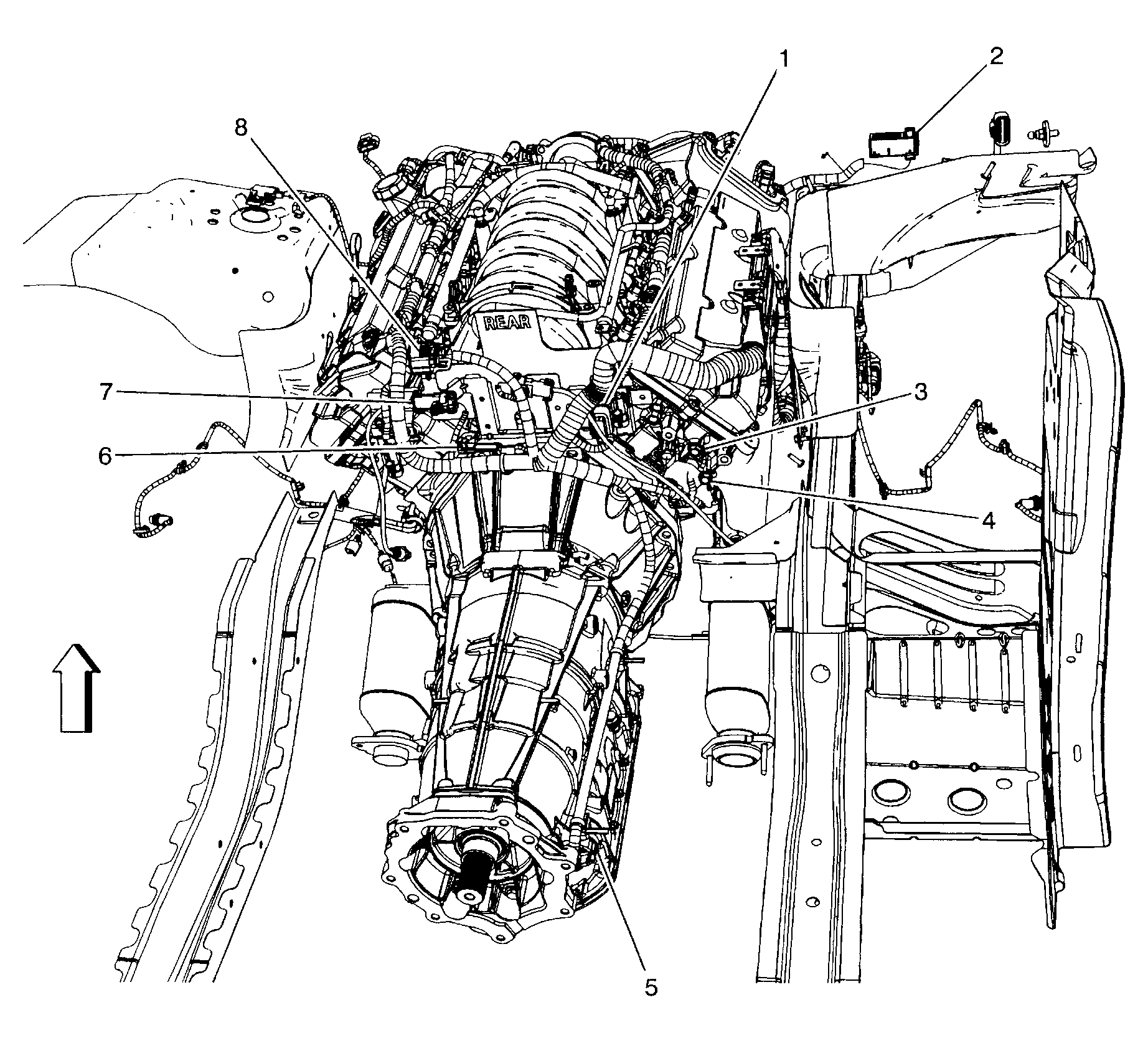

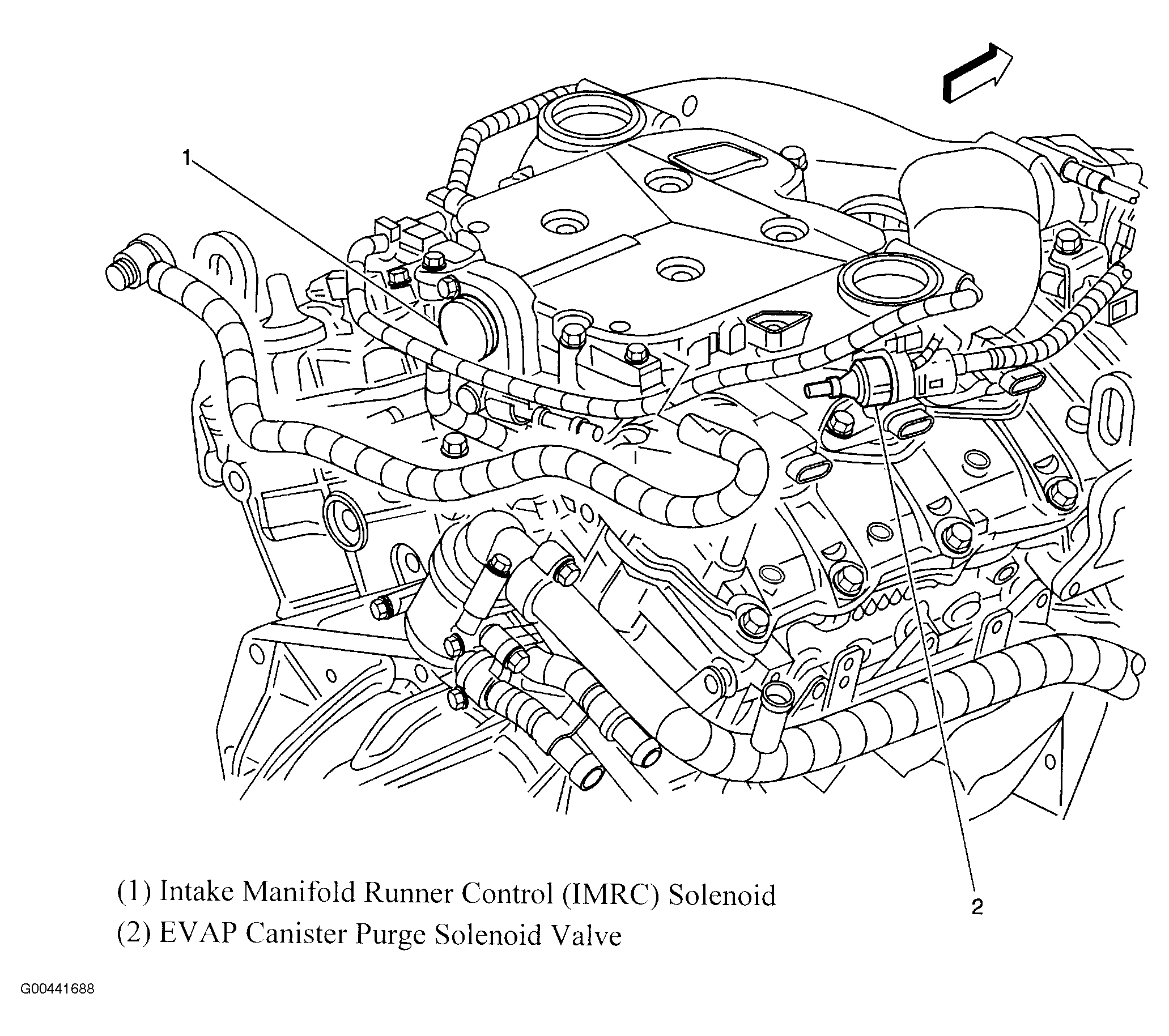

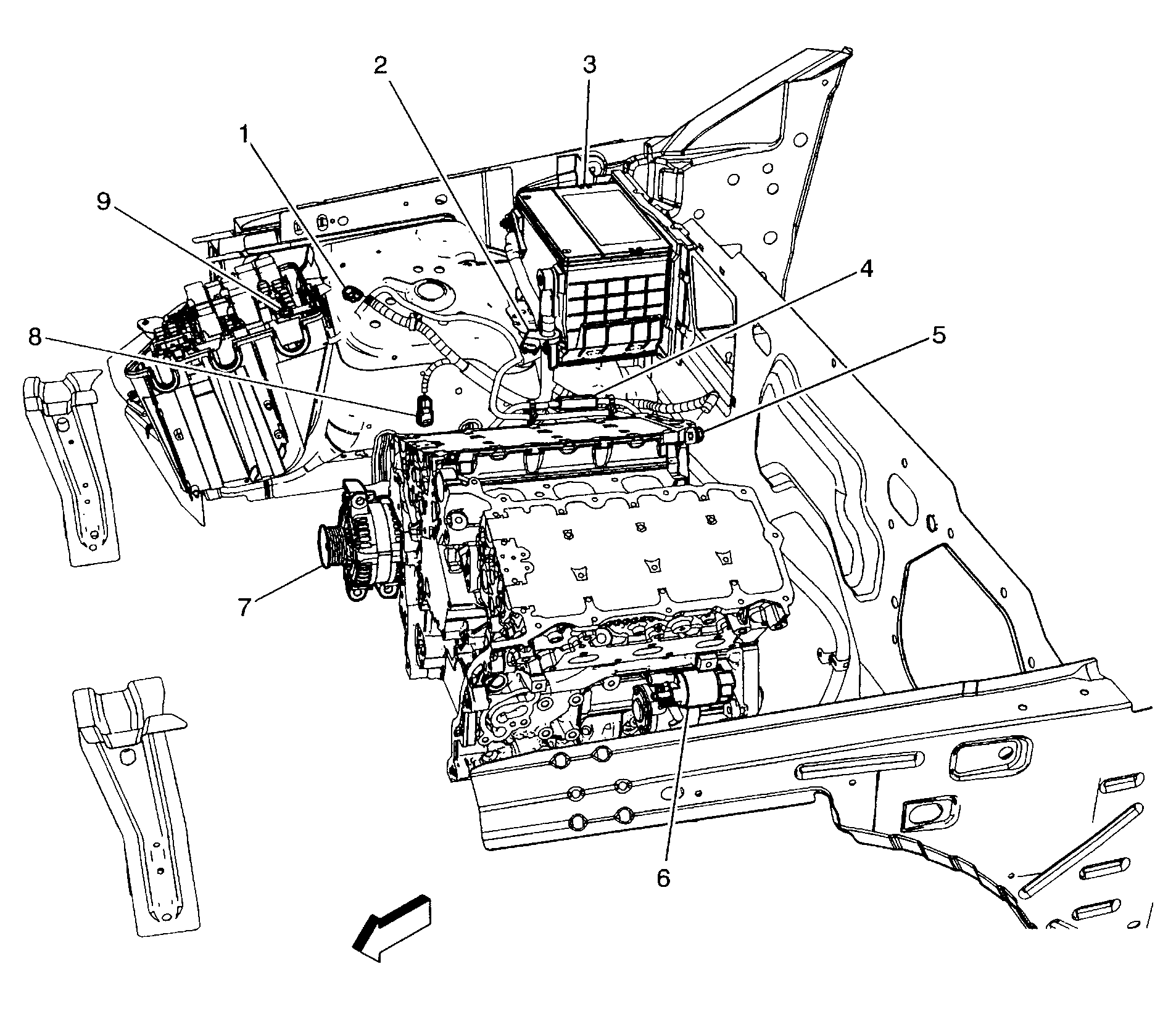

Fig 2: Front Of Engine (3.6L VIN 7)
Courtesy of GENERAL MOTORS CORP.
Fig 3: Under Left Side Of Dash
Courtesy of GENERAL MOTORS CORP.

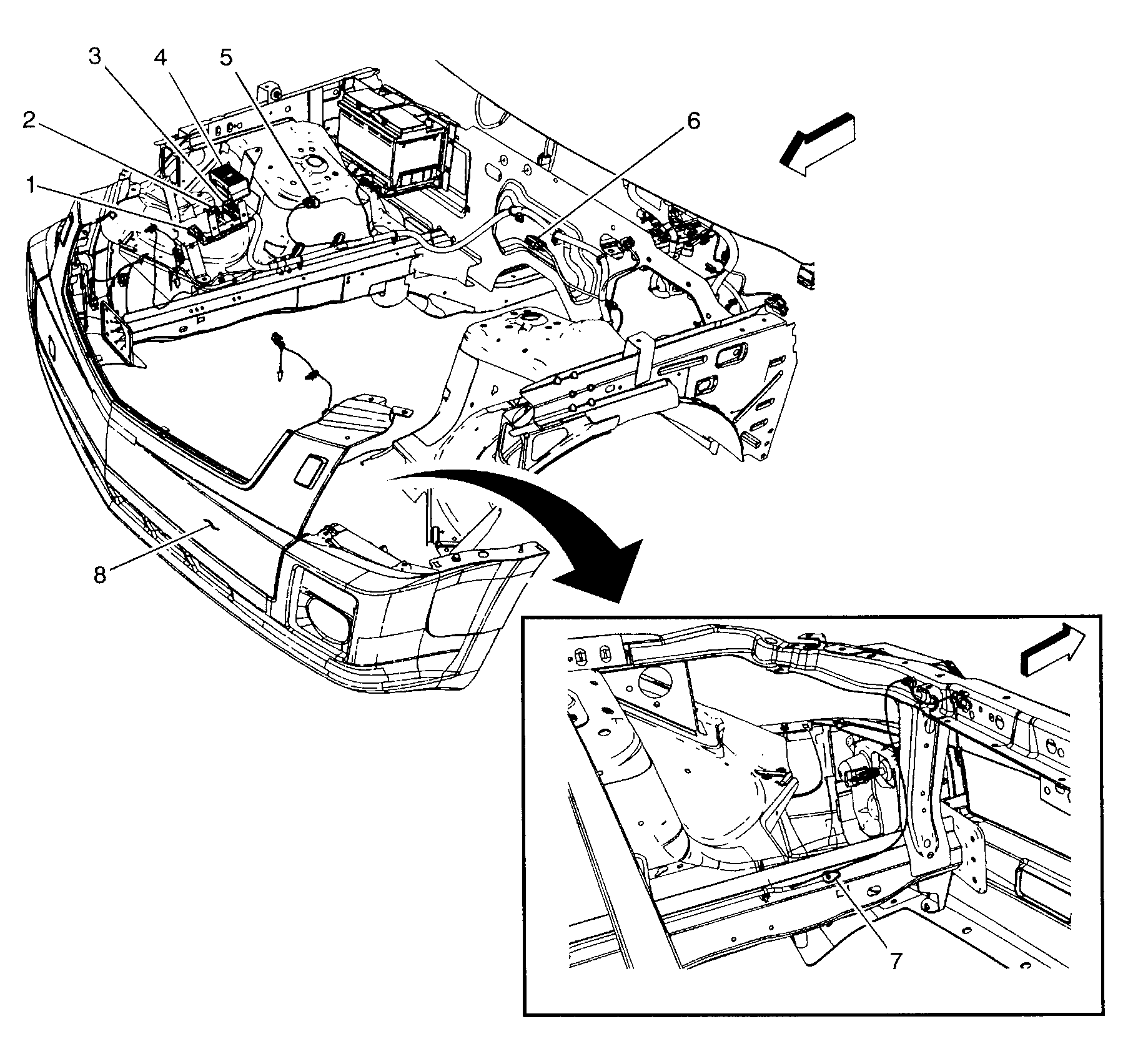

Fig 4: Behind Right Front Bumper
Courtesy of GENERAL MOTORS CORP.
Fig 5: Third Row Folding Seats
Courtesy of GENERAL MOTORS CORP.

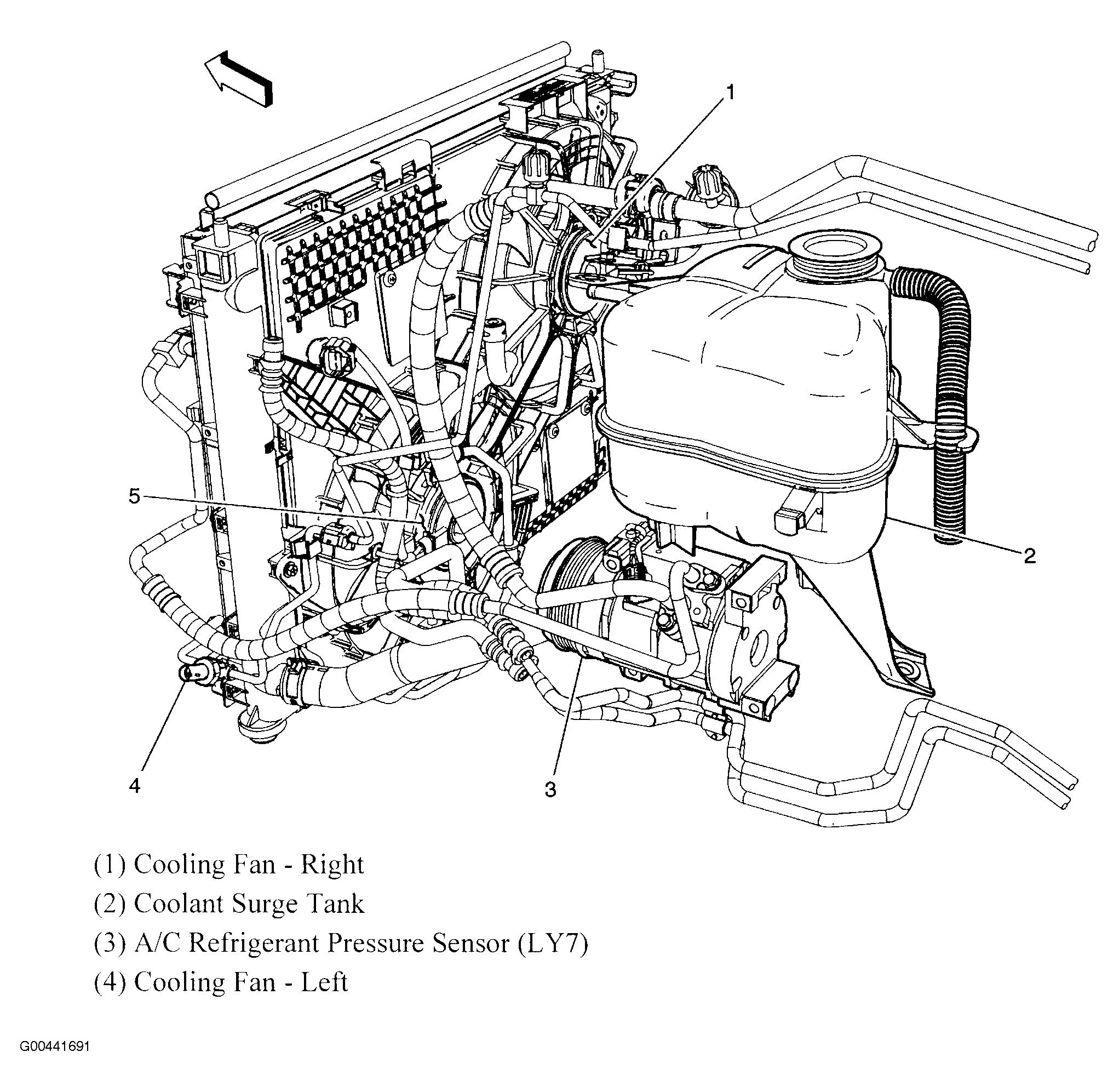

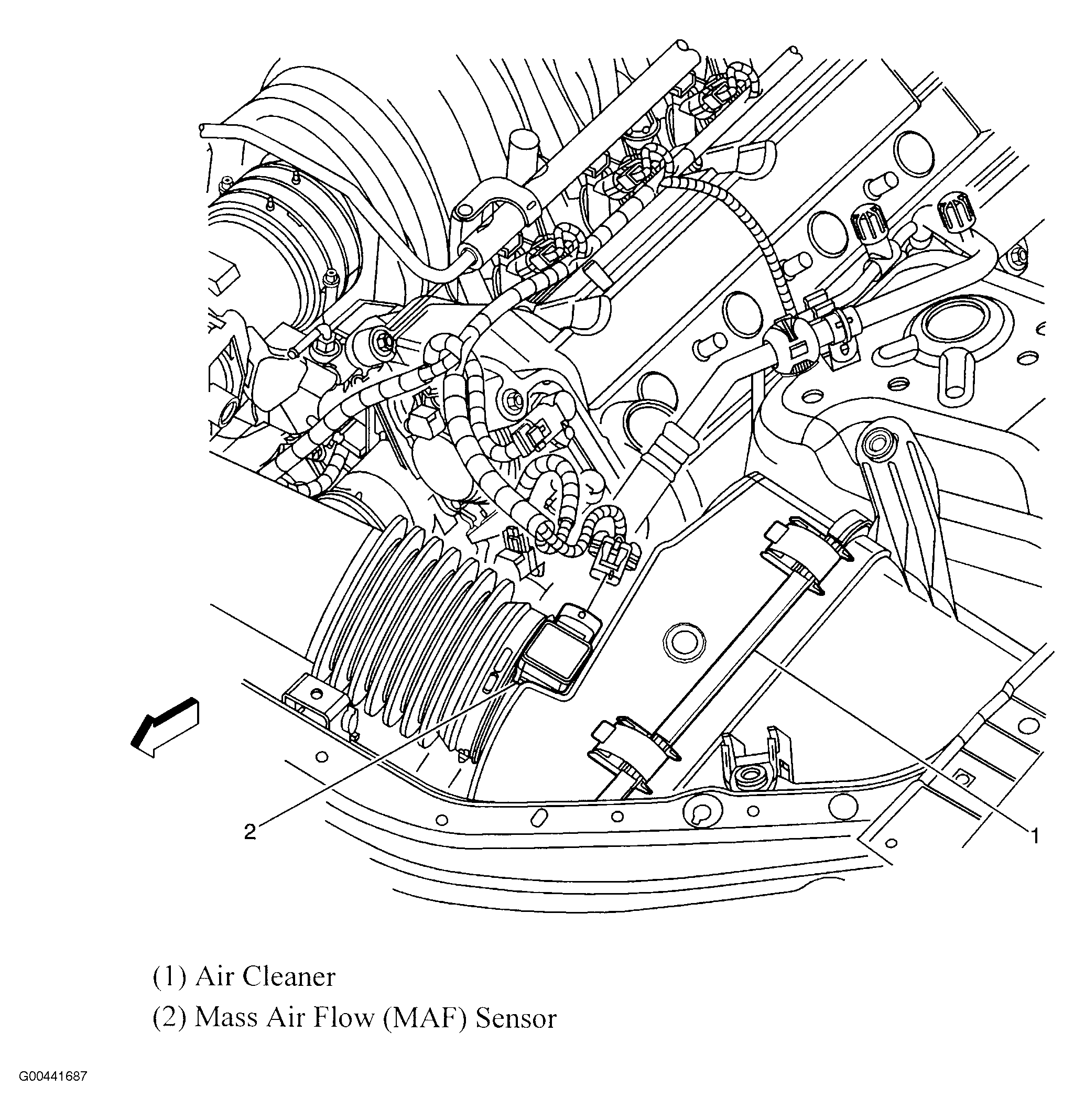

Fig 6: Left Front Of Engine Compartment
Courtesy of GENERAL MOTORS CORP.

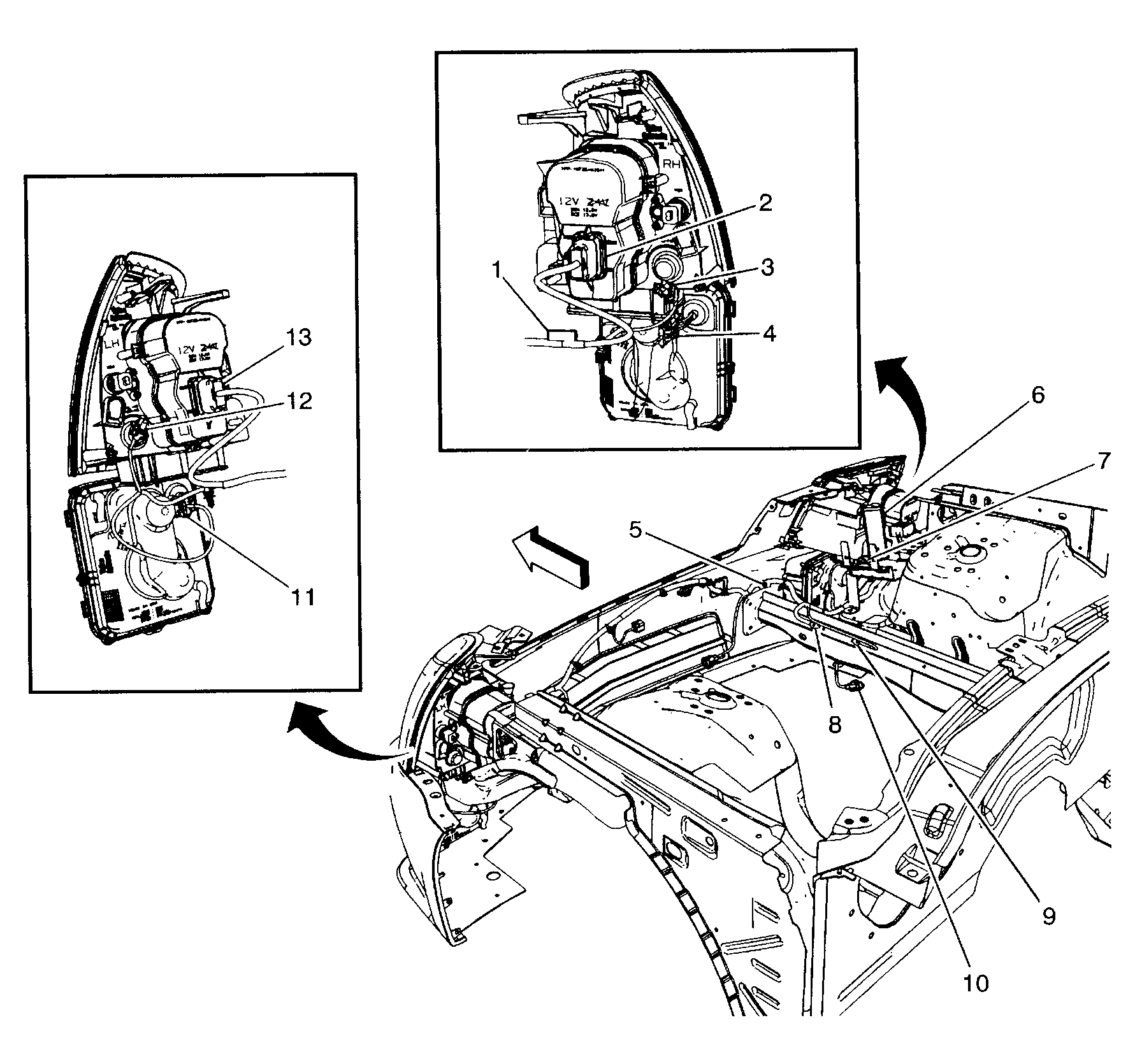

Fig 7: Right Rear Of Vehicle, Behind Trim Panel
Courtesy of GENERAL MOTORS CORP.

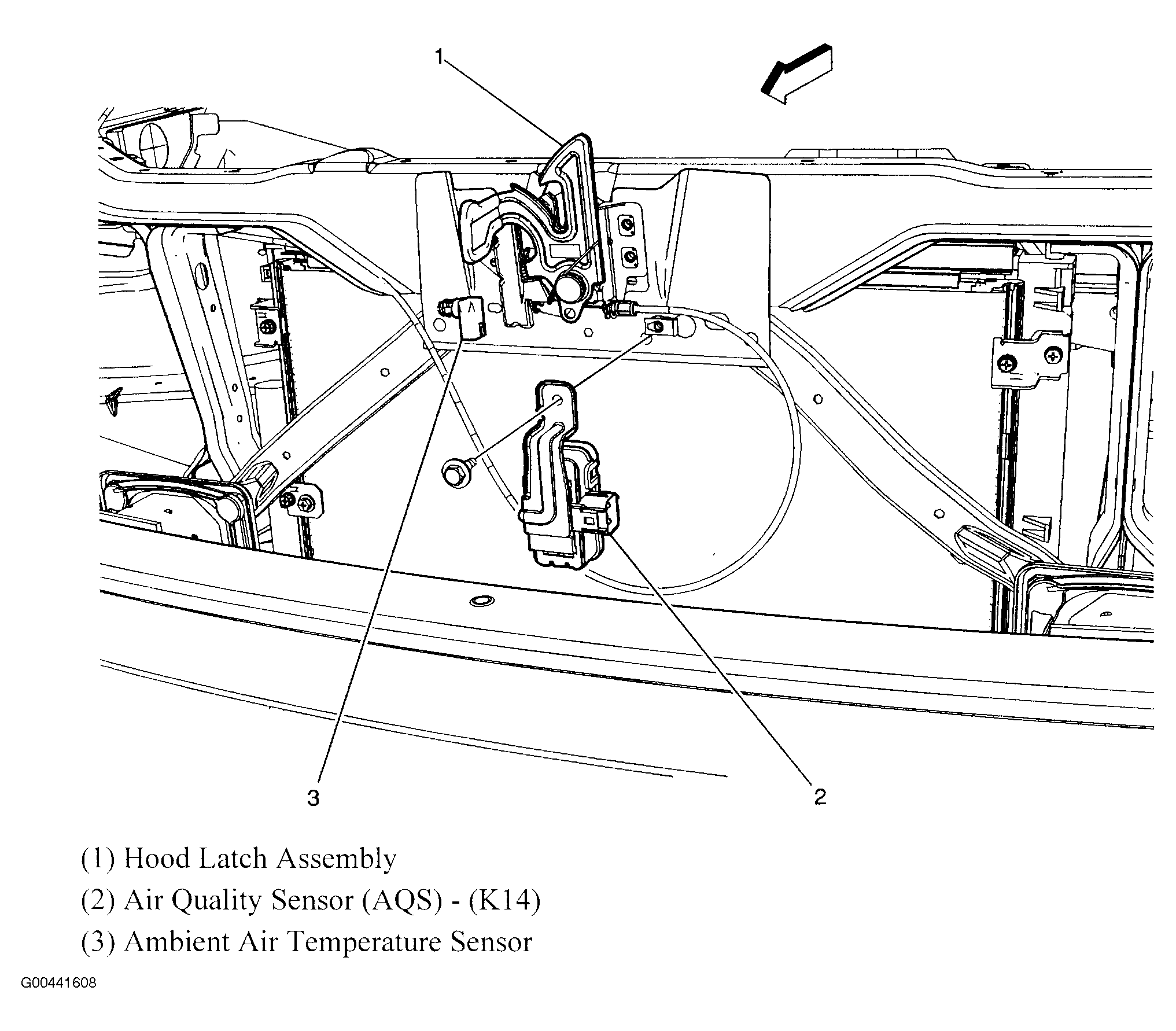

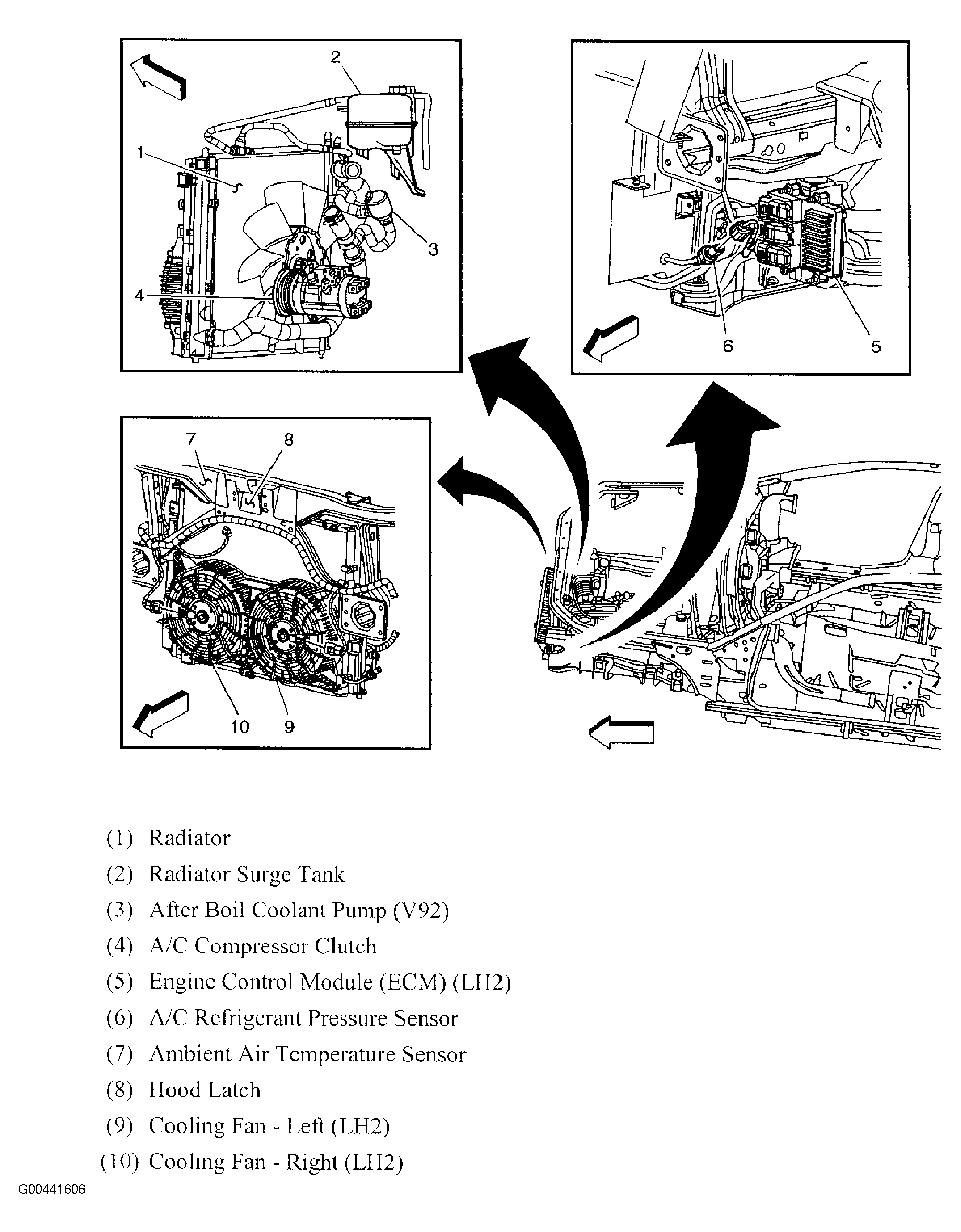

Fig 8: Front Of Vehicle
Courtesy of GENERAL MOTORS CORP.
Fig 9: Automatic Transmission Shift Lock Control
Courtesy of GENERAL MOTORS CORP.
Fig 10: Lower Left Side Of Engine Compartment
Courtesy of GENERAL MOTORS CORP.

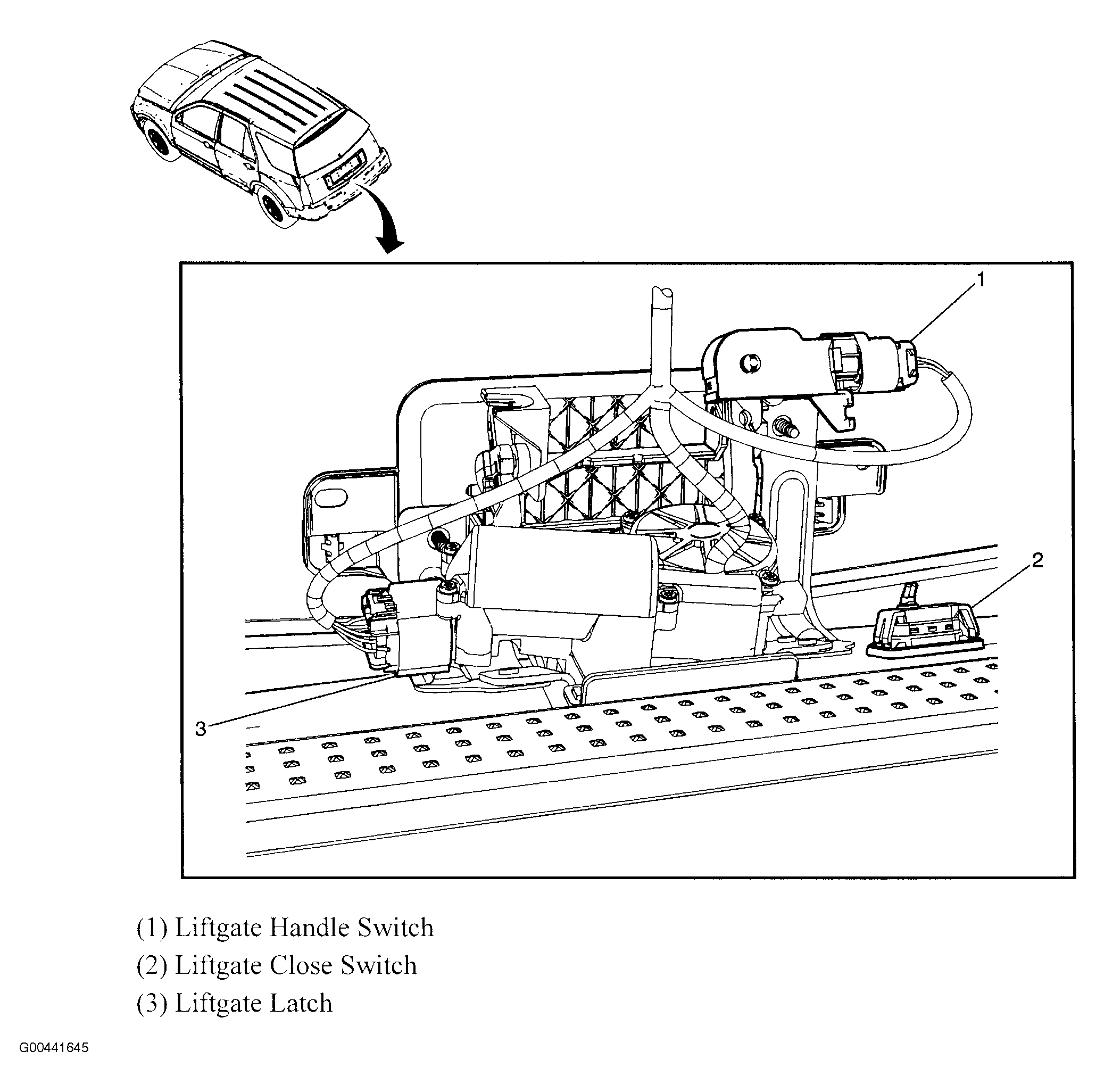

Fig 11: Center Of Liftgate
Courtesy of GENERAL MOTORS CORP.
Fig 12: Front Of Vehicle
Courtesy of GENERAL MOTORS CORP.
Fig 13: HVAC Module Components
Courtesy of GENERAL MOTORS CORP.
Fig 14: Air Quality Sensor
Courtesy of GENERAL MOTORS CORP.

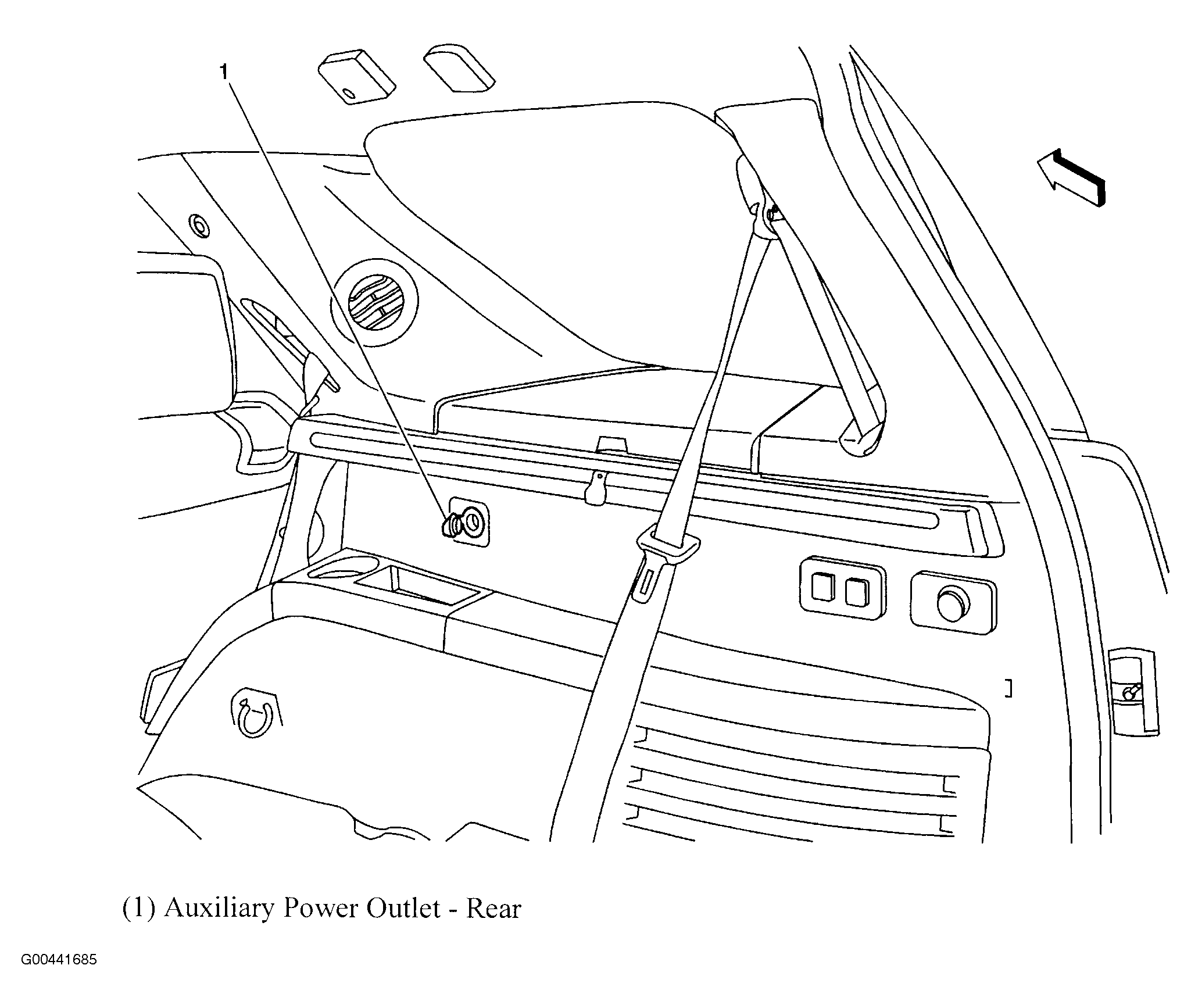

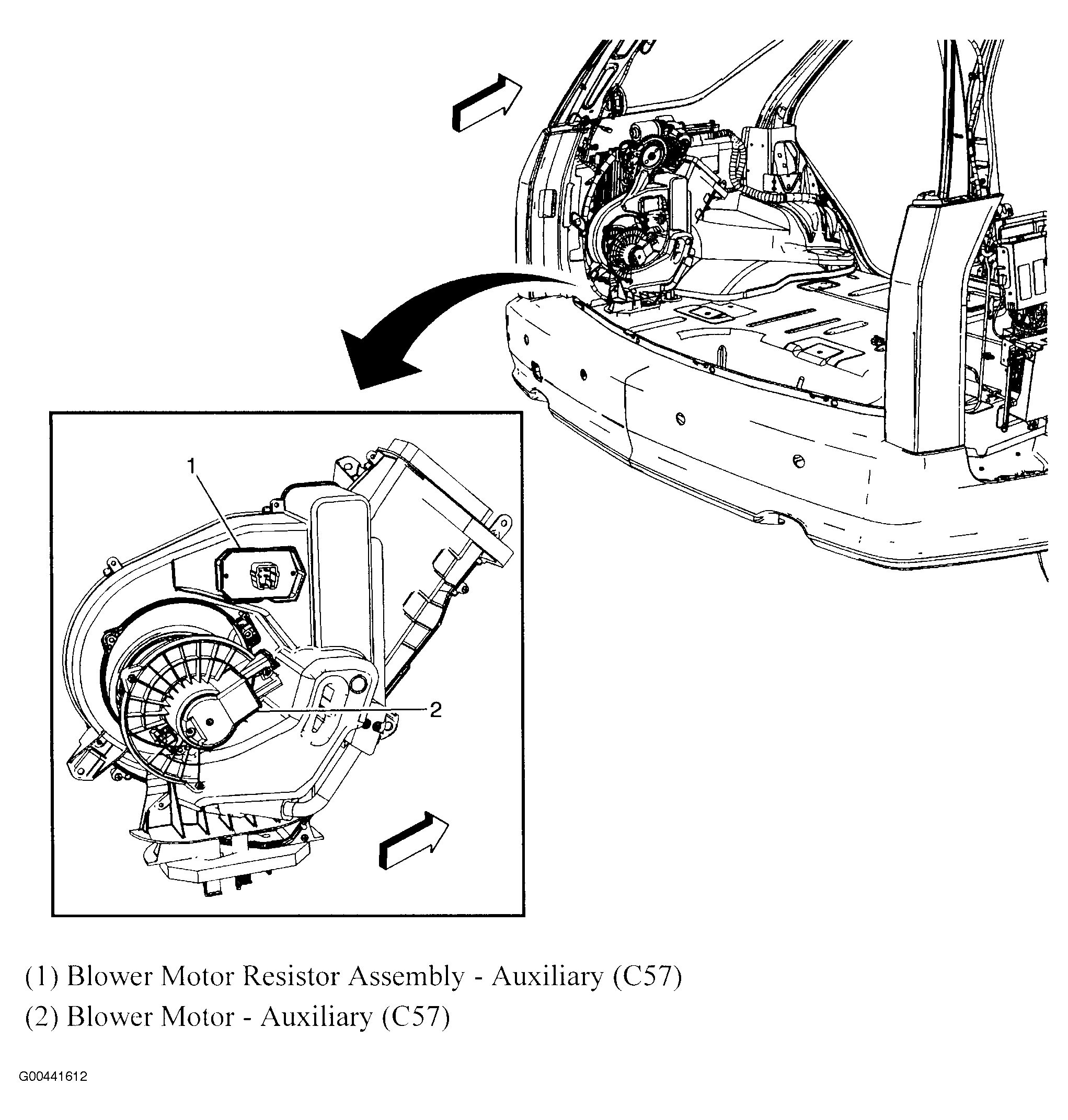

Fig 15: Rear Cargo Area
Courtesy of GENERAL MOTORS CORP.

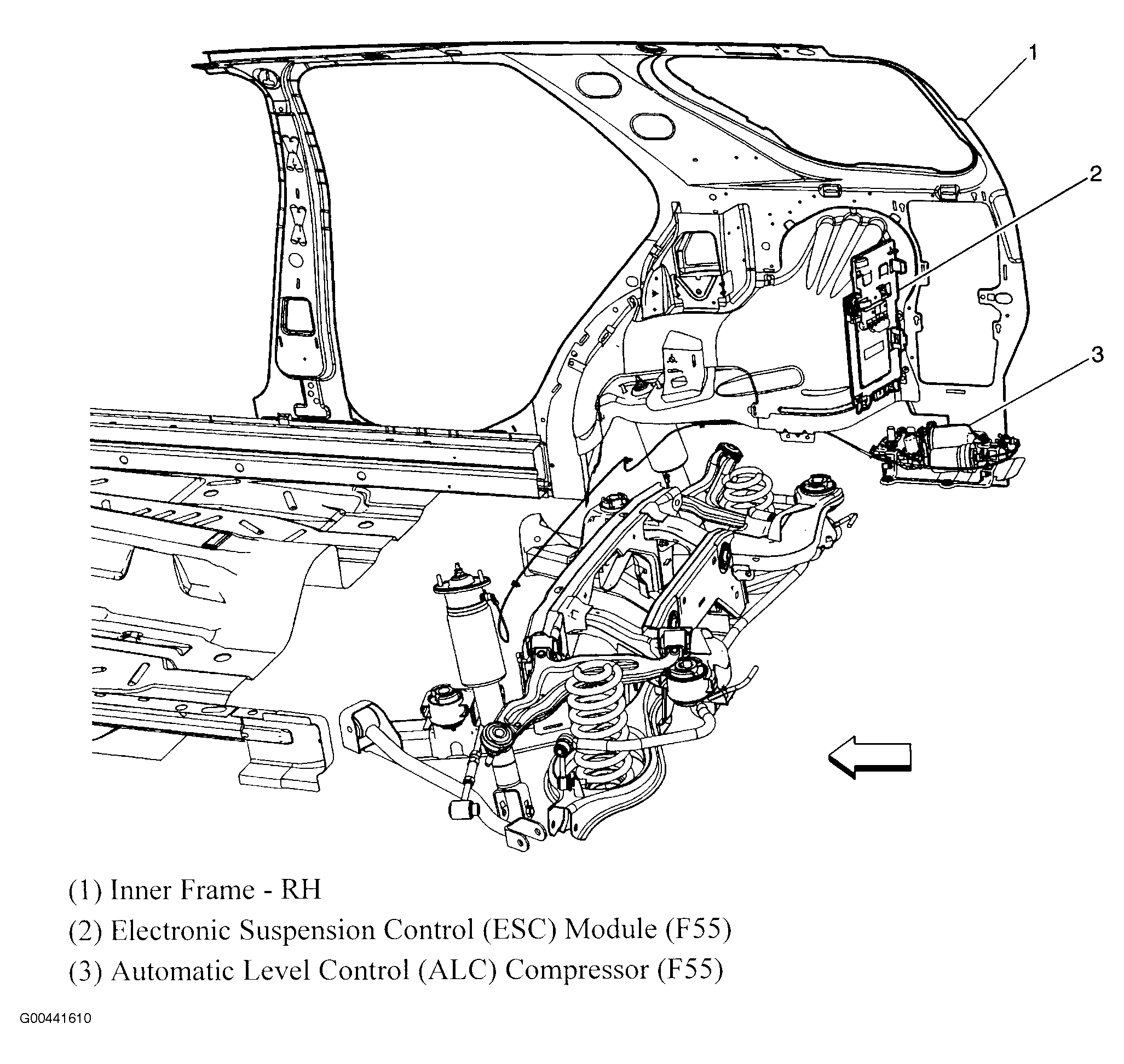

Fig 16: Right Rear Of Vehicle
Courtesy of GENERAL MOTORS CORP.
Fig 17: Battery
Courtesy of GENERAL MOTORS CORP.
Fig 18: Left Rear Of Cargo Area
Courtesy of GENERAL MOTORS CORP.
Fig 19: Lower Left Side Of Dash
Courtesy of GENERAL MOTORS CORP.

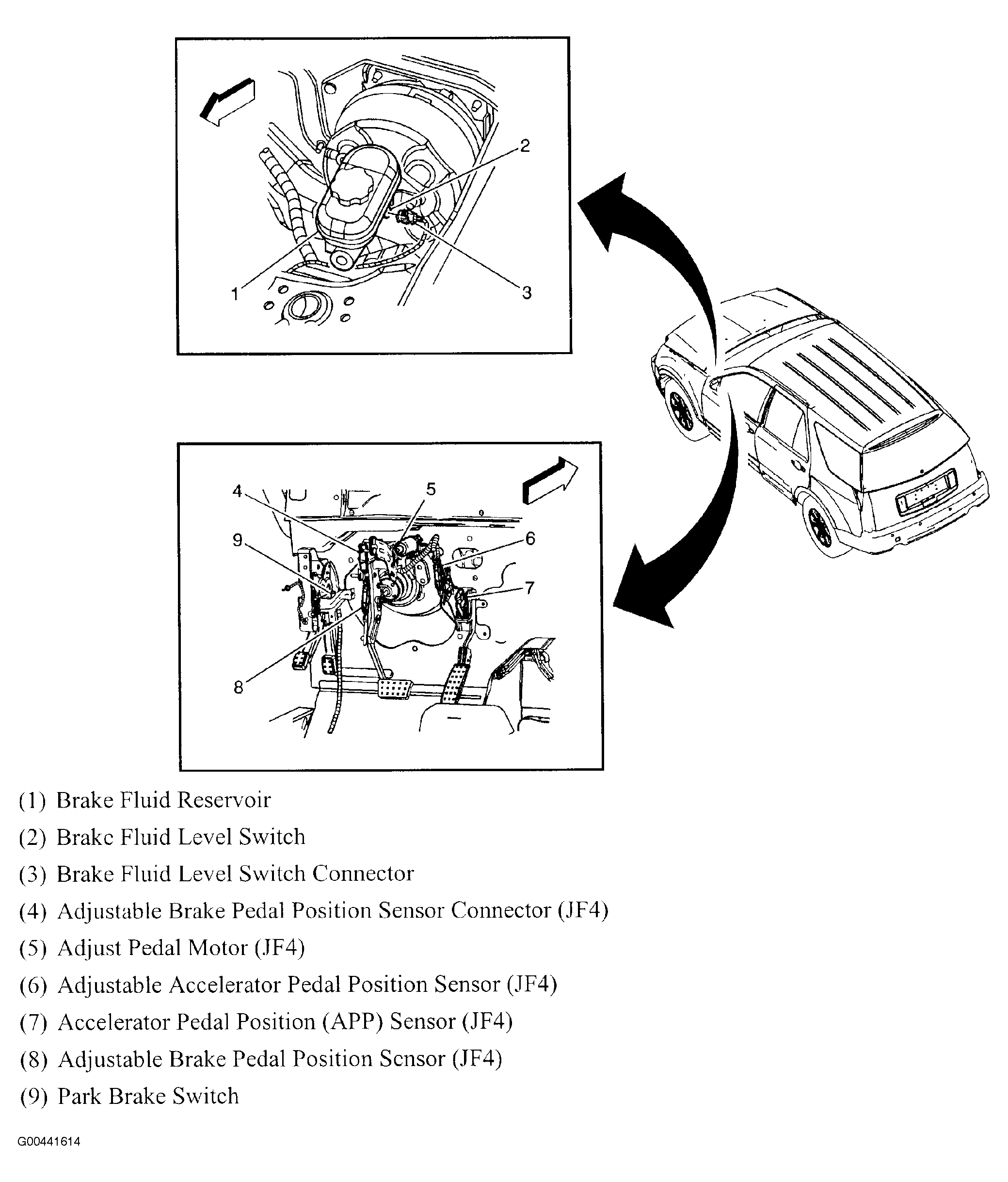

Fig 20: Brake & Brake Fluid Level Switches
Courtesy of GENERAL MOTORS CORP.
Fig 21: Top Of Engine (4.6L)
Courtesy of GENERAL MOTORS CORP.

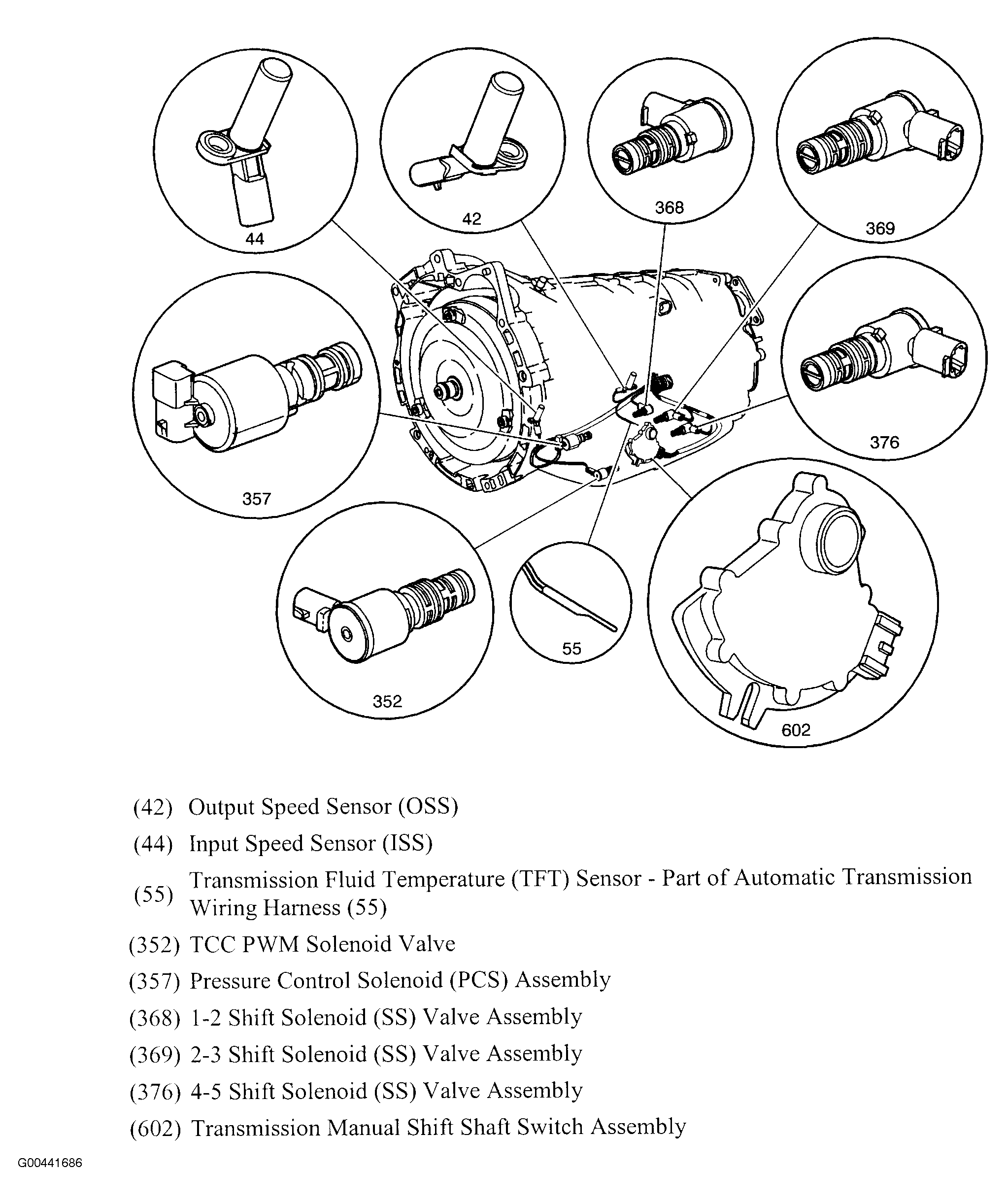

Fig 22: A/T Electronic Components (6L50/6L80/6L90)
Courtesy of GENERAL MOTORS CORP.

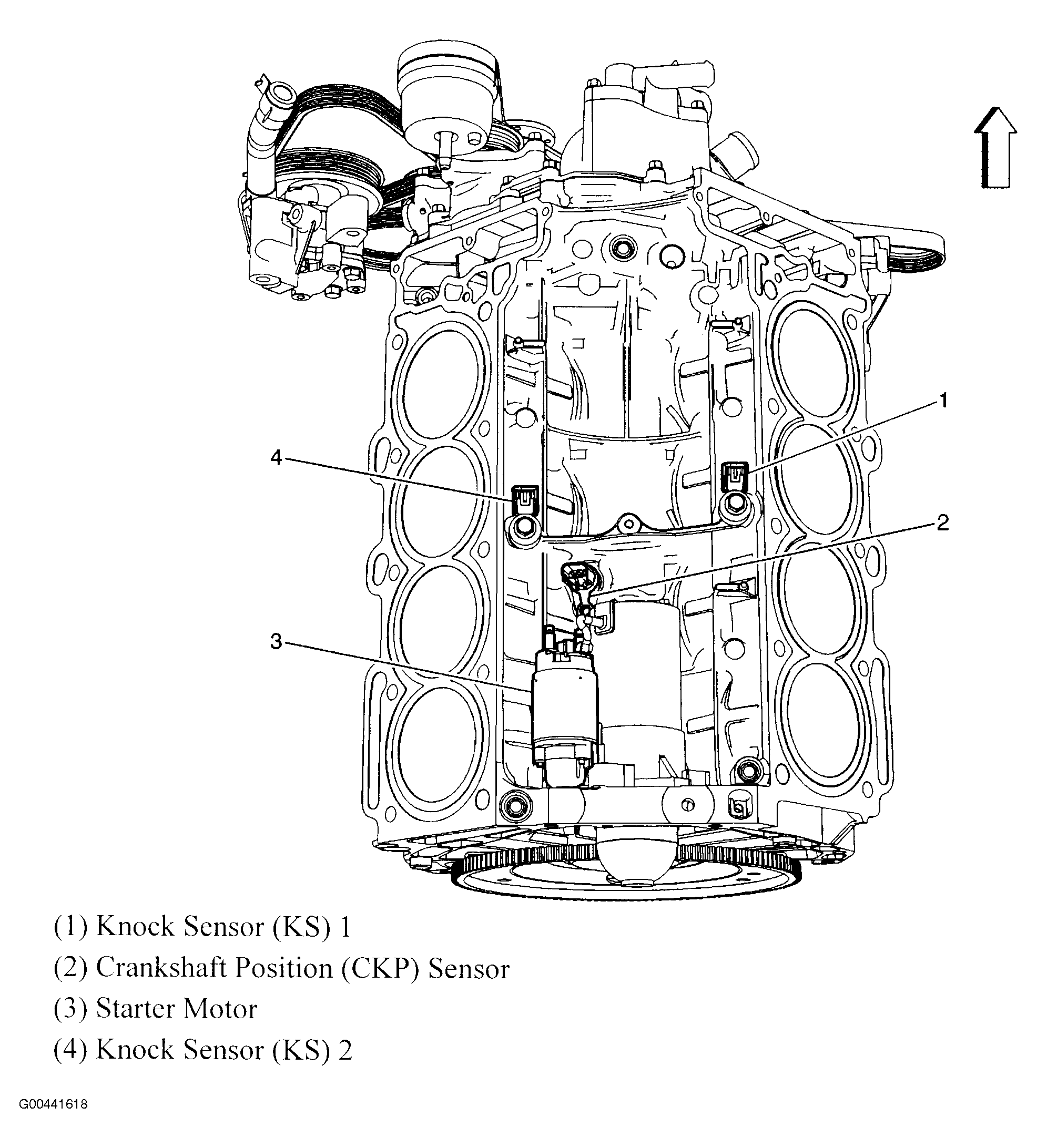

Fig 23: Starter & Knock Sensors (4.6L)
Courtesy of GENERAL MOTORS CORP.
Fig 24: Engine Components (3.6L)
Courtesy of GENERAL MOTORS CORP.

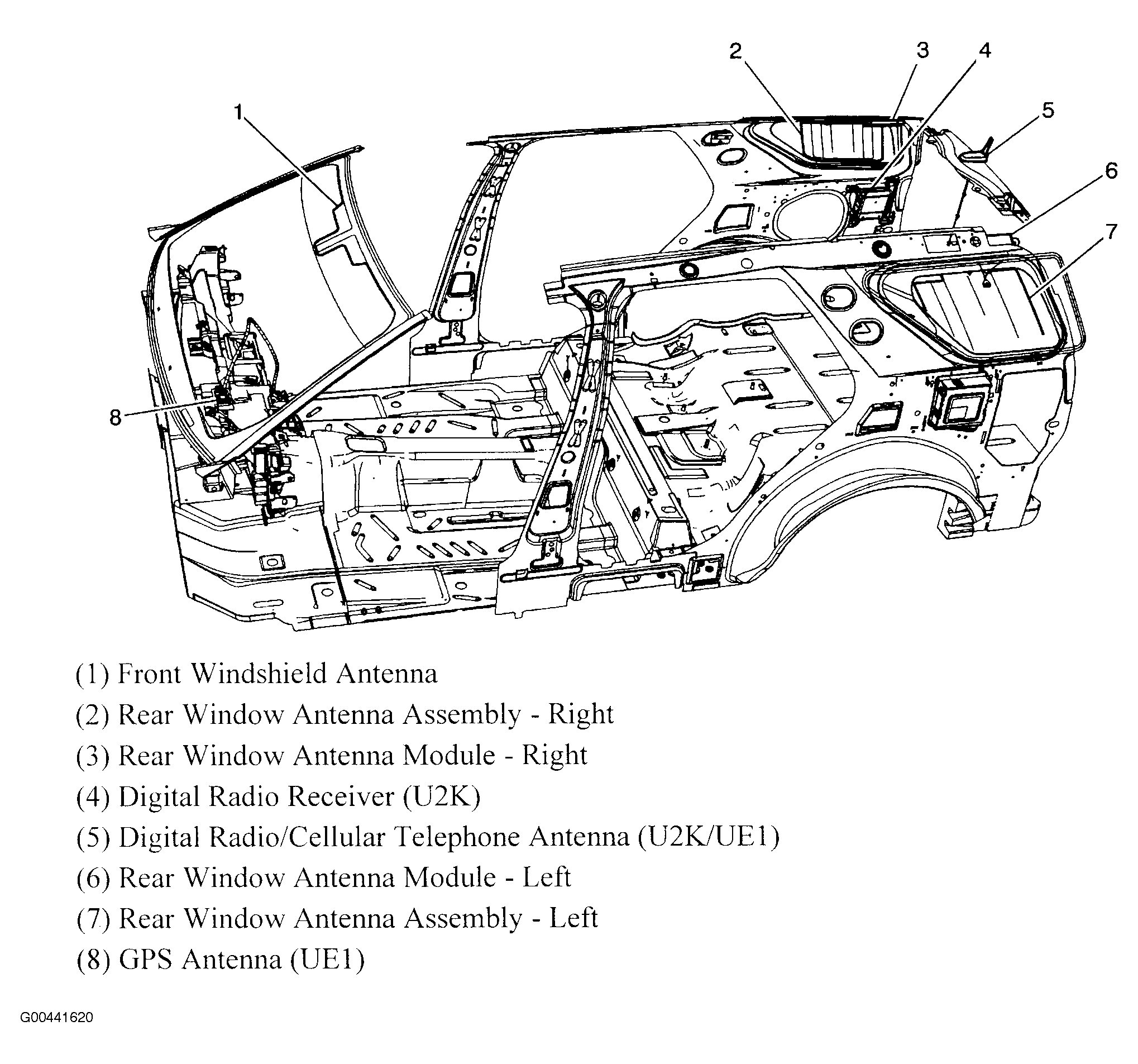

Fig 25: Antenna Components
Courtesy of GENERAL MOTORS CORP.

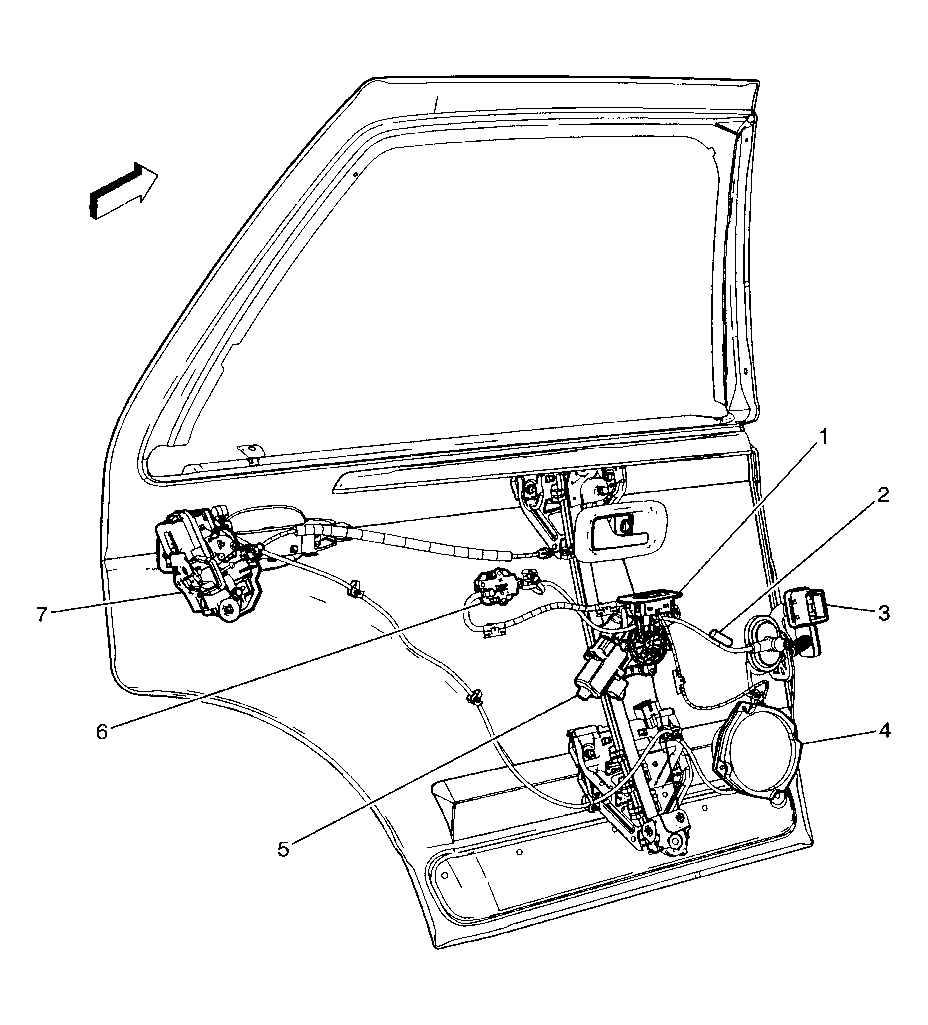

Fig 26: Driver Door Components
Courtesy of GENERAL MOTORS CORP.
Fig 27: Passenger Door Components
Courtesy of GENERAL MOTORS CORP.

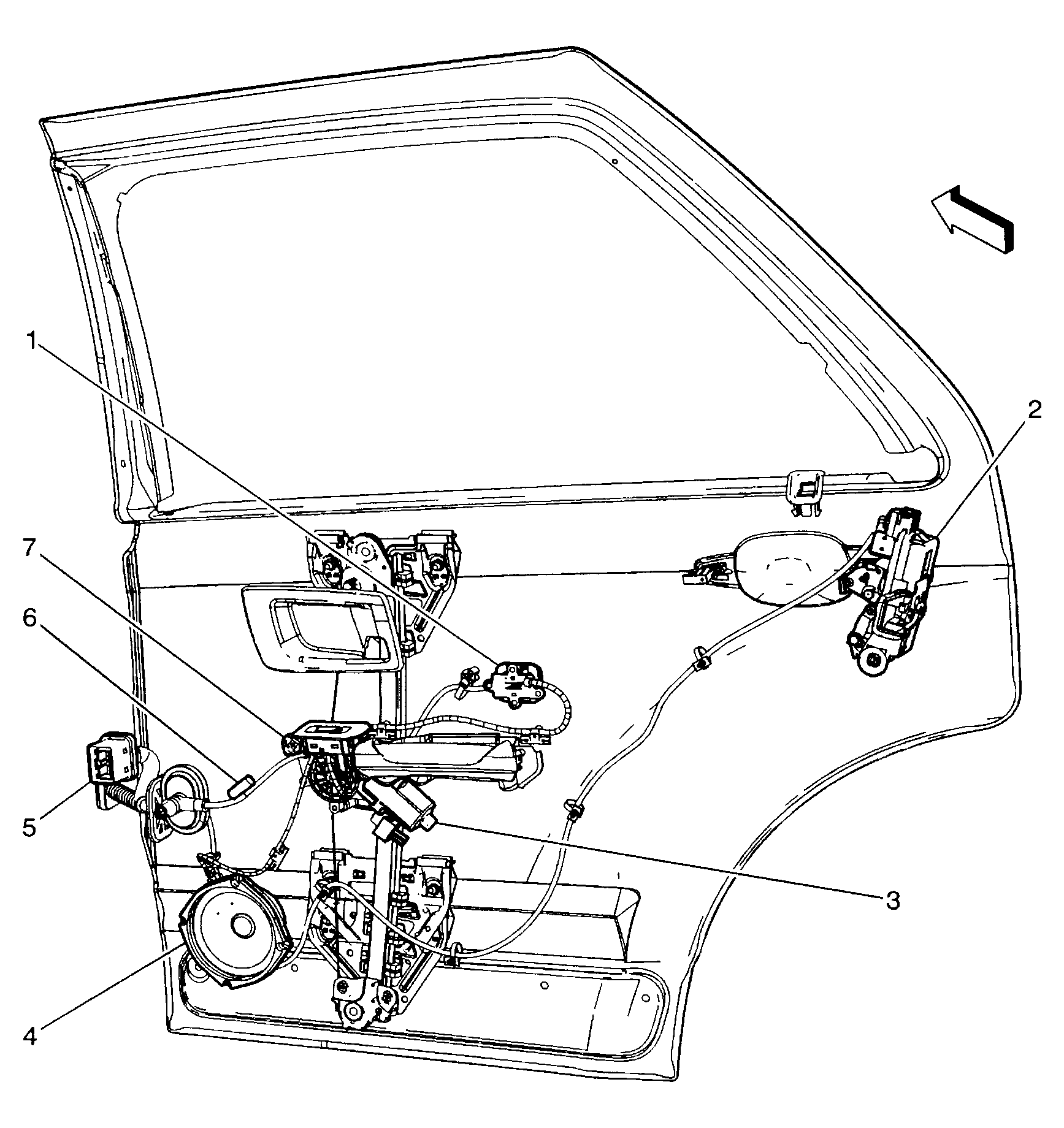

Fig 28: Left Rear Door Components
Courtesy of GENERAL MOTORS CORP.
Fig 29: Right Rear Door Components
Courtesy of GENERAL MOTORS CORP.

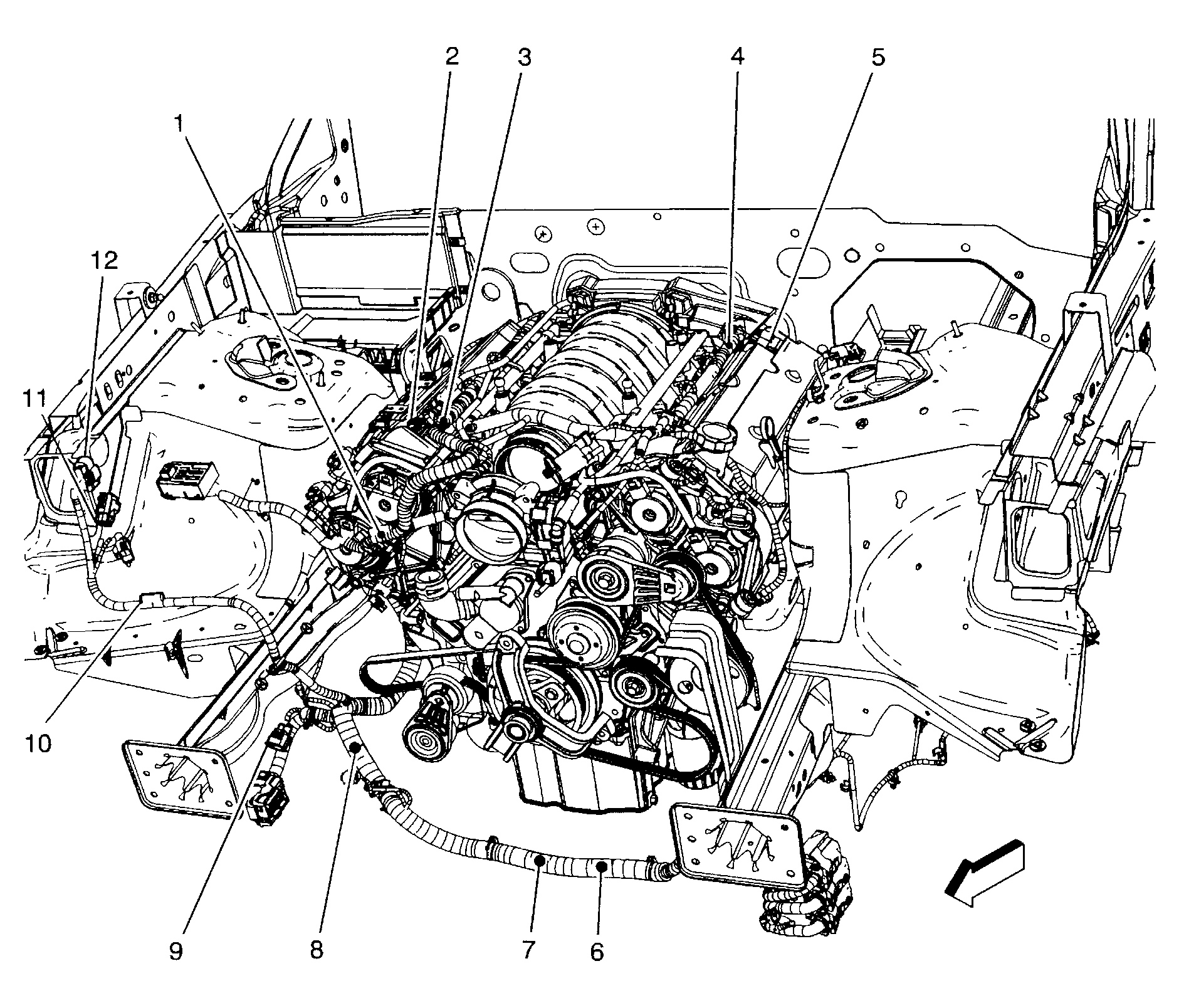

Fig 30: Front Of Engine Compartment (4.6L)
Courtesy of GENERAL MOTORS CORP.
Fig 31: Right Front Of Engine Compartment (3.6L)
Courtesy of GENERAL MOTORS CORP.
Fig 32: Rear Of Engine (4.6L)
Courtesy of GENERAL MOTORS CORP.
Fig 33: Engine Control Components (3.6L)
Courtesy of GENERAL MOTORS CORP.

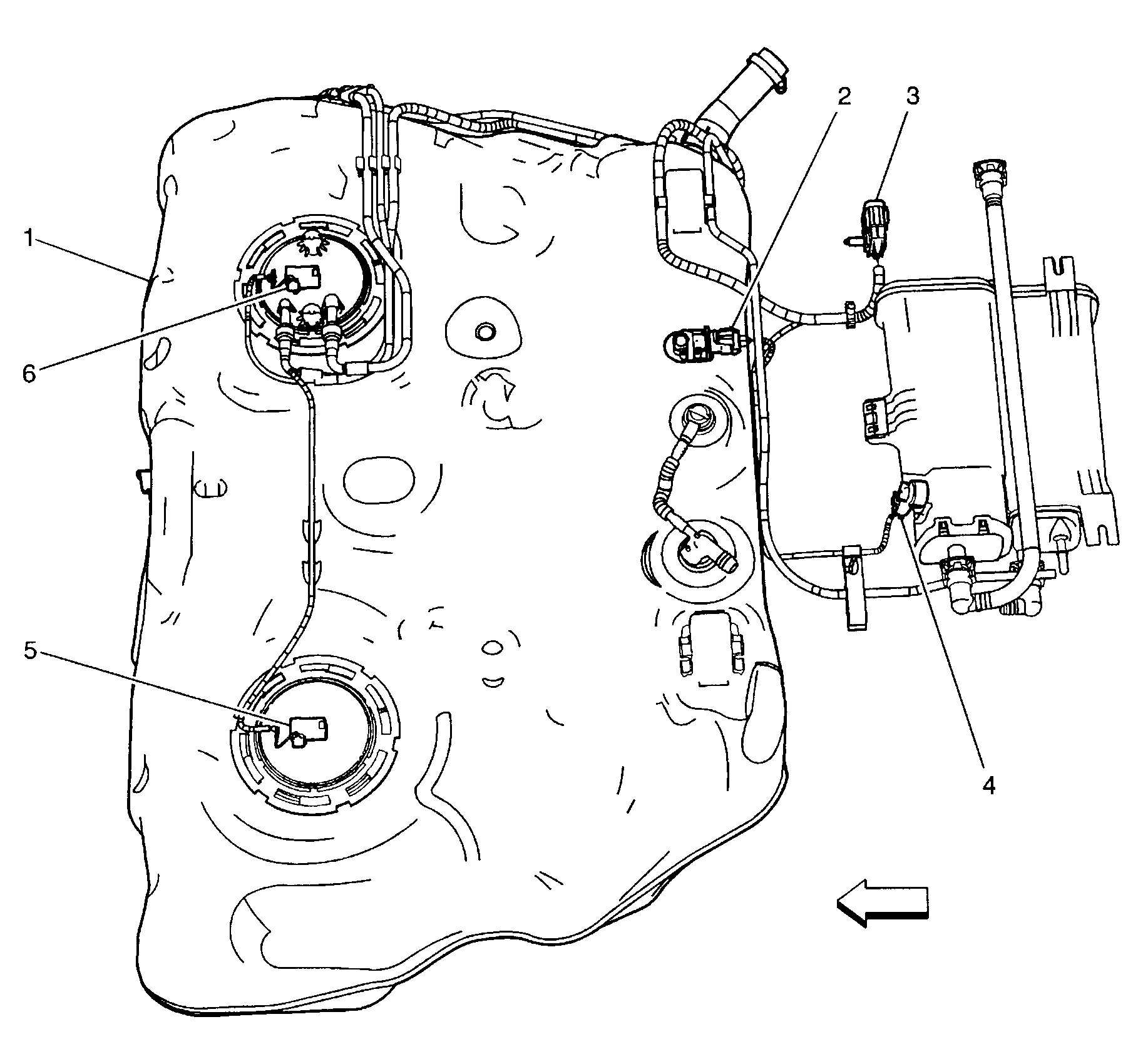

Fig 34: Fuel Tank & EVAP Solenoid
Courtesy of GENERAL MOTORS CORP.

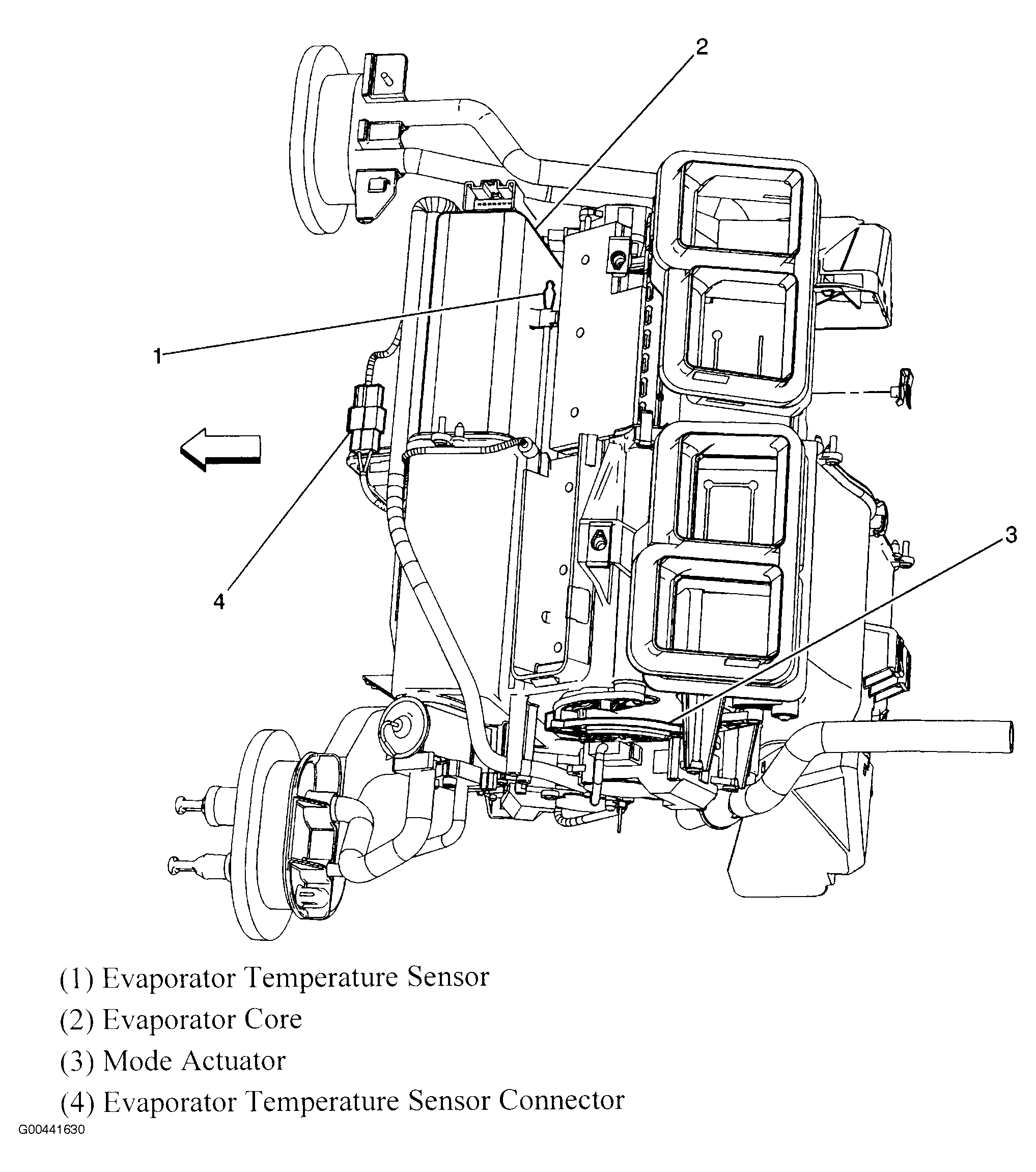

Fig 35: Evaporator Temperature Sensor
Courtesy of GENERAL MOTORS CORP.

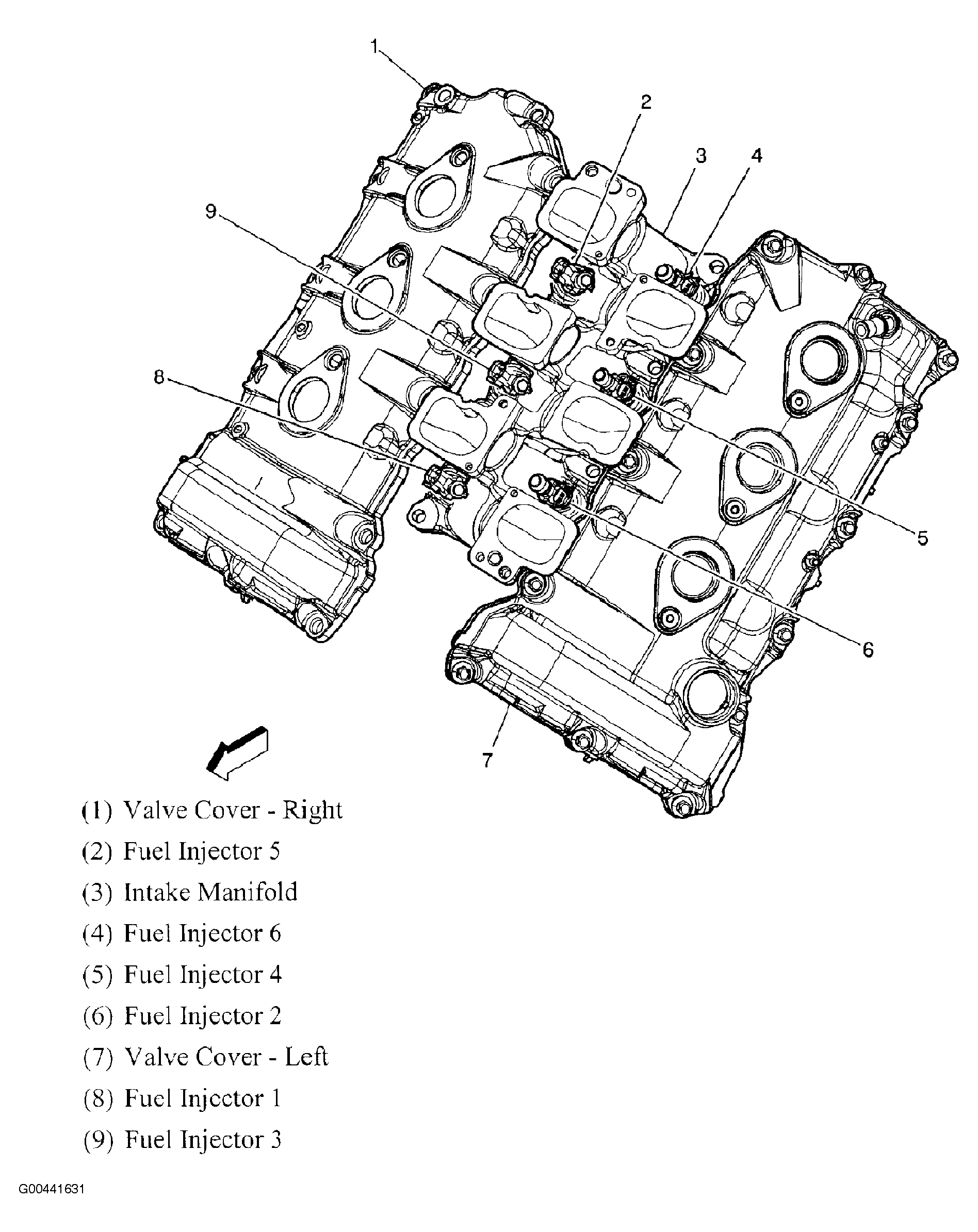

Fig 36: Fuel Injectors (3.6L)
Courtesy of GENERAL MOTORS CORP.
Fig 37: Front Of Engine Compartment
Courtesy of GENERAL MOTORS CORP.

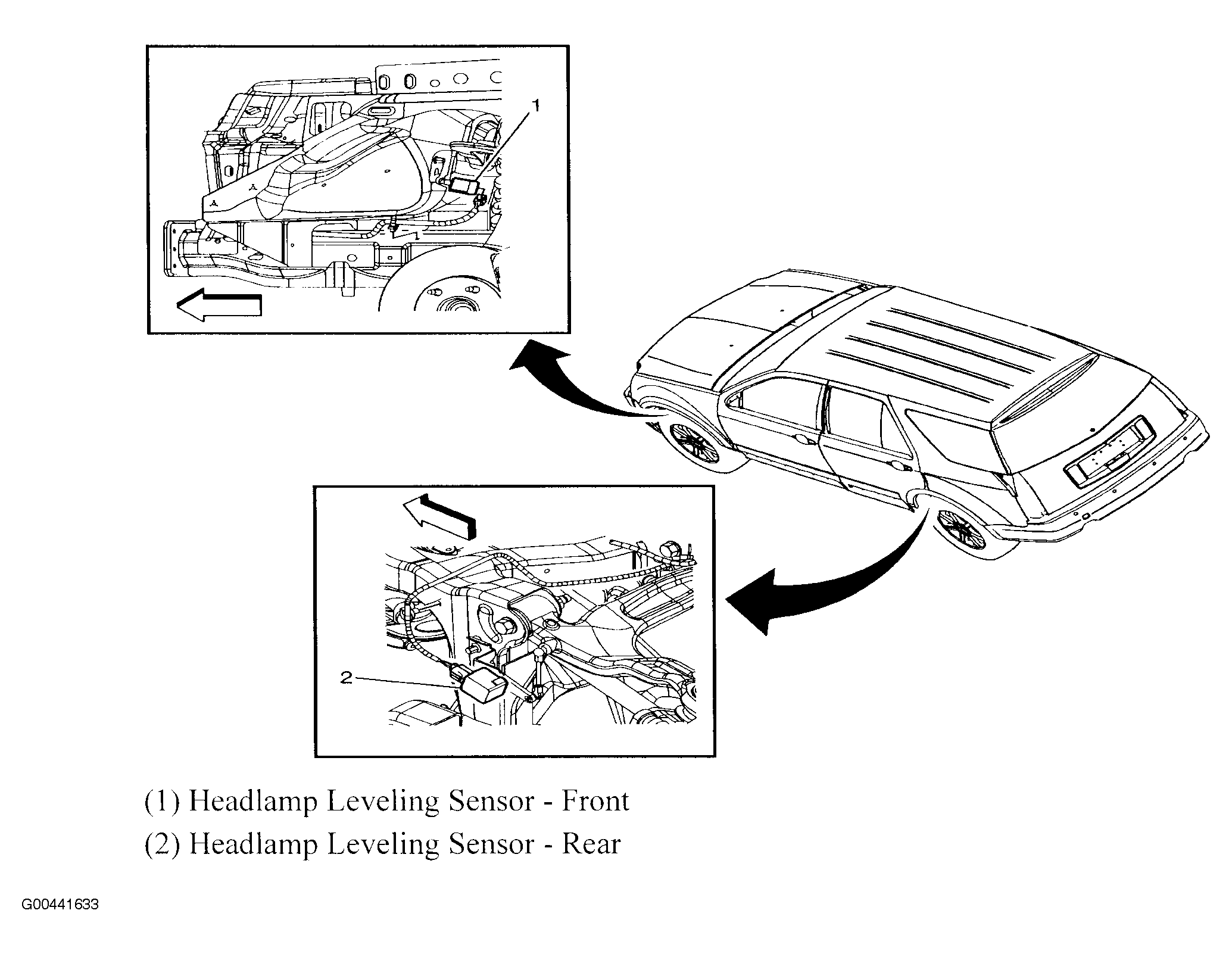

Fig 38: Headlamp Leveling Sensors
Courtesy of GENERAL MOTORS CORP.

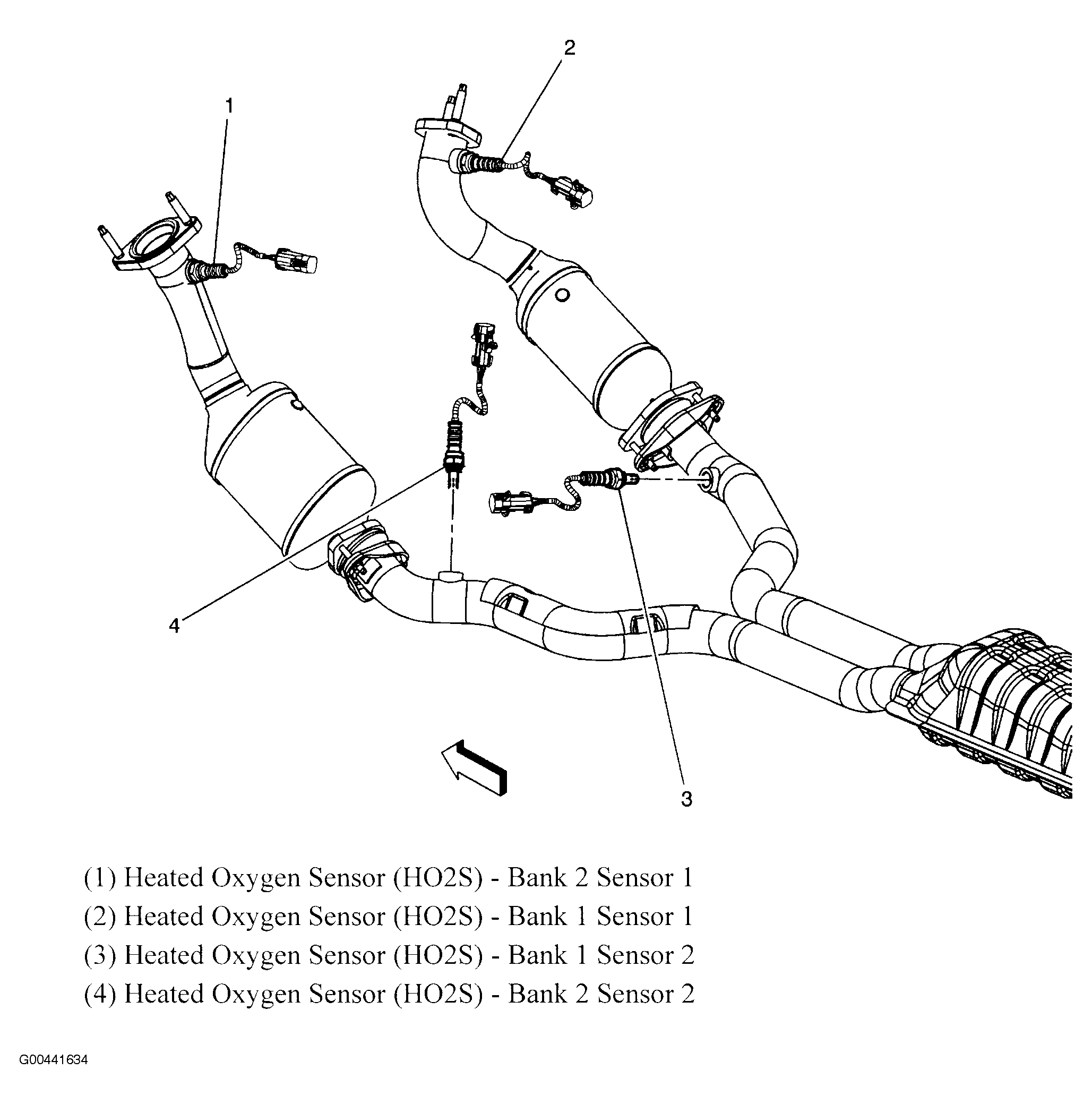

Fig 39: Heated Oxygen Sensors
Courtesy of GENERAL MOTORS CORP.
Fig 40: Front Heated Seat Components
Courtesy of GENERAL MOTORS CORP.

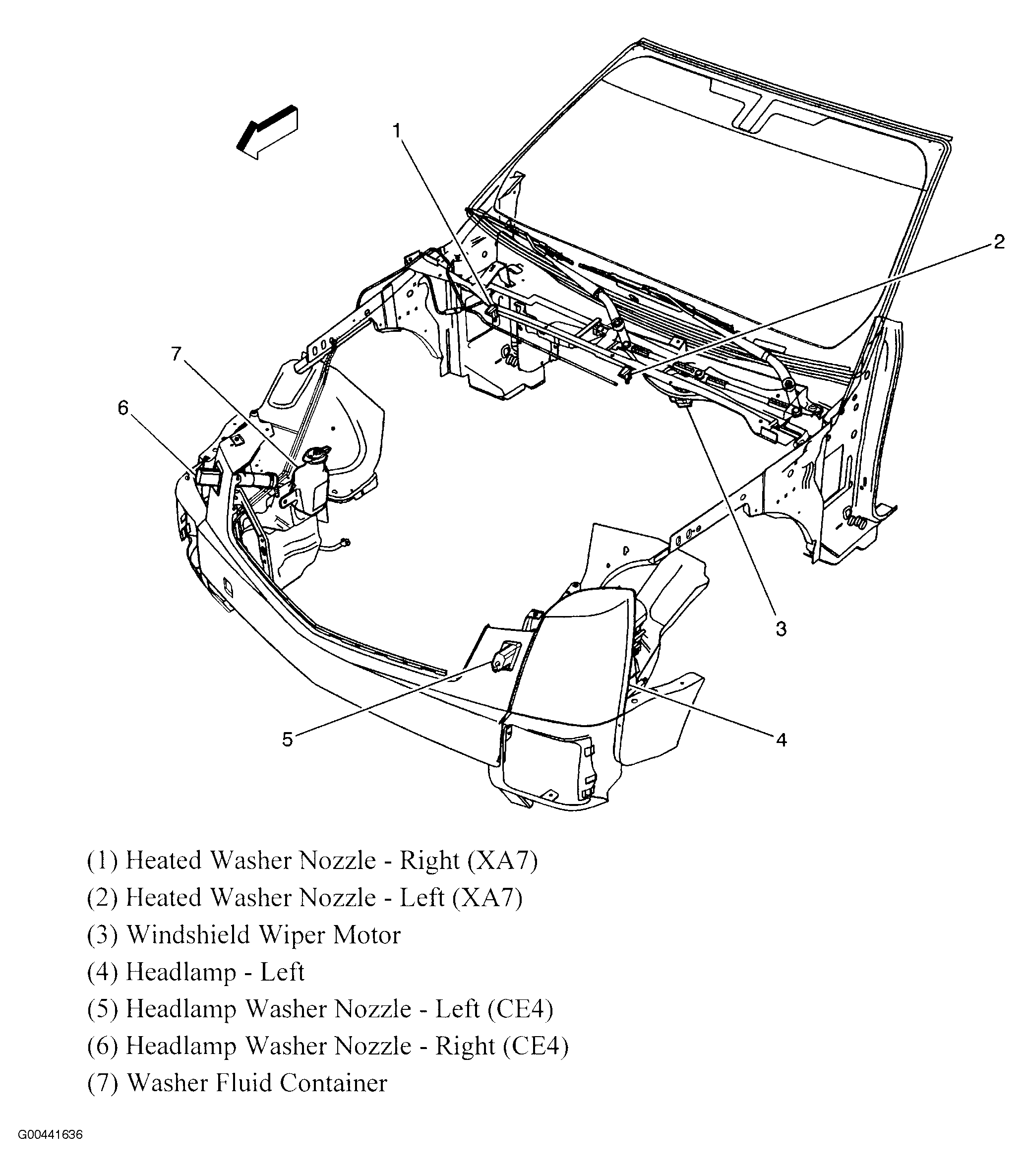

Fig 41: Wiper Washer Components
Courtesy of GENERAL MOTORS CORP.

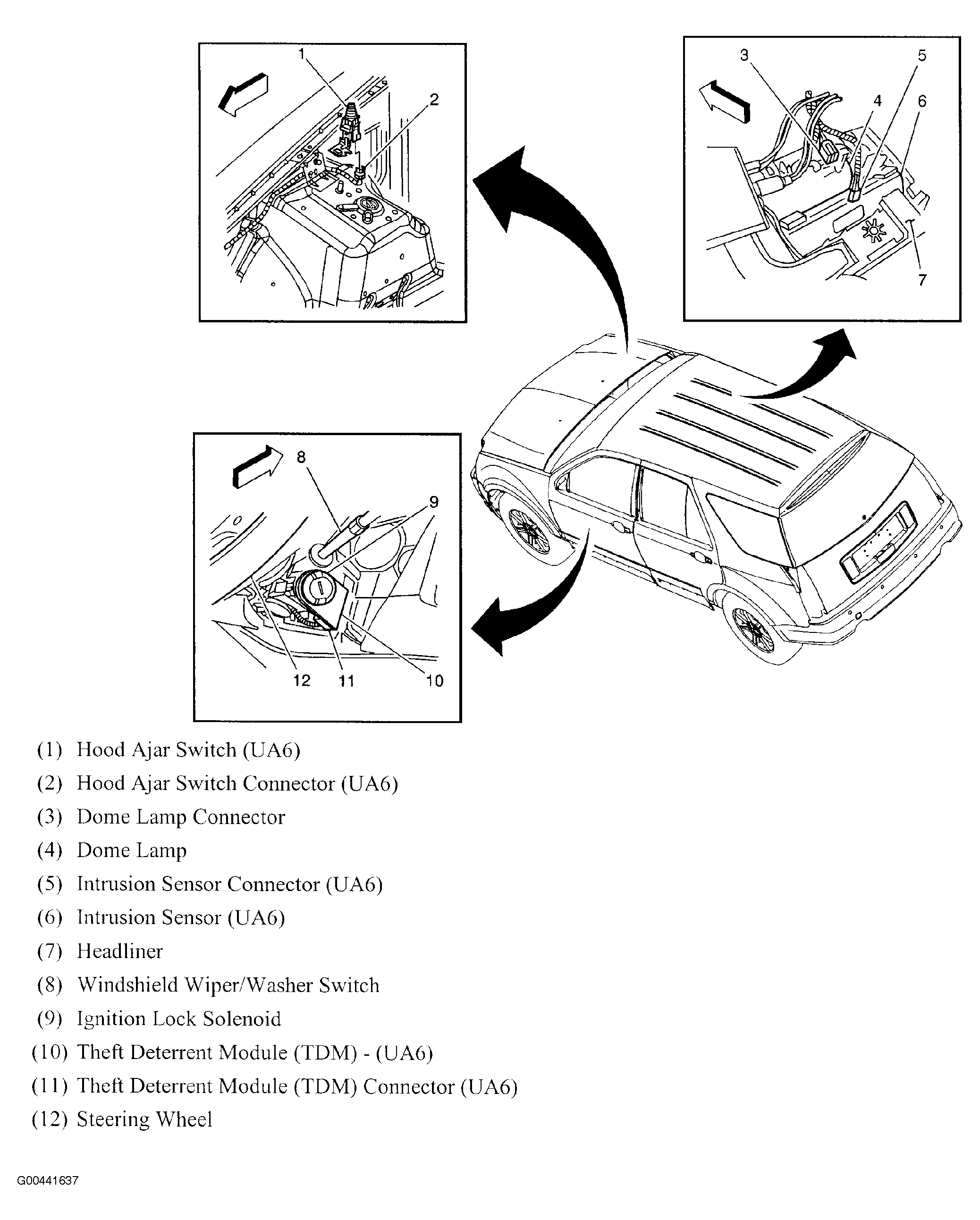

Fig 42: Theft Deterrent Components
Courtesy of GENERAL MOTORS CORP.
Fig 43: Instrument Panel & Floor Console Components
Courtesy of GENERAL MOTORS CORP.
Fig 44: Steering Column Components
Courtesy of GENERAL MOTORS CORP.
Fig 45: Passenger Seat Components
Courtesy of GENERAL MOTORS CORP.
Fig 46: SIR Components
Courtesy of GENERAL MOTORS CORP.
Fig 47: Right Lower "B" Pillar
Courtesy of GENERAL MOTORS CORP.
Fig 48: Steering Wheel Components
Courtesy of GENERAL MOTORS CORP.
Fig 49: Lower Center Of Liftgate
Courtesy of GENERAL MOTORS CORP.

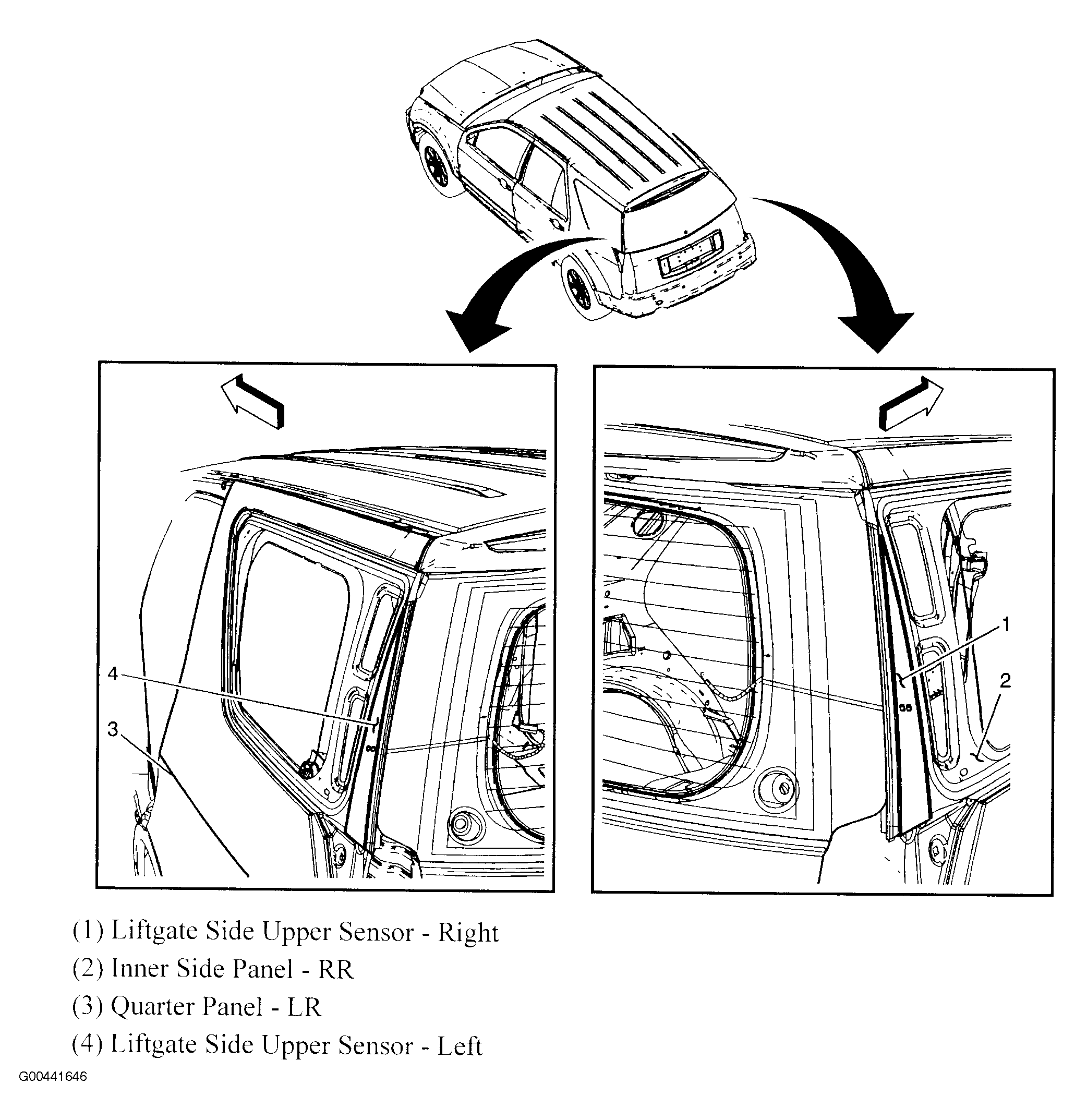

Fig 50: Liftgate Side Upper Sensor
Courtesy of GENERAL MOTORS CORP.

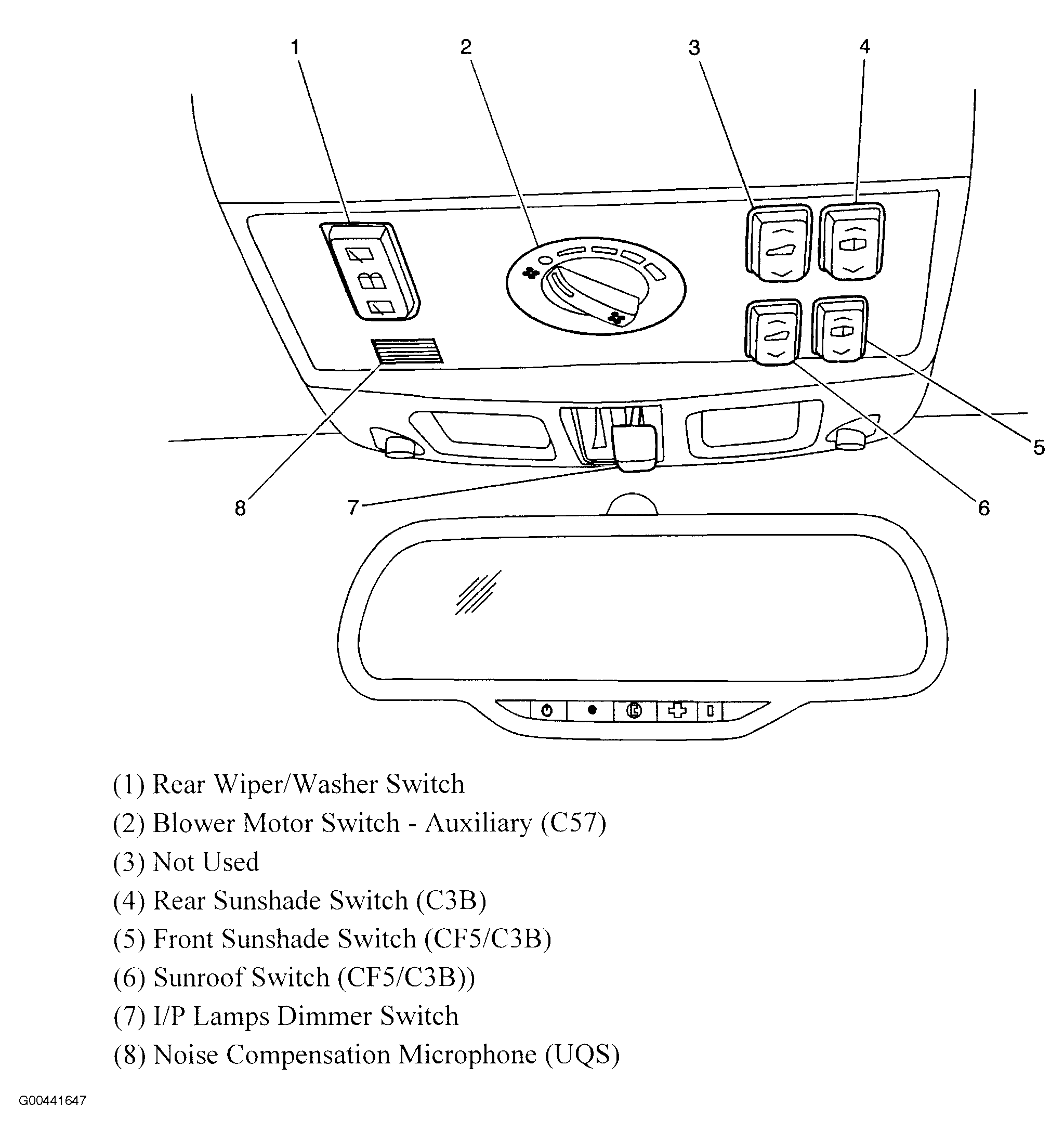

Fig 51: Overhead Console
Courtesy of GENERAL MOTORS CORP.

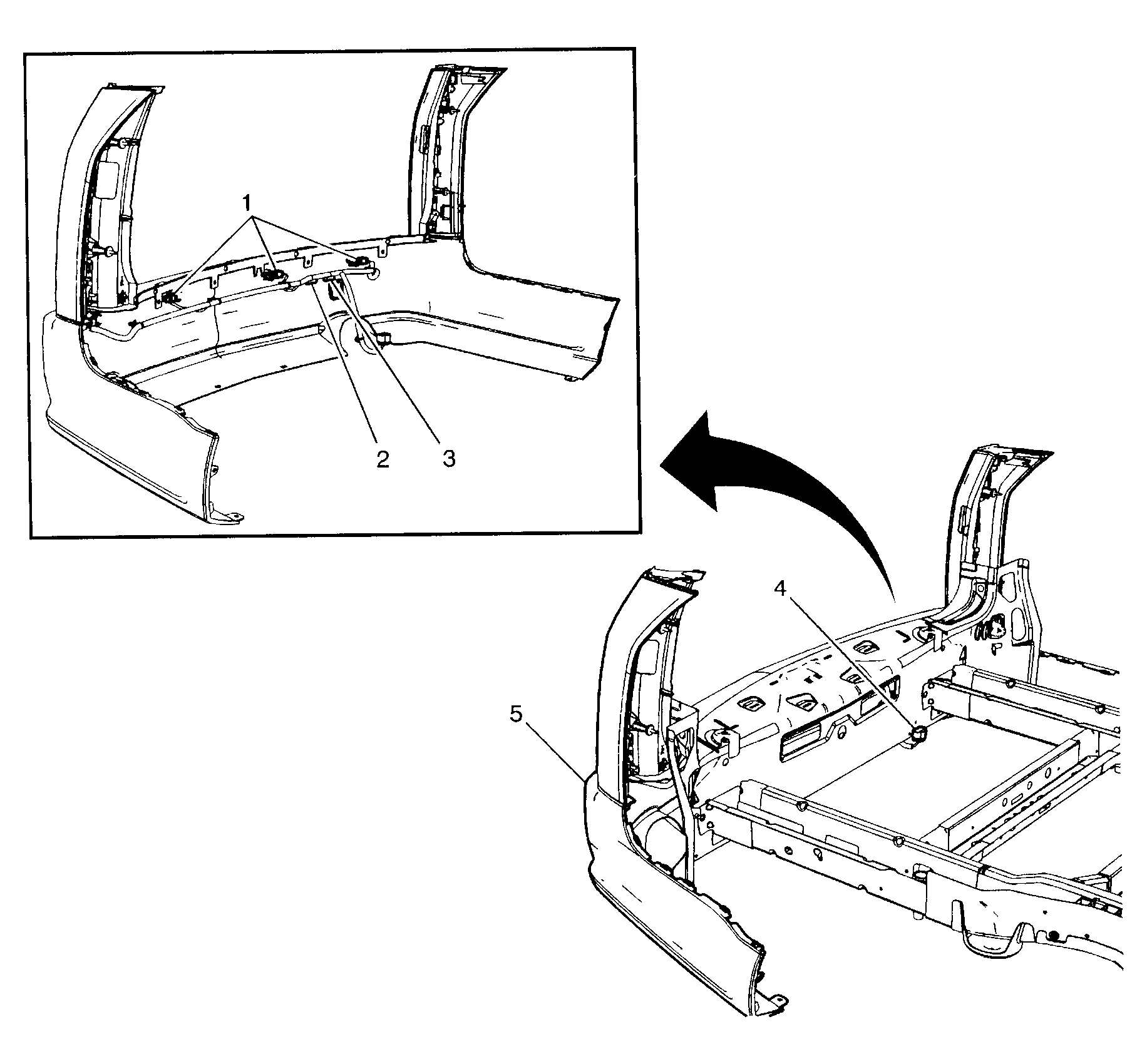

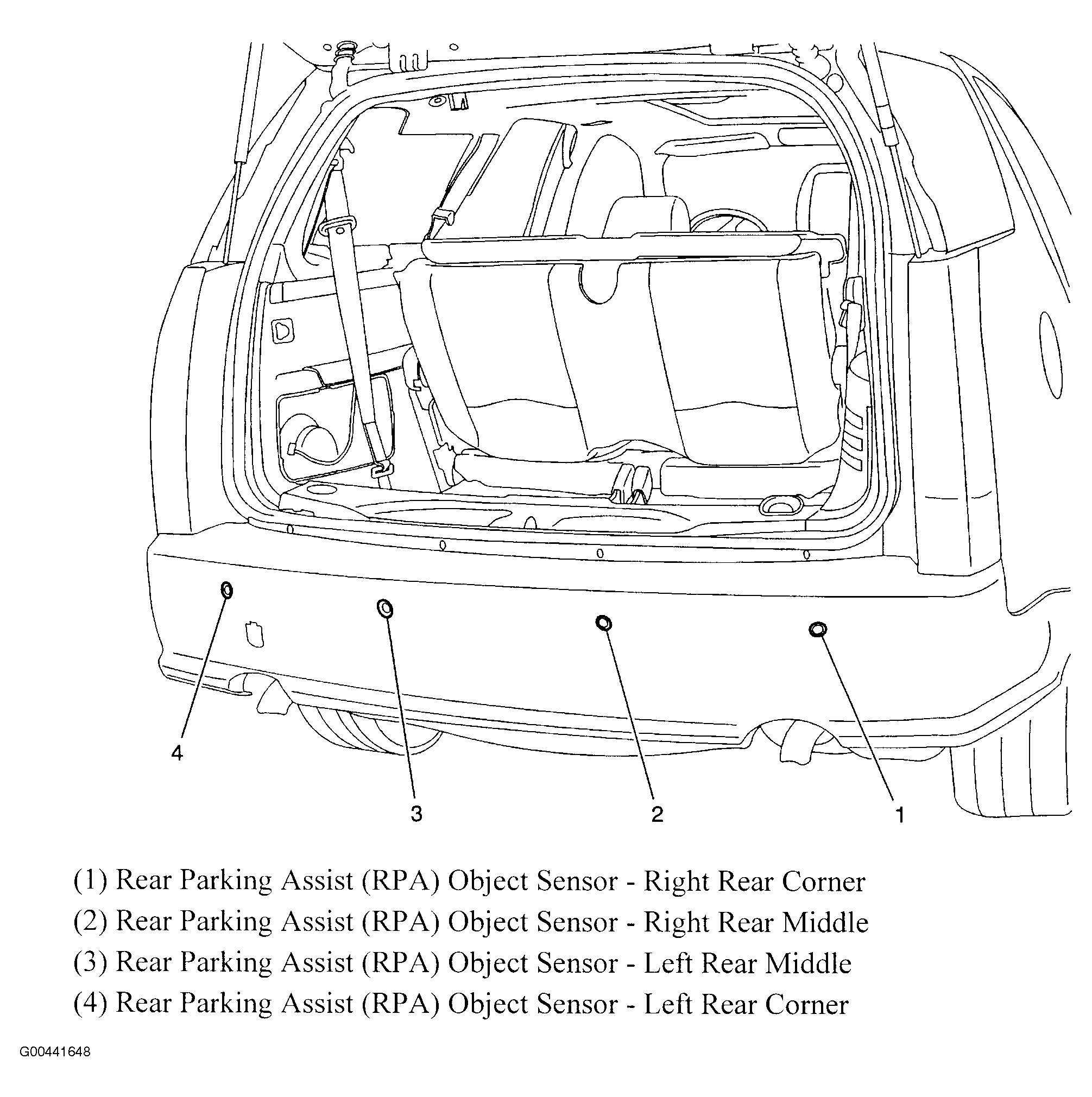

Fig 52: Rear Bumper Object Sensors
Courtesy of GENERAL MOTORS CORP.
Fig 53: Right Rear Compartment Area
Courtesy of GENERAL MOTORS CORP.
Fig 54: Sunroof Components
Courtesy of GENERAL MOTORS CORP.
Fig 55: Headliner Harness Routing
Courtesy of GENERAL MOTORS CORP.
Fig 56: Right Side Of Rear Compartment Components
Courtesy of GENERAL MOTORS CORP.

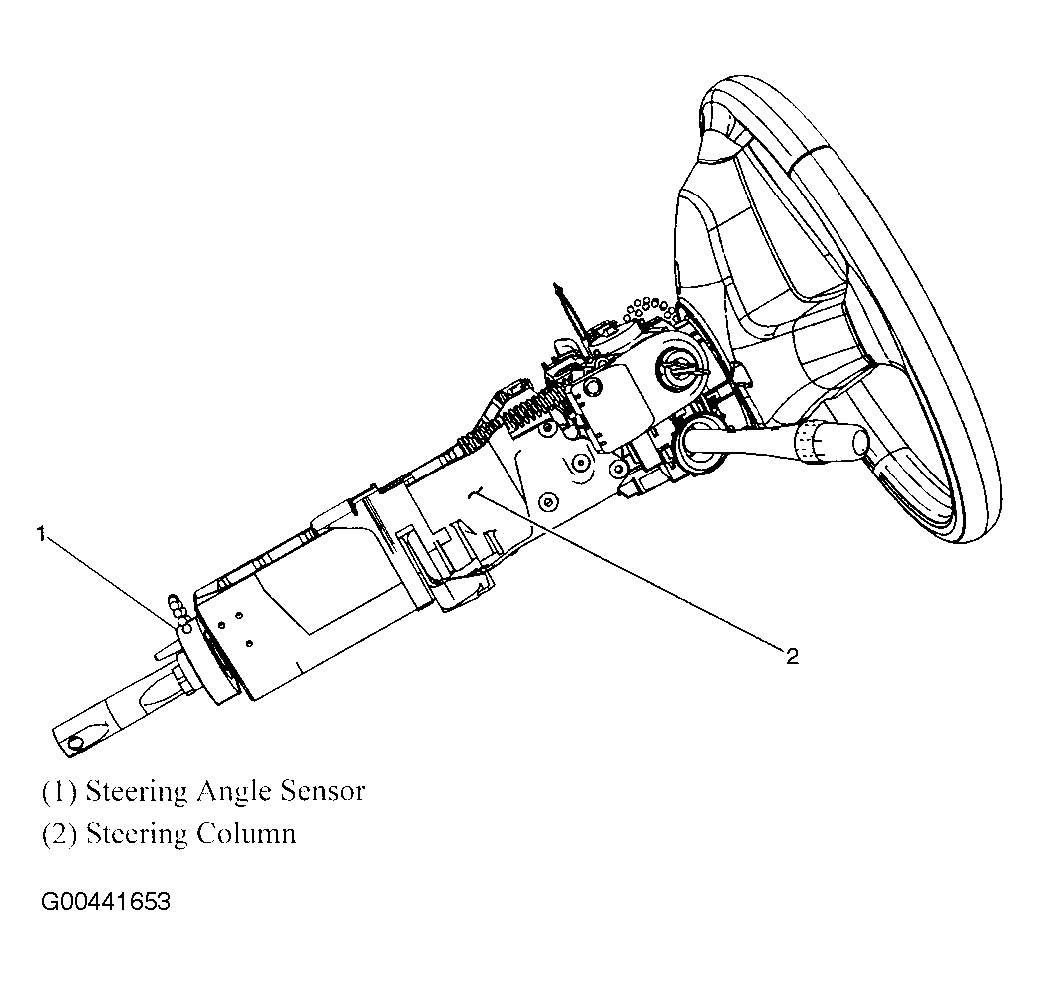

Fig 57: Steering Angle Sensor
Courtesy of GENERAL MOTORS CORP.
Fig 58: Driver Seat Components
Courtesy of GENERAL MOTORS CORP.

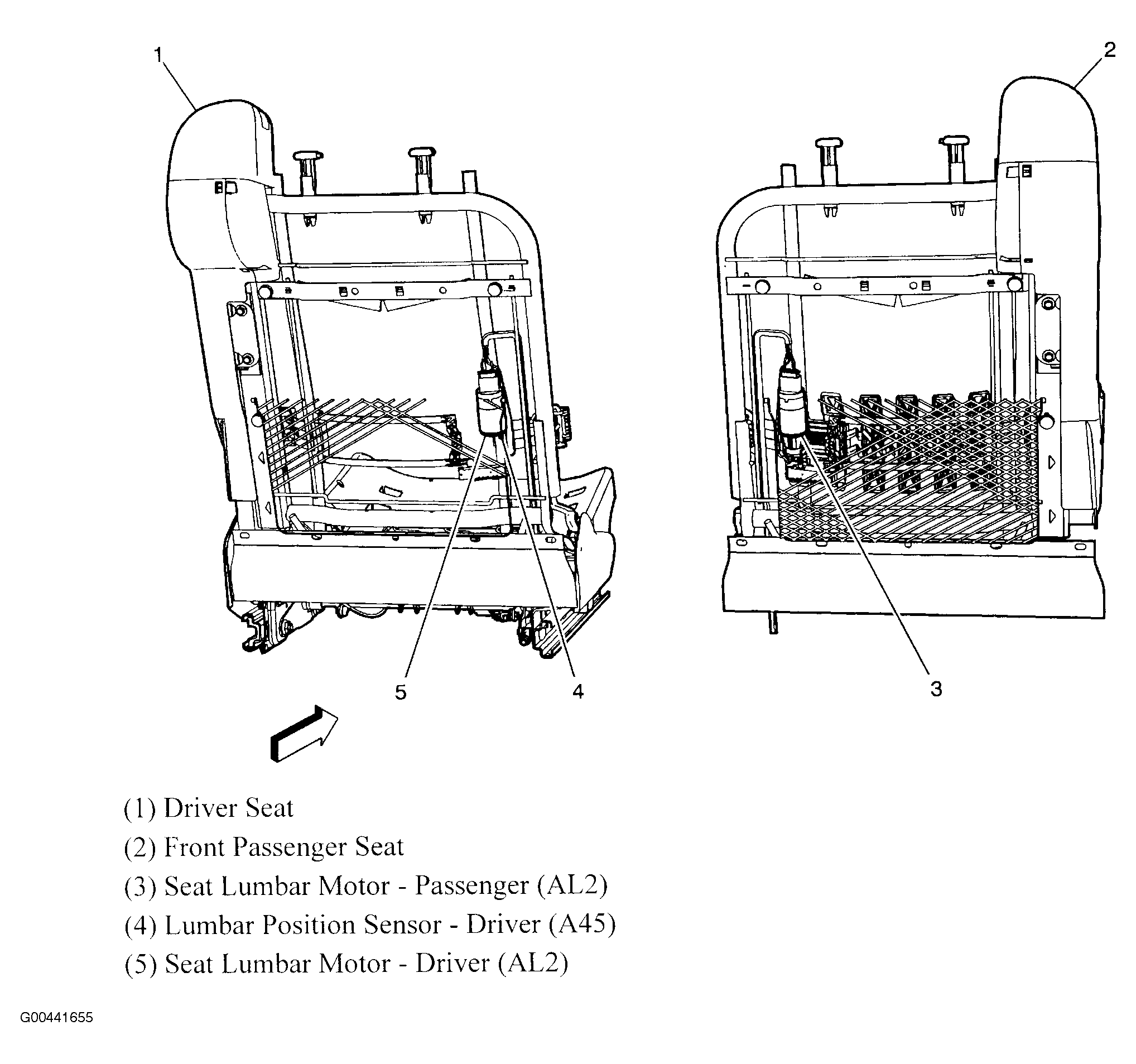

Fig 59: Seat Lumbar Motors
Courtesy of GENERAL MOTORS CORP.
Fig 60: Sunroof Components
Courtesy of GENERAL MOTORS CORP.

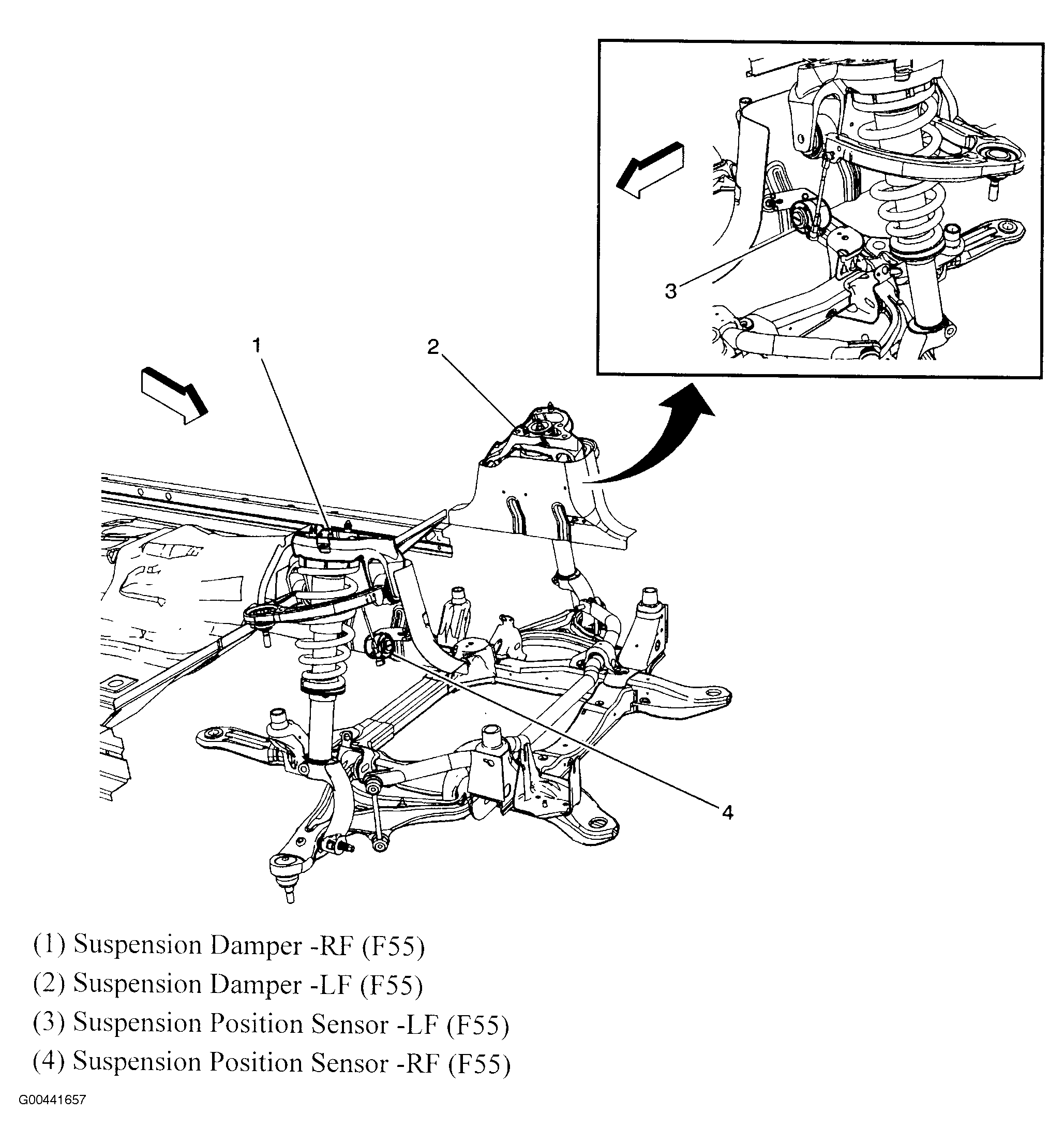

Fig 61: Front Suspension Components
Courtesy of GENERAL MOTORS CORP.

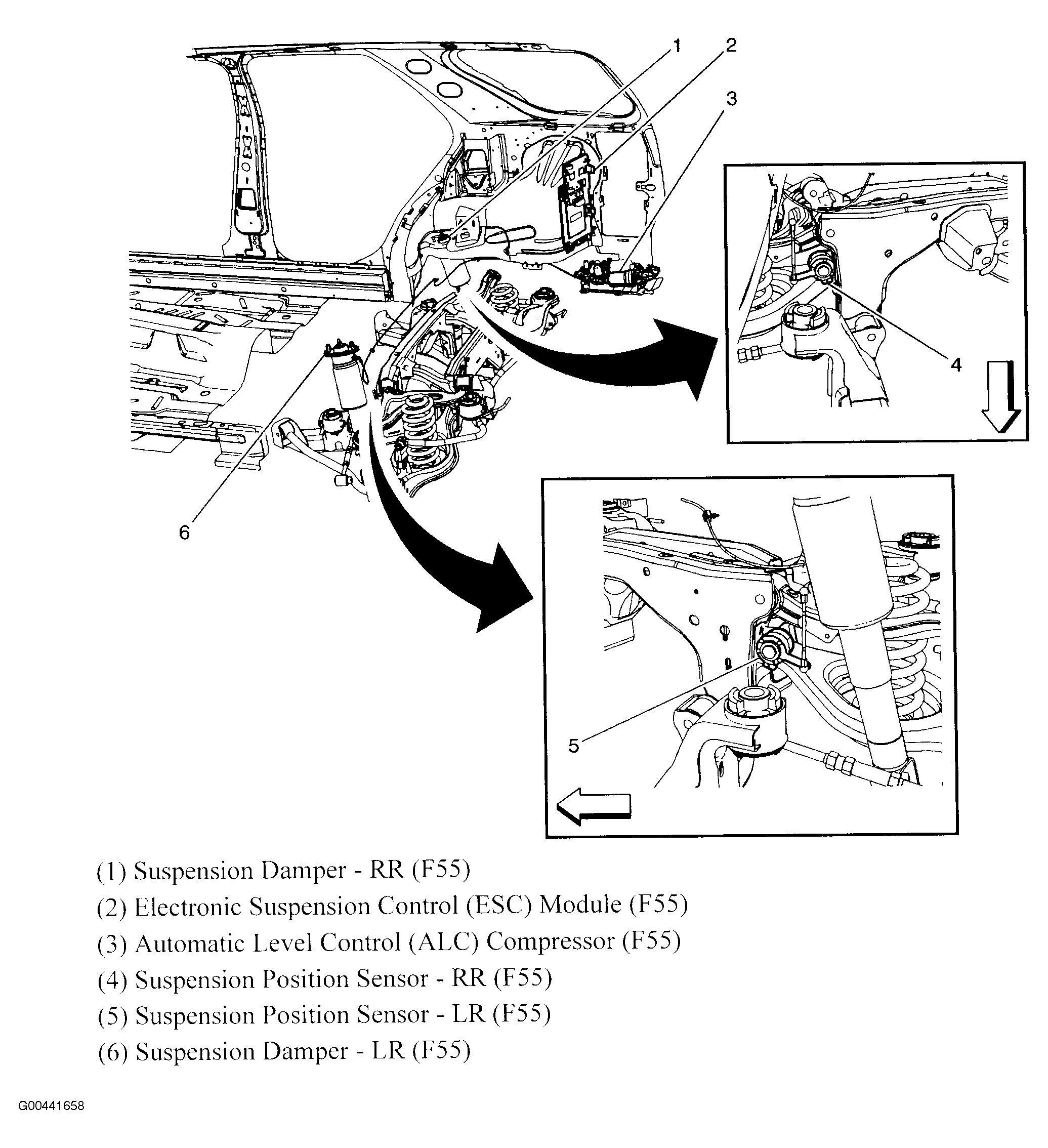

Fig 62: Rear Suspension Components
Courtesy of GENERAL MOTORS CORP.
Fig 63: Right Rear Cargo Area
Courtesy of GENERAL MOTORS CORP.

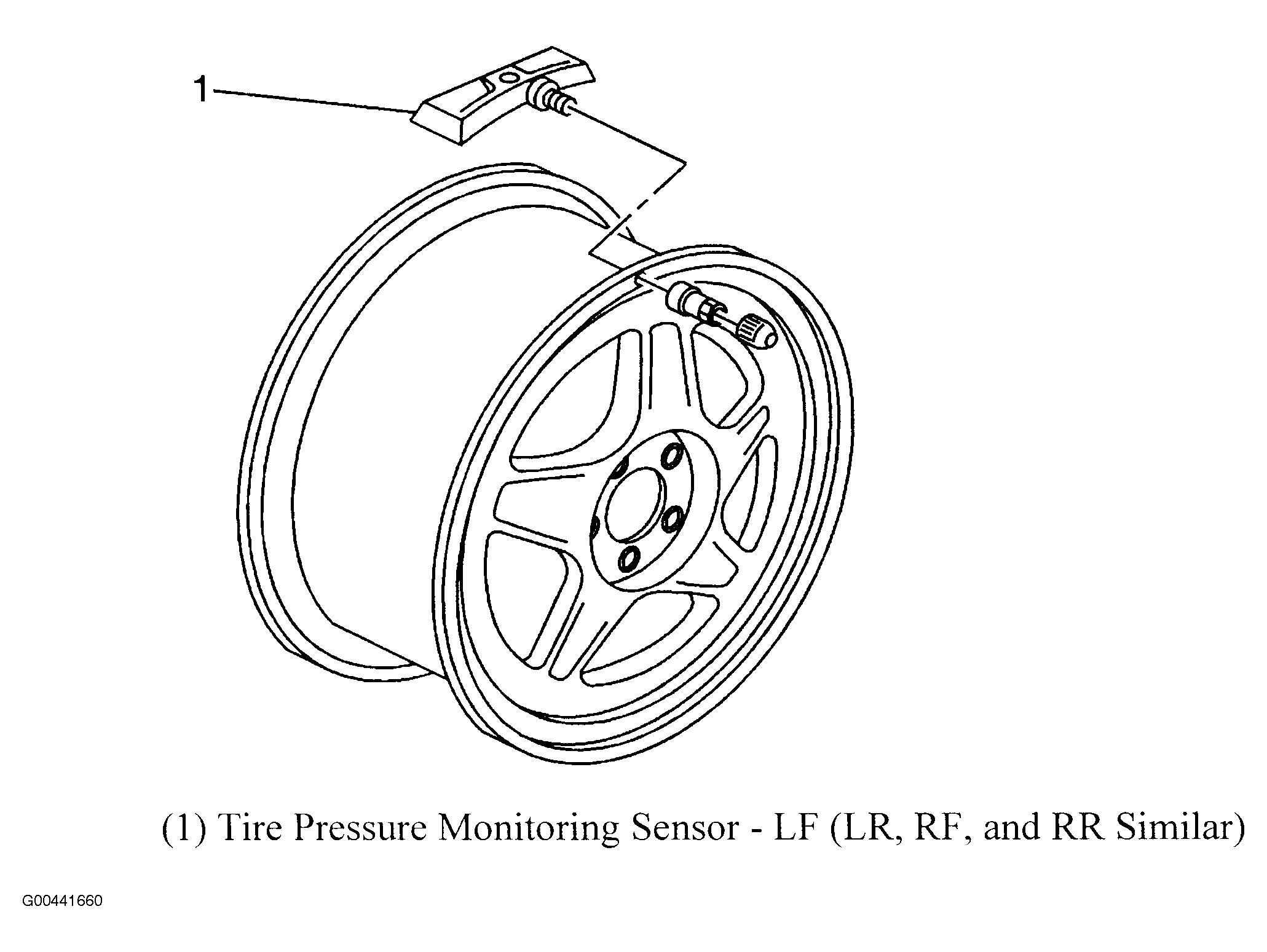

Fig 64: Tire Pressure Sensors
Courtesy of GENERAL MOTORS CORP.

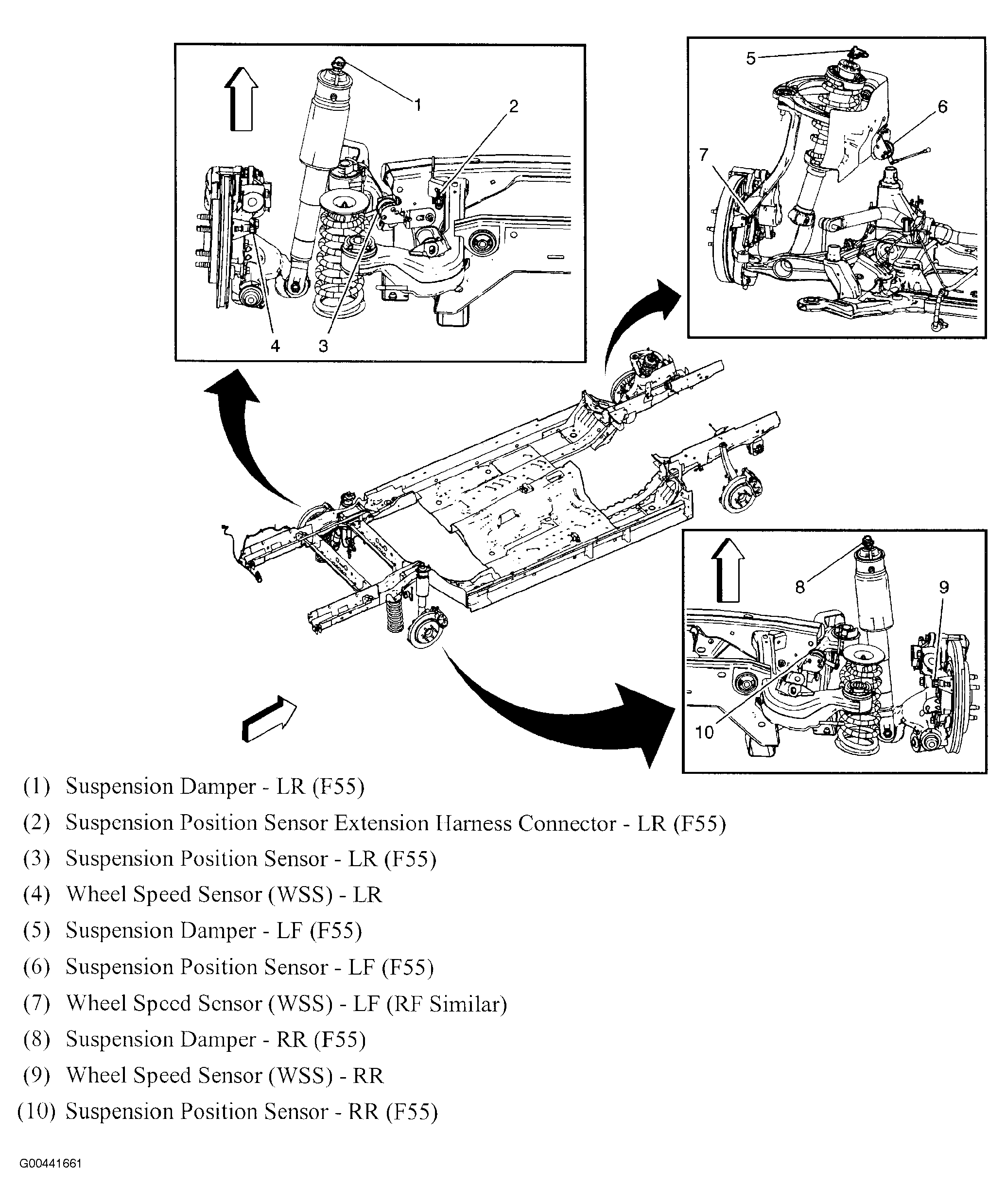

Fig 65: Wheel Speed Sensors
Courtesy of GENERAL MOTORS CORP.

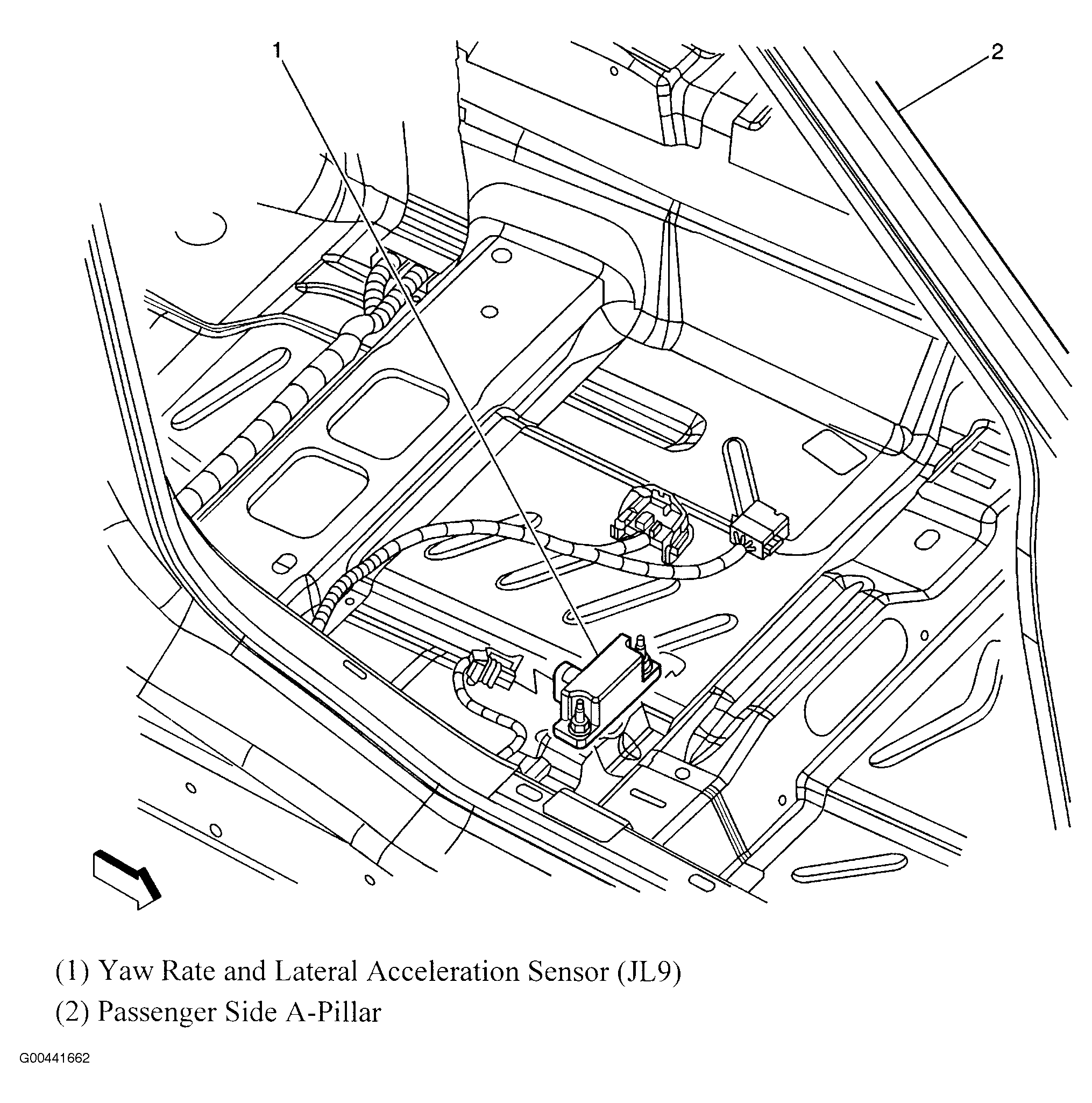

Fig 66: Under Passenger Seat
Courtesy of GENERAL MOTORS CORP.
Fig 67: Front Of Engine Compartment (3.6L)
Courtesy of GENERAL MOTORS CORP.
Fig 68: Front Of Engine Compartment
Courtesy of GENERAL MOTORS CORP.
Fig 69: Rear Of Engine Compartment (4.6L)
Courtesy of GENERAL MOTORS CORP.
Fig 70: Forward Lamp Harness
Courtesy of GENERAL MOTORS CORP.

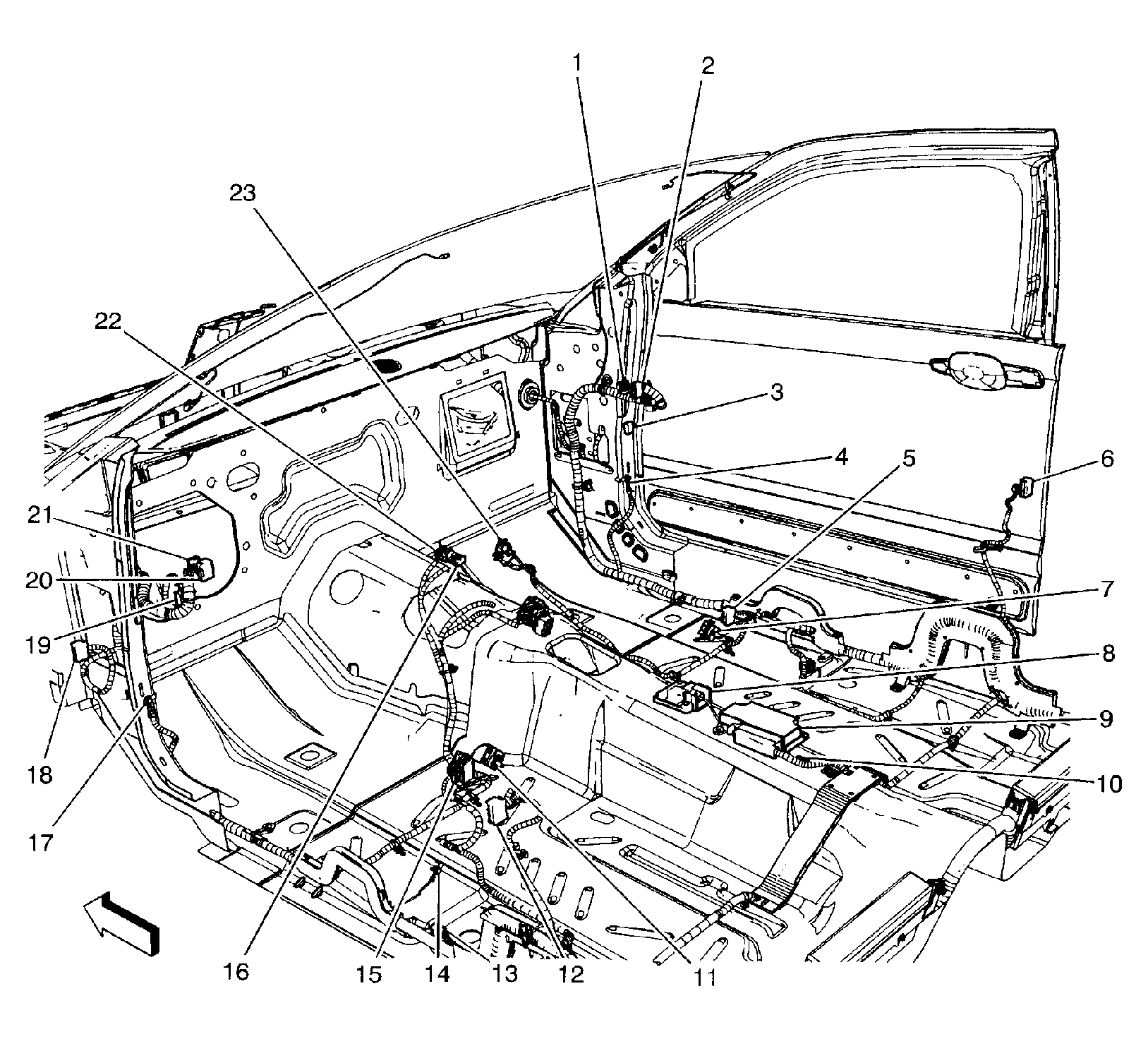

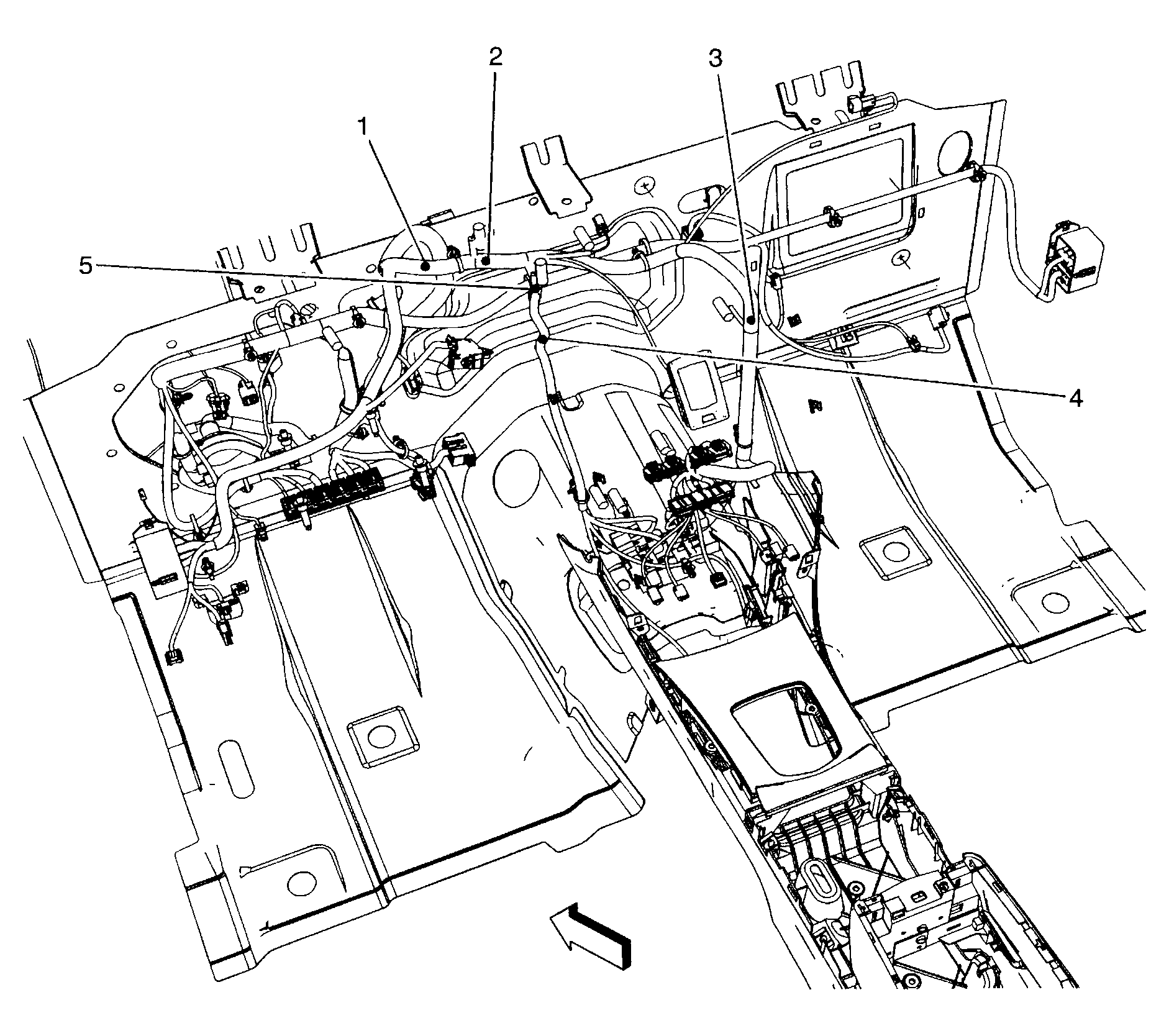

Fig 71: Passenger Compartment Body Harness
Courtesy of GENERAL MOTORS CORP.

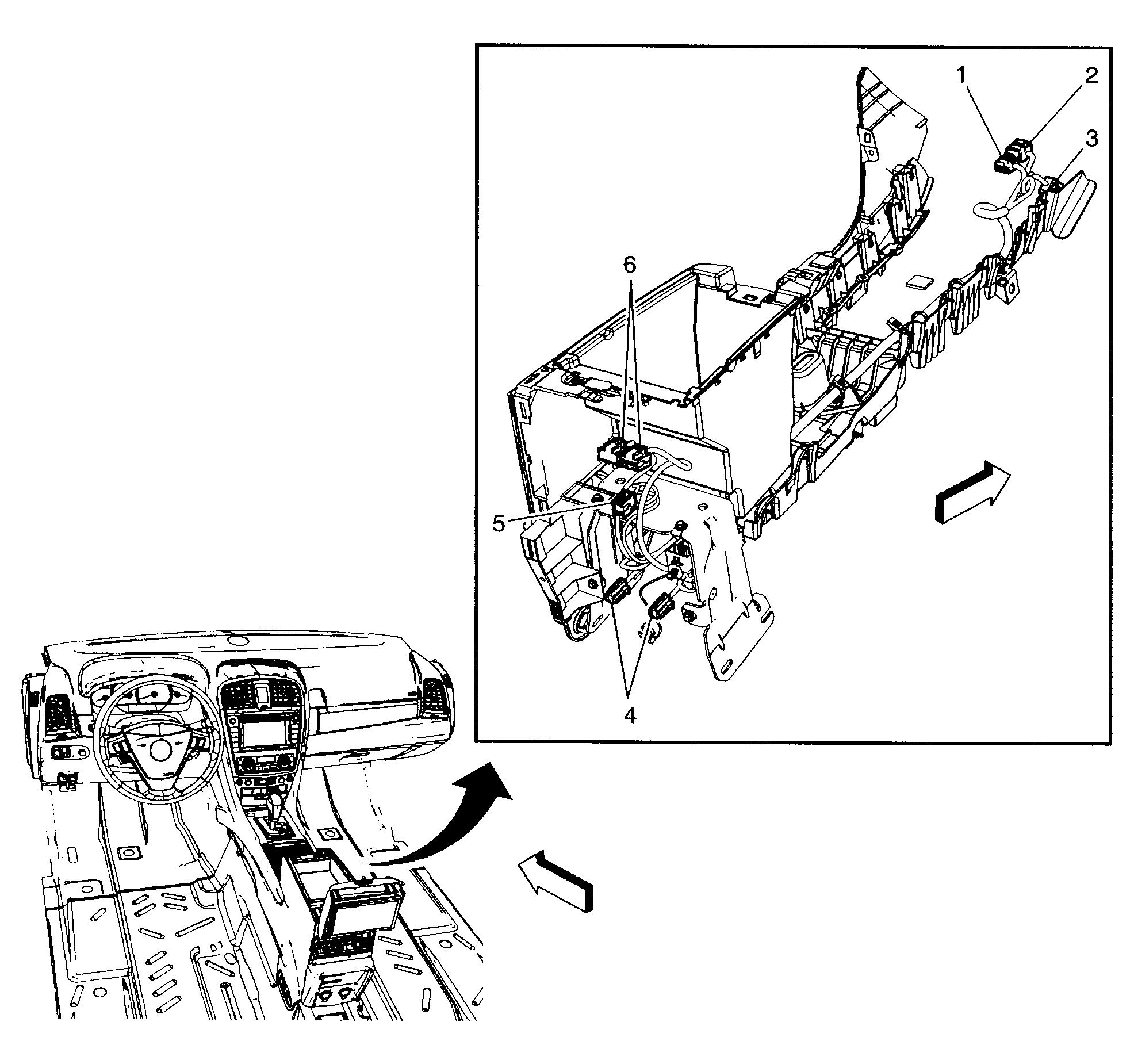

Fig 72: Floor Console Harness
Courtesy of GENERAL MOTORS CORP.

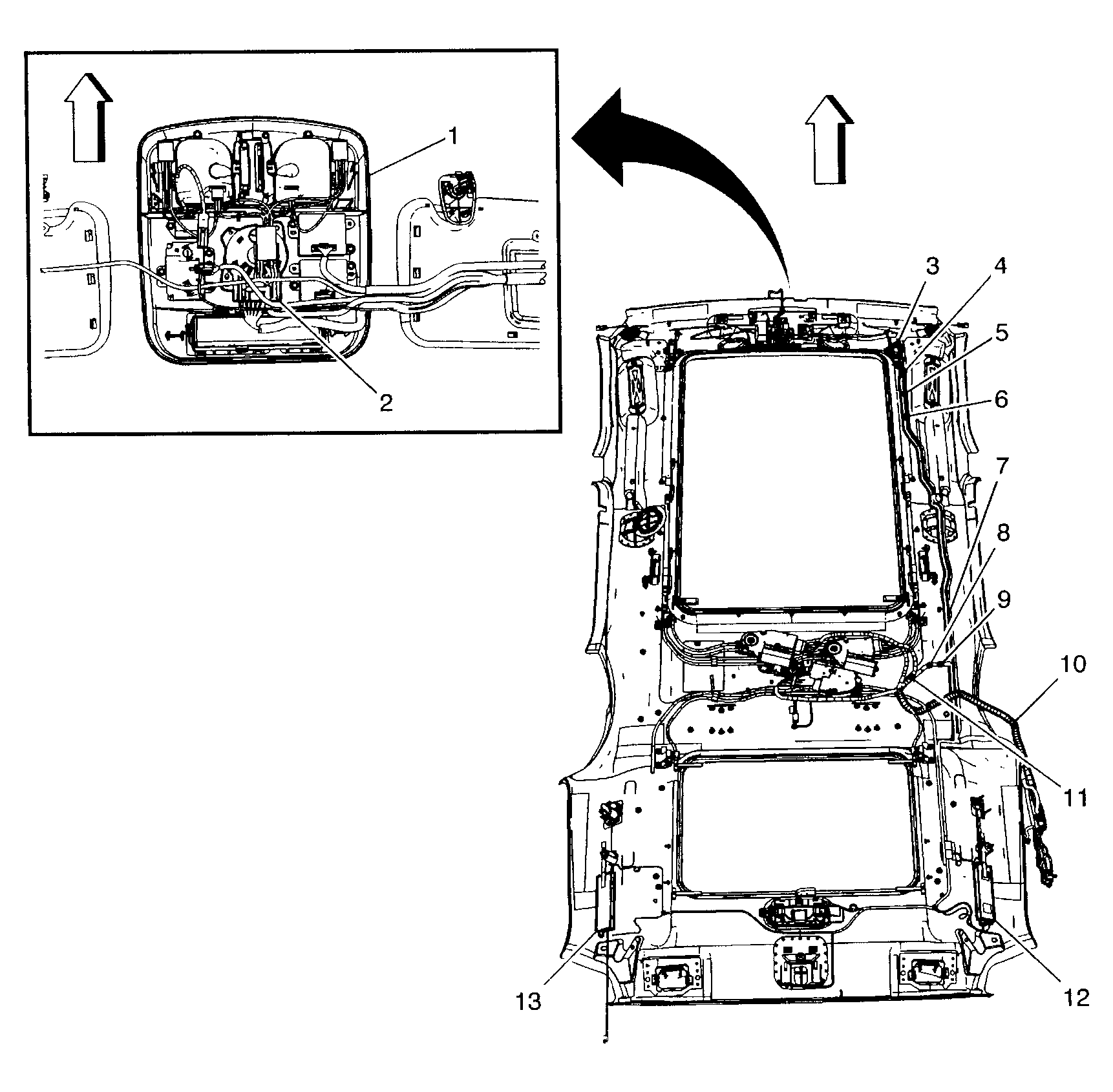

Fig 73: Headliner/Sunroof Harness
Courtesy of GENERAL MOTORS CORP.

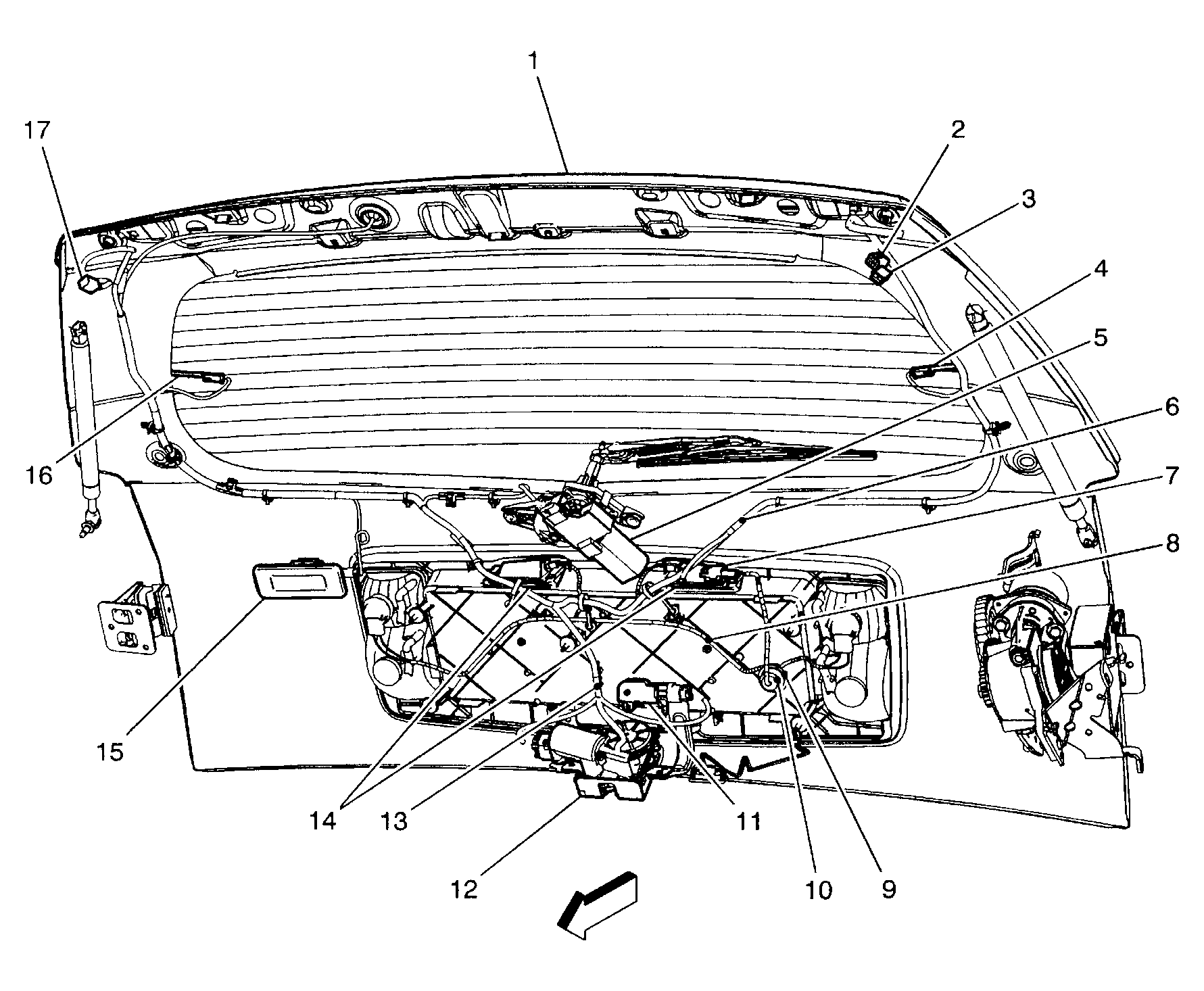

Fig 74: Liftgate Components
Courtesy of GENERAL MOTORS CORP.
Fig 75: Rear View
Courtesy of GENERAL MOTORS CORP.

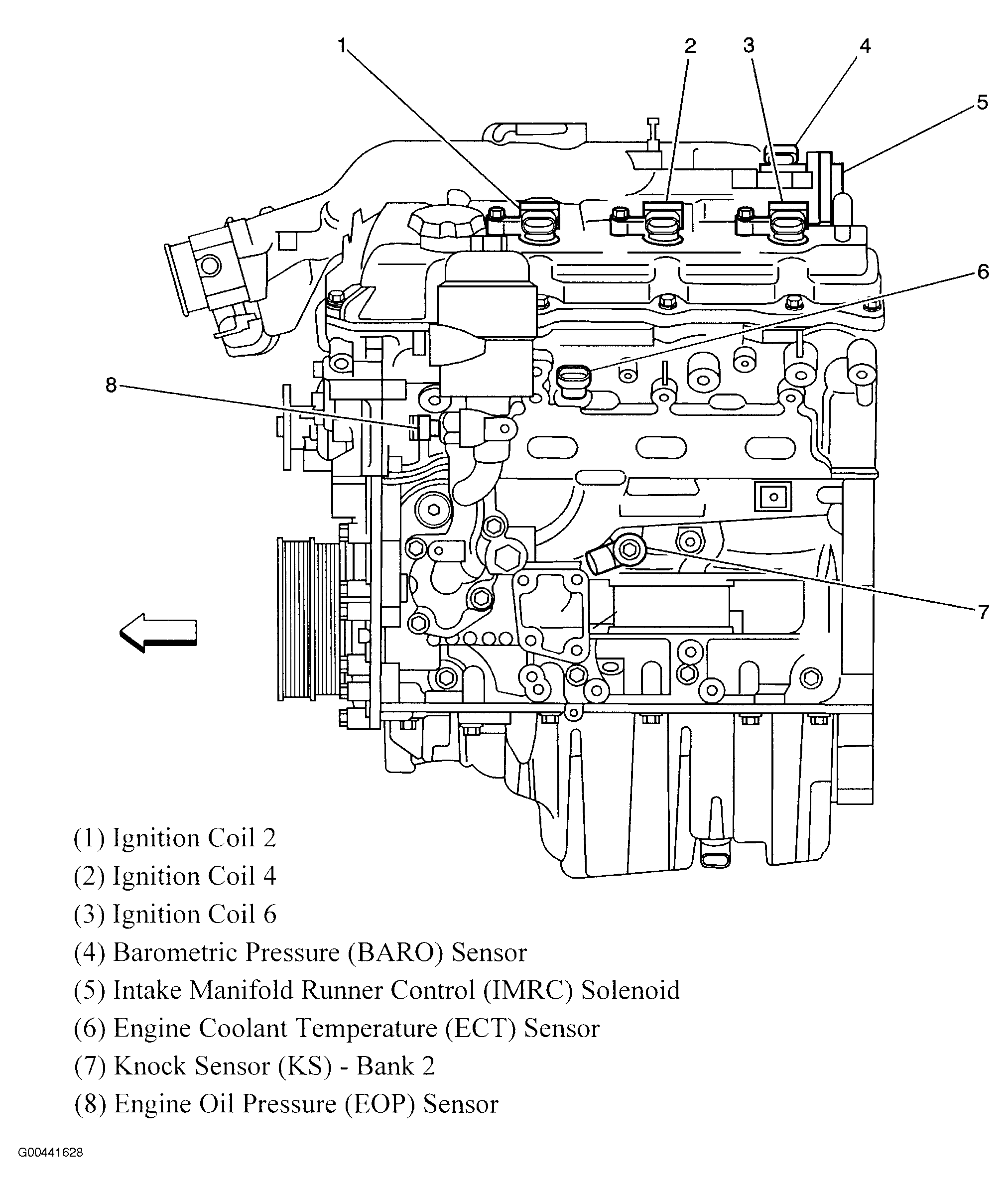

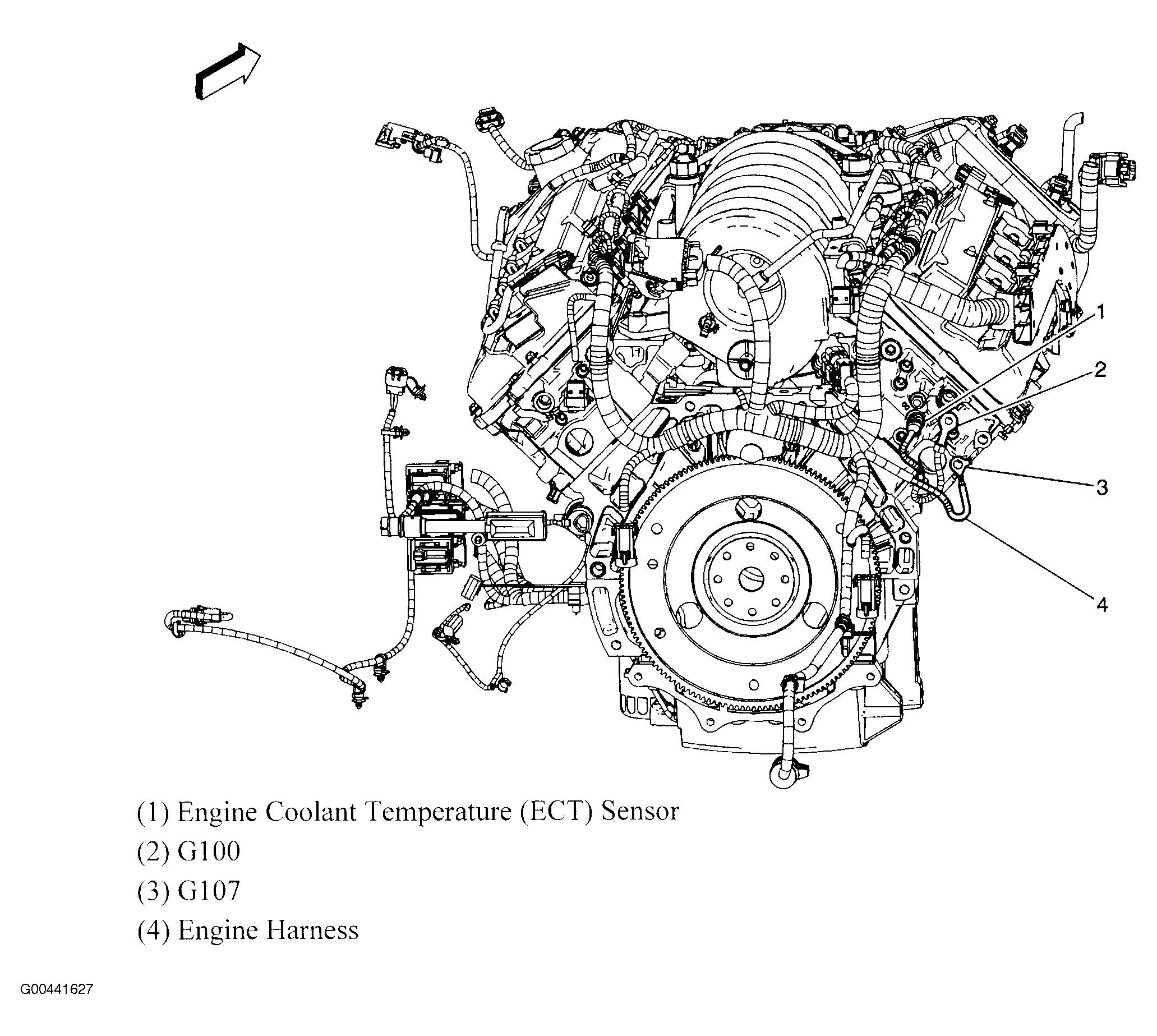

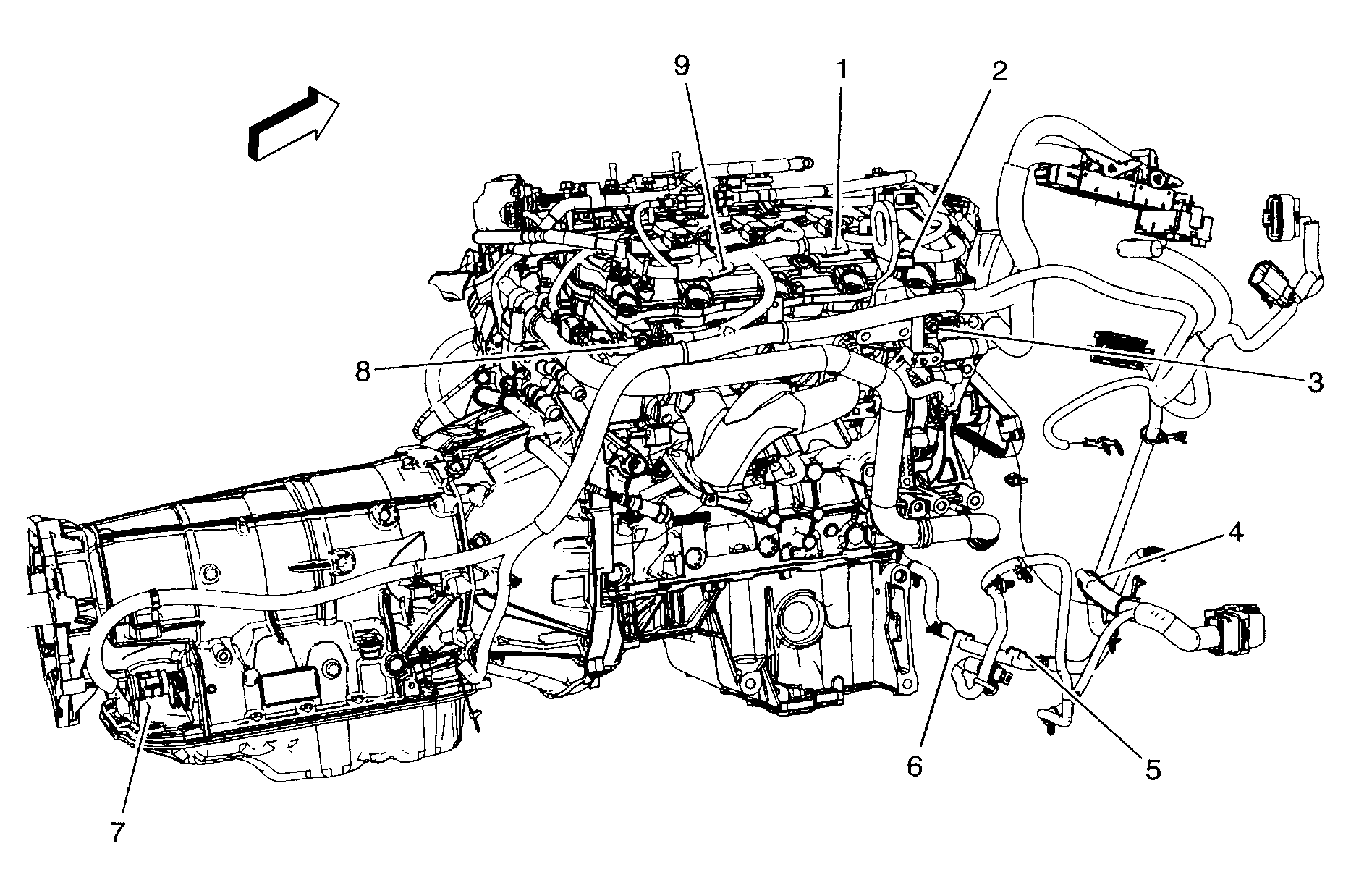

Fig 76: Right Side Of Engine (3.6L)
Courtesy of GENERAL MOTORS CORP.

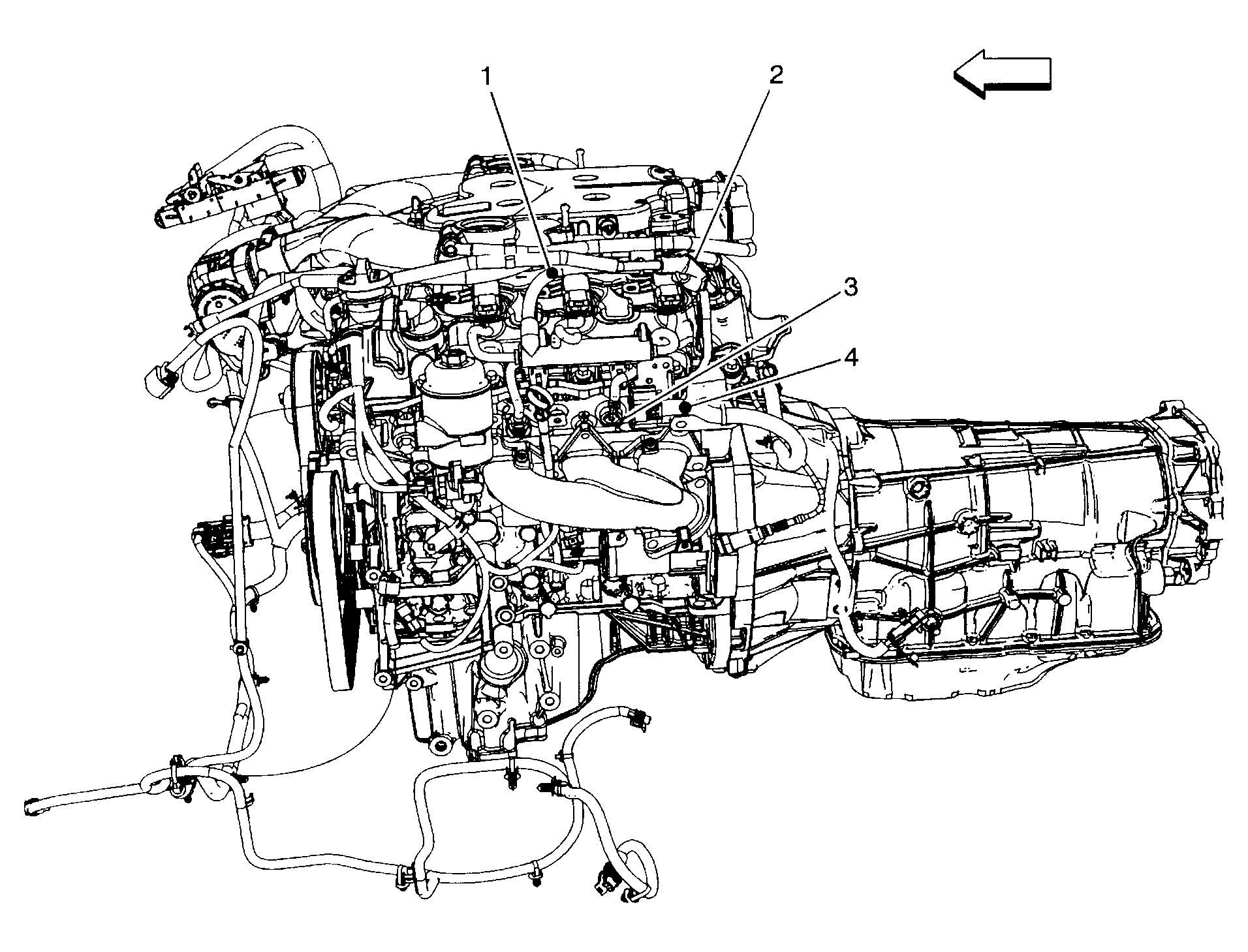

Fig 77: Left Side Of Engine (3.6L)
Courtesy of GENERAL MOTORS CORP.
Fig 78: Front Engine Compartment (4.6L)
Courtesy of GENERAL MOTORS CORP.

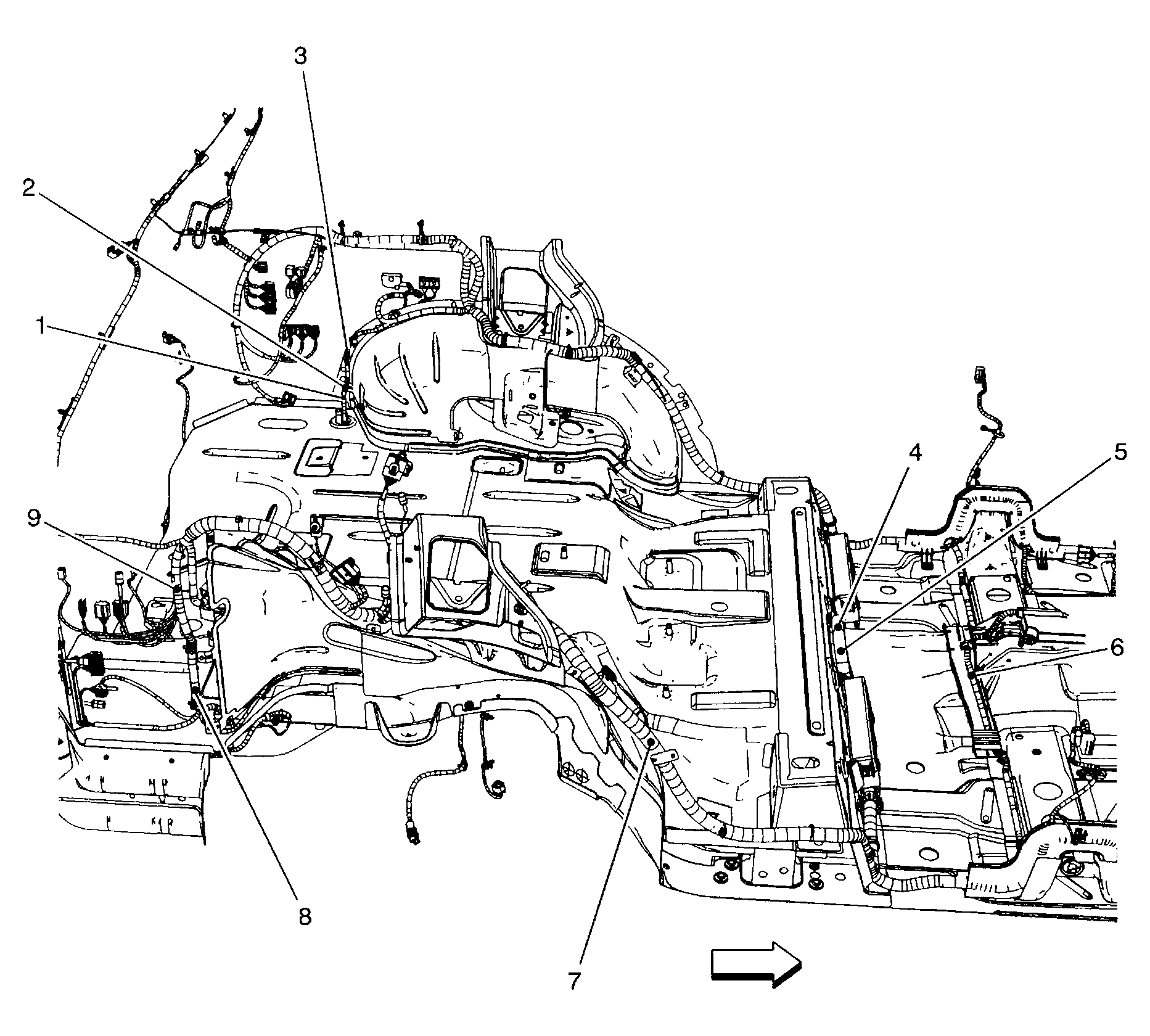

Fig 79: Passenger Compartment Harness Routing
Courtesy of GENERAL MOTORS CORP.
Fig 80: Dash Harness Splices
Courtesy of GENERAL MOTORS CORP.
Fig 81: Body Harness Splices
Courtesy of GENERAL MOTORS CORP.

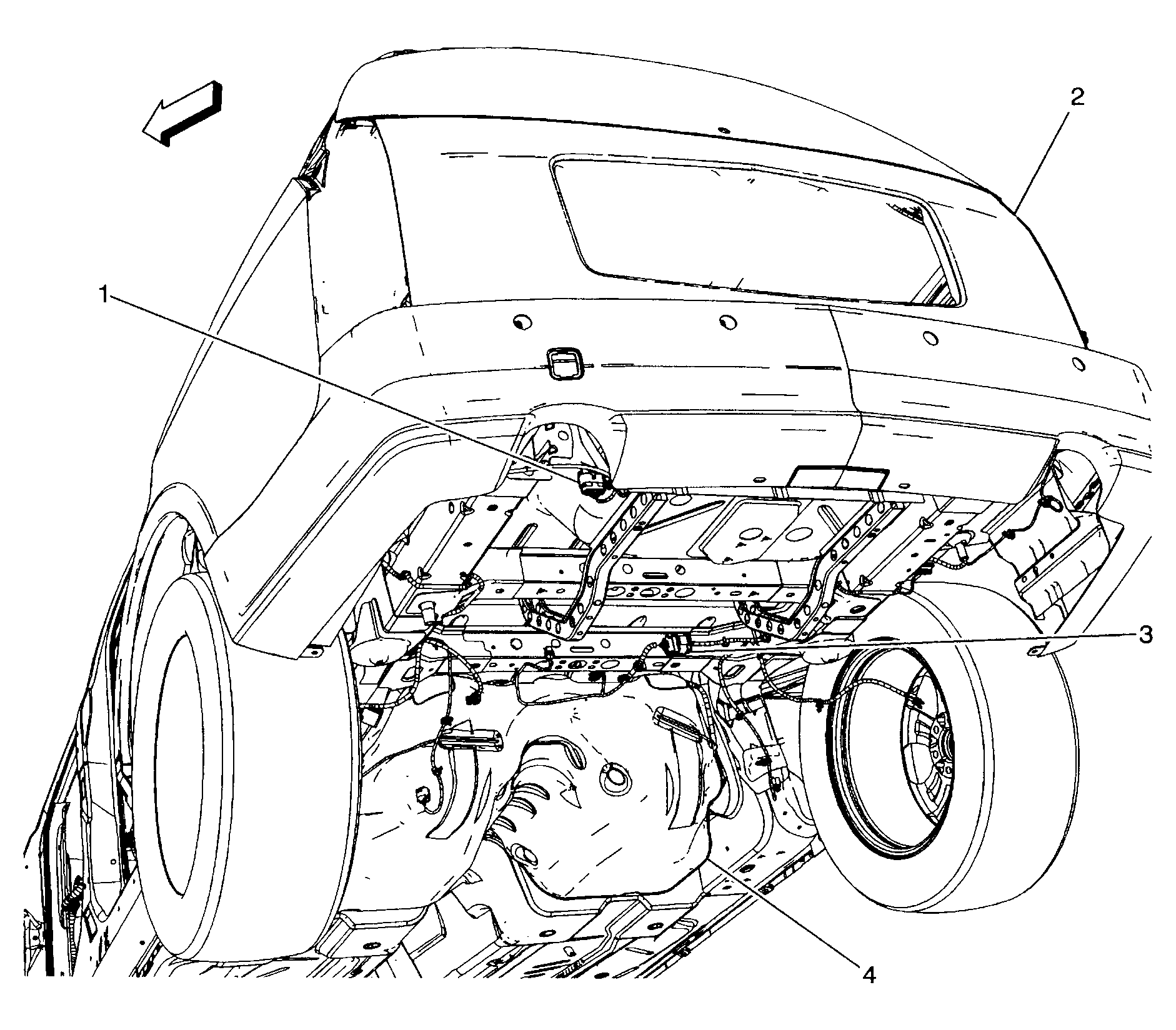

Fig 82: Rear Fascia Harness Routing
Courtesy of GENERAL MOTORS CORP.

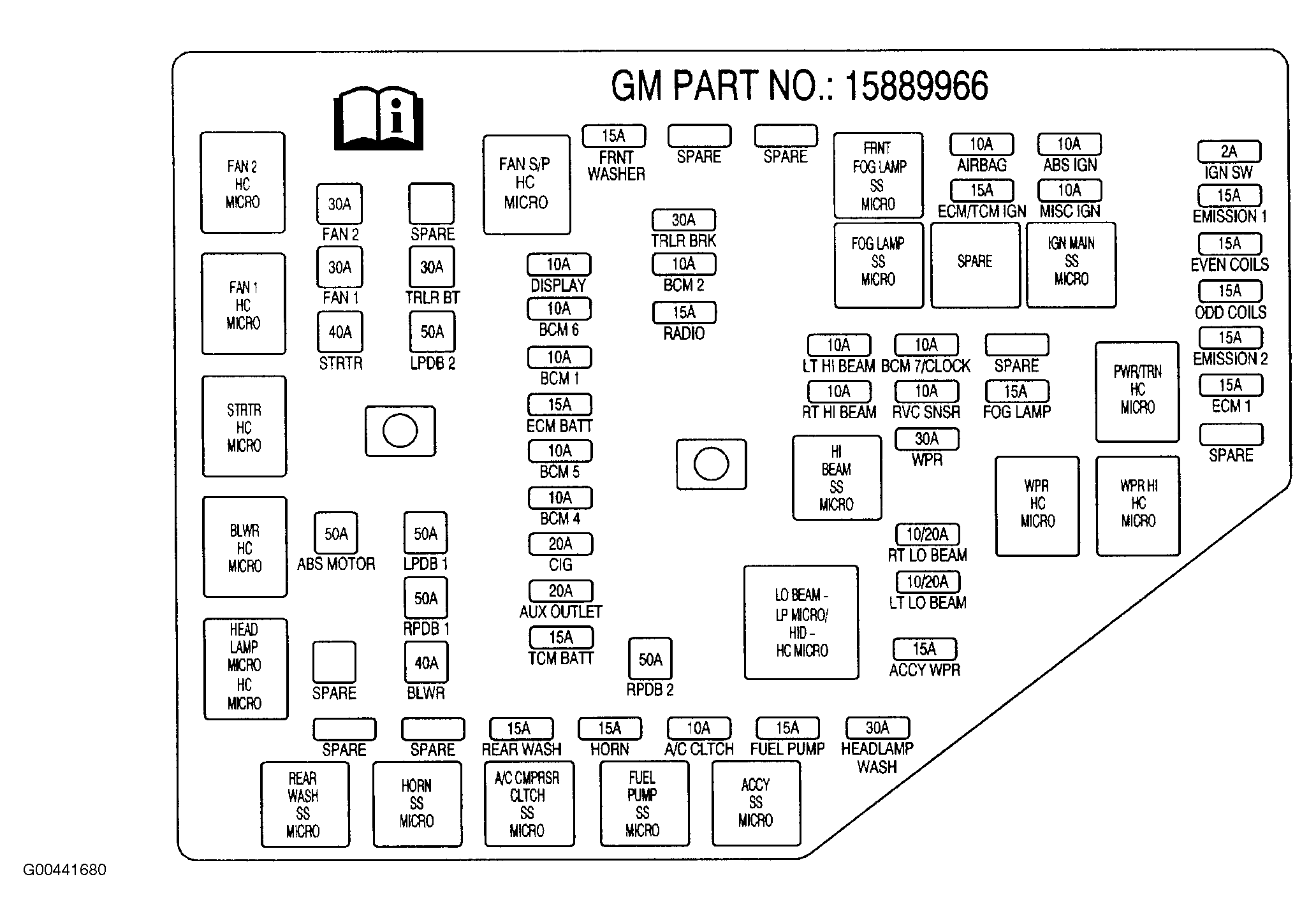

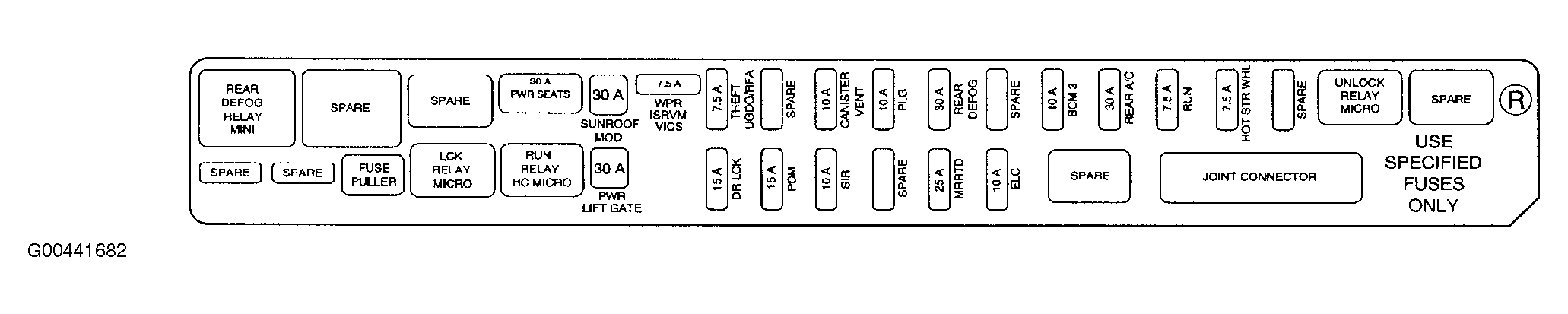

Fig 83: Underhood Fuse Block
Courtesy of GENERAL MOTORS CORP.

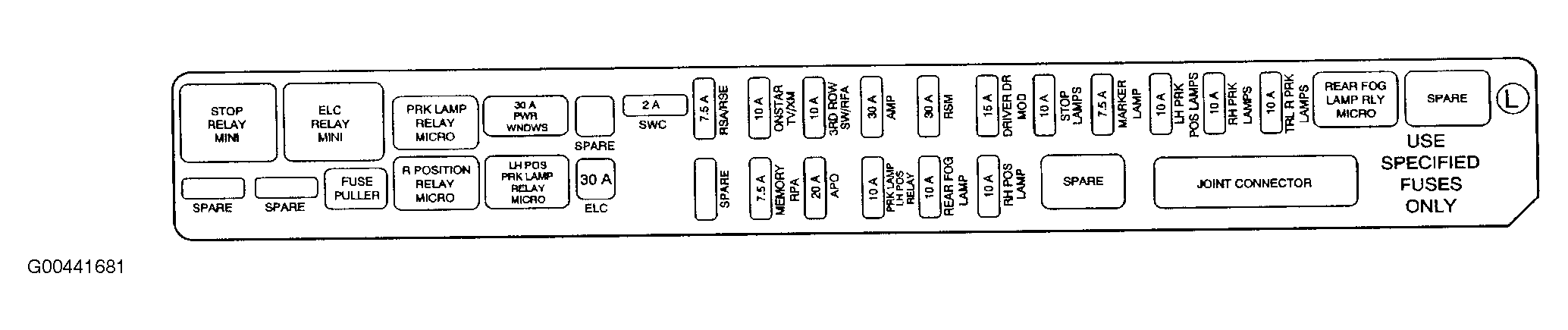

Fig 84: Left Rear Fuse Block
Courtesy of GENERAL MOTORS CORP.
Fig 85: Right Rear Fuse Block
Courtesy of GENERAL MOTORS CORP.

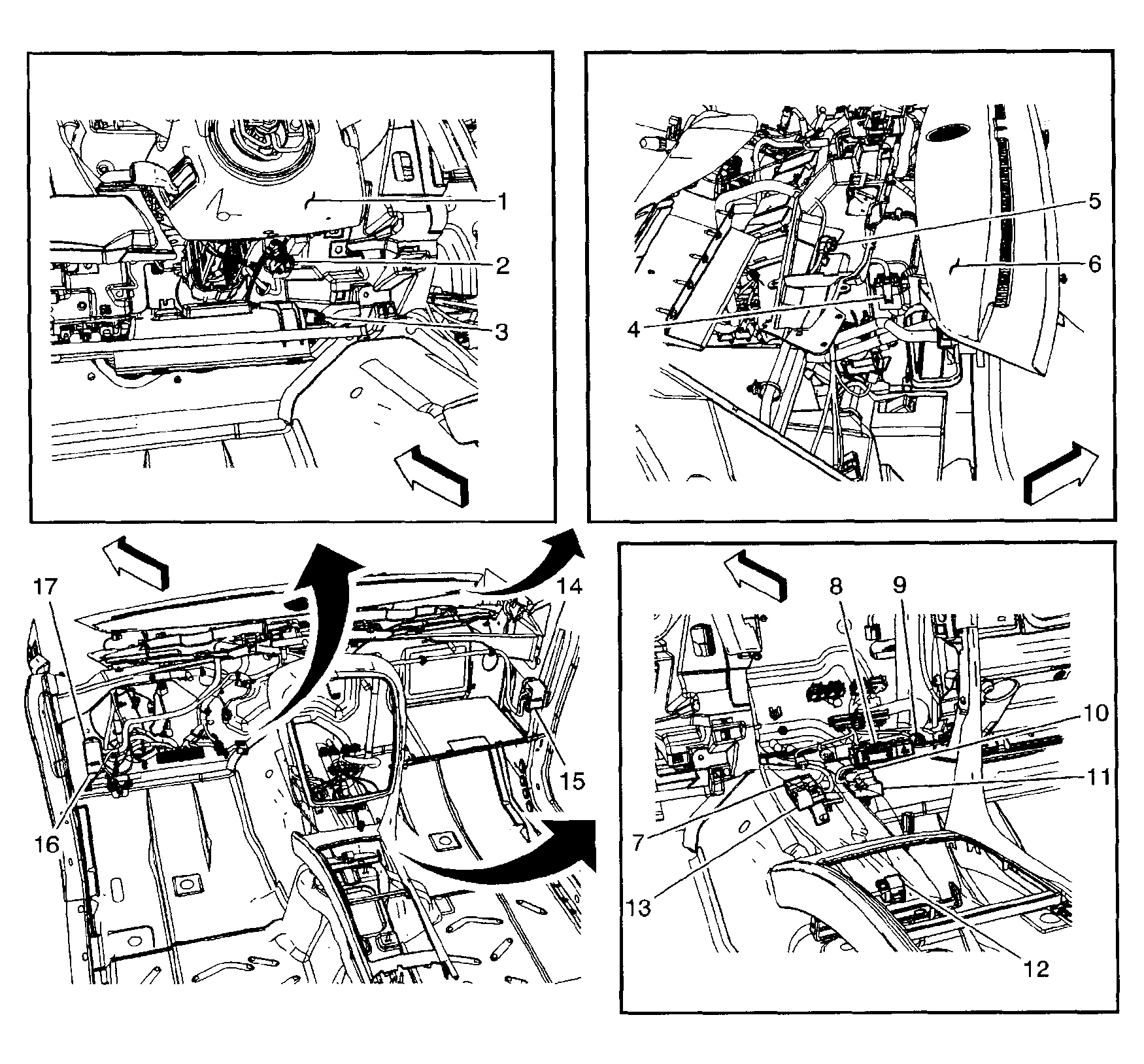

Fig 86: Underneath Floor Console
Courtesy of GENERAL MOTORS CORP.

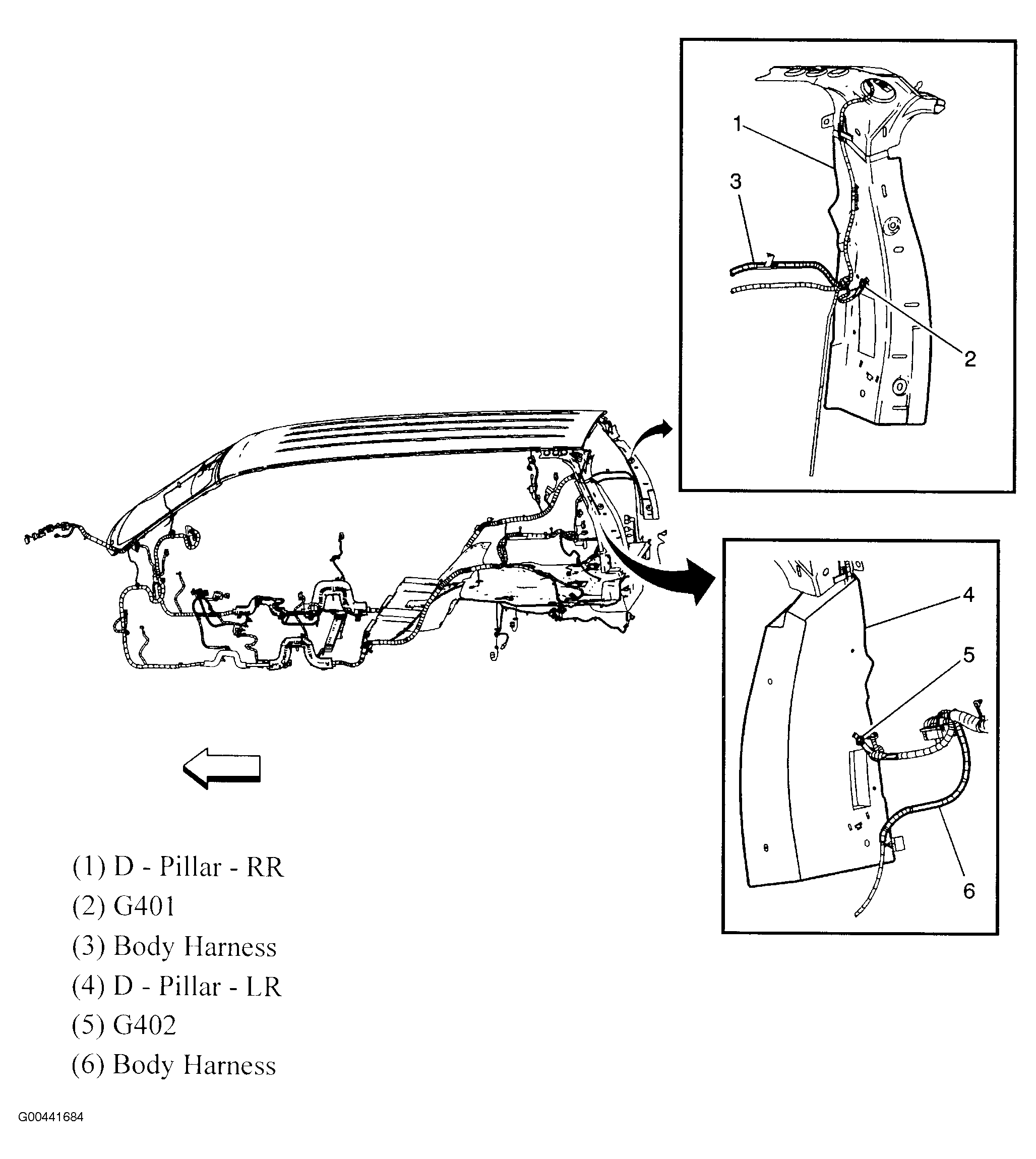

Fig 87: Rear Of "D" Pillar
Courtesy of GENERAL MOTORS CORP.
Fig 88: Right Rear Side Of Passenger Compartment
Courtesy of GENERAL MOTORS CORP.

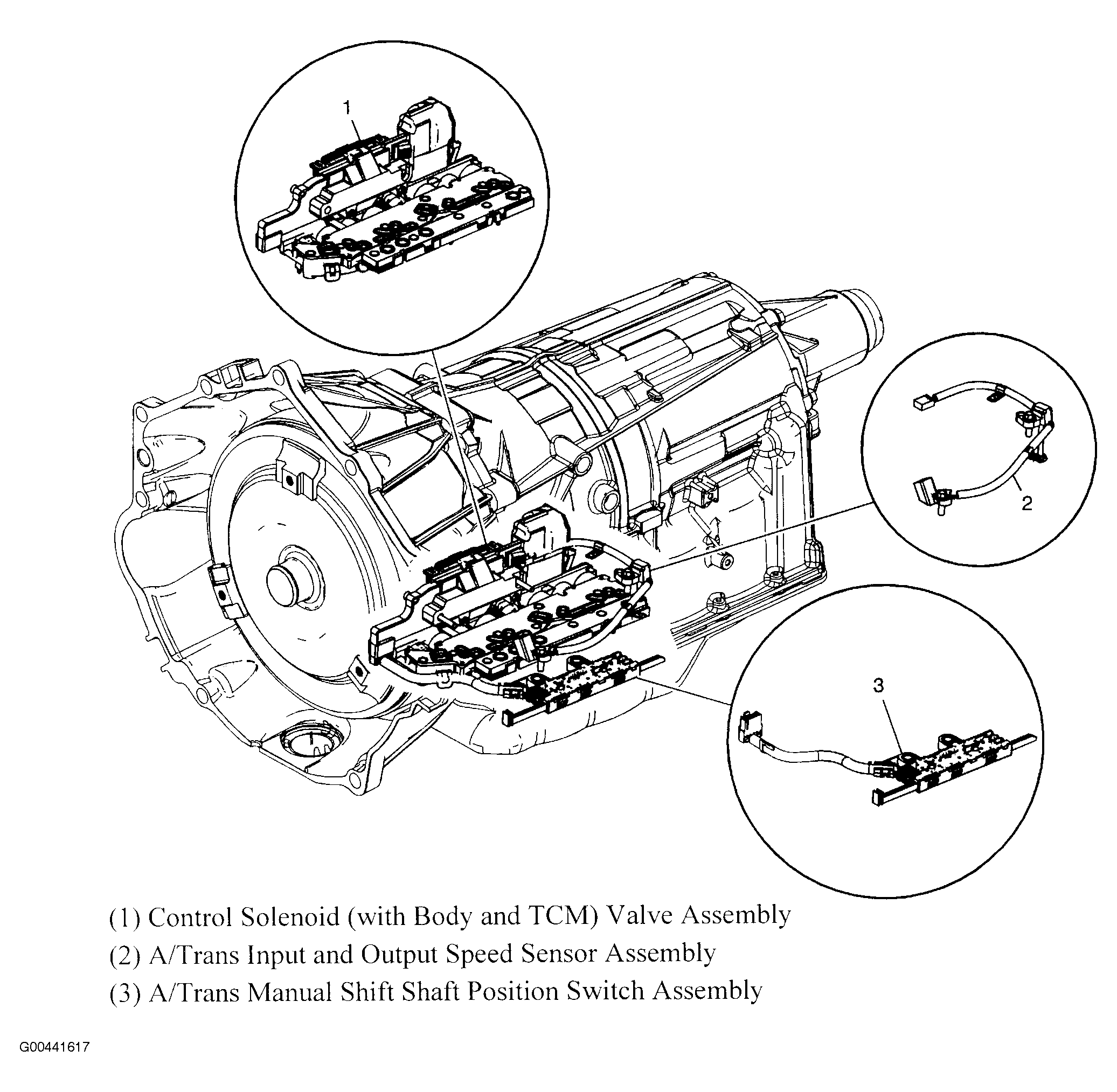

Fig 89: A/T Electronic Components (5L40-E/5L50-E)
Courtesy of GENERAL MOTORS CORP.
Fig 90: Top Right Of Engine
Courtesy of GENERAL MOTORS CORP.
Fig 91: Right Rear Of Engine
Courtesy of GENERAL MOTORS CORP.
Fig 92: Transmission Control Module (TCM)
Courtesy of GENERAL MOTORS CORP.
Fig 93: Right Front Of Vehicle
Courtesy of GENERAL MOTORS CORP.

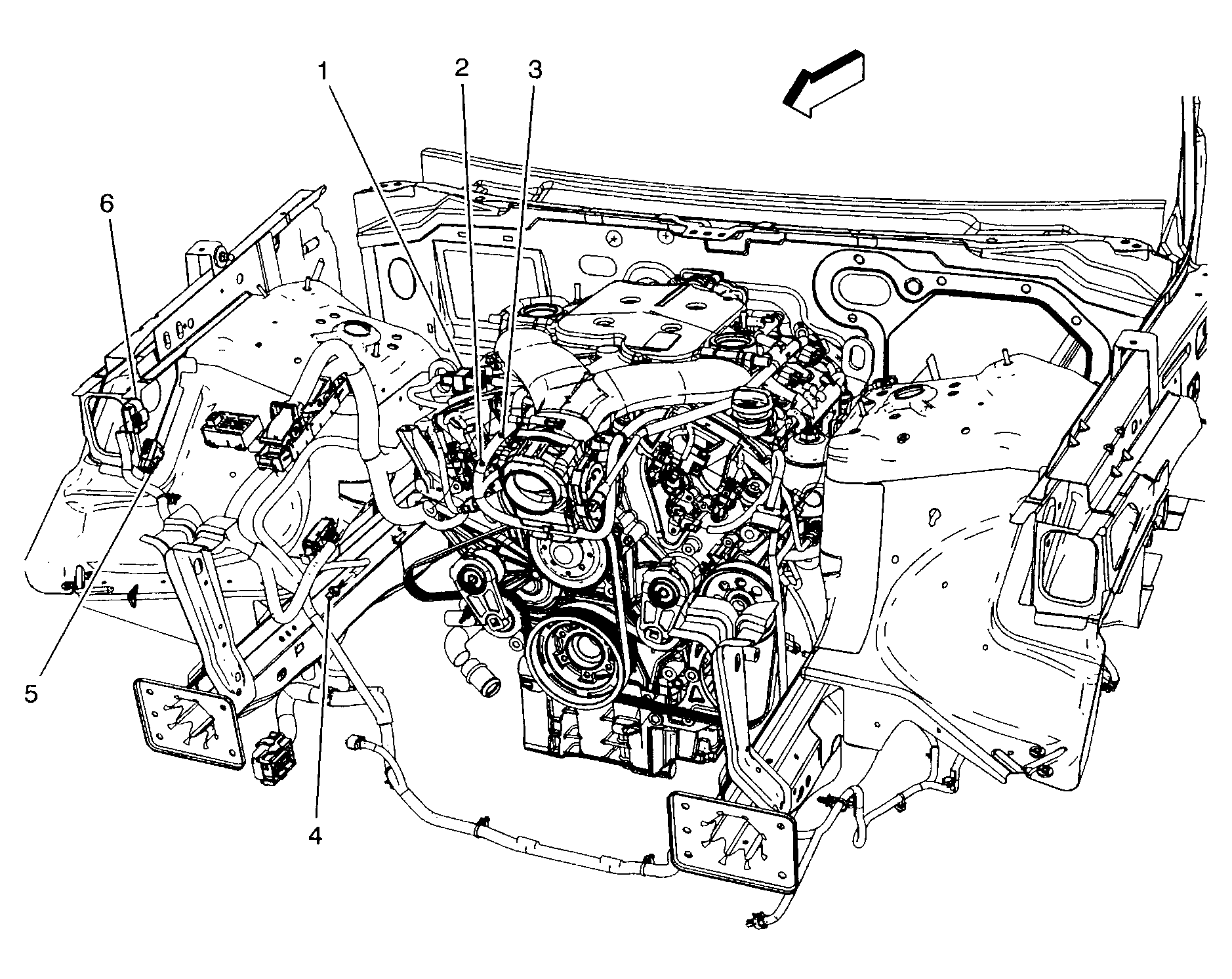

Fig 94: Front Engine Compartment (3.6L)
Courtesy of GENERAL MOTORS CORP.
