Circuit Protection Devices

CIRCUIT PROTECTION DEVICES LOCATION

Component Location

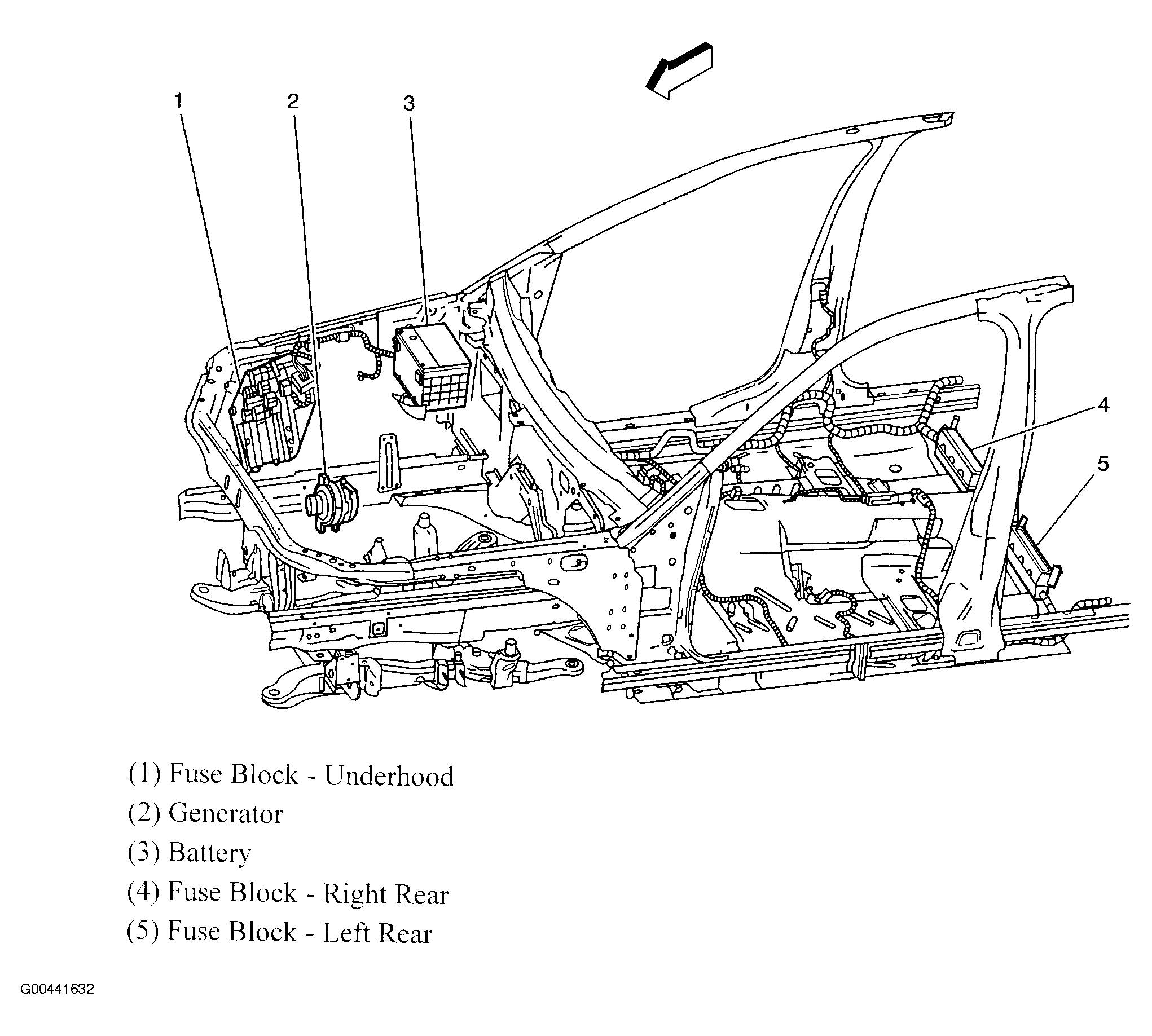

Fuse Block-Left Rear Near left side of rear seat, under carpet. See Figure.
Fuse Block-Right Rear Near right side of rear seat, under carpet. See Figure.
Fuse Block-Underhood At right front of engine compartment. See Figure.
Generator Inline Fuse In the B+ battery cable, 57 cm from the generator.
