Steering Column Shroud Replacement

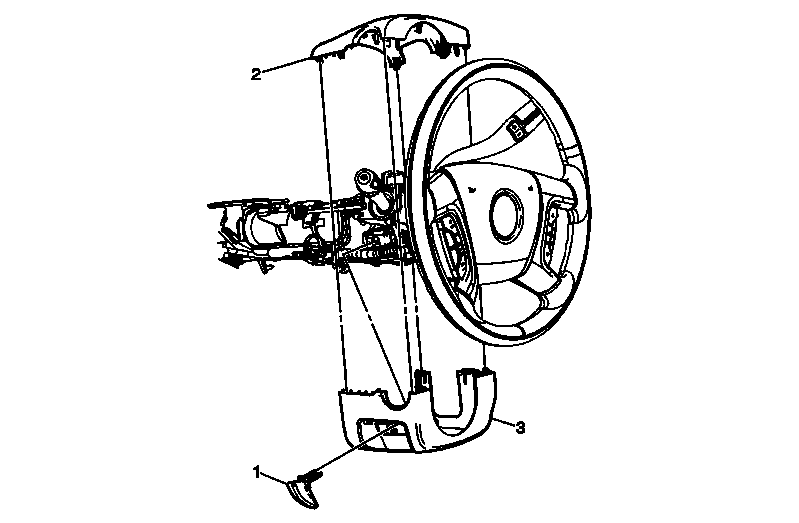

Fig 1: View Of Upper & Lower Steering Column Trim Cover & Tilt Lever

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Tilt Lever Procedure: Remove by pulling straight outwards.
2	Upper Steering Column Shroud
3	Lower Steering Column Shroud NOTE: Refer to Fastener Notice . Procedure If equipped, remove the 2 lower steering column shroud bolts. Install 2 lower steering column shroud bolts if damage exists to the steering column shroud locking features. Tighten: 3 N.m (27 lb in)

Callout

Component Name

Tilt Lever
Procedure:
Remove by pulling straight outwards.

Upper Steering Column Shroud

Lower Steering Column Shroud

NOTE: Refer to Fastener Notice .

Procedure

If equipped, remove the 2 lower steering column shroud bolts.
Install 2 lower steering column shroud bolts if damage exists to the steering column shroud locking features.

Tighten: 3 N.m (27 lb in)
