Cadillac
>>
2008
>>
Escalade EXT
>>
Repair and Diagnosis
>>
Steering
>>
Power Steering System
>>
Schematic & Routing Diagrams
>>
Power Steering Schematics
Power Steering Schematics

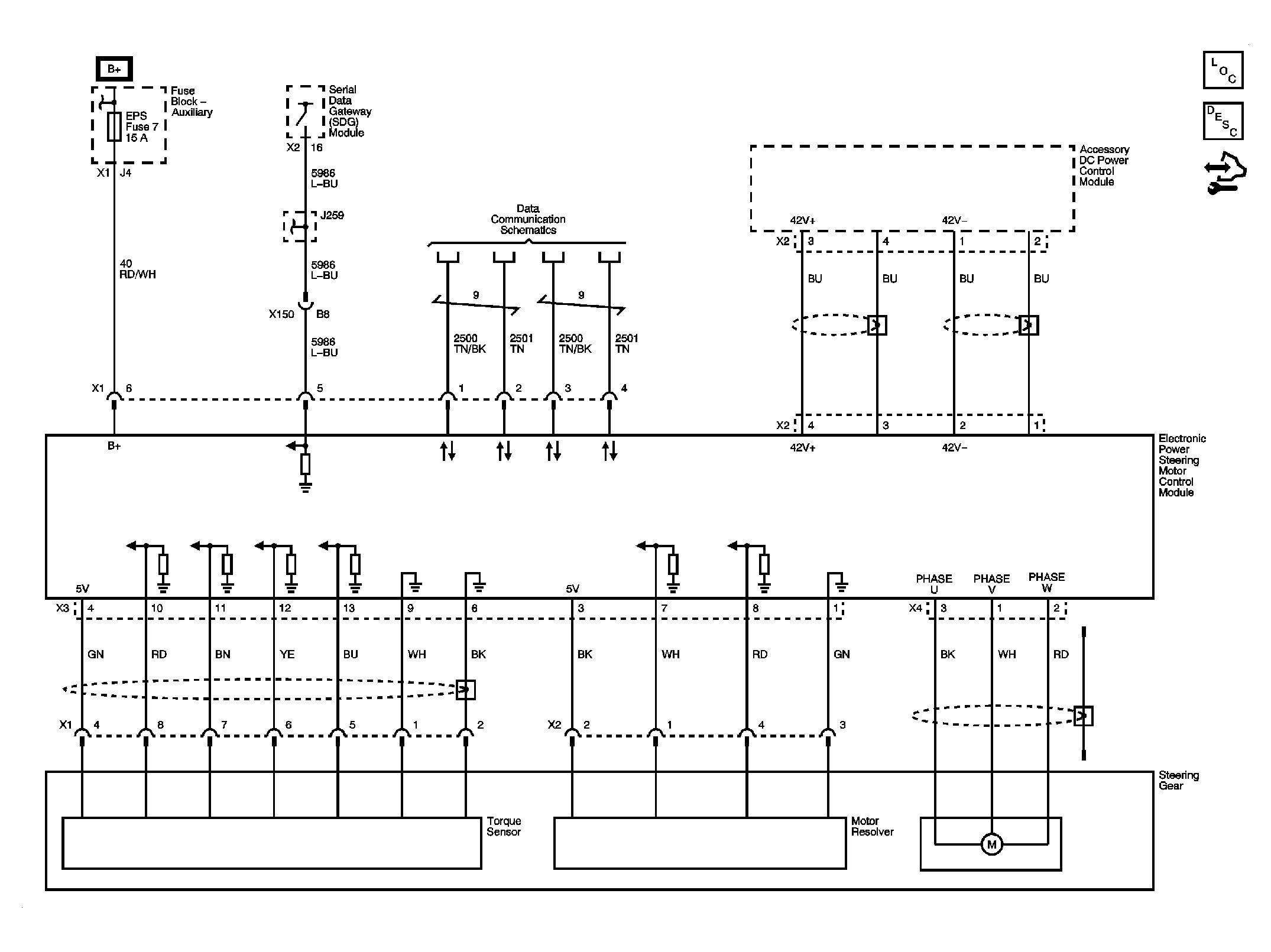

Fig 1: Hybrid Power Steering System Schematic
Courtesy of GENERAL MOTORS CORP.
Courtesy of GENERAL MOTORS CORP.
