Fuse Block - I/P X3

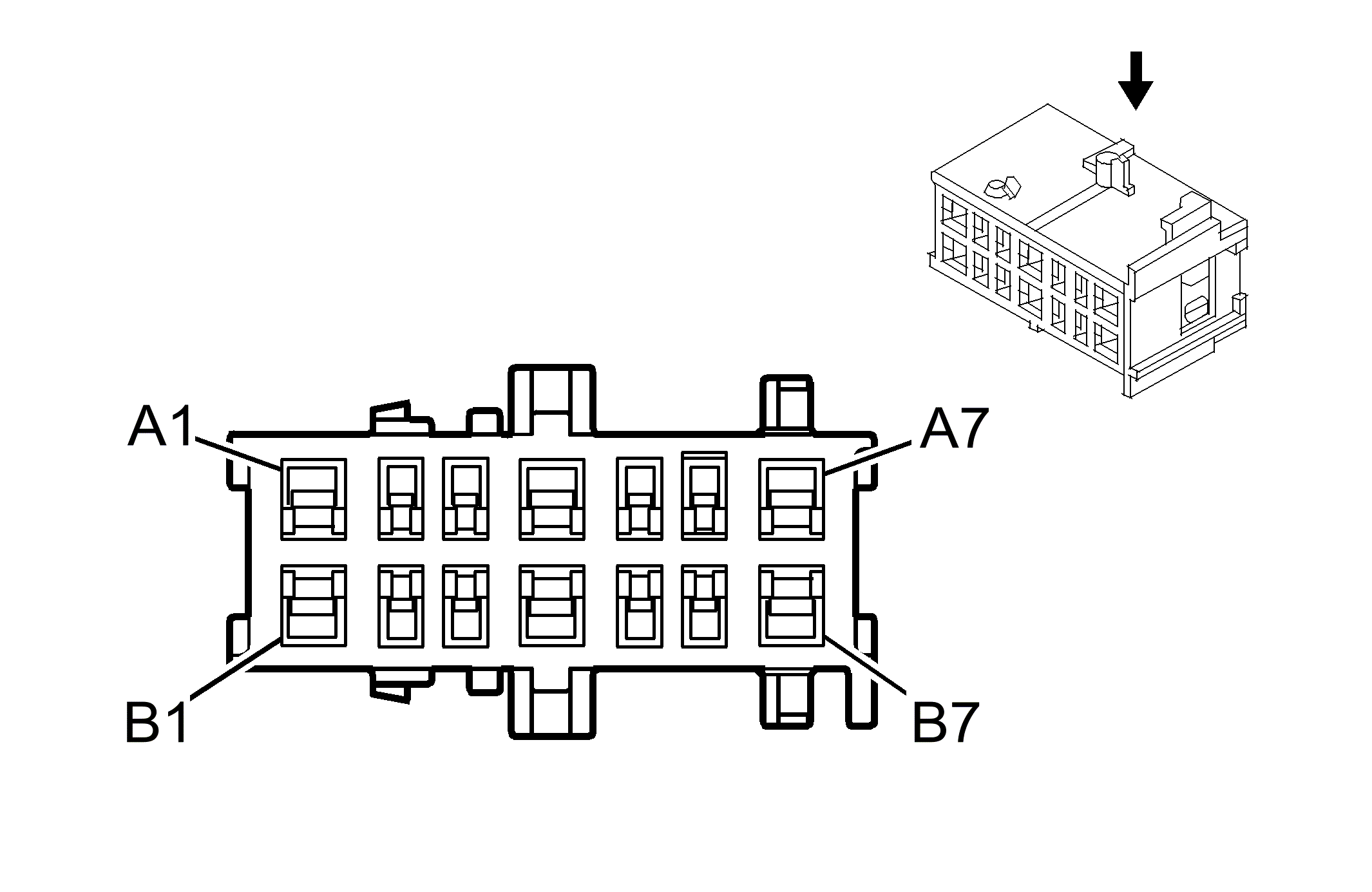

Fig 1: Fuse Block - I/P X3 Connector End View
GM1667399Courtesy of GENERAL MOTORS CORP.
Fuse Block - I/P X3

Pin Wire Circuit Function
A1 - - Not Used
A2 0.35 L-BU 195 Door Lock Control
A3 0.35 WH 194 Door Unlock Control
A4-A6 - - Not Used
A7 3 RD/WH 1740 Battery Positive Voltage
B1 0.8 TN 294 Door Lock Actuator Unlock Control
0.8 TN 294 Door Lock Actuator Unlock Control
B2-B3 - - Not Used
B4 0.8 GY 295 Door Lock Actuator Lock Control
0.8 GY 295 Door Lock Actuator Lock Control
B5-B7 - - Not Used
Connector Part Information
  • OEM: 15467620
  • Service: 19115662
  • Description: 14-Way F GT 150 280 Series (BK)

Terminal Part Information
  • Pins: A2, A3
  • Terminal/Tray: 12191812/19
  • Core/Insulation Crimp: E/C
  • Release Tool/Test Probe: 15315247/J-35616-2A (GY)
  • Pins: A7
  • Terminal/Tray: 15304713/19
  • Core/Insulation Crimp: F/D
  • Release Tool/Test Probe: 15315247/J-35616-4A (PU)
  • Pins: B1, B4
  • Terminal/Tray: 15304711/8
  • Core/Insulation Crimp: 2/A
  • Release Tool/Test Probe: 15315247/J-35616-4A (PU)
