Fuse Block - Auxiliary X3 (HP2)

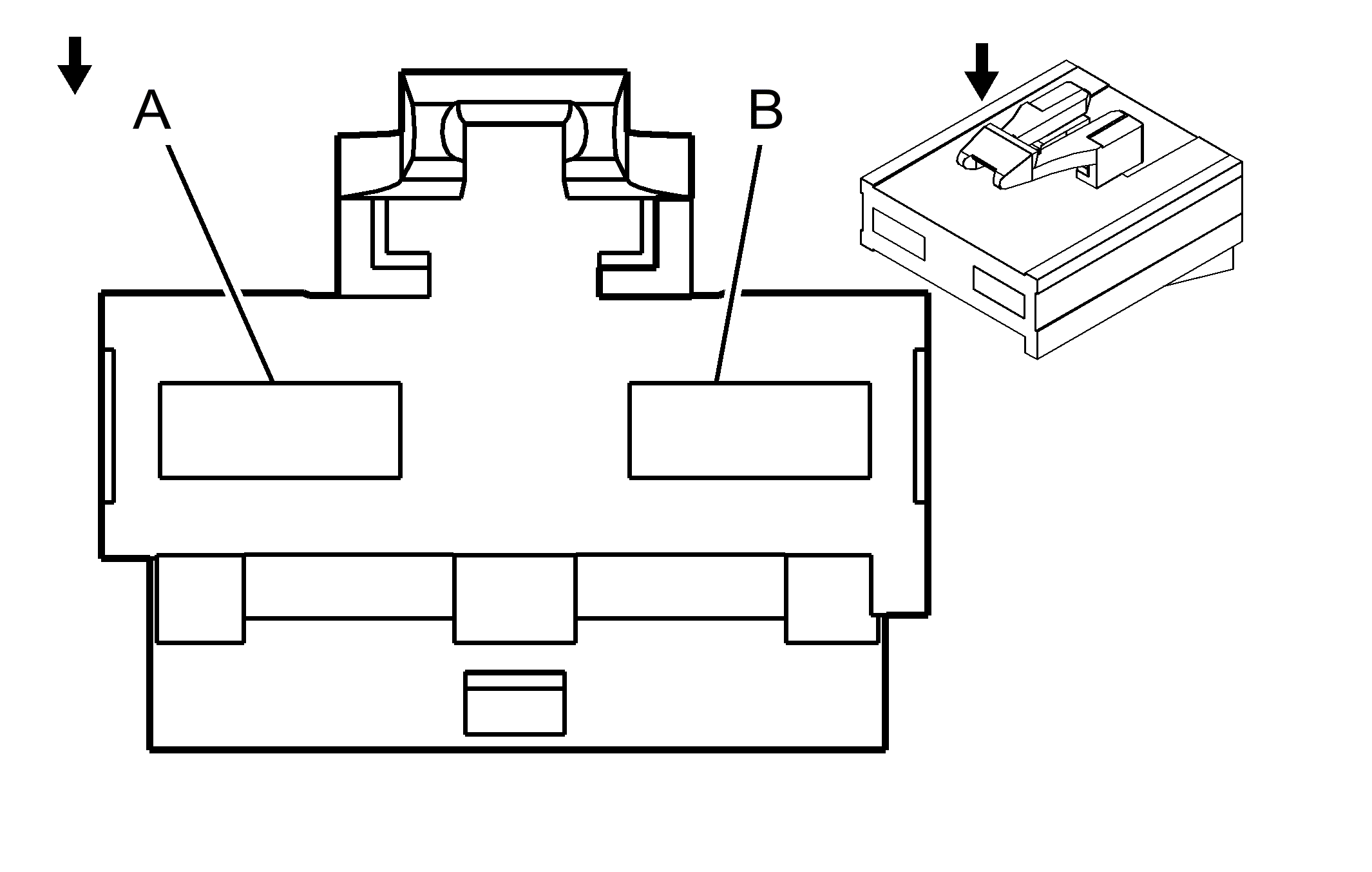

Fig 1: Fuse Block - Auxiliary X3 (HP2) Connector End View
GM647933Courtesy of GENERAL MOTORS CORP.
Fuse Block - Auxiliary X3 (HP2)

Pin Wire Circuit Function
A 5 BK 150 Ground
B 5 YE 5358 Auxiliary Cooling Fan Motor Supply Voltage
Connector Part Information
  • OEM: 12193693
  • Service: 12193693
  • Description: 2-Way F MAXI FUSE (BK)
Terminal Part Information
  • Terminal/Tray: 12110127/19
  • Core/Insulation Crimp: F/G
  • Release Tool/Test Probe: 12150860/J-35616-44 (YE)
