Fuse Block - Auxiliary X2 (HP2)

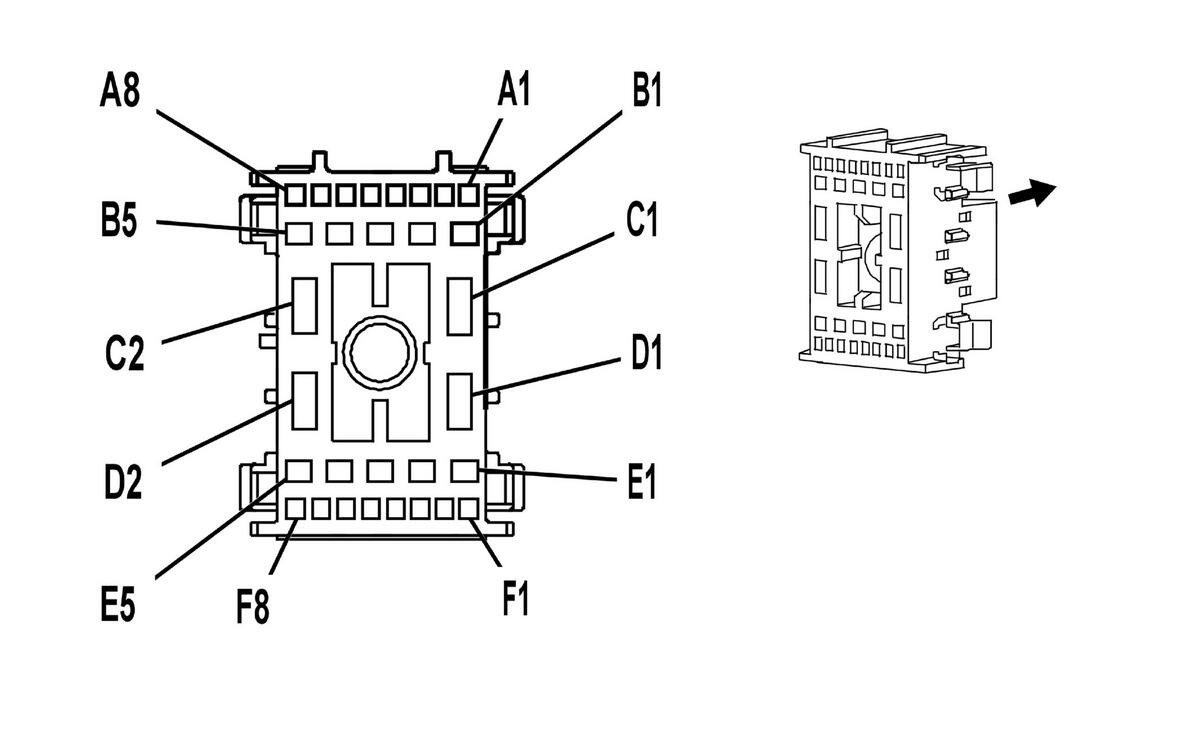

Fig 1: Fuse Block - Auxiliary X2 (HP2) Connector End View
GM1665657Courtesy of GENERAL MOTORS CORP.
Fuse Block - Auxiliary X2 (HP2)

Pin Wire Circuit Function
A1 - - Not Used
A2 0.5 PU 5531 Hood Switch Signal
A3 0.5 PK/BK 109 Hood Ajar Switch Signal
A4 0.5 D-BU 941 Low Temperature Cooling Pump Motor Ground
A5 0.5 PU 5531 Hood Switch Signal
A6 0.5 PU 5531 Hood Switch Signal
A7 0.5 PK/BK 109 Hood Ajar Switch Signal
A8 0.5 PK/BK 109 Hood Ajar Switch Signal
B1-B5 - - Not Used
C1 5 GY 532 Cooling Fan Motor Supply Voltage
C2 5 L-BU 409 Cooling Fan Motor Supply Voltage
D1 5 GY 532 Cooling Fan Motor Supply Voltage
D2 5 L-BU 409 Cooling Fan Motor Supply Voltage
E1-E2 - - Not Used
E3 0.5 D-GN 943 Speed Sensor Signal
0.5 D-GN 943 Speed Sensor Signal
E4-E5 - - Not Used
F1 0.8 BK 250 Ground
F2 0.5 D-BU 942 Low Temperature Cooling Pump Motor Ground
F3 - - Not Used
F4 0.5 YE 954 Electronics Coolant Temperature Sensor 5-volt Reference
F5 0.5 YE 955 Electronics Coolant Temperature Sensor Low Reference
F6-F8 - - Not Used
Connector Part Information
  • OEM: 13567518
  • Service: See Catalog
  • Description: 30-Way F GT 150 280 Metri-Pack 800 Series (BK)
Terminal Part Information
  • Pins: C1, C2, D1, D2
  • Terminal/Tray: 12110127/19
  • Core/Insulation Crimp: F/G
  • Release Tool/Test Probe: 12150860/J-35616-44 (YE)
  • Pins: A2-A8, E3, F1-F5
  • Terminal/Tray: 15496302/5
  • Core/Insulation Crimp: Pins A2-A8, E3, F2, F4, F5 - E/A
  • Core/Insulation Crimp: Pins F1-2/A
  • Release Tool/Test Probe: 15315247/J-35616-2A (GY)
