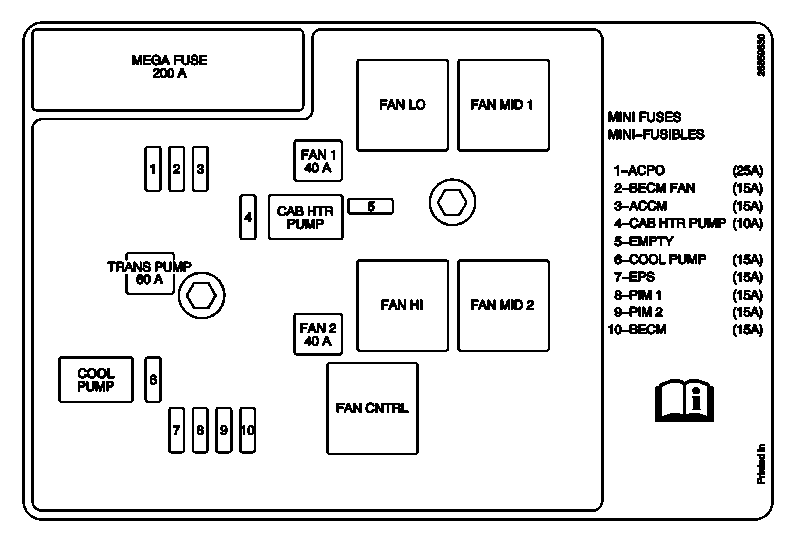

Fuse Block - Auxiliary (HP2) Label
Fuse Block - Auxiliary (HP2) Label Usage
| No. | Device | Rating | Description |
|---|---|---|---|
| 1 | ACPO Fuse | 25A | Accessory Power Inverter Module |
| 2 | BECM FAN Fuse | 15A | Generator Battery Vent Fan Relay |
| 3 | ACCM Fuse | 15A | A/C Compressor |
| 4 | CAB HTR PUMP Fuse | 10A | Heater Coolant Pump |
| 5 | EMPTY | - | Not Used |
| 6 | COOL PUMP Fuse | 15A | Generator Control Module Coolant Pump - Left, Generator Control Module Coolant Pump - Right |
| 7 | EPS Fuse | 15A | Electronic Power Steering Motor Control Module |
| 8 | PIM 1 Fuse | 15A | Drive Motor Generator Power Inverter Module |
| 9 | PIM 2 Fuse | 2A | Drive Motor Generator Power Inverter Module |
| 10 | BECM Fuse | 15A | Drive Motor Generator Battery Control Module, Serial Data Gateway (SDG) Module |
| - | FAN 1Fuse | 40A | FAN LO Relay, FAN MID 1 Relay |
| - | FAN 2 Fuse | 40A | FAN HI Relay, FAN MID 2 Relay |
| - | TRANS PUMP Fuse | 60A | Auxiliary Transmission Pump Control Module |
| - | CAB HTR PUMP Relay | - | CAB HTR PUMP Fuse, Heater Coolant Pump |
| - | COOL PUMP Relay | - | COOL PUMP Fuse, Generator Control Module Coolant Pump - Left, Generator Control Module Coolant Pump - Right |
| - | FAN LO Relay | - | Cooling Fan - Left |
| - | FAN MID 1 Relay | - | Engine Cooling Fan Resistor - Left |
| - | FAN MID 2 Relay | - | Cooling Fan - Right |
| - | FAN HI Relay | - | Cooling Fan - Right |
| - | FAN CNTRL Relay | - | Cooling Fan - Left |
