Junction Block - Left I/P, Bottom View

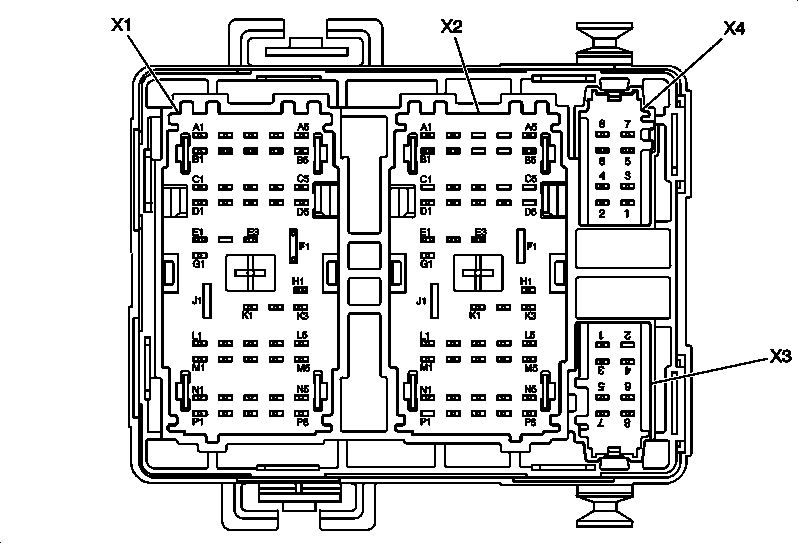

Fig 1: Junction Block - Left I/P, Bottom View

GM1857010

Courtesy of GENERAL MOTORS CORP.
