Moveable Window Schematics

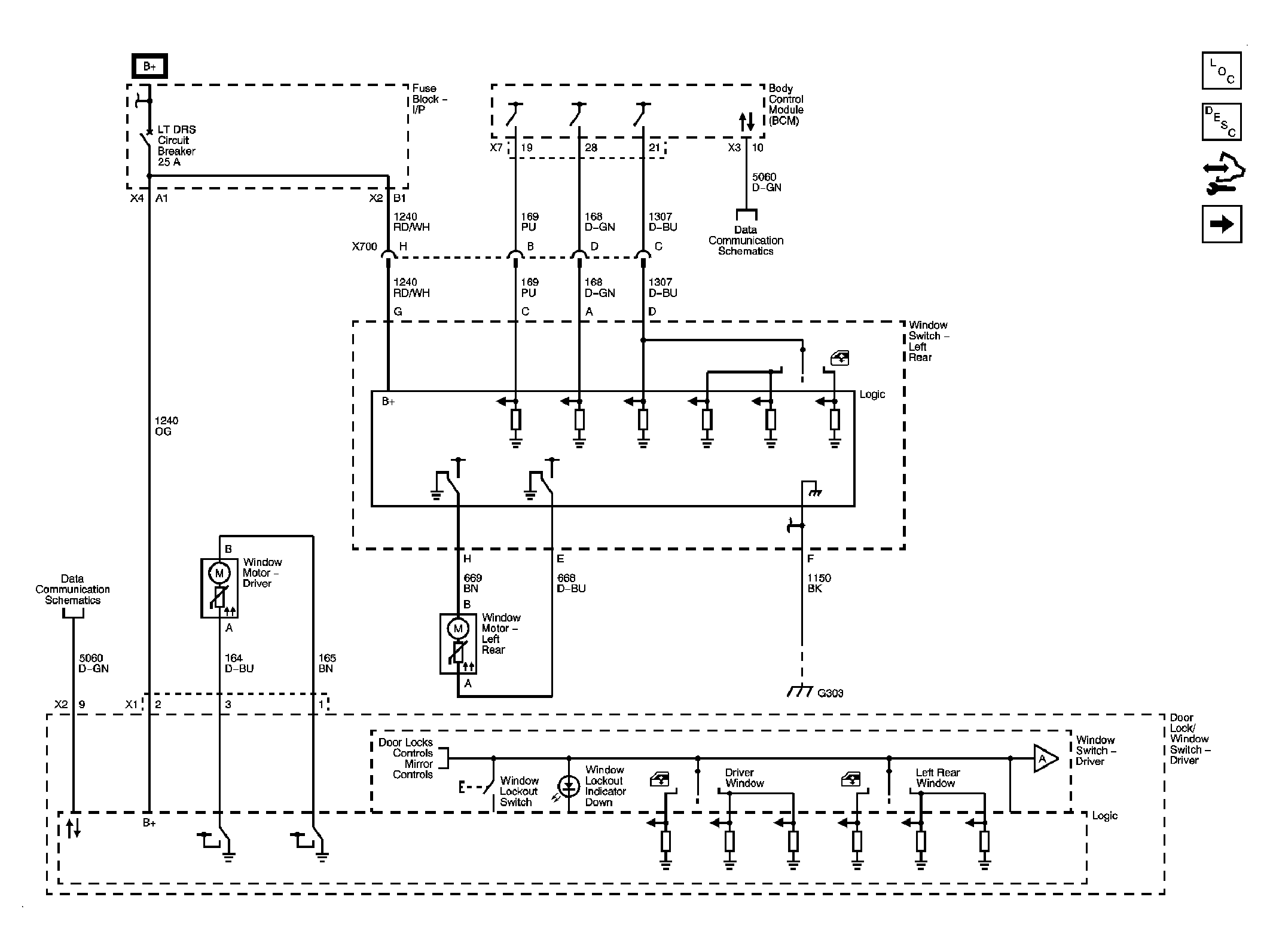

Fig 1: Left Moveable Window Schematic

GM1907213

Courtesy of GENERAL MOTORS CORP.

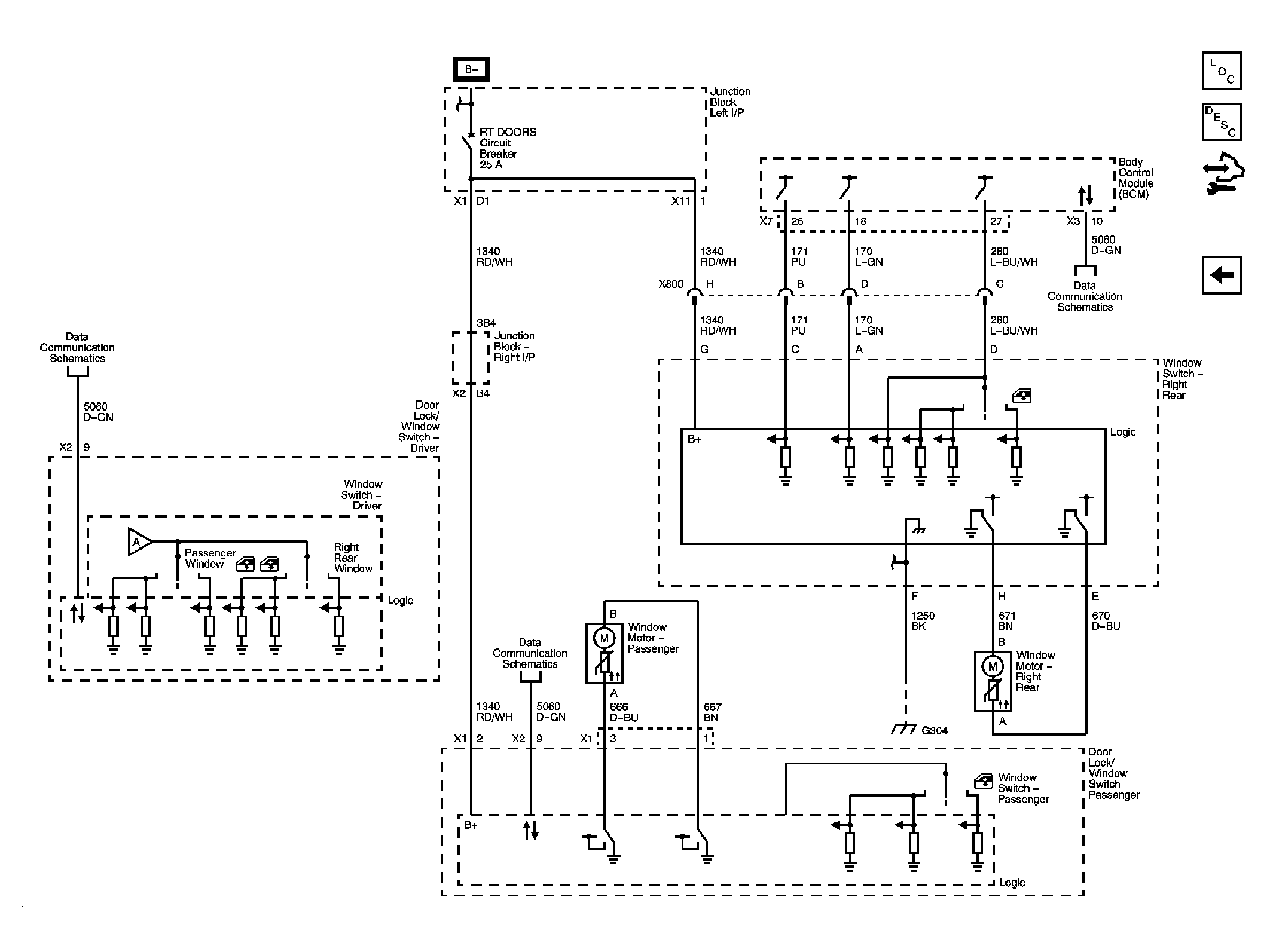

Fig 2: Right Moveable Window Schematic

GM1907215

Courtesy of GENERAL MOTORS CORP.
