Steering Wheel Secondary/Configurable Control Schematics

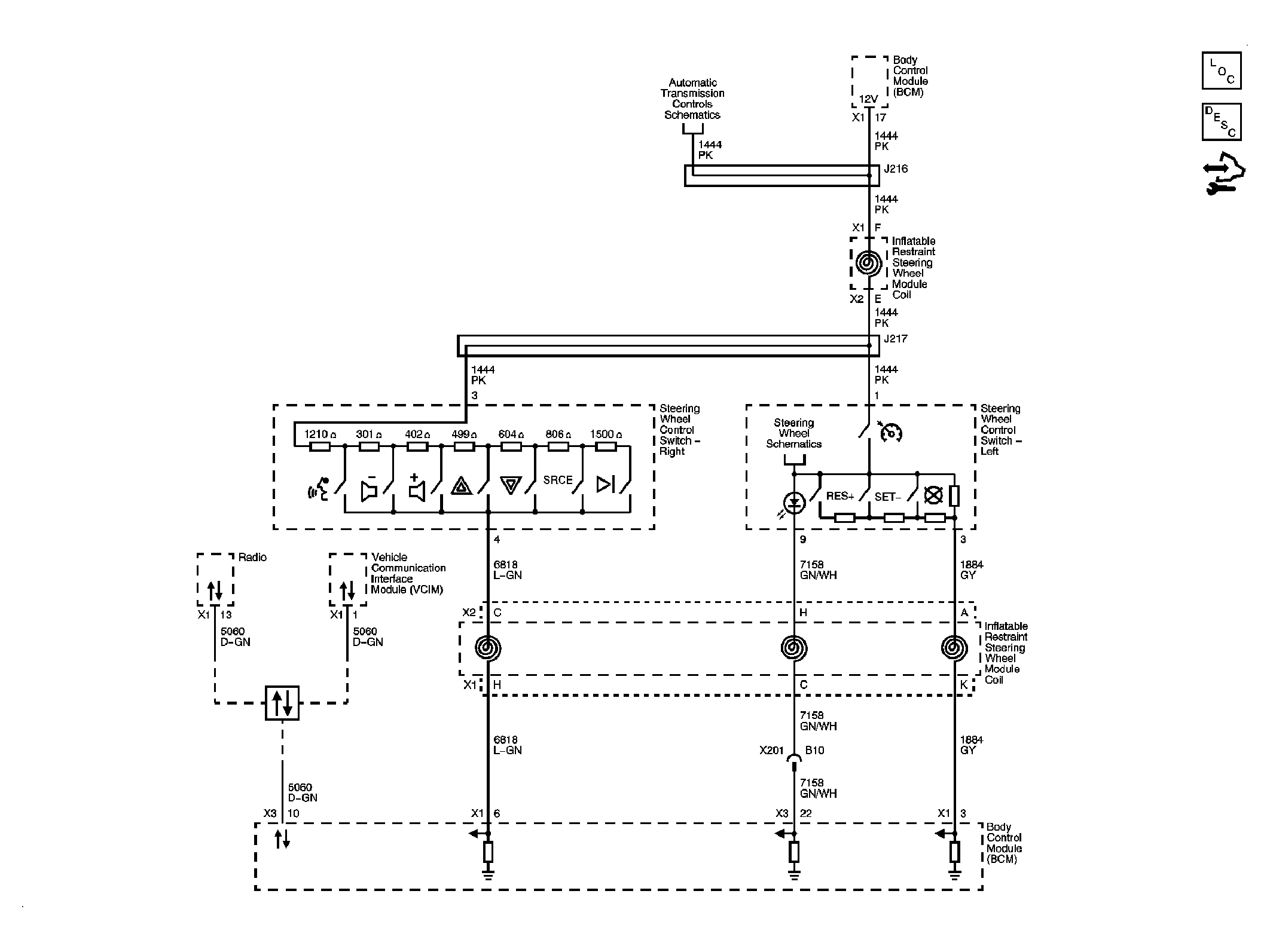

Fig 1: Steering Wheel Controls Schematic

GM1907184

Courtesy of GENERAL MOTORS CORP.
