Instrument Panel/Center Console Component Views

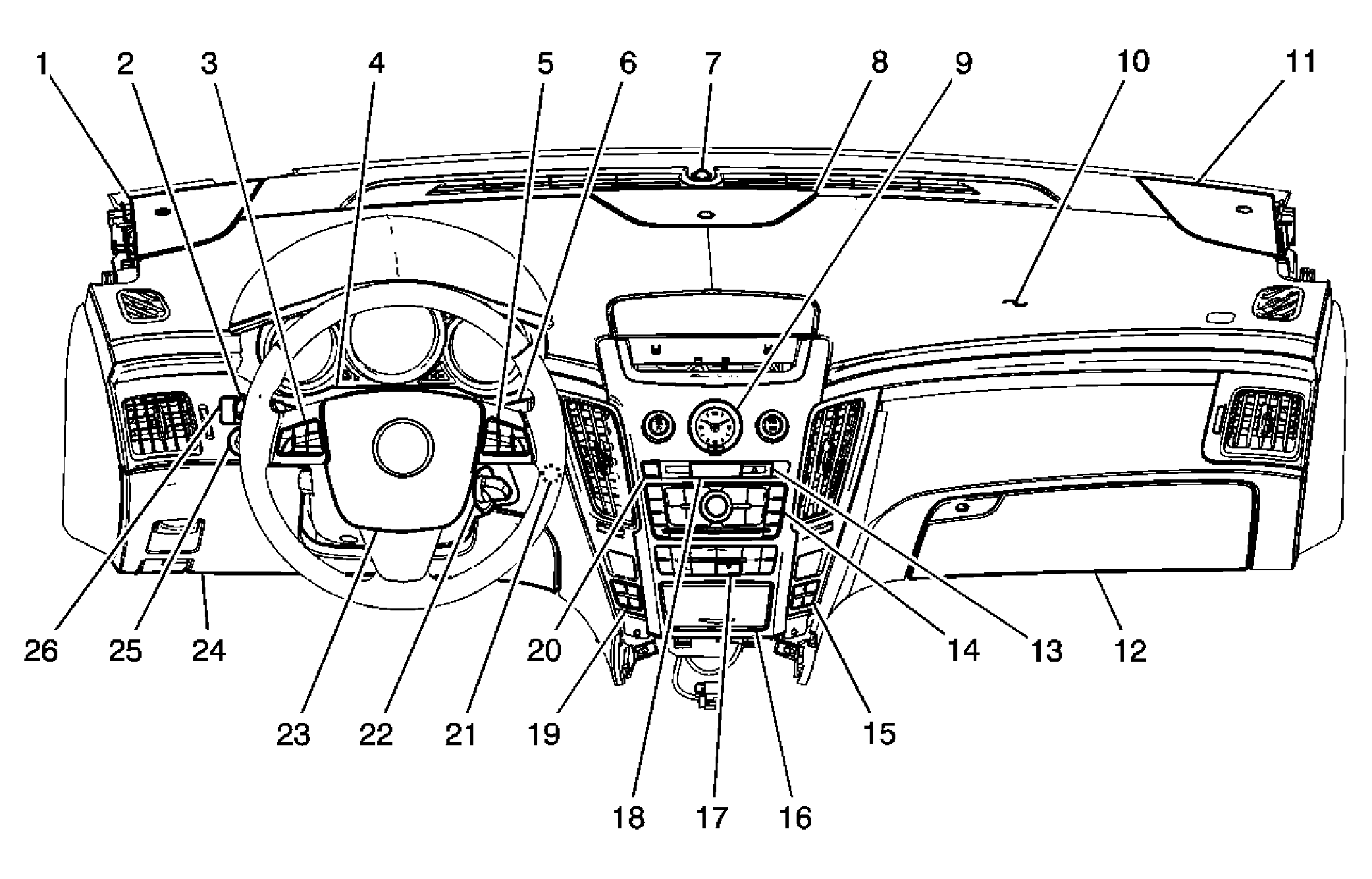

Fig 1: Instrument Panel Overview

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Speaker - Left Front
2	Turn Signal/Multifunction Switch
3	Steering Wheel Control Switch Assembly - Left (-KA9)
4	Instrument Panel Cluster (IPC)
5	Steering Wheel Control Switch Assembly - Right
6	Windshield Wiper/Washer Switch
7	Sunload Sensor
8	Speaker - Front Center
9	Analog Clock
10	Inflatable Restraint I/P Module
11	Speaker - Right Front
12	Instrument Panel Compartment Lamp
13	Hazard Switch
14	Radio/Navigation Unit
15	Heated Seat Switch - Front Passenger Seat
16	Auxiliary Power Outlet - Console Front
17	HVAC Control
18	Inflatable Restraint I/P Module AIRBAG Indicator
19	Heated Seat Switch-Driver
20	Traction Control Switch
21	Air Temperature Sensor - Inside
22	Ignition Switch
23	Inflatable Restraint Steering Wheel Module
24	Data Link Connector (DLC)
25	Instrument Panel Dimmer Switch
26	Driver Information Center (DIC)

Fig 2: Brake Pedal, Accelerator Pedal, BPP and APP Sensors

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Accelerator Pedal Position (APP) Sensor
2	Accelerator Pedal
3	Brake Pedal
4	Brake Pedal Position (BPP) Sensor

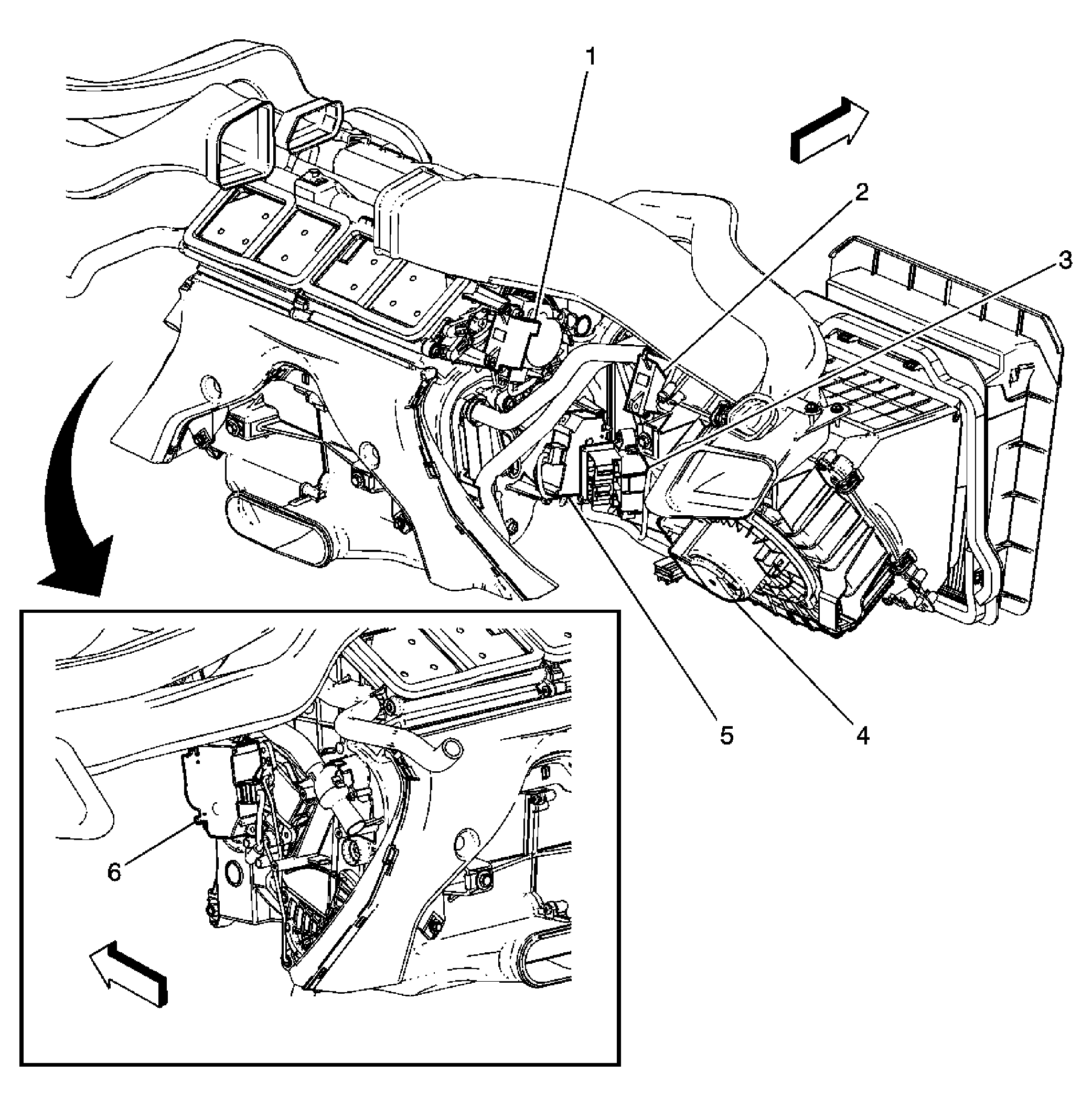

Fig 3: HVAC Module

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Mode Actuator
2	Recirculation Actuator
3	Blower Motor Control Processor
4	Blower Motor
5	Air Temperature Actuator - Passenger
6	Air Temperature Actuator - Driver

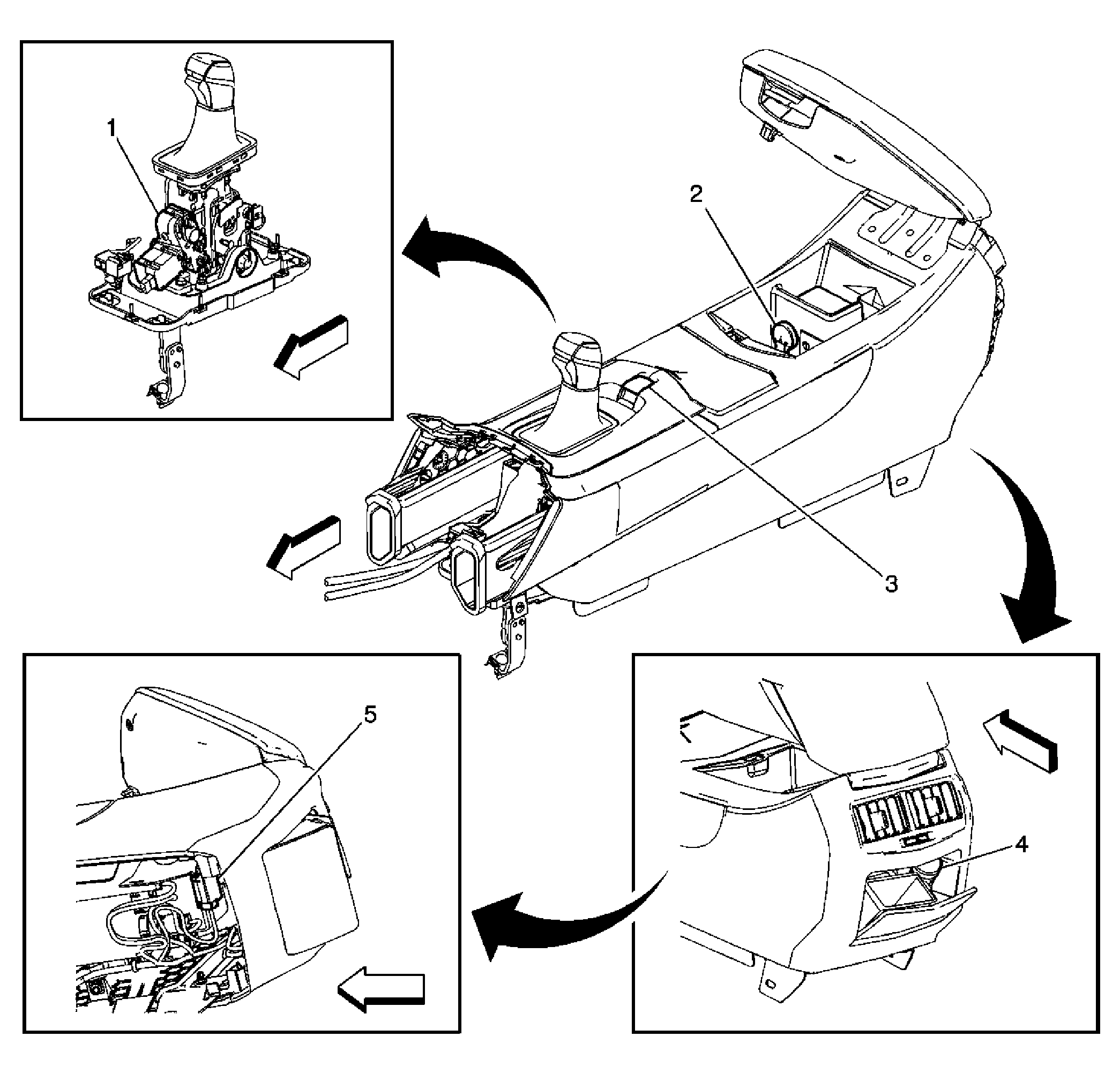

Fig 4: Floor Console

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	A/T Shift Lock Control Solenoid (MYB)
2	Auxiliary Power Outlet - Console Front
3	Park Brake Switch
4	Auxiliary Power Outlet - Console Rear
5	Keyless Entry Antenna - Passenger Compartment (UHA/UHF)
