Moveable Window Schematics

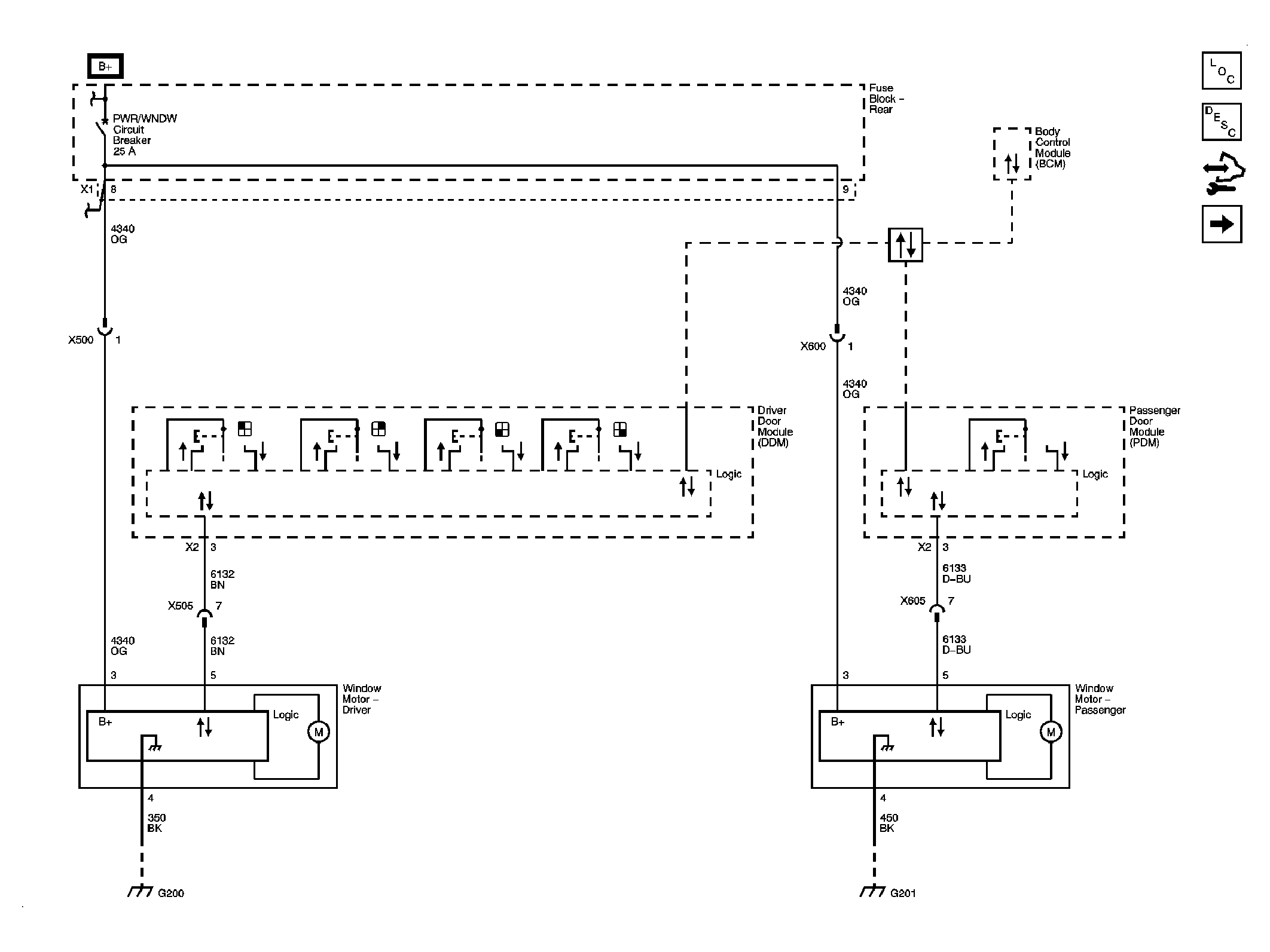

Fig 1: Moveable Window Schematic (Front)

GM1923560

Courtesy of GENERAL MOTORS CORP.

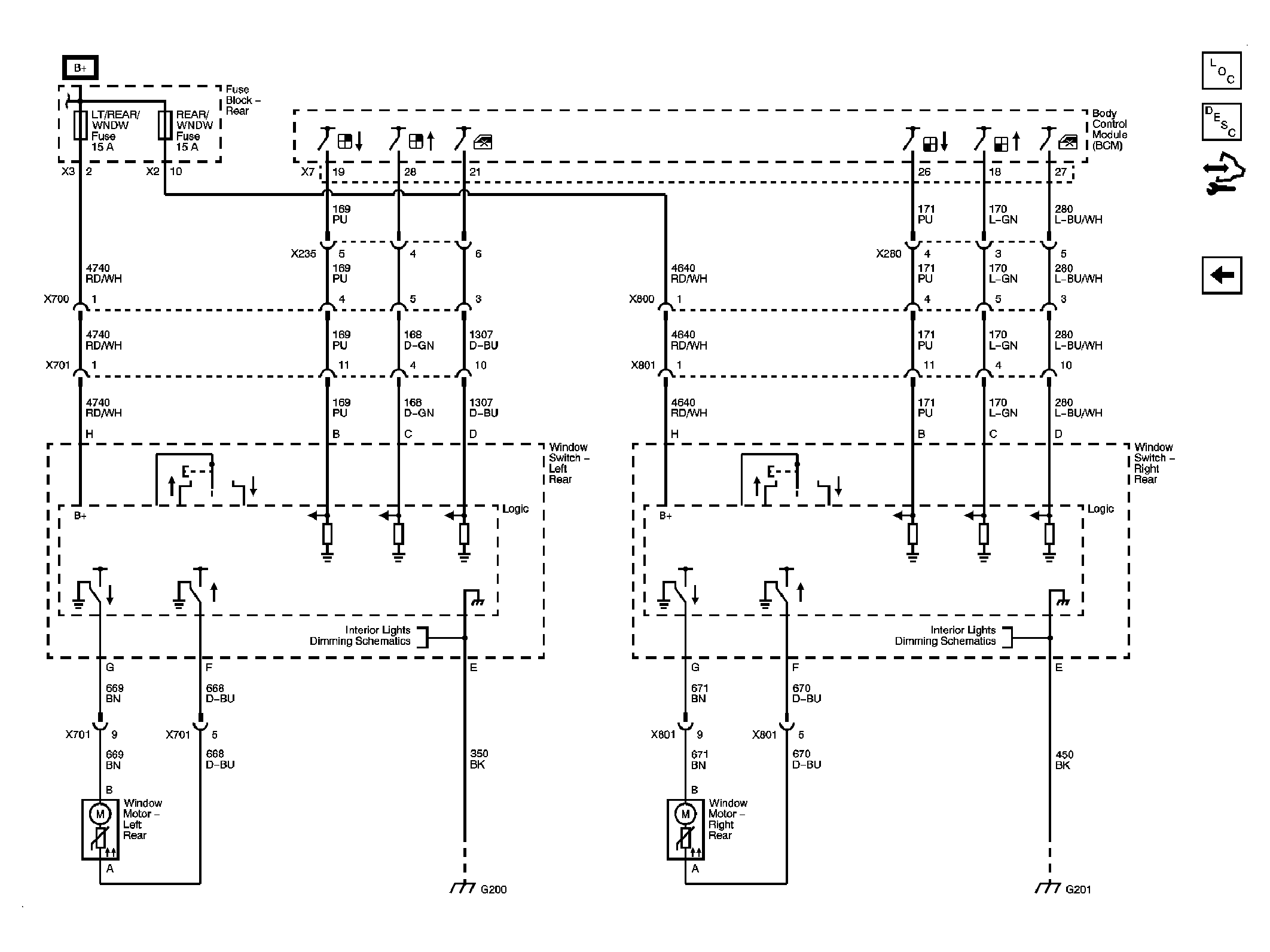

Fig 2: Moveable Window Schematic (Rear)

GM1923587

Courtesy of GENERAL MOTORS CORP.
