Removal Procedure

CAUTION: Refer to Battery Disconnect Caution .
  1. Remove the generator drive belt. Refer to DRIVE BELT REPLACEMENT .
  2. Disconnect the negative battery cable. Refer to Battery Negative Cable Disconnection and Connection .
  3. Drain the cooling system. Refer to Draining and Filling Cooling System (GE 47716) or Draining and Filling Cooling System (Static Fill) .
  4. Remove the front suspension crossmember. Refer to Front Suspension Crossmember Replacement .

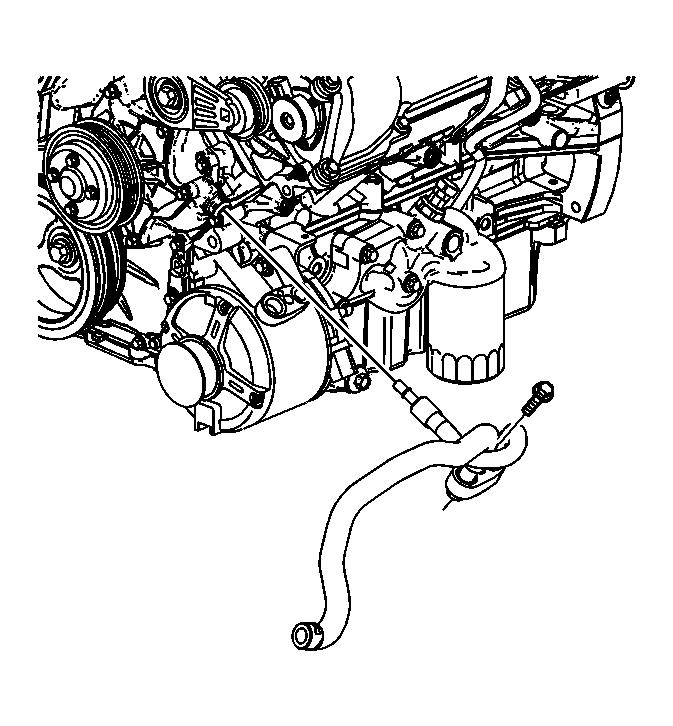

    5. Fig 1: View Of Generator Coolant Hose Assembly
    GM927948Courtesy of GENERAL MOTORS CORP.
  5. Remove the bolt from the generator coolant hose assembly on the generator.
  6. Disconnect the generator coolant hose assembly from the generator port.
    7. Fig 2: View Of Generator Electrical Connector
    GM1237975Courtesy of GENERAL MOTORS CORP.
  7. Disconnect the generator electrical connector (1).
    8. Fig 3: View Of Battery Positive/Starter Cable Terminal & Nut
    GM1237973Courtesy of GENERAL MOTORS CORP.
  8. Remove the starter cable terminal from the generator:
    1. Slide the boot (1) back along the cable.
    2. Remove the starter cable nut (2).
    3. Remove the starter cable terminal (3) from the stud (4).
    9. Fig 4: View Of Front Upper Generator Bolt
    GM927950Courtesy of GENERAL MOTORS CORP.
  9. Remove the upper generator bolt from the generator.
    10. Fig 5: View Of Generator & Idler Pulley Assembly
    GM1237972Courtesy of GENERAL MOTORS CORP.
  10. Remove the idler pulley thru-bolt (1).
  11. Remove the idler pulley nut (2).
  12. Remove the idler pulley assembly (3).
  13. Remove the generator (4).
