Removal Procedure

CAUTION: Refer to Battery Disconnect Caution .
  1. Disconnect the negative battery cable. Refer to Battery Negative Cable Disconnection and Connection .
    2. Fig 1: View Of Battery Cable Terminals
    GM1709697Courtesy of GENERAL MOTORS CORP.
  2. Loosen the positive battery cable to the battery nut (1) and disconnect the positive battery cable (2) from the battery (3).

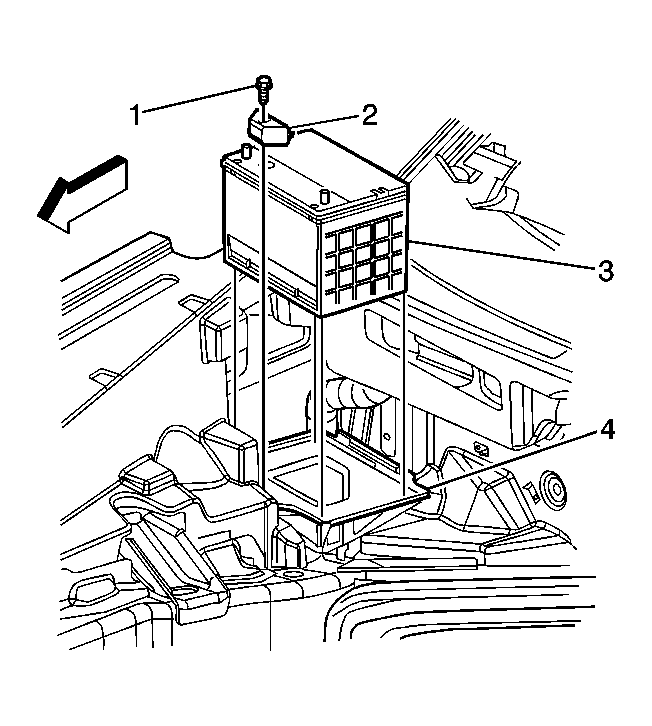

    3. Fig 2: View Of Battery & Retainer
    GM932135Courtesy of GENERAL MOTORS CORP.
  3. Remove the battery hold down retainer bolt (1) and retainer (2).
  4. Remove the battery.
