Moveable Window Schematics

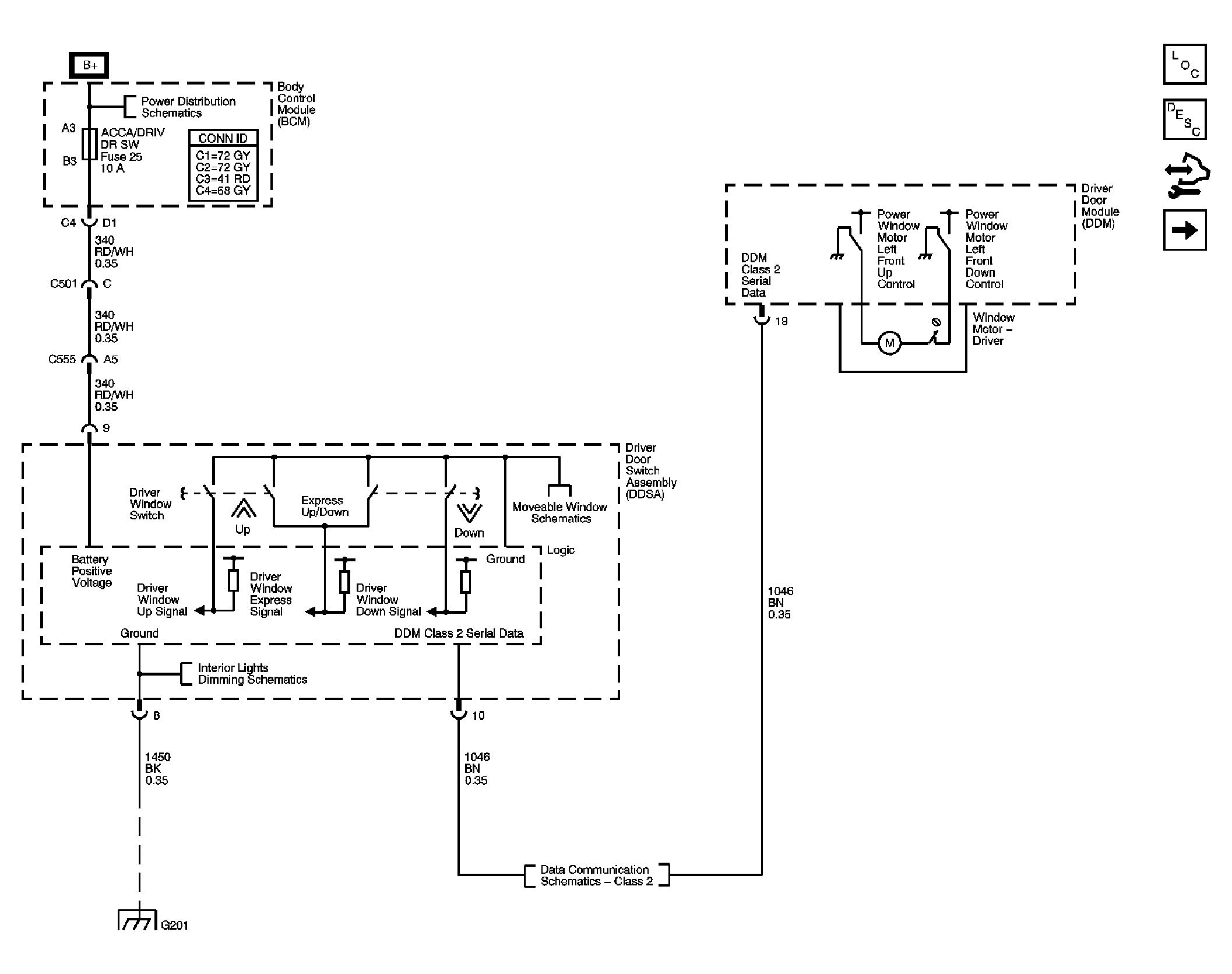

Fig 1: Moveable Window Schematic - Driver

GM1756883

Courtesy of GENERAL MOTORS CORP.

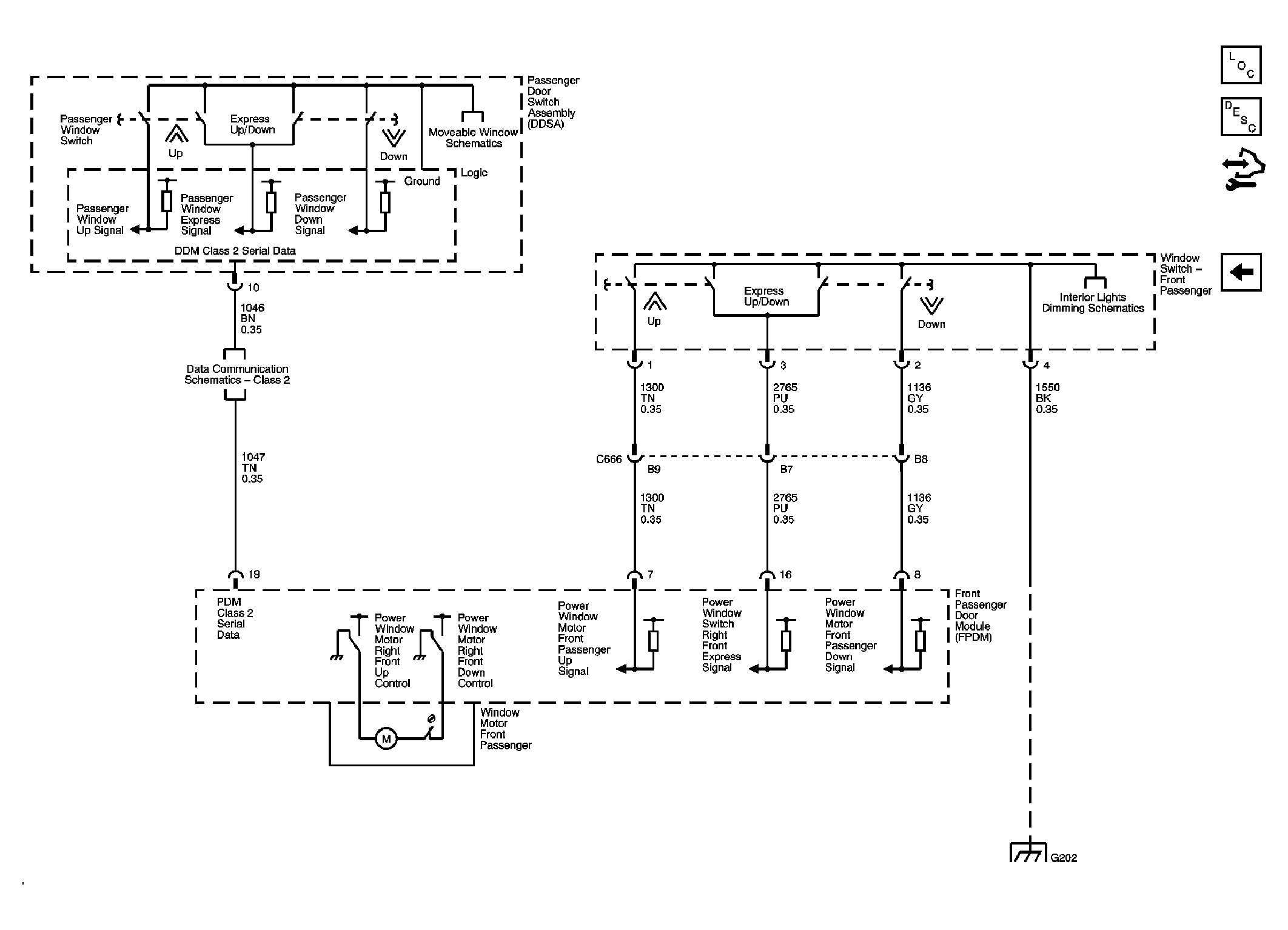

Fig 2: Moveable Window Schematic - Passenger

GM1756886

Courtesy of GENERAL MOTORS CORP.
