Removal Procedure

  1. Remove the windshield garnish molding. Refer to Windshield Garnish Molding Replacement .

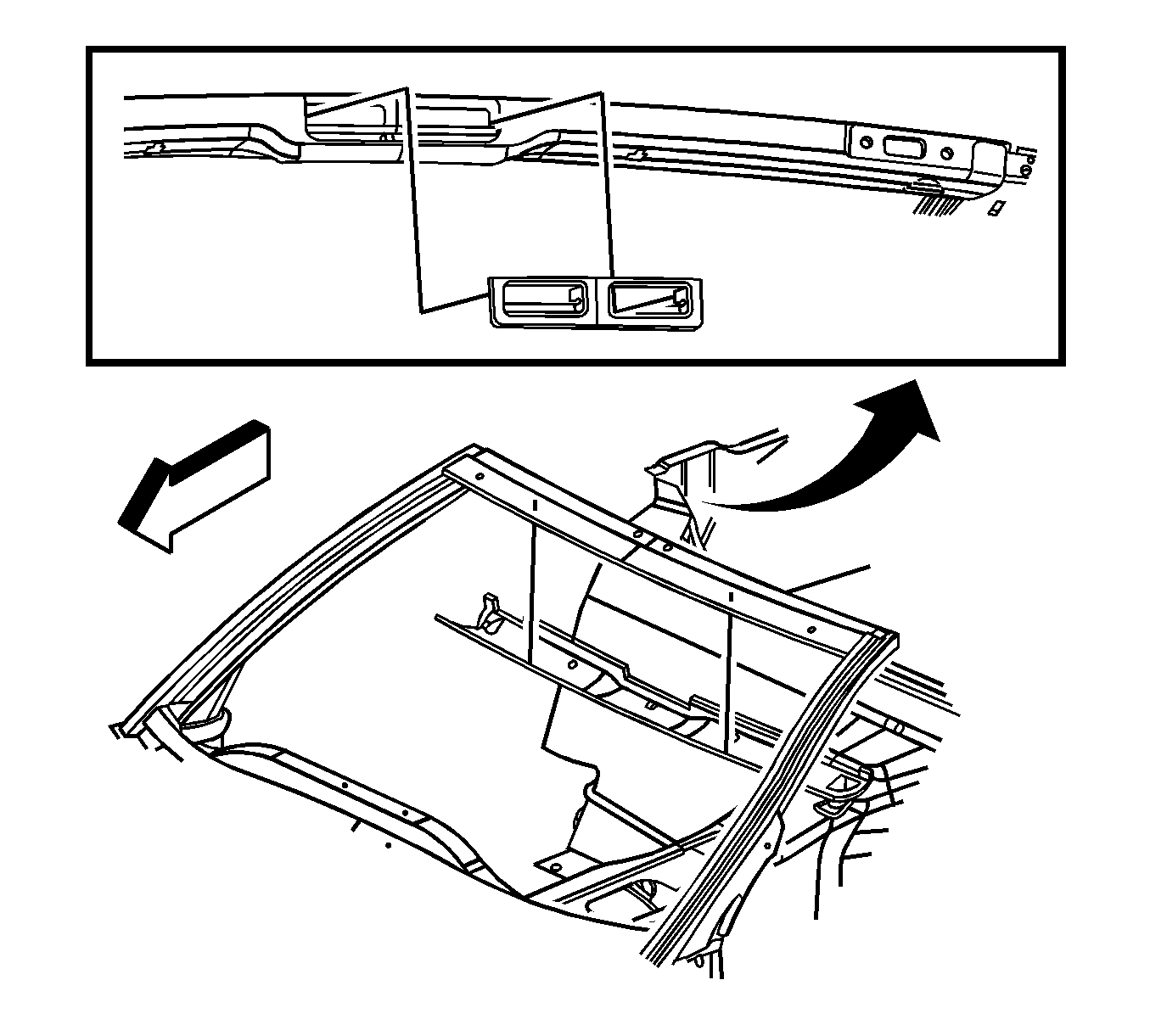

    2. Fig 1: View Of Intrusion Sensor & Windshield Garnish Molding
    GM1298206Courtesy of GENERAL MOTORS CORP.
  2. Pull on the intrusion sensor to disengage the sensor from the windshield garnish molding.
  3. Remove the intrusion sensor from the windshield garnish molding.
