Installation Procedure

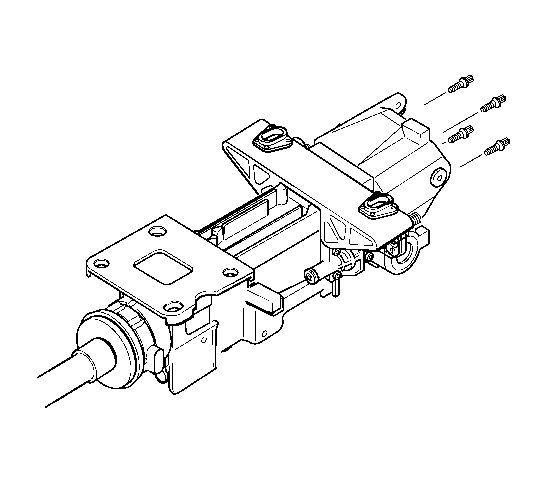

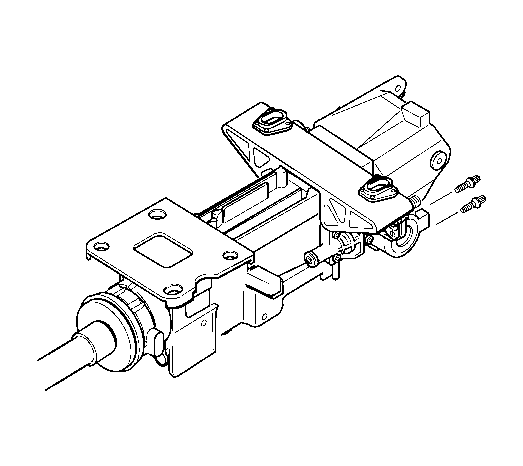

- Install the steering column support and secure the support using 4 support screws.
Tighten: Tighten the screws to 17 N.m (13 lb ft).
- Install two TORX® screws into the dampener.
Tighten: Tighten the screws to 1.5 N.m (13 lb in).

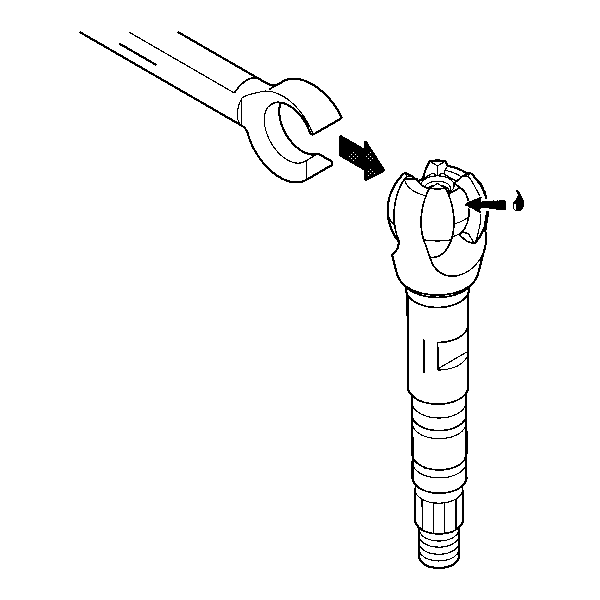

- Apply GM P/N 12345718 (Canadian P/N 10953516) to the race and upper shaft assembly.
- Align the marks on the race and upper shaft assembly with the lower shaft assembly.
- Install the lower shaft assembly to the race and upper shaft assembly.

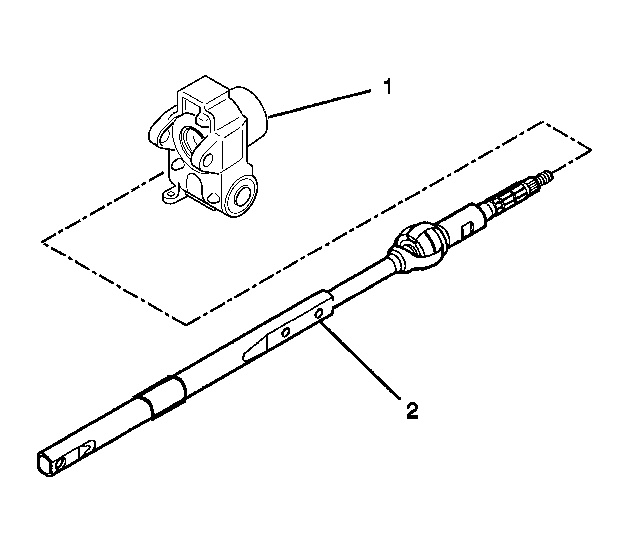

- Install the steering shaft assembly (2) into the tilt head assembly (1).
- Install the tilt head assembly (1) and the steering shaft assembly (3) into the jacket assembly (2).

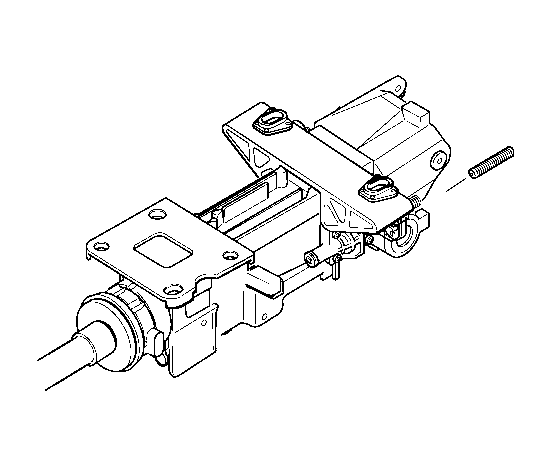

- Install the lead screw.

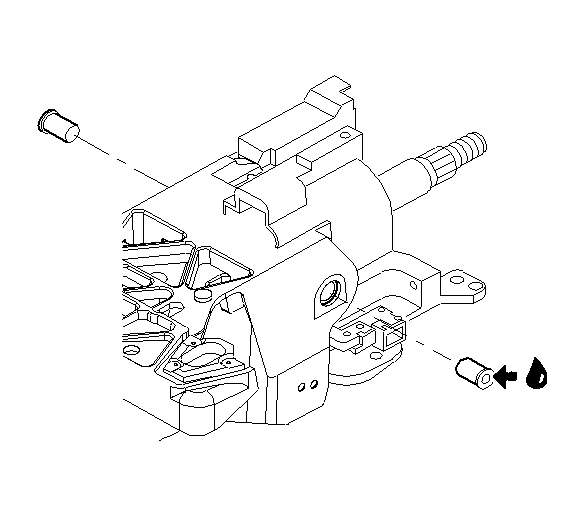

- Lubricate the pivot pins with GM P/N 12345718 (Canadian P/N 10953516).
Install the 2 pivot pins onto the steering column support assembly.

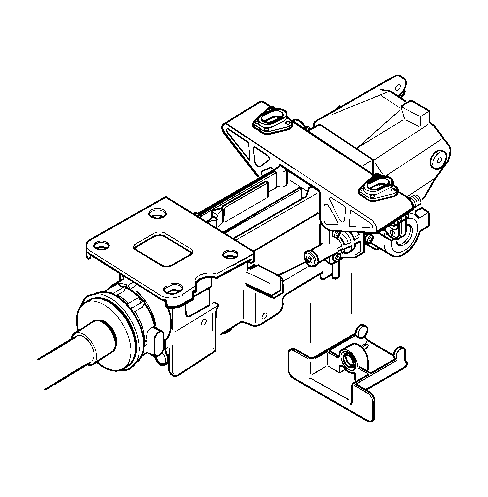

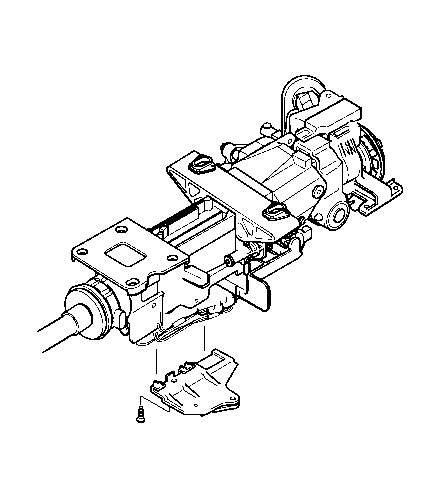

- Align and snap the lower shield assembly onto the steering column.
- Install the bracket.

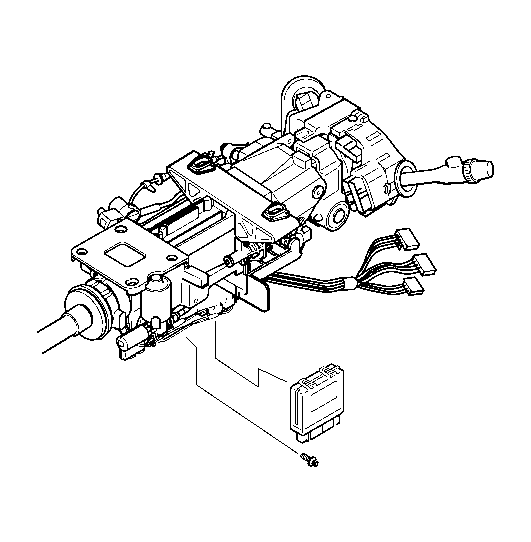

- Install one TORX® head screw to the bottom of the gearshift and tilt motor bracket.
Tighten: Tighten the screw to 3 N.m (27 lb in).
- Install the following components:

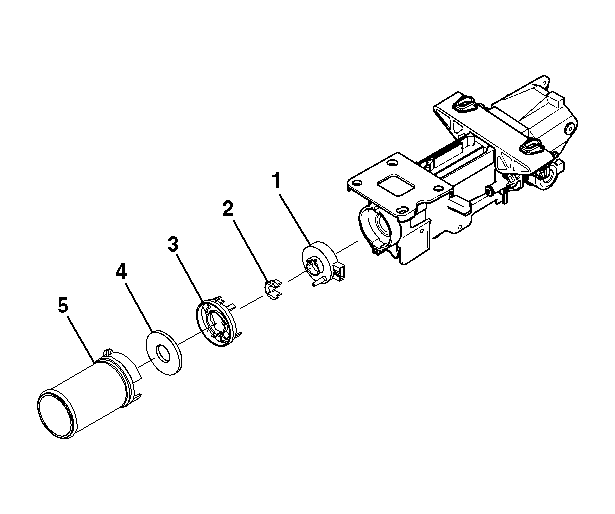

- The steering wheel position sensor (1). Refer to Steering Wheel Position Sensor Centering .
- The sensor locator (2)
- The sensor retainer (3)
- The steering shaft seal (4)
- The boot seal (5)
- Slide the control module into position.
- Install one retaining screw.
Tighten: Tighten the screw to 5 N.m (44 lb in).
- Install the tilt drive motor assembly and cable only. Refer to Tilt Motor Replacement .
- Install the telescope drive motor assembly and cable only. Refer to Telescope Actuator Assembly Replacement .
- Install the turn signal and multifunction switch assembly only. Refer to Turn Signal Multifunction Switch Replacement .
- Install the wire harness assembly only. Refer to Steering Column Wire Harness Assembly Replacement .
- Install the steering column into the vehicle. Refer to Steering Column Replacement .
- Install the steering wheel onto the steering column. Refer to Steering Wheel Replacement .
- Enable the SIR system. Refer to SIR Disabling and Enabling .
NOTE:
Refer to Fastener Notice
.
IMPORTANT:
Use the alignment marks from the disassemble procedure. Failure to assemble properly will cause the steering wheel to be turned 180 degrees.

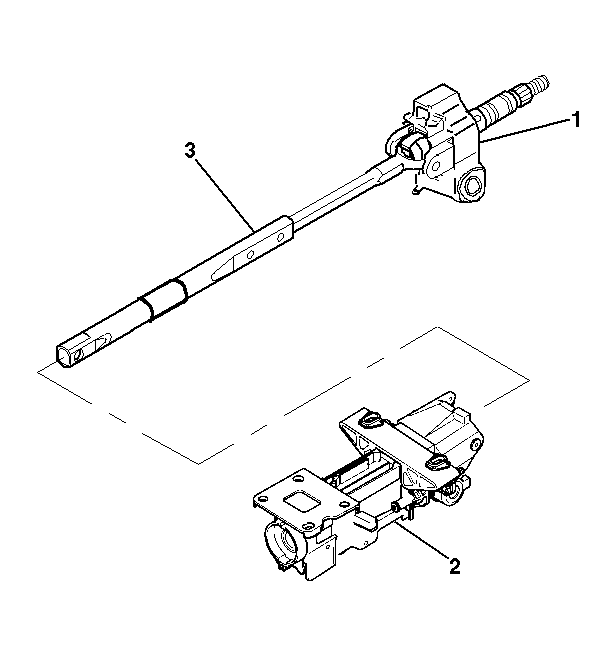

Fig 5: View Of Tilt Head Assembly, Steering Column Support Assembly & Steering Shaft (Power Tilt\Telescope, Floor Shift)
CAUTION:
Improper routing of the wire harness assembly may damage the inflatable restraint steering wheel module coil. This may result in a malfunction of the coil, which may cause personal injury.
