Installation Procedure

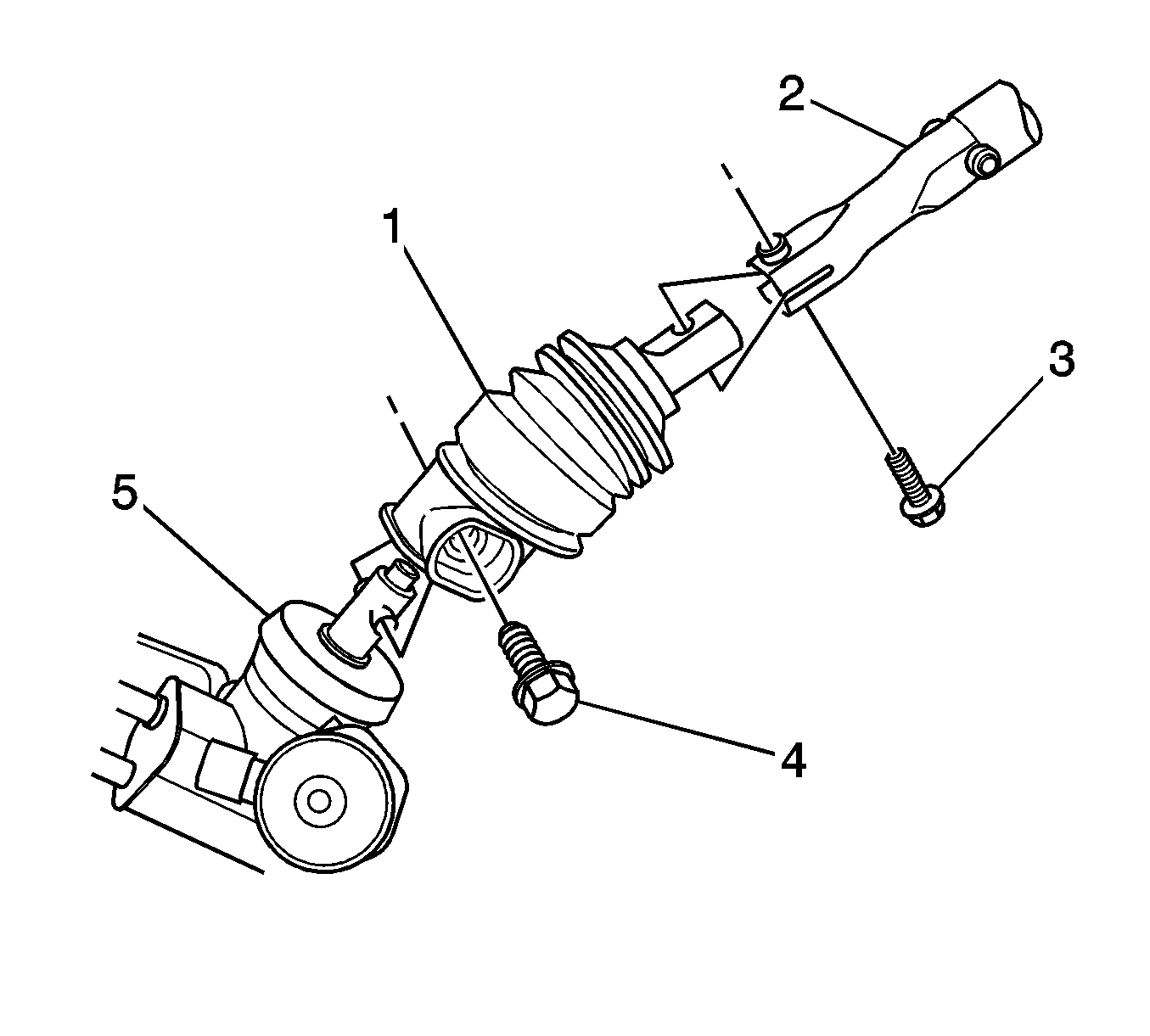

    Fig 1: View Of Steering Column Intermediate Shafts
    GM1198603Courtesy of GENERAL MOTORS CORP.
  1. Connect the lower intermediate shaft to the center intermediate shaft.
  2. Connect the lower intermediate shaft to the power steering gear.
    3. NOTE: Refer to Fastener Notice .
  3. Install the lower intermediate shaft to the power steering gear retaining bolt.

    Tighten:  Tighten the bolt to 50 N.m (37 lb ft).

  4. Install the center intermediate shaft to the lower intermediate shaft retaining bolt (3).

    Tighten:  Tighten the bolt to 30 N.m (23 lb ft).

  5. Lower the vehicle.
    6. Fig 2: Identifying J 42640
    GM333146Courtesy of GENERAL MOTORS CORP.
  6. Remove the J 42640  from the steering column lower trim cover access hole.
