Tilt Actuator Connector End View C1

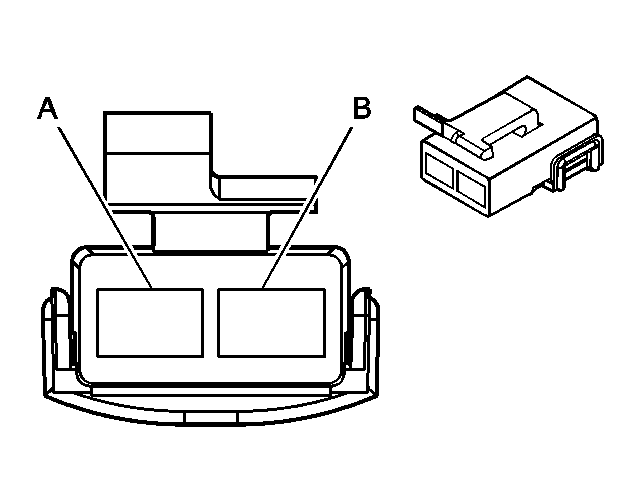

Fig 1: Tilt Actuator C1 Connector End View
GM130706Courtesy of GENERAL MOTORS CORP.
Tilt Actuator C1 Connector Parts Information

Connector Part Information
  • OEM: 12052110
  • Service: 12102768
  • Description: 2-Way F Metri-Pack 480 Series (BK)
Terminal Part Information
  • Terminal/Tray: See Terminal Repair Kit
  • Core/Insulation Crimp: See Terminal Repair Kit
  • Release Tool/Test Probe: See Terminal Repair Kit
Tilt Actuator C1 Connector End View

Pin Wire Color Circuit No. Function
A RD 2111 Steering Column Tilt Motor Up Control
B BN 2112 Steering Column Tilt Motor Down Control
