Radio Antenna Module Connector End View

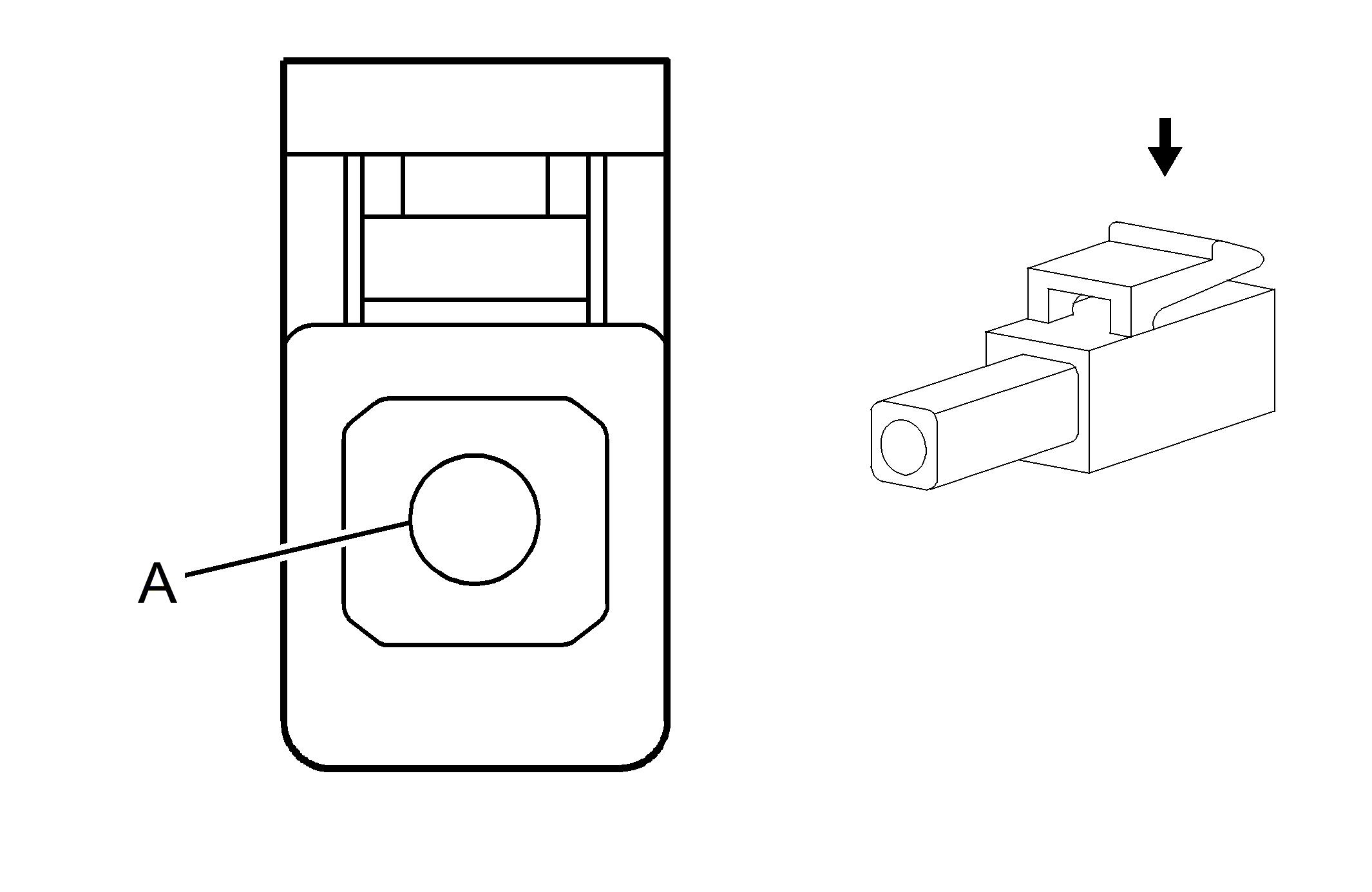

Fig 1: Radio Antenna Module Connector End View
GM1420733Courtesy of GENERAL MOTORS CORP.
Radio Antenna Module Connector Parts Information

Connector Part Information
  • OEM: 172335-1
  • Service: 19149535
  • Description: 1-Way F Mini Universal Mate-N-Lock (WH)
Terminal Part Information
  • Terminal/Tray: 770904-1/25
  • Core/Insulation Crimp: E/2
  • Release Tool/Test Probe: J-38125-220/J-35616-6 (BN)
Radio Antenna Module Connector End View

Pin Wire Color Circuit No. Function
A PK 5165 Antenna 14-Volt Switch Supply Voltage
