Traction Control Switch Connector End View

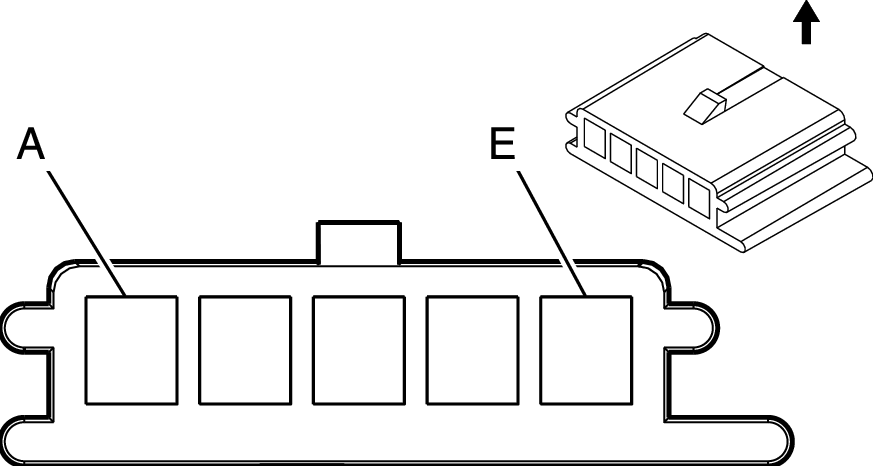

Fig 1: Traction Control Switch Connector End View
GM130718Courtesy of GENERAL MOTORS CORP.
Traction Control Switch Connector Parts Information

Connector Part Information
  • OEM: 12059800
  • Service: 15306169
  • Description: 5-Way F Metri-Pack 150 Series (BK)
Terminal Part Information
  • Pins: C, D, E
  • Terminal/Tray: 12064971/5
  • Core/Insulation Crimp: E/C
  • Release Tool/Test Probe: 12094429/J-35616-2A (GY)
Traction Control Switch Connector End View

Pin Wire Color Circuit No. Function
A-B - - Not Used
C BN/WH 1571 Traction Control Switch Signal (2)
D BK/WH 451 Ground
E YE 1491 Backlight Lamp Control
