Removal Procedure

WARNING: This page is about a different car, the 2007 Cadillac SRX. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the left rear body side trim. Refer to Body Side Rear Trim Panel Replacement (w/o TB5) or Body Side Rear Trim Panel Replacement (w/TB5) .

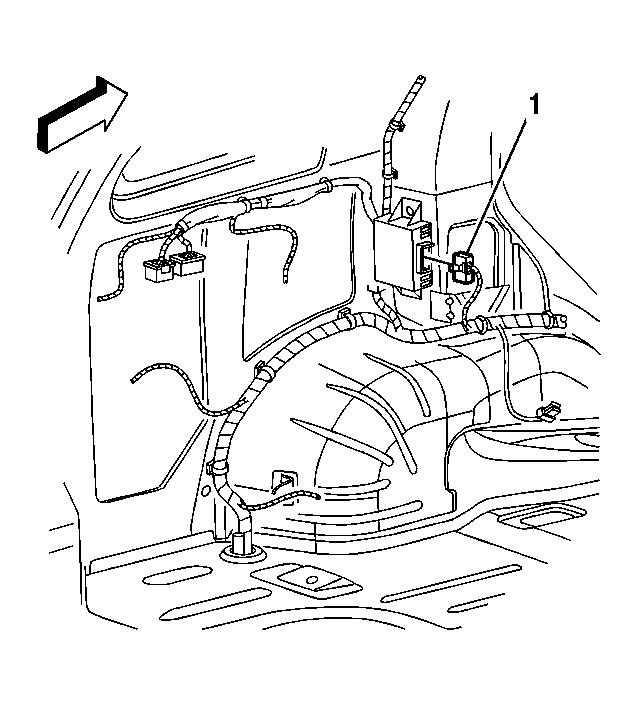

    Fig 1: View Of RPA Module Electrical Connector
    GM1210898Courtesy of GENERAL MOTORS CORP.
  2. Disconnect the RPA module electrical connector (1).

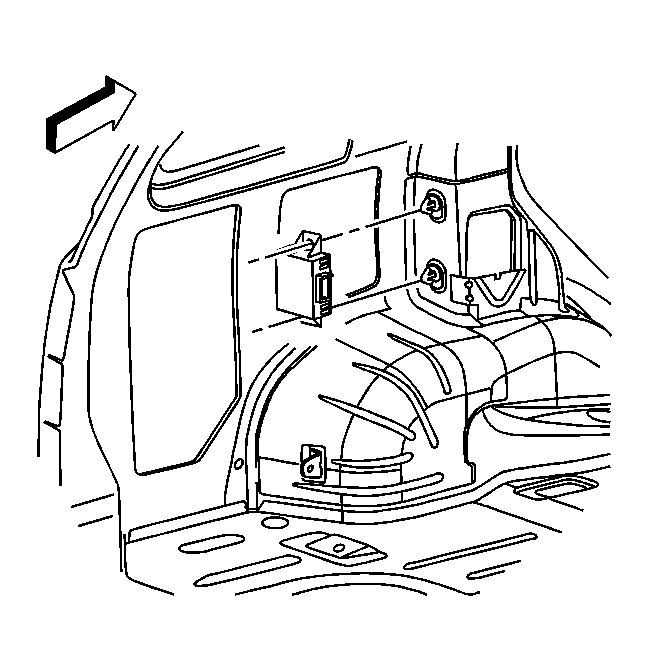

    Fig 2: View Of RPA Module
    GM1210903Courtesy of GENERAL MOTORS CORP.
  3. Remove the RPA module.
