Installation Procedure

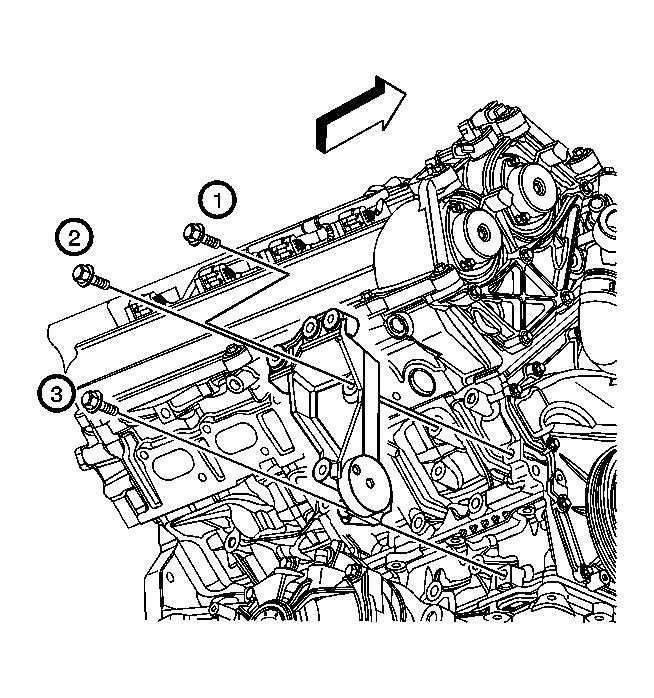

    Fig 1: View Of Generator Bracket Bolts - LH2
    GM887717Courtesy of GENERAL MOTORS CORP.
  1. Install the generator bracket to the engine.
    2. NOTE: Refer to Fastener Notice .
  2. Install the generator bracket bolts.

    Tighten:  Tighten the generator bracket bolts in the sequence shown to 50 N.m (37 lb ft).

  3. Install the right side engine mount bracket. Refer to Engine Mount Bracket Replacement - Right Side .
  4. Install the generator drive belt tensioner. Refer to Drive Belt Tensioner Replacement - Generator .
  5. Install the generator. Refer to Generator Replacement (LC3)  or Generator Replacement (LH2 w/AWD)  or Generator Replacement (LH2 w/RWD)  or Generator Replacement (LY7) .
  6. Connect the battery negative cable. Refer to Battery Negative Cable Disconnection and Connection .
