Installation Procedure

    Fig 1: View Of Power Steering Gear And Hoses
    GM908682Courtesy of GENERAL MOTORS CORP.
  1. Install the power steering gear outlet hose to the vehicle.
  2. Connect the power steering gear outlet hose to the power steering gear.
    3. Fig 2: View Of Power Steering Gear Inlet Hose-To-Power Steering Gear Retaining Bolt
    GM1301495Courtesy of GENERAL MOTORS CORP.
    NOTE: Refer to Fastener Notice .
  3. Install the power steering hoses to power steering gear retaining bolt.

    Tighten:  Tighten the bolt to 23 N.m (17 lb ft).

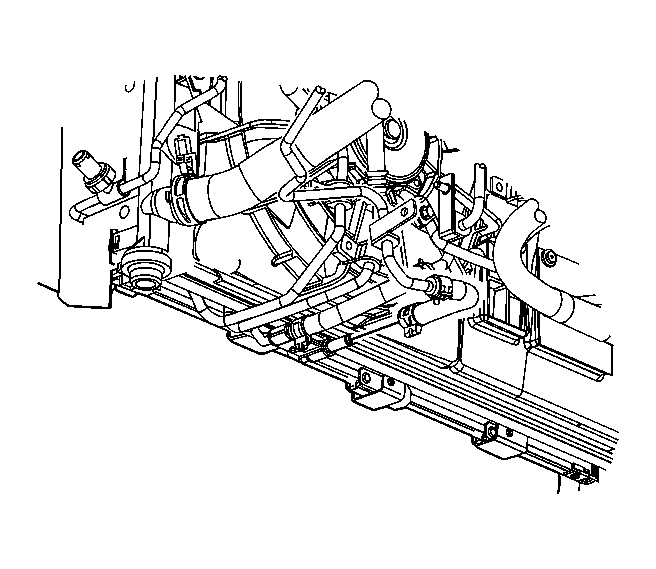

    4. Fig 3: View Of Power Steering Gear Outlet Hose & Power Steering Cooler
    GM1371690Courtesy of GENERAL MOTORS CORP.
  4. Connect the power steering gear outlet hose to the power steering cooler.

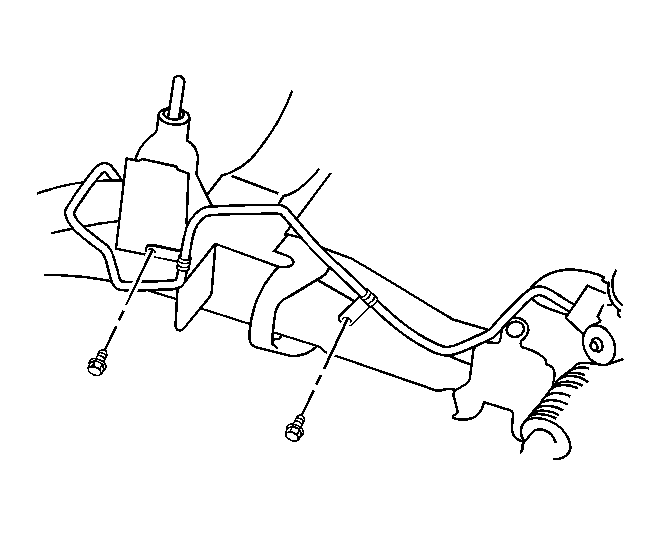

    5. Fig 4: View Of Power Steering Gear Outlet Hose-To-Frame Retaining Bolts
    GM1301688Courtesy of GENERAL MOTORS CORP.
  5. Install the power steering gear outlet hose to frame retaining bolt.

    Tighten:  Tighten the bolt to 4 N.m (40 lb in).

  6. Remove the drain pan from under the vehicle.
  7. Install the front air deflector. Refer to Front Air Deflector Replacement .
  8. Lower the vehicle.
  9. Bleed the power steering system. Refer to Power Steering System Bleeding .
