Installation Procedure

    NOTE: Refer to Fastener Notice in Cautions and Notices.

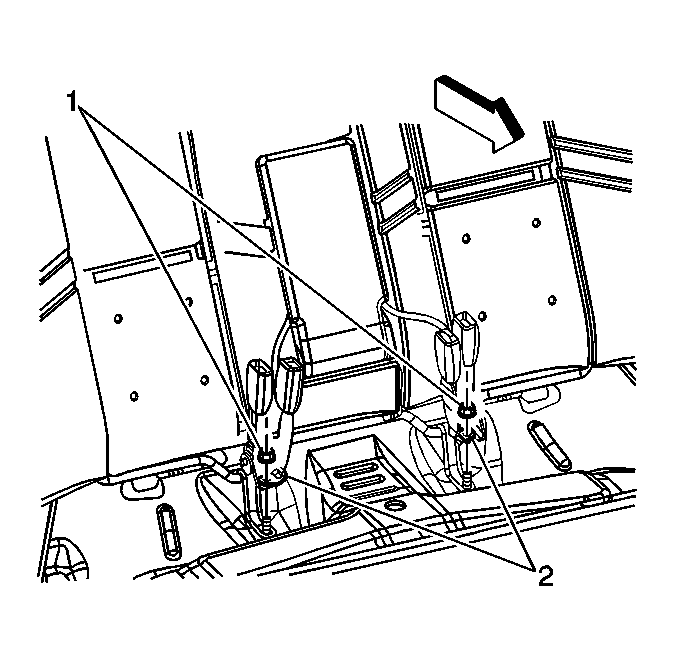

    Fig 1: Seat Belt Buckle Fasteners And Seat Belt Buckles
    GM729862Courtesy of GENERAL MOTORS CORP.
  1. Install the rear seat belt buckles (2) to the floor pan.

    Tighten:  Tighten the seat belt buckle fasteners to 30 N.m (22 lb ft).

  2. Connect the left and right rear seat belt buckle electrical connectors.
  3. Install the rear seat cushion. Refer to Rear Seat Cushion Replacement in Seats.
