Passenger Compartment/Roof Component Views

WARNING: This page is about a different car, the 2008 Cadillac SRX. However, it is still accessible from the selected car via links, so may be relevant.

Fig 1: Identifying SIR Components LHD

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Inflatable Restraint Side Impact Module - Left
2	Inflatable Restraint Steering Wheel Module
3	Inflatable Restraint Instrument Panel Module Indicator
4	Inflatable Restraint Instrument Panel Module
5	Inflatable Restraint Front Passenger Presence System (PPS) Sensor
6	Seat Belt Retractor - Right
7	Inflatable Restraint Side Impact Module - Right
8	Inflatable Restraint Side Impact Sensing Module (SISM) - Right
9	Inflatable Restraint Roof Rail Module - Right (AY0)
10	Seat Belt Switch - Right
11	Inflatable Restraint Sensing and Diagnostic Module (SDM)
12	Rollover Sensor
13	Seat Belt Switch - Left
14	Inflatable Restraint Roof Rail Module - Left (AY0)
15	Inflatable Restraint Side Impact Sensing Module (SISM) - Left
16	Seat Belt Retractor - Left

Fig 2: Identifying SIR Components (Passenger Compartment) RHD

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Inflatable Restraint Instrument Panel Module
2	Inflatable Restraint Instrument Panel Module Indicator (AQS)
3	Inflatable Restraint Steering Wheel Module
4	Seat Belt Switch - Right
5	Seat Belt Pretensioner - Right
6	Inflatable Restraint Side Impact Module - Right
7	Inflatable Restraint Side Impact Sensing Module (SISM) - Right
8	Inflatable Restraint Roof Rail Module - Right (AY0)
9	Inflatable Restraint Sensing and Diagnostic Module (SDM)
10	Rollover Sensor
11	Seat Belt Switch - Left
12	Inflatable Restraint Roof Rail Module - Left (AY0)
13	Inflatable Restraint Side Impact Sensing Module (SISM) - Left
14	Inflatable Restraint Front Passenger Presence System (PPS) Sensor
15	Inflatable Restraint Side Impact Module - Left
16	Seat Belt Pretensioner - Left

Fig 3: Identifying Entertainment System Components

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Radio/Navigation Unit
2	Speaker - Instrument Panel (UQS)
3	Speaker - Right A-Pillar Tweeter
4	Speaker - Right Front Door
5	Speaker - Right Rear Door
6	Speaker - Right D-Pillar (UQS)
7	Speaker - Rear Subwoofer
8	Speaker - Center Console (UQS)
9	Speaker - Left D-Pillar (UQS)
10	Speaker - Left Rear Door
11	Rear Video Display (U42)
12	Speaker - Left Front Door
13	Speaker - Left A-Pillar Tweeter

Fig 4: Identifying Yaw & Lateral/Long Acceleration Sensor Components RHD

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Rollover Sensor
2	Yaw and Lateral/Long Acceleration Sensor

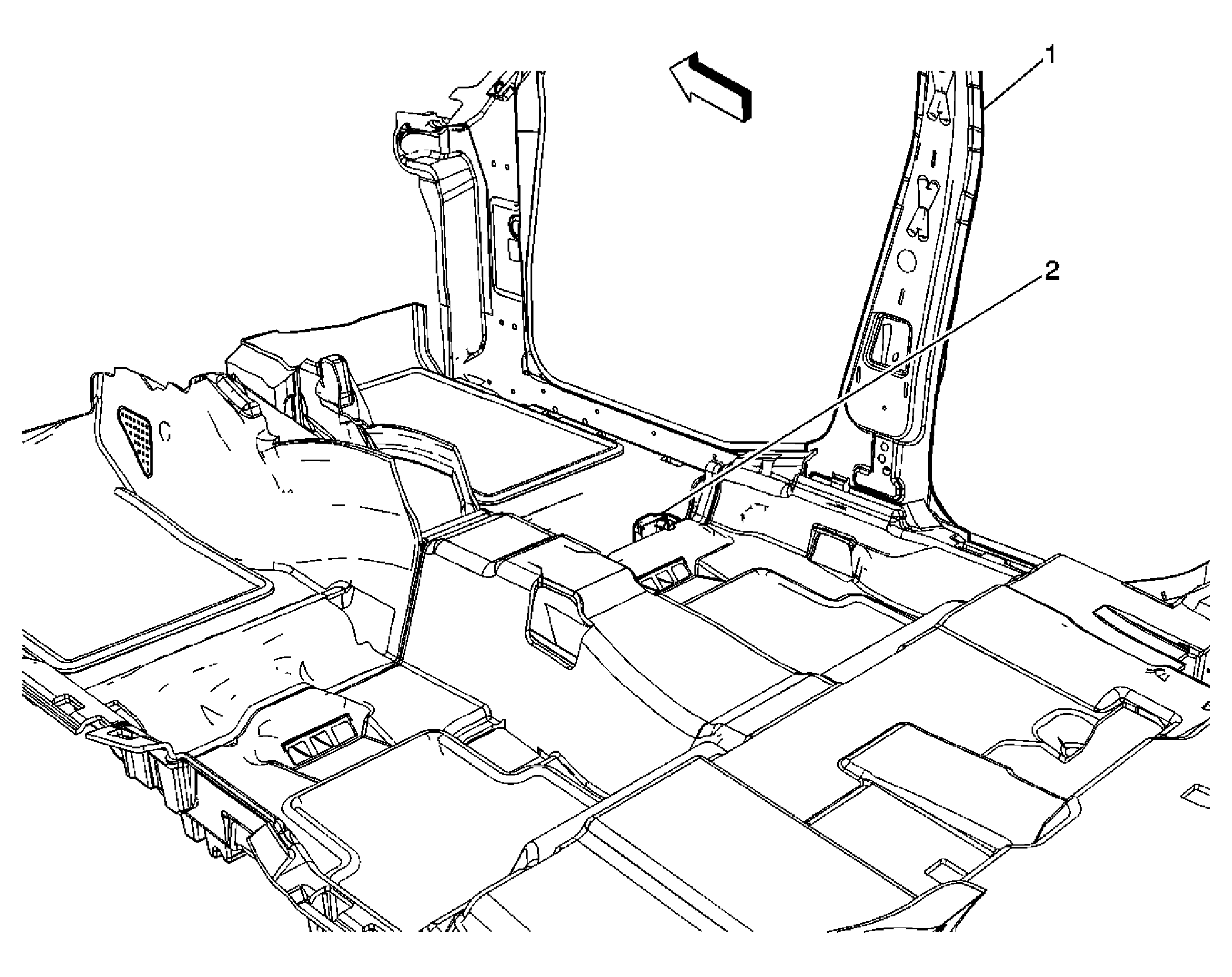

Fig 5: Identifying Below Front Passenger Seat (JL9)

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	C-Pilar
2	Yaw Rate and Lateral Acceleration Sensor (JL9)

Fig 6: Identifying Overhead Console Components

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Wiper/Washer Switch - Rear
2	Blower Motor Switch - Auxiliary (C57)
3	Rear Sunshade Switch (C3B)
4	Sunroof Switch (CF5/C3B)
5	Front Sunshade Switch (CF5/C3B)
6	Courtesy/Reading Lamp - Front
7	Courtesy/Reading Lamp - Front

Fig 7: Identifying Interior Lights Components

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Inside Rearview Mirror (ISRVM) Connector
2	Courtesy/Reading Lamp - Front Left
3	Courtesy/Reading Lamp Switch - Front Left
4	Sunshade - Left
5	Garage Door Opener (UG1)
6	Vanity Mirror Lamp Switch - Left
7	Vanity Mirror Lamp Connector - Left
8	Vanity Mirror Lamps - Left
9	Rear Wiper/Washer Switch
10	Blower Motor Switch - Auxiliary (C57)
11	Noise Compensation Microphone (UQS)
12	Vanity Mirror Lamps - Right
13	Sunshade Connector - Right
14	Sunshade - Right
15	Vanity Mirror Lamp Switch - Right
16	Courtesy/Reading Lamp Switch - Front Right
17	Courtesy/Reading Lamp - Front Right
18	Overhead Console Assembly - Center
19	Blower Motor Switch - Rear Auxiliary (C57)
20	Courtesy Lamp - Left Center
21	Courtesy Lamp Switch - Left Center
22	Blower Motor Switch Connector - Rear Auxiliary (C57)
23	Courtesy Lamps Connector
24	Courtesy Lamp Switch - Right Center
25	Courtesy Lamp - Right Center
26	Repeater Lamp - Left, Right Similar (T90)

Fig 8: Identifying ISRVM & Rear Window Defogger Grid Components

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Headlight Sensor
2	Emergency Button (UE1)
3	OnStar® Call Center Button (UE1)
4	Answer/End Call Button (UE1)
5	Cellular Microphone (UE1)
6	Inside Rearview Mirror (ISRVM) On/Off Button
7	Inside Rearview Mirror (ISRVM)
8	Rear Window Defogger Grid
9	Rear Window Wiper Motor

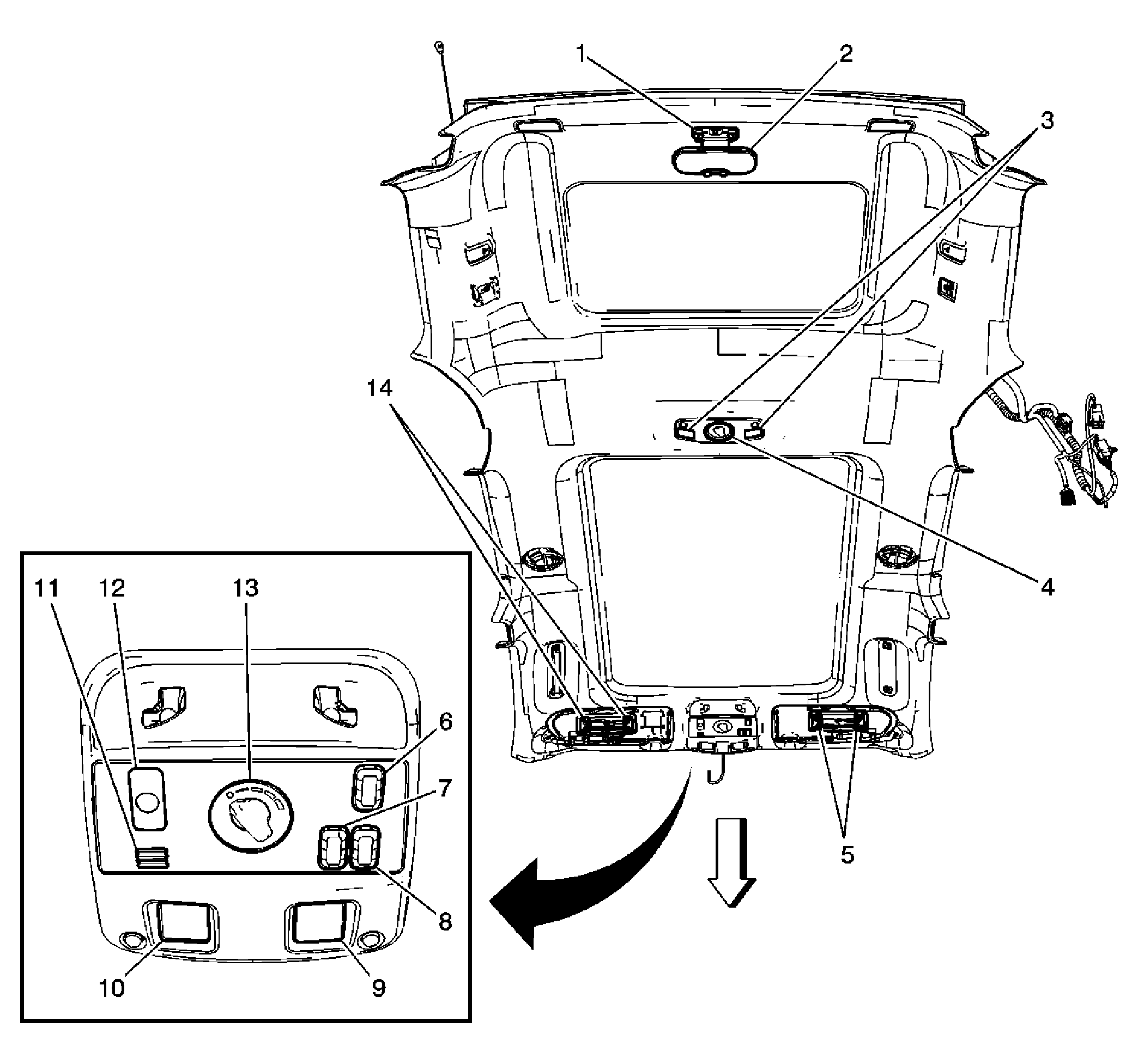

Fig 9: Identifying Headliner Components (1 Of 2)

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Rear Parking Assist (RPA) Display
2	Courtesy/Reading Lamp - Rear
3	Courtesy/Reading Lamps - Center
4	Blower Motor Switch - Auxiliary (C57)
5	Vanity Mirror Lamp - Right
6	Front Sunshade Switch (CF5/C3B)
7	Sunroof Open/Close Switch (CF5/C3B)
8	Rear Sunshade Open/Close Switch (C3B)
9	Courtesy Lamp - Right Center
10	Courtesy Lamp - Left Center
11	Noise Compensation Microphone (UQS)
12	Rear Wiper/Washer Switch
13	Blower Motor Switch - Rear Auxiliary (C57)
14	Vanity Mirror Lamp - Left

Fig 10: Identifying Headliner Components (2 Of 2)

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Blower Motor Switch - Front Auxiliary (C57)
2	Blower Motor Switch - Rear Auxiliary (C57)
3	Courtesy/Reading Lamp - Rear
4	Rear Parking Assist (RPA) Display
5	Courtesy/Reading Lamp - Center
6	Courtesy/Reading Lamp - Front

Fig 11: Identifying Sunroof Components - Mega (C3B)

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Rear Sunshade Control Module (C3B)
2	Front Sunshade Control Module (C3B)
3	Sunroof Control Module

Fig 12: Identifying Sunroof Components - Mini (CF5)

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Sunroof Control Module
2	Front Sunshade Control Module

Fig 13: Identifying Driver Seat Components

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Seat Recline Motor
2	Seat Recline Motor Position Sensor (A45)
3	Seat Front Vertical Position Sensor (A45)
4	Seat Front Vertical Motor
5	Seat Horizontal Motor
6	Seat Horizontal Position Sensor (A45)
7	Seat Rear Vertical Motor
8	Seat Rear Vertical Position Sensor (A45)
9	Seatbelt Switch - Left
10	Inflatable Restraint Side Impact Module - Left
11	Seat Lumbar Switch
12	Seat Adjuster Switches
13	X300
14	X301

Fig 14: Identifying Driver Power Seat Motors & Switches

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Seat Belt Switch - Driver
2	Seat Adjuster Switch - Driver
3	Seat Recline Motor - Driver
4	Seat Horizontal Motor - Driver
5	Seat Vertical Motor - Driver

Fig 15: Identifying Passenger Seat Components

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Inflatable Restraint Side Impact Module - Right
2	Seatbelt Switch - Right
3	Inflatable Restraint Front Passenger Presence System (PPS) Sensor
4	Inflatable Restraint Front Passenger Presence System (PPS) Module
5	X306
6	X307
7	Seat Adjuster Switches
8	Seat Lumbar Switch
9	Seat Rear Vertical Motor
10	Seat Horizontal Motor
11	Seat Front Vertical Motor
12	Seat Position Switch
13	Seat Recline Motor

Fig 16: Identifying Seat Lumbar Motors & Sensors (AL2)

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Driver Seat
2	Front Passenger Seat
3	Seat Lumbar Motor - Passenger (AL2)
4	Lumbar Position Sensor - Driver (A45)
5	Seat Lumbar Motor - Driver (AL2)

Fig 17: Identifying Front Heated Seat Components

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Heated Seat Element - Driver Seat Cushion (KA1), Passenger Side Similar
2	Heated Seat Element - Driver Seat Back (KA1), Passenger Side Similar
3	Memory Seat Module (MSM) - (A45)

Fig 18: Identifying Third Row Folding Seats Components (AM0)

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Third Row Seats
2	Folding Seat Rotation Motor Assembly
3	Seat Back Load Floor Position Switch
4	Folding Seat Recline Motor Assembly
5	Folding Seat Horizontal Motor Assembly
6	Rear Seat Module
7	X311
8	Seat Back Panel Position Switch
