Sunroof Drive and Return Cable Identification
WARNING: This page is about a different car, the 2008 Cadillac SRX. However, it is still accessible from the selected car via links, so may be relevant.
Courtesy of GENERAL MOTORS CORP.

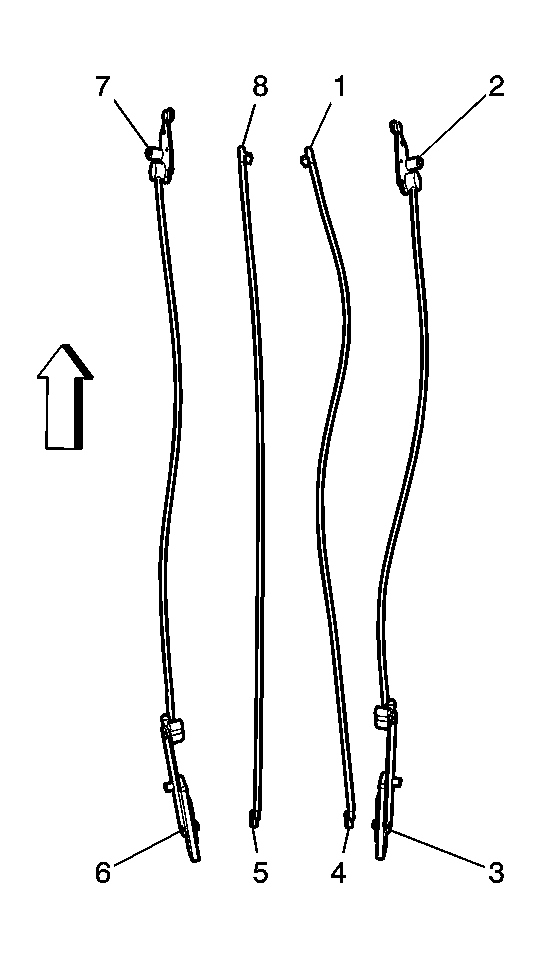

| Callout |
Component Name |
| 1 |
Sunshade Cable, Right Front |
| 2 |
Glass Panel Cable, Right Front |
| 3 |
Vent Glass Panel Cable, Right Rear |
| 4 |
Sunshade Cable, Right Rear |
| 5 |
Sunshade Cable, Left Rear |
| 6 |
Vent Glass Panel Cable, Left Rear |
| 7 |
Glass Panel Cable, Left Front |
| 8 |
Sunshade Cable, Left Front |
Courtesy of GENERAL MOTORS CORP.

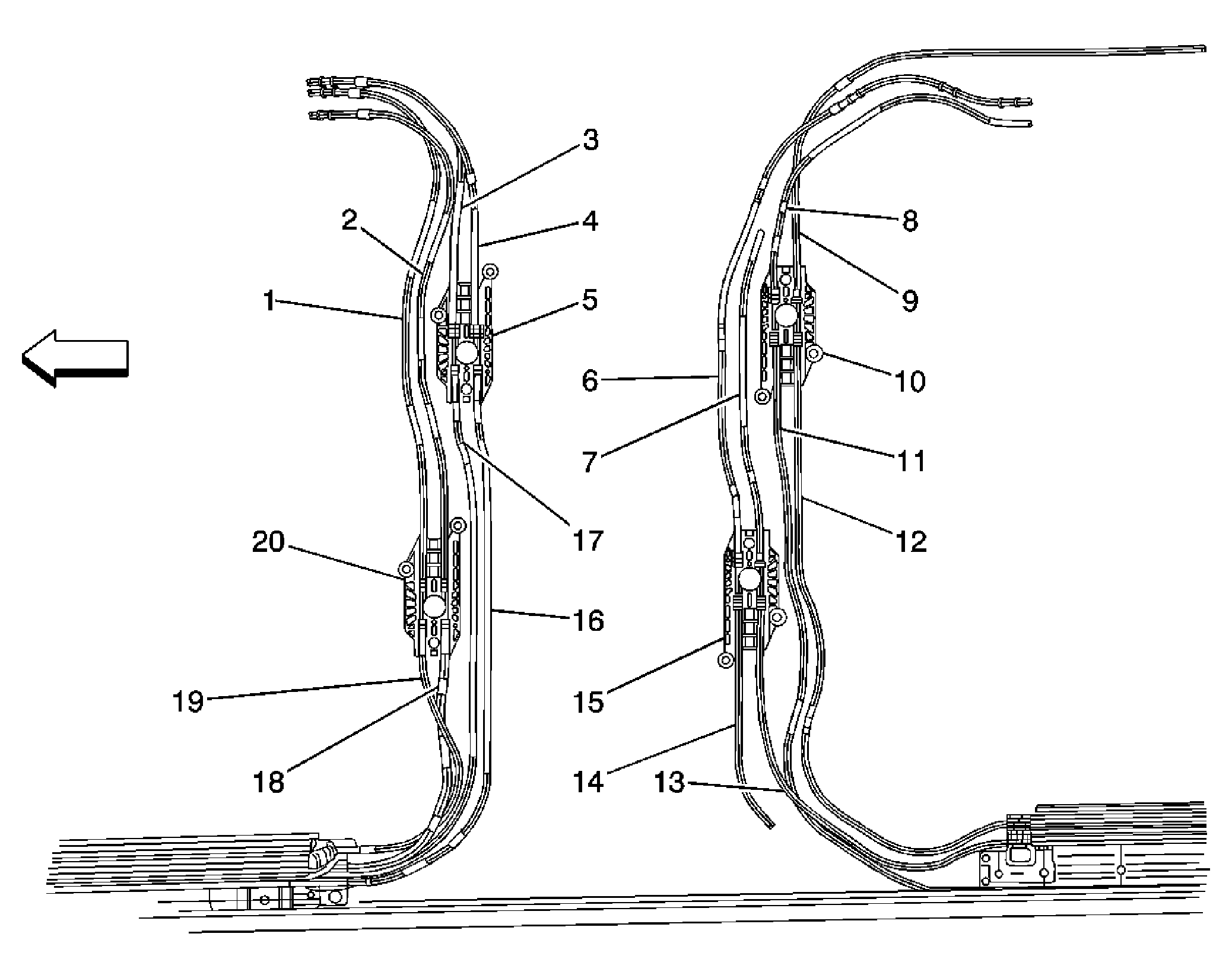

| Callout |
Component Name |
| 1 |
Sunshade Cable Return Tube, Right Front |
| 2 |
Sunshade Cable Drive Tube, Right Front |
| 3 |
Window Cable Return Tube, Right Front |
| 4 |
Window Cable Drive Tube, Right Front |
| 5 |
WIndow Motor Block, Right Front |
| 6 |
Window Vent Cable Drive Tube, Right Rear |
| 7 |
Window Vent Cable Return Tube, Right Rear |
| 8 |
Sunshade Cable Drive Tube, Right Rear |
| 9 |
Sunshade Cable Return Tube, Right Rear |
| 10 |
Sunshade Motor Block, Right Rear |
| 11 |
Sunshade Cable Return Tube, Left Rear |
| 12 |
Sunshade Cable Drive Tube, Left Rear |
| 13 |
Window Vent Cable Drive Tube, Left Rear |
| 14 |
Window Vent Cable Return Tube, Left Rear |
| 15 |
WIndow Vent Motor Block, Rear |
| 16 |
Window Cable Return Tube, Left Front |
| 17 |
Window Cable Drive Tube, Left Front |
| 18 |
Sunshade Cable Return Tube, Left Front |
| 19 |
Sunshade Cable Drive Tube, Left Front |
| 20 |
Sunshade Motor Block, Left Front |
